A-VPH5224-AI Disc, PTO Clutch
A-VPH5224-AI Disc, PTO Clutch
Couldn't load pickup availability

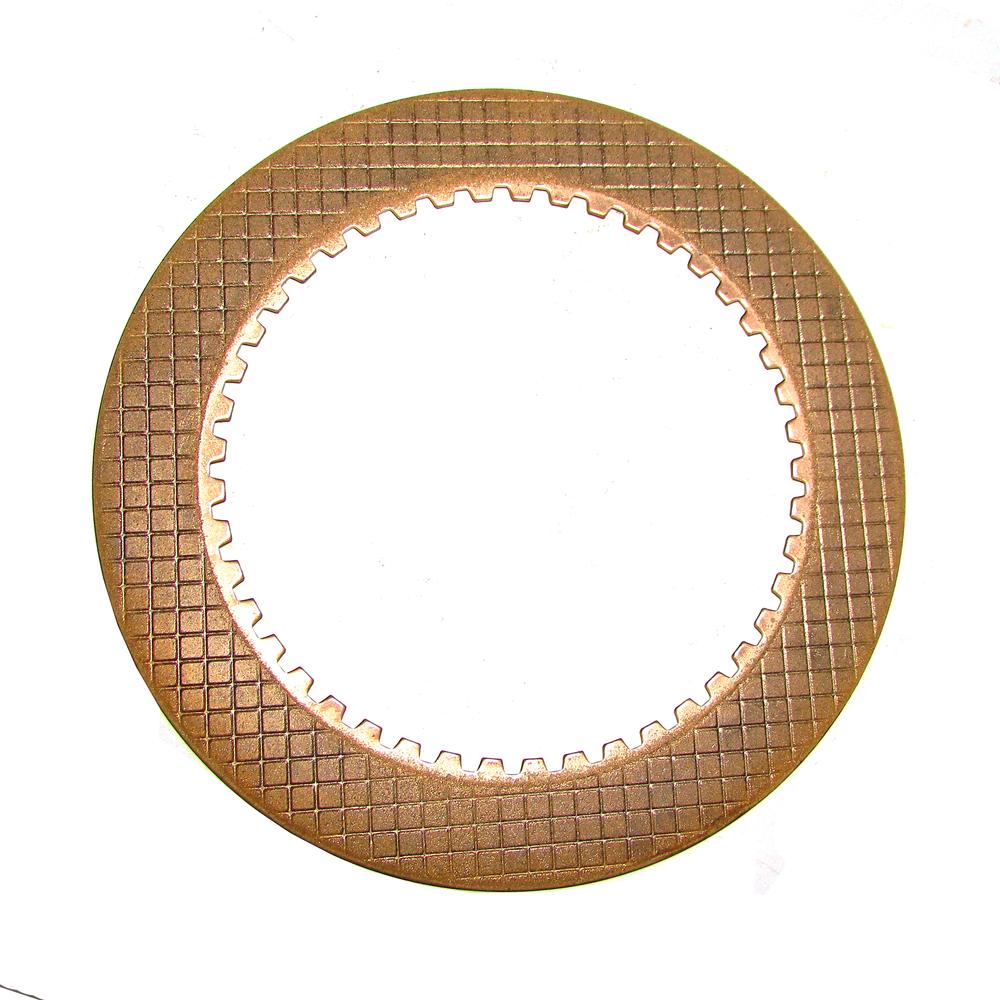

One New Aftermarket Replacement PTO Clutch Friction Disc Fits Ford/New Holland Tractors
This brass PTO clutch friction disc is a direct replacement for the independent power take-off (PTO) clutch pack on Fits Ford and Fits New Holland tractors. The disc features 45 internal splines and engages within the PTO clutch assembly to transfer engine power to rear-mounted implements. Replaces OEM part numbers C5NNP743B and 81816970.
Specifications
- Material: Brass
- Outside Diameter: 5.25 in. (133 mm)
- Inside Diameter (Major): 3.850 in.
- Inside Diameter (Minor): 3.665 in.
- Width / Thickness: 0.082 in. (2 mm)
- Internal Splines: 45
- Spline OD: 97 mm
- Spline ID: 93 mm
Compatible Models
Fits Ford/New Holland: 2000, 2100, 2110, 2120, 2150, 2300, 2310, 3000, 3055, 3100, 3110, 3120, 3150, 3190, 3300, 3310, 3330, 3400, 3500, 3550, 3550 US Built, 3900, 4000, 4000 US Built, 4100, 4110, 4140, 4190, 4200, 4330, 4340, 4400, 4400 US Built, 4410, 4500, 4500 US Built, 4600, 4600 US Built, 4600NO, 4600O, 4600SU, 5000, 5100, 5190, 5200, 5340, 5700, 5900, 515, 515 US Built, 531, 531 US Built, 532, 532 US Built, 535, 535 US Built, 540, 540A, 540B, 545, 545 US Built, 545A, 6000, 6600, 6610, 6700, 7000, 7100, 7200, 7600, 7700, 340, 340A, 340B, 420, 420 US Built, 445, 445 US Built, TS80, TS90, TS100, TS110, TS115
Replaces Part Number(s):
C5NNP743B, C5NNP743B-A, 81816970
New aftermarket replacement part - not remanufactured, not used.
