A-SSM100 Seat Suspension w/ Rails - Fits John Deere
A-SSM100 Seat Suspension w/ Rails - Fits John Deere
Regular price
£313.00 GBP
Regular price
Sale price
£313.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

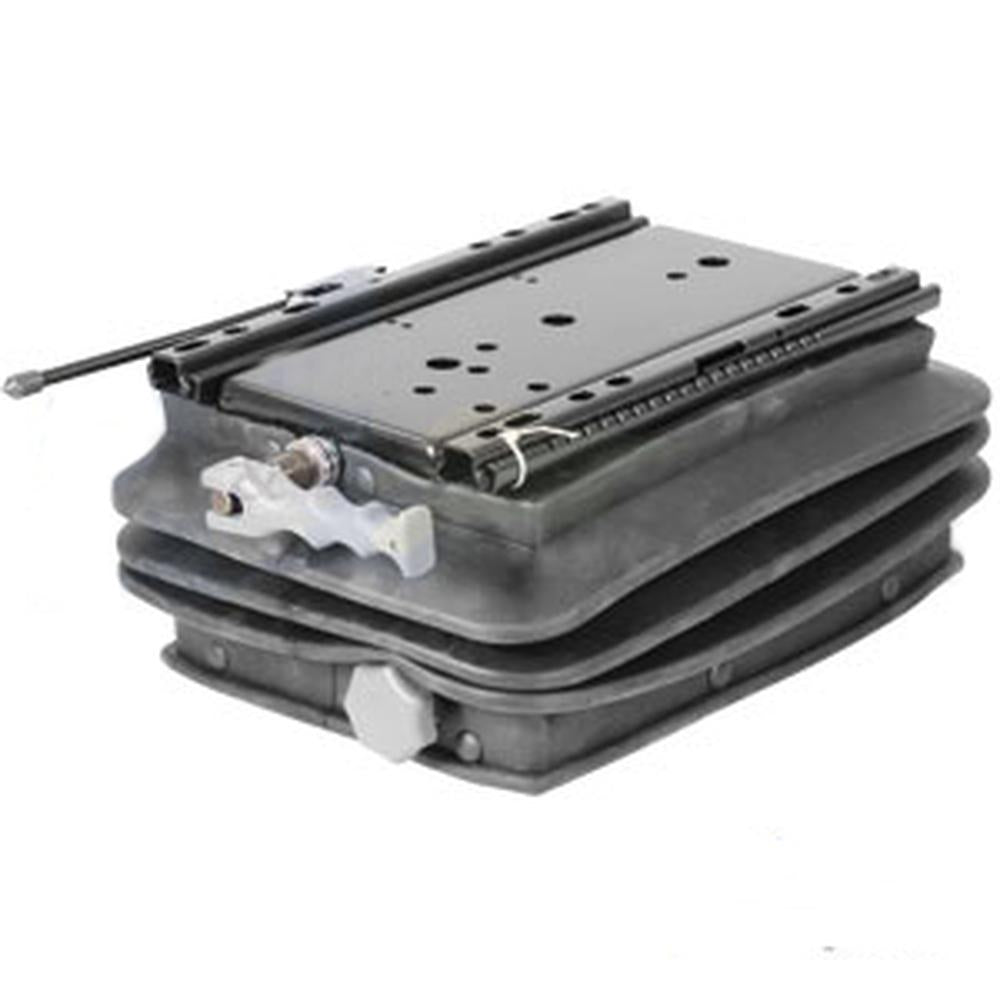

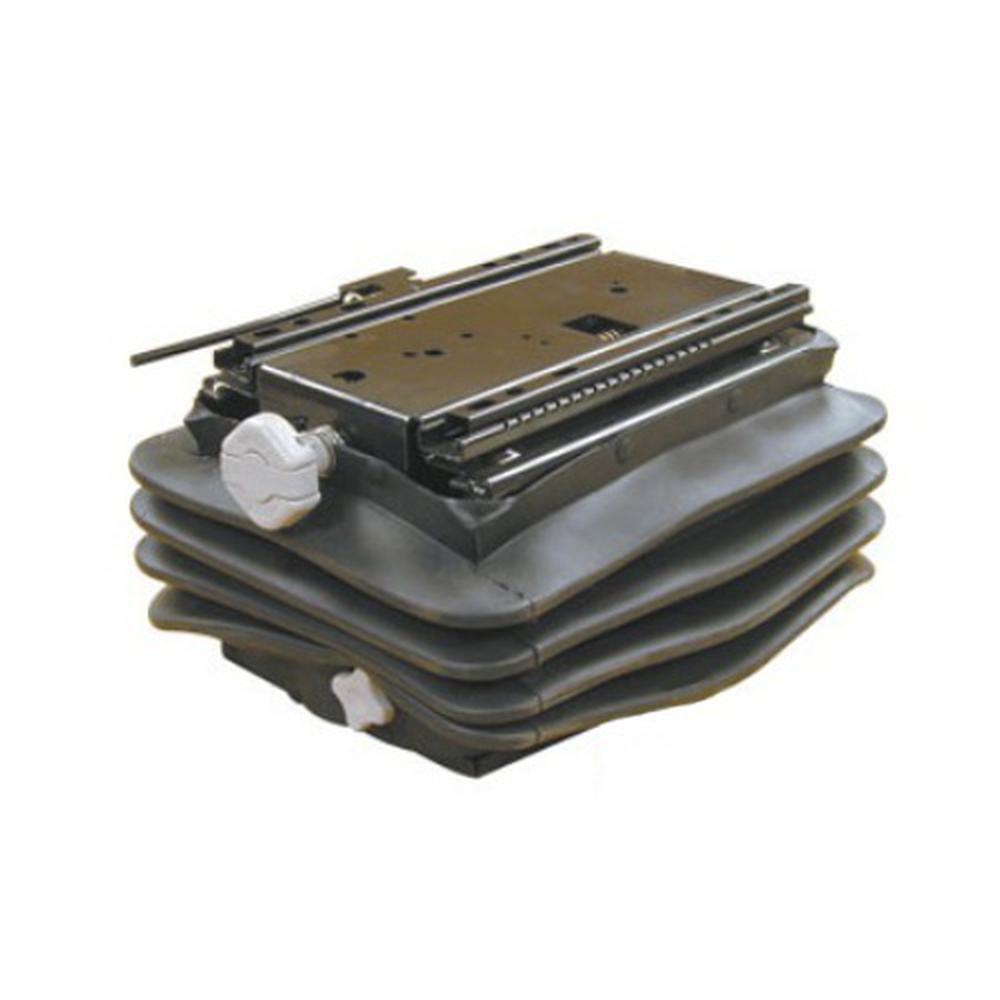

One New Aftermarket Replacement Seat Suspension w/ Rails
Fits John Deere Models:
5083E, 5093E, 5101E, 5220, 5225, 5320, 5325, 5420, 5425, 5520, 5525, 5603, 5625, 6110, 6110L, 6120, 6120L, 6200, 6200L, 6210, 6210L, 6215, 6220, 6220L, 6230, 6300, 6300L, 6310, 6310L, 6320, 6330, 6400, 6400L, 6403, 6405, 6410, 6410L, 6415, 6420, 6420L, 6430, 6500, 6500L, 6510L, 6603, 6605, 6615, 6715, 7130, 7230, 7330
Tech Info:
- Mechanical Suspension
- Suspension Stroke 4" / 100mm

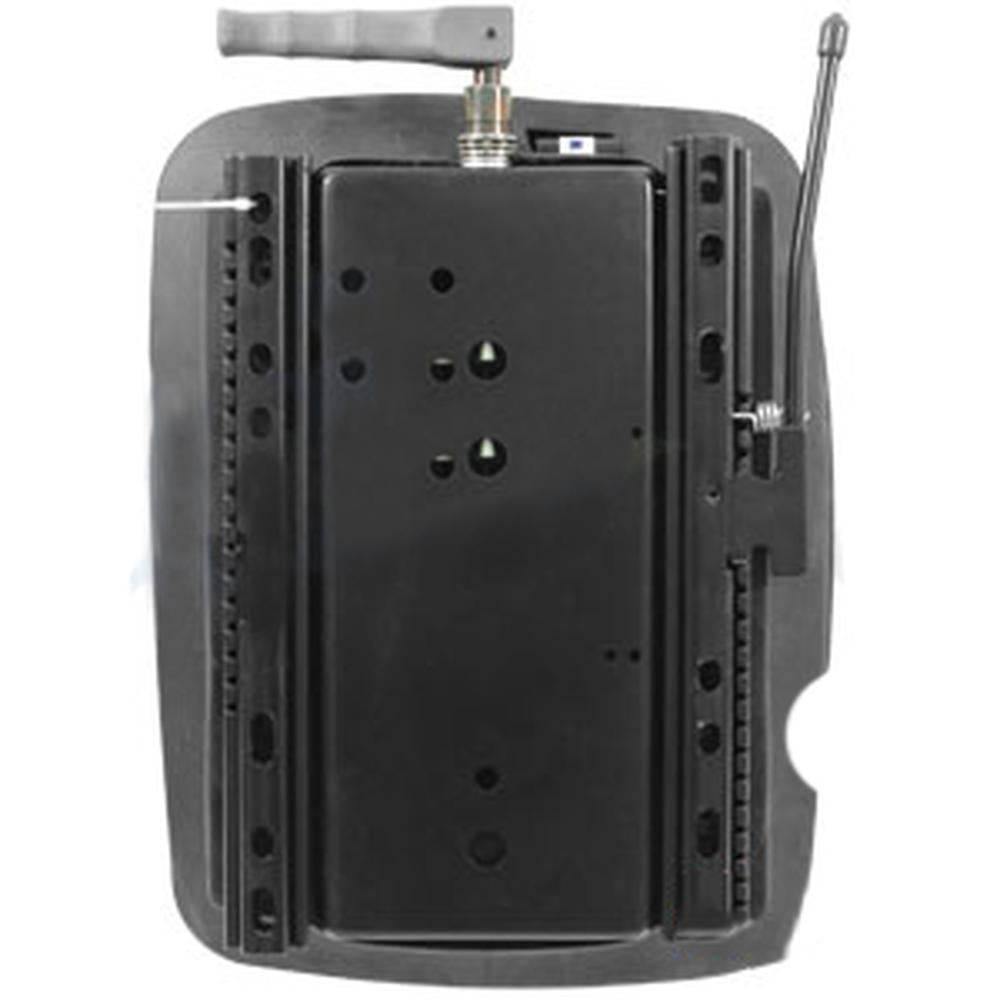

- Slide Track Fore & Aft Travel Is 6" / 150mm, C to C rail to rail is 6.75"
- Weight Adjustment 110 - 330 lbs. / 50 - 150kg
- All dimensions & specifications must be checked before ordering.
- This is a universal suspension meant for a flat mounting surface.
- Some applications may require drilling & bracket fabrication to mount.

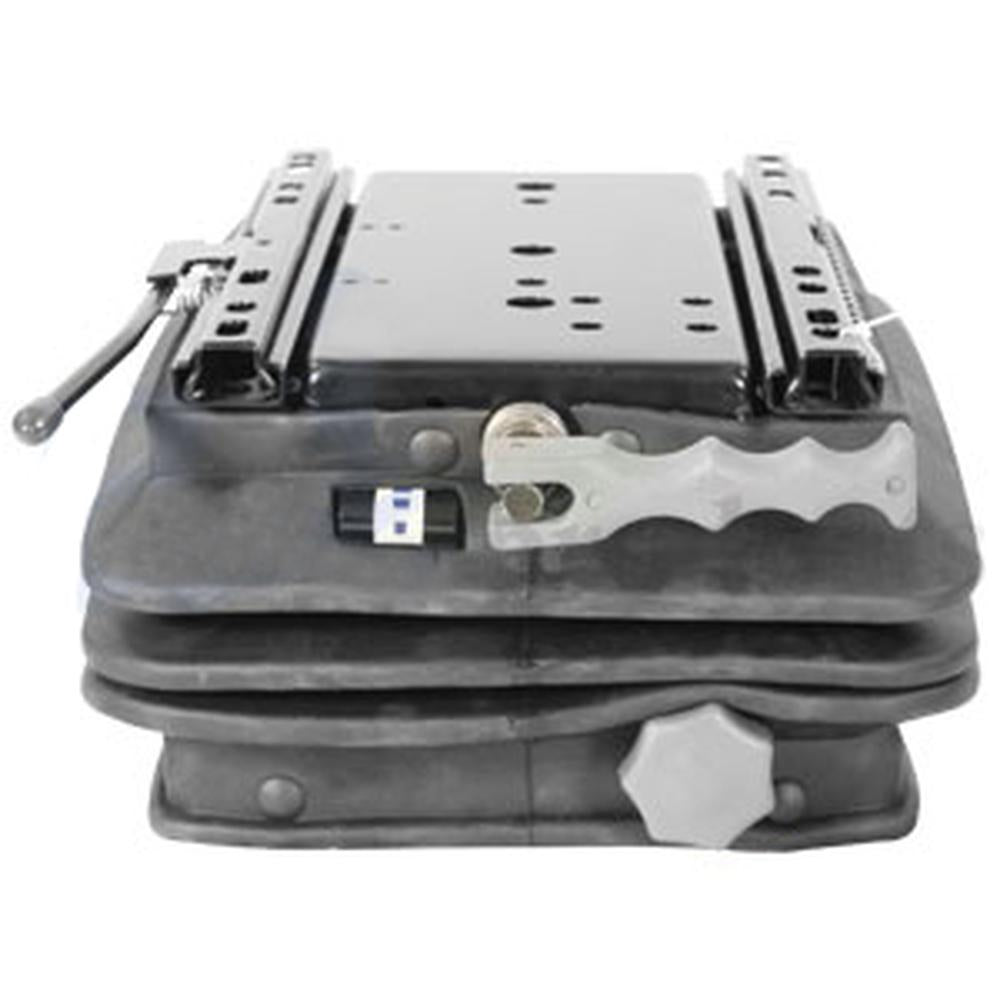

- Black long lever is for the slide track

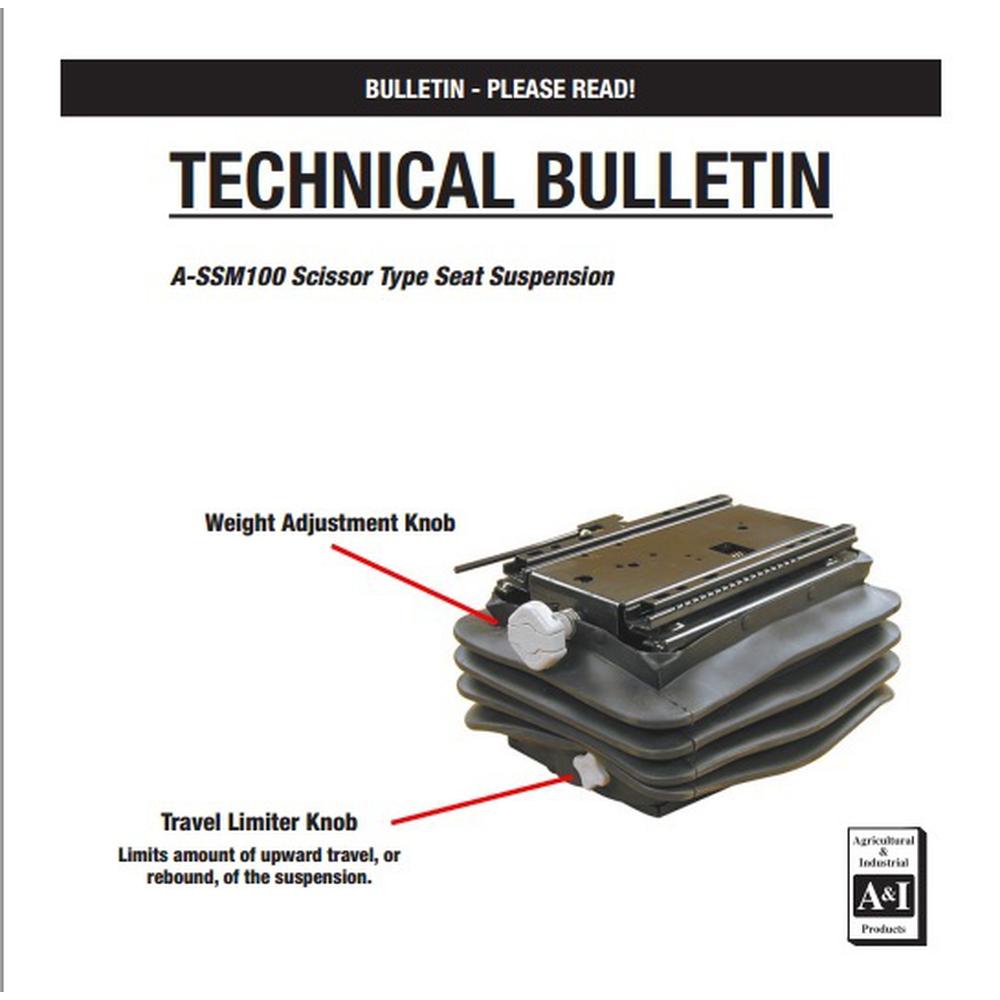

- Gray handle lever in the middle is for adjusting the weight
- Gray star shaped knob is to adjust suspension up or down
- The following seats can be added to this suspension.F20ST105, F20ST135, F20ST145, F20ST155, TMS111BL, TMS111YL, TMS111GR, TMS444BL, TMS444YL, TMS444GR, LGS100BL, LGS100YL, T500BL, T500GY, FLS122BL, FLS322BL, T110BL, T110YL, T122BL
Replace Part Numbers: A-SSM100, A-SSM100-A, 8079
