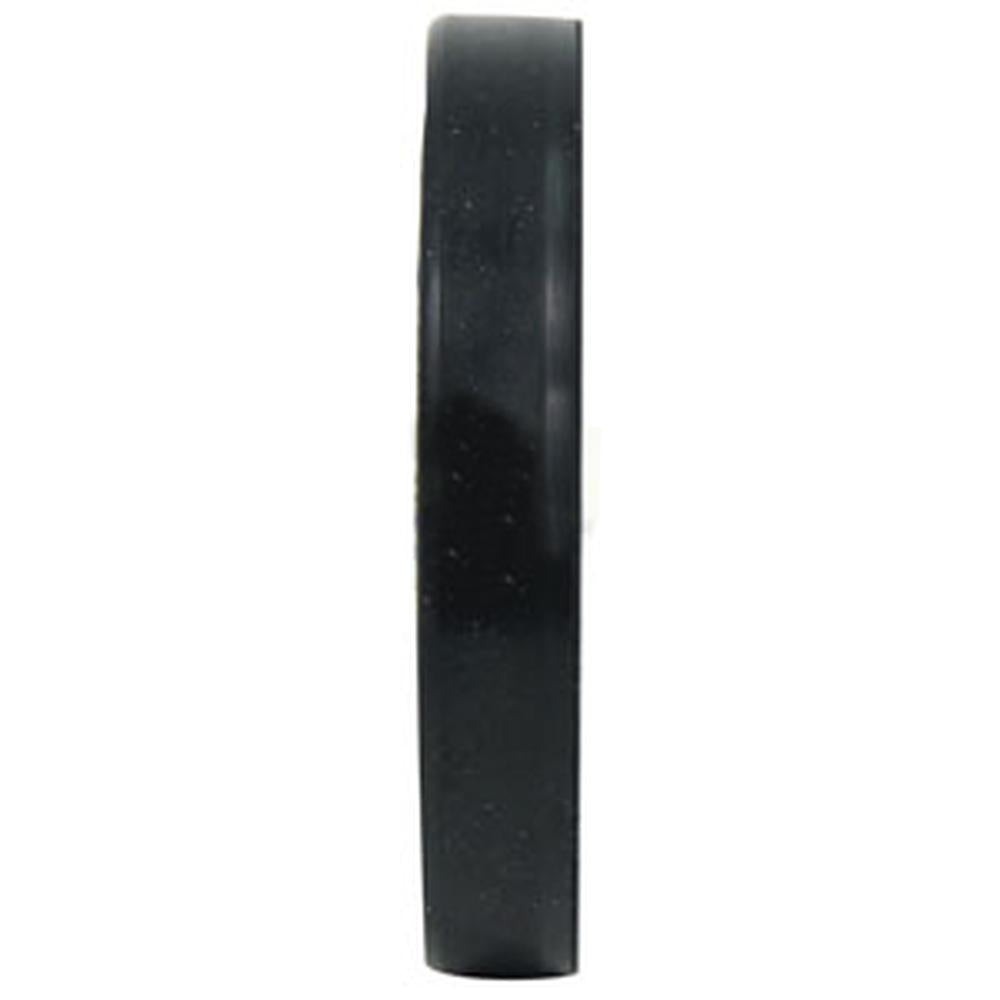

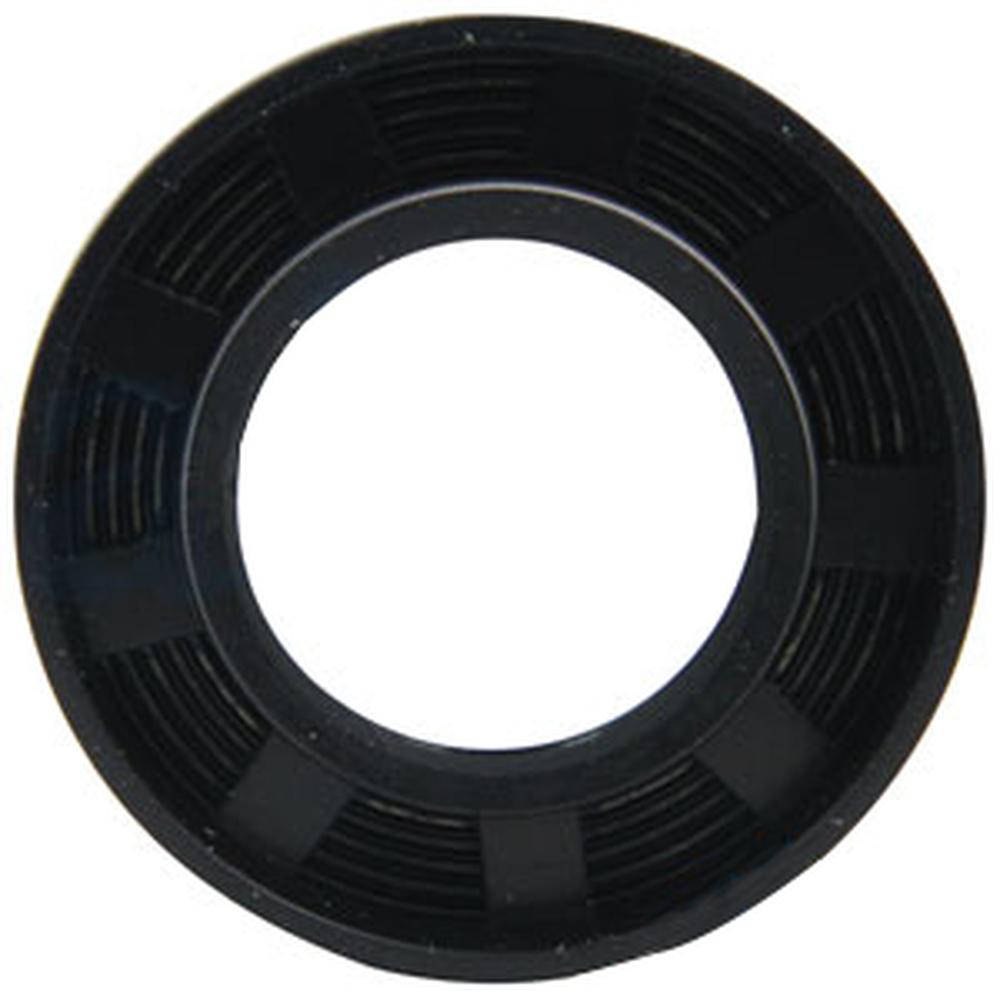

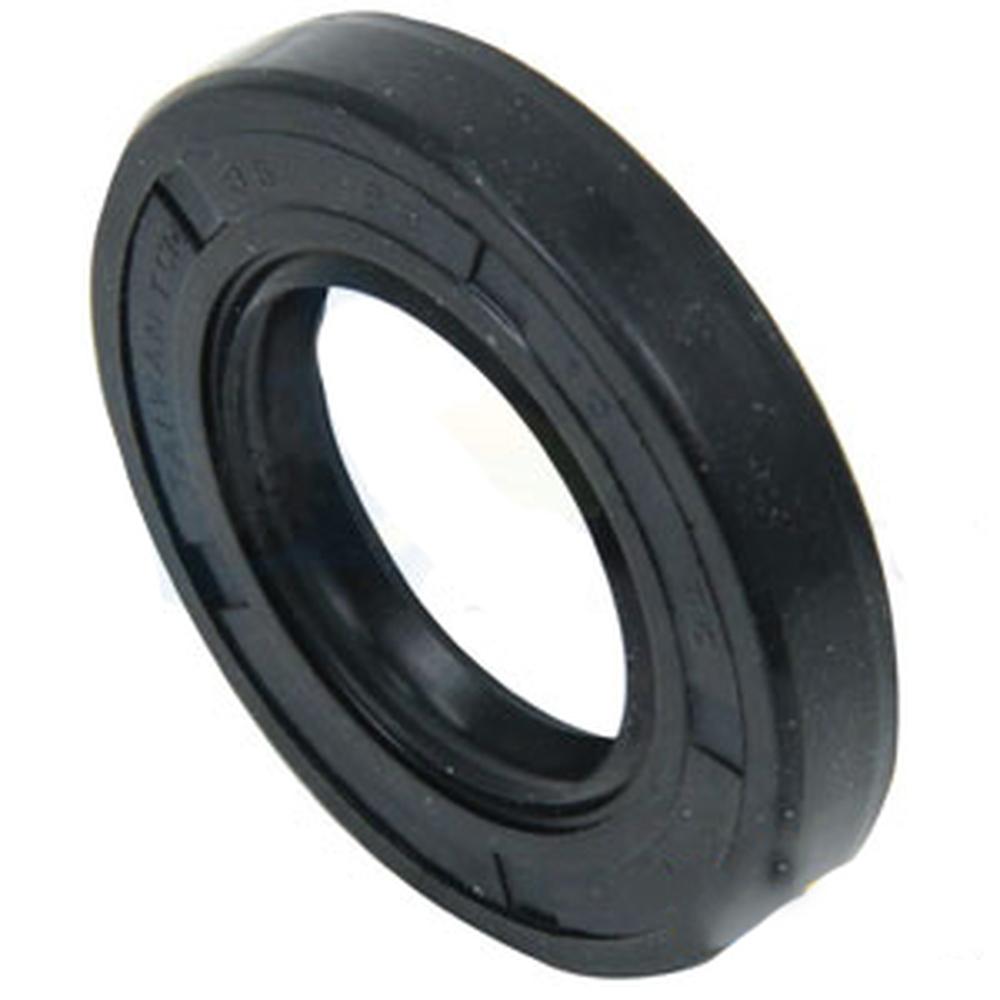

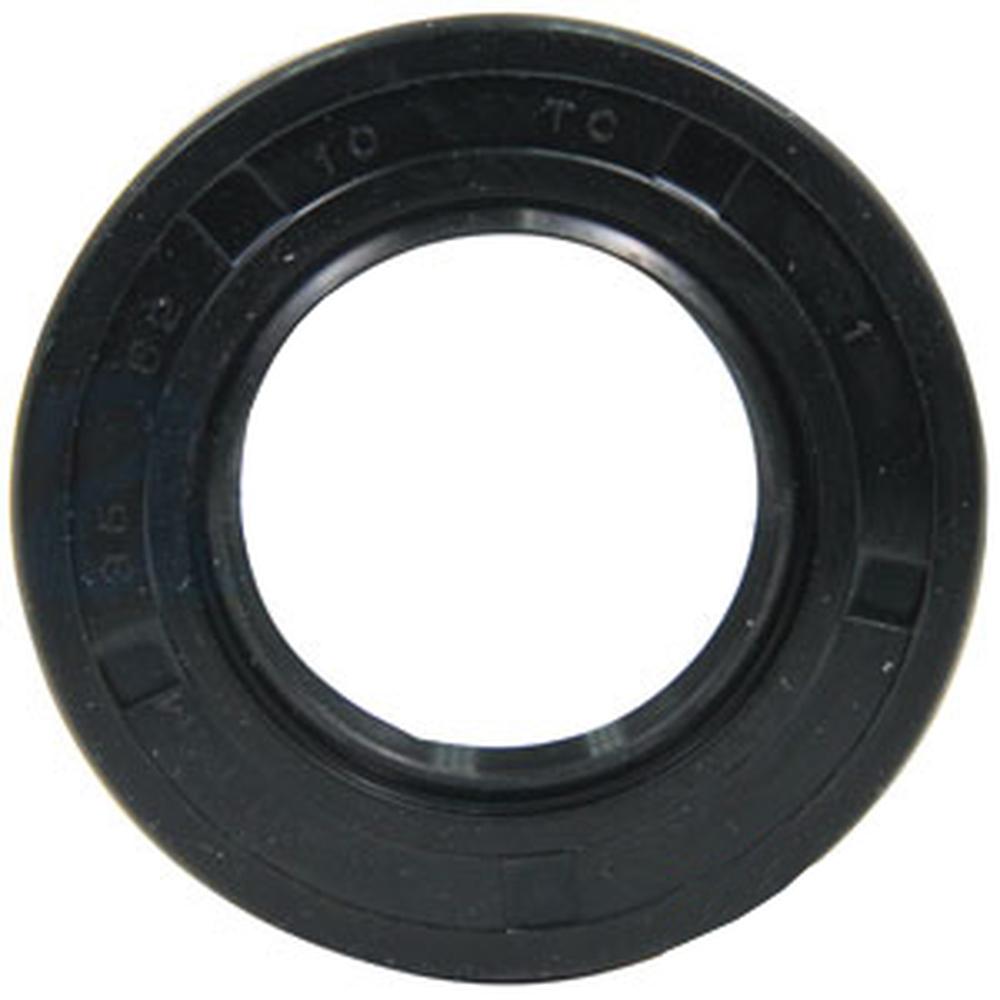

A-S35X62X10-AI Oil Seal

One New Aftermarket Replacement Oil Seal - 35mm x 62mm x 10mm Metric TC Double Lip

This metric TC (Type C) rotary shaft oil seal features a double-lip design with a spring-loaded primary lip and a secondary dust exclusion lip. It is used wherever rotating shafts require lubrication retention and contamination exclusion -- including gearboxes, transmissions, hydraulic pumps and motors, axles, PTO shafts, and general agricultural and industrial machinery. The inner metal Fits Case reinforcement provides rigidity, while the nitrile rubber (NBR) construction offers broad compatibility with mineral oils, greases, and hydraulic fluids.

Specifications

• Inside Diameter (ID): 35mm
• Outside Diameter (OD): 62mm
• Thickness (Width): 10mm
• Seal Type: TC - Double lip, rubber covered, garter spring
• Lip Material: Nitrile Rubber (NBR)
• Operating Temperature: -30 degrees C to +100 degrees C (NBR typical range)

Typical Applications

Gearboxes and reducers, hydraulic pumps and motors (low-pressure shaft sealing), agricultural equipment transmissions and axles, PTO shafts, drive shafts, electric motors, and general rotating machinery. Confirm shaft diameter, bore diameter, and housing width before ordering.

Replaces Part Number(s):

S35X62X10, A-S35X62X10-AI

New aftermarket replacement part - not remanufactured, not used.
