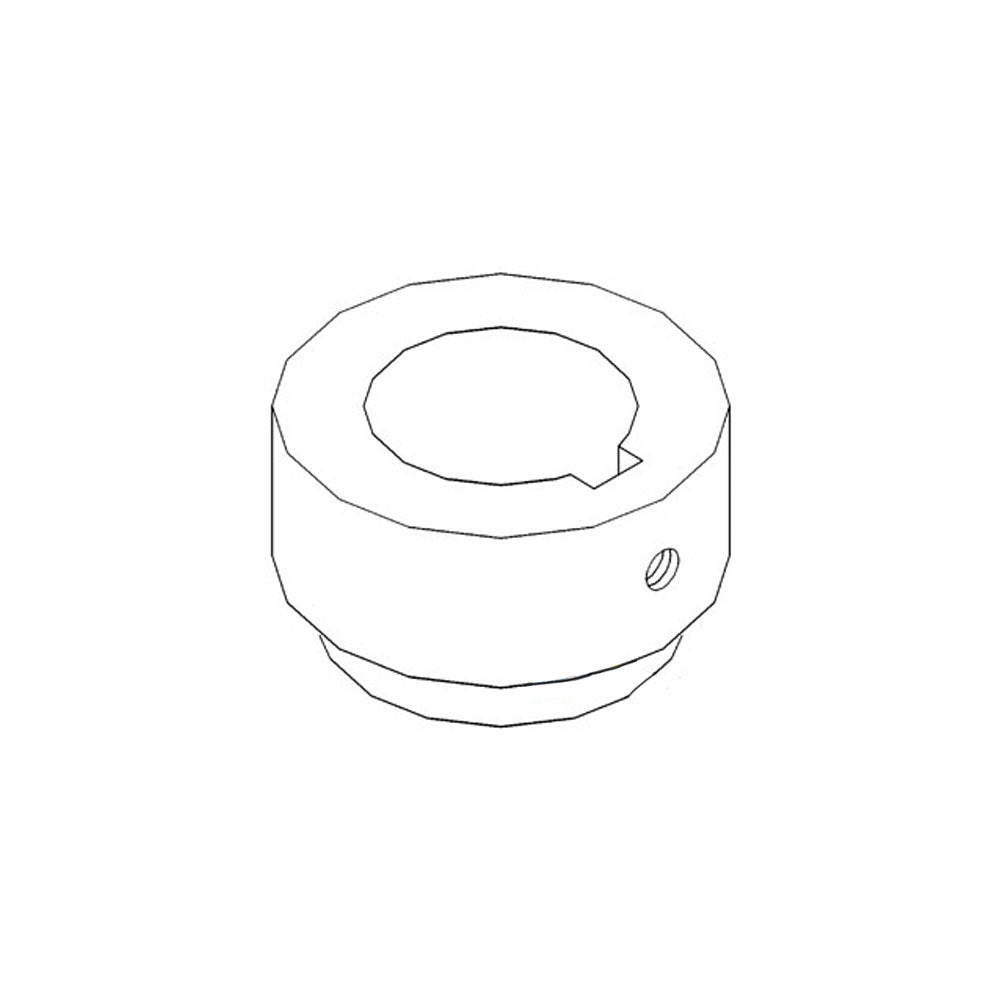

One New Aftermarket Replacement W Series Weld-On Hub - 1-1/4" Round Bore
This W series weld-on hub is a universal power transmission component used to mount W-type roller chain sprockets and pulleys onto a shaft. The hub is welded into the sprocket or pulley bore, then secured to the shaft via a standard keyway and two set screws, creating a solid, reliable drive connection across agricultural, lawn and garden, and industrial equipment applications.
Specifications
- Hub Series: W Series
- Bore: 1-1/4" Round
- Fits Sprocket/Pulley ID: 1-5/8"
- Outside Diameter (Larger Section): 1-13/16"
- Outside Diameter (Smaller Section): 1-5/8"
- Keyway Size: 1/4" x 1/8"
- Includes: Standard keyway and two set screws
Compatible Applications
Fits universally with W-type roller chain sprockets and pulleys having a 1-5/8" bore. Common in agricultural machinery, lawn and garden equipment, and general power transmission assemblies requiring a 1-1/4" shaft bore.
Replaces Part Number(s):
RBW1-14, A-RBW1-14, HW1-1/4
New aftermarket replacement part - not remanufactured, not used.
