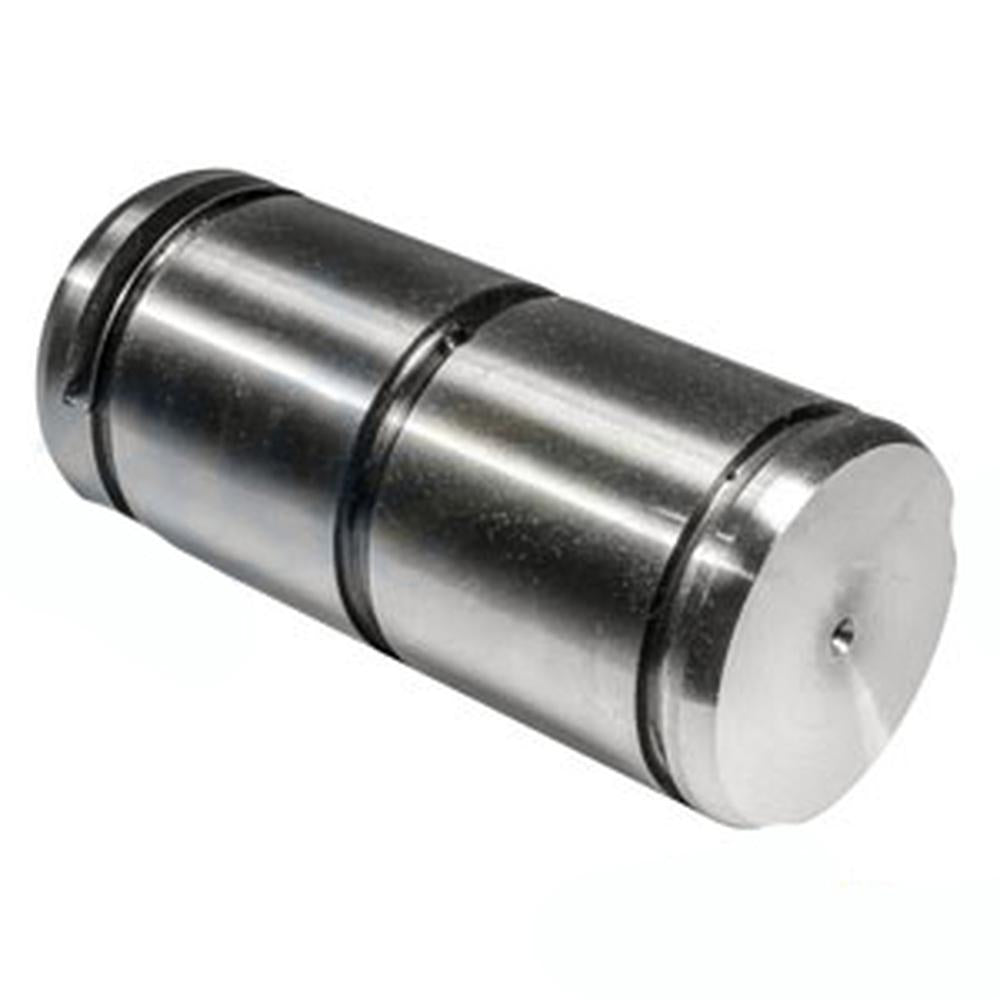

A-R343193-AI Pin; Steering Cylinder, Front, Greasable

One New Aftermarket Replacement Front Steering Cylinder Pin (Greasable) Fits John Deere 9 Series Tractors

This greasable front steering cylinder pin is a precision-fit replacement Fits John Deere large-frame 9 Series row-crop and articulated tractors. It secures the front steering cylinder within the steering and brakes system and features a grease-fitting design for in-service lubrication, helping extend service life under heavy field loads. OEM part number R343193 has been superseded by Fits John Deere groove pin R568624; this aftermarket replacement is compatible with the original greasable-pin design machines.

Specifications

• Diameter: 62.81 mm (2.47 in)
• Length: 142 mm (5.59 in)
• Groove diameter: 57.60 mm (2.27 in)
• Groove width: 4.82 mm (0.19 in)
• Groove location: 21.32 mm (0.84 in) from end
• Type: Greasable front steering cylinder pin

Compatible Models

Fits John Deere 9 Series Tractors: 9230, 9330, 9360R, 9370R, 9410R, 9420R, 9420RX, 9430, 9460R, 9470R, 9470RX, 9510R, 9520R, 9520RX, 9530, 9560R, 9570R, 9570RX, 9620R, 9620RX, 9630

Replaces Part Number(s):

R343193, A-R343193, A-R343193-AI

Aftermarket Interchange Numbers

Superseded by Fits John Deere R568624 (groove pin design). This aftermarket part replaces the original greasable-design pin R343193.

New aftermarket replacement part - not remanufactured, not used.
