A-N135002-AI Harrow Tine
A-N135002-AI Harrow Tine
Regular price
£32.00 GBP
Regular price
Sale price
£32.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

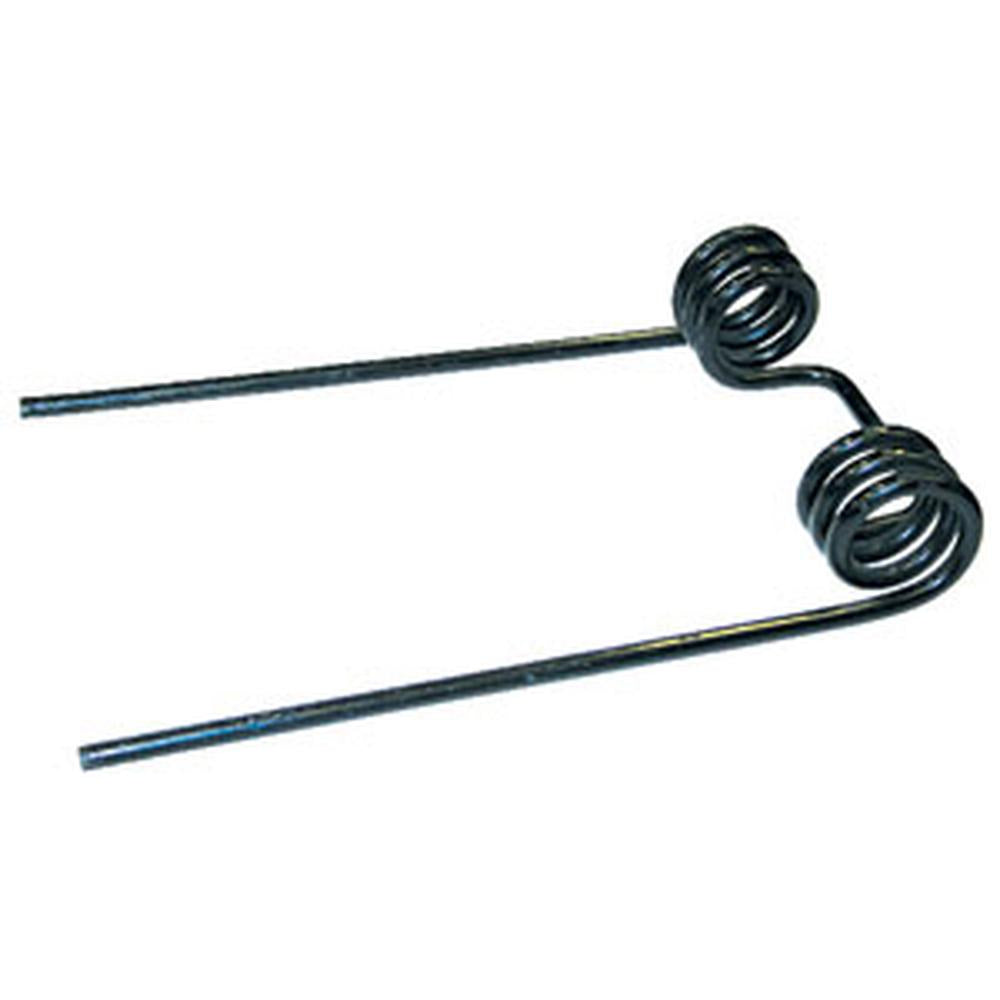

One New Aftermarket Replacement Coil Spring Harrow Tine Fits John Deere Harrows
This aftermarket replacement coil spring harrow tine is a direct replacement Fits John Deere OEM part number N135002. Also known as a harrow tooth or sprint tooth, this tine Fits John Deere coil-tine harrow attachments built prior to 1974. The coil spring design allows the tine to flex over rocks and obstructions, protecting the frame while maintaining consistent soil contact for effective tillage and seedbed preparation.
Specifications
- Overall Tine Length (A): 13.75 in.
- Tine Gap (B): 7.75 in.
- Coil O.D. (C): 2.37 in.
- Wire Diameter: 0.375 in.
- Weight: 2.24 lbs.
Compatible Models
Fits John Deere Harrows: Several harrow attachments built prior to 1974. Also interchanges with Kuhn/Krause harrow applications (cross-reference 76126).
Replaces Part Number(s):
N135002, A-N135002, A-N135002-AI, 96JD1B
Aftermarket Interchange Numbers
76126 (Kuhn/Krause)
New aftermarket replacement part - not remanufactured, not used.
