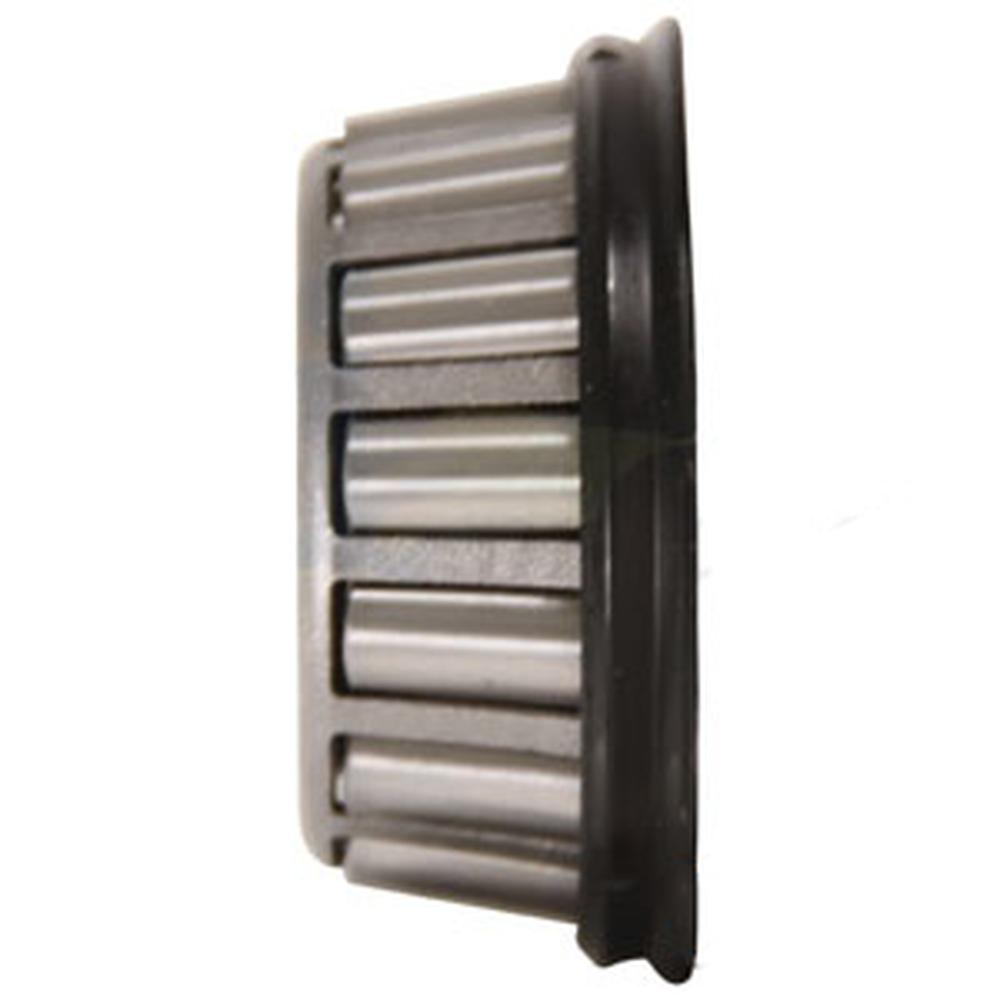

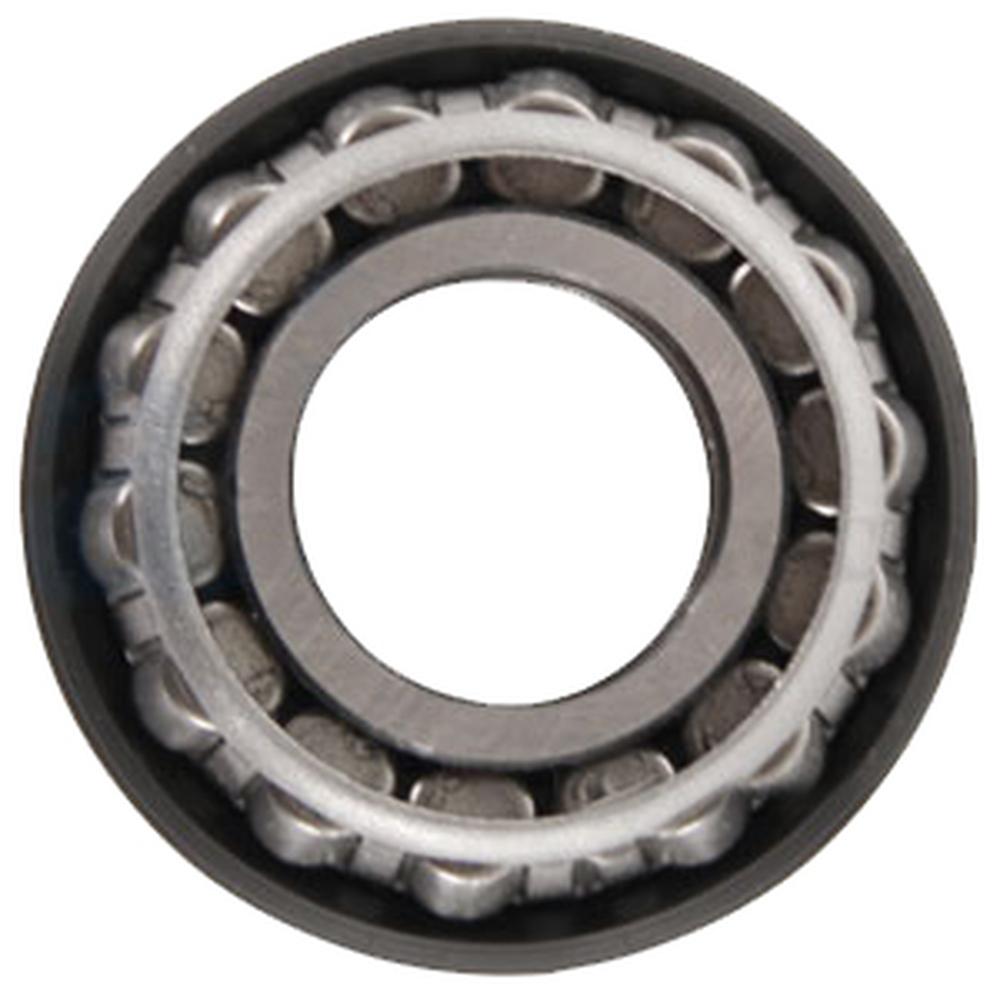

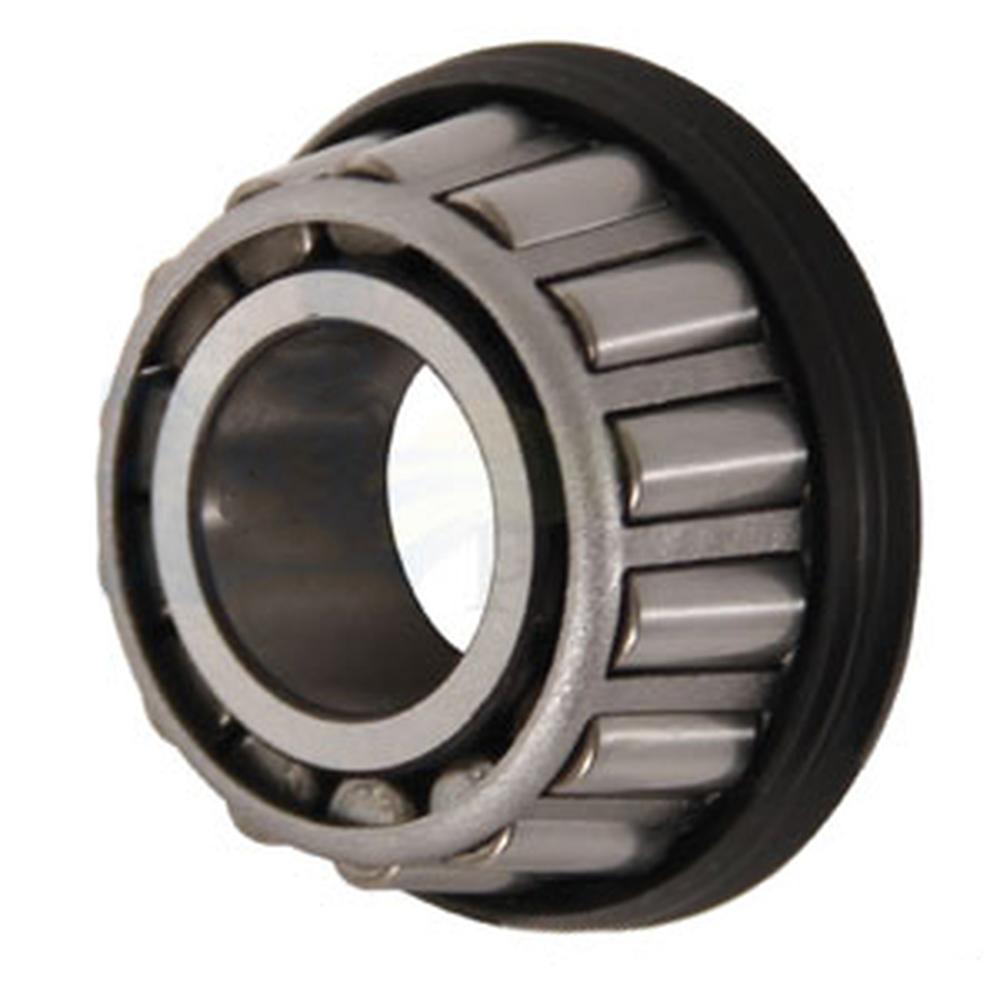

A-M12600LA-P-AI Cone, Tapered Roller Bearing

One New Aftermarket Replacement Cone, Tapered Roller Bearing - Timken M12600LA Series

This tapered roller bearing cone (inner ring assembly) is a single-row, imperial-dimension replacement bearing in the Timken M12600LA TSL series. The cone consists of the inner ring and tapered rollers and is designed to work with a matching M12610 cup (sold separately) to form a complete tapered roller bearing assembly capable of handling both radial and axial loads. The DUO-FACE Plus sealed design integrates a multi-lip contact seal that retains grease and excludes contaminants, making it well-suited for agricultural equipment, construction machinery, and other off-highway applications operating in dirty or wet environments.

Specifications

• Type: Single-Row Tapered Roller Bearing Cone, TSL Series

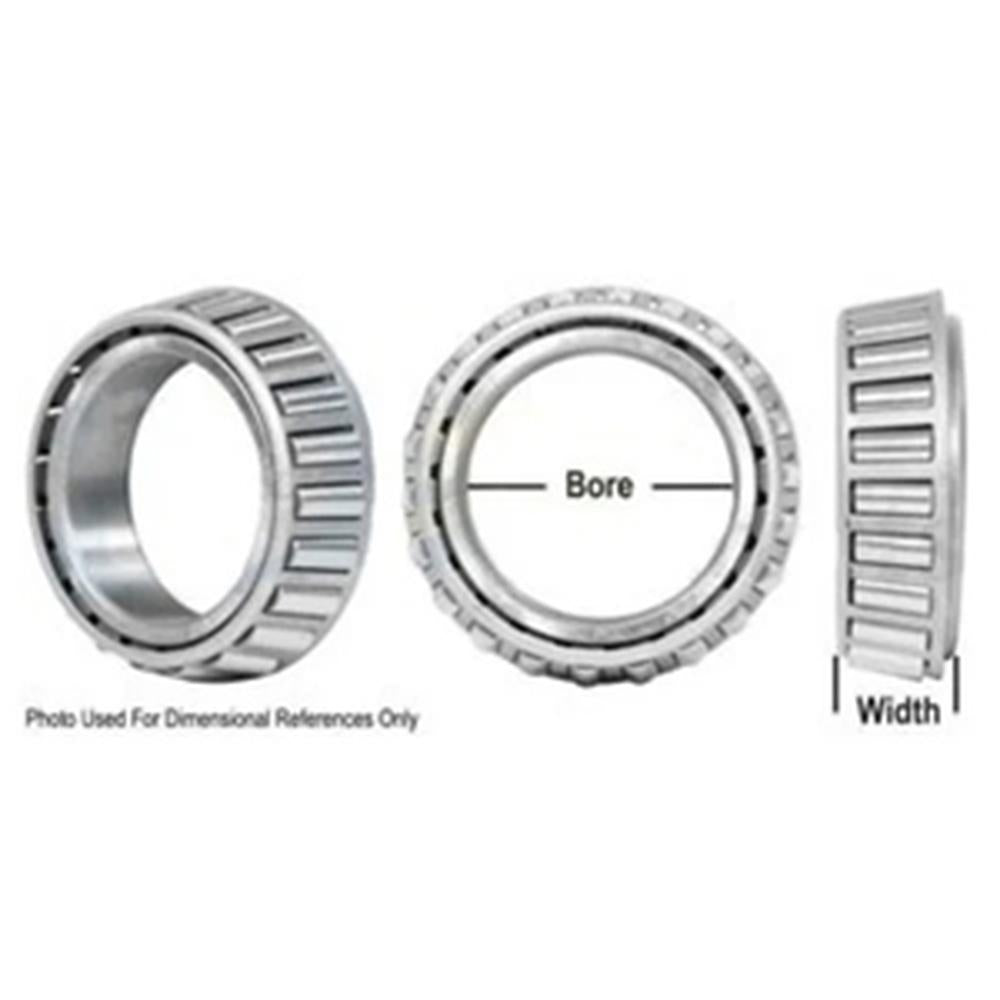

• Bore Diameter (d): 0.8437 in (21.43 mm)
• Outside Diameter (D): 1.9687 in (50.005 mm)
• Width (T): 0.765 in (including seal)
• Dynamic Load Rating: 11,700 lb
• Static Load Rating: 9,780 lb
• Temperature Range: -65 to 250 deg F
• Cage Material: Steel
• Matching Cup: M12610

Compatible Applications

General Off-Highway and Agricultural Equipment: Suitable for use in axles, transmissions, wheels, and gearboxes on tractors, balers, tillage equipment, combines, construction equipment, and other machinery requiring combined radial and axial load capacity.

Replaces Part Number(s):

M12600LA, M12600LA-902A1

Note: This is the cone (inner ring assembly) only. For a complete tapered roller bearing assembly, pair with a matching M12610 cup from the same manufacturer.

New aftermarket replacement part - not remanufactured, not used.
