A-JD7409-AI CUP

Name: A-JD7409-AI CUP
SKU: A-JD7409-AI
Price: 20.0 USD
Availability: InStock

A-JD7409-AI CUP

£20.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

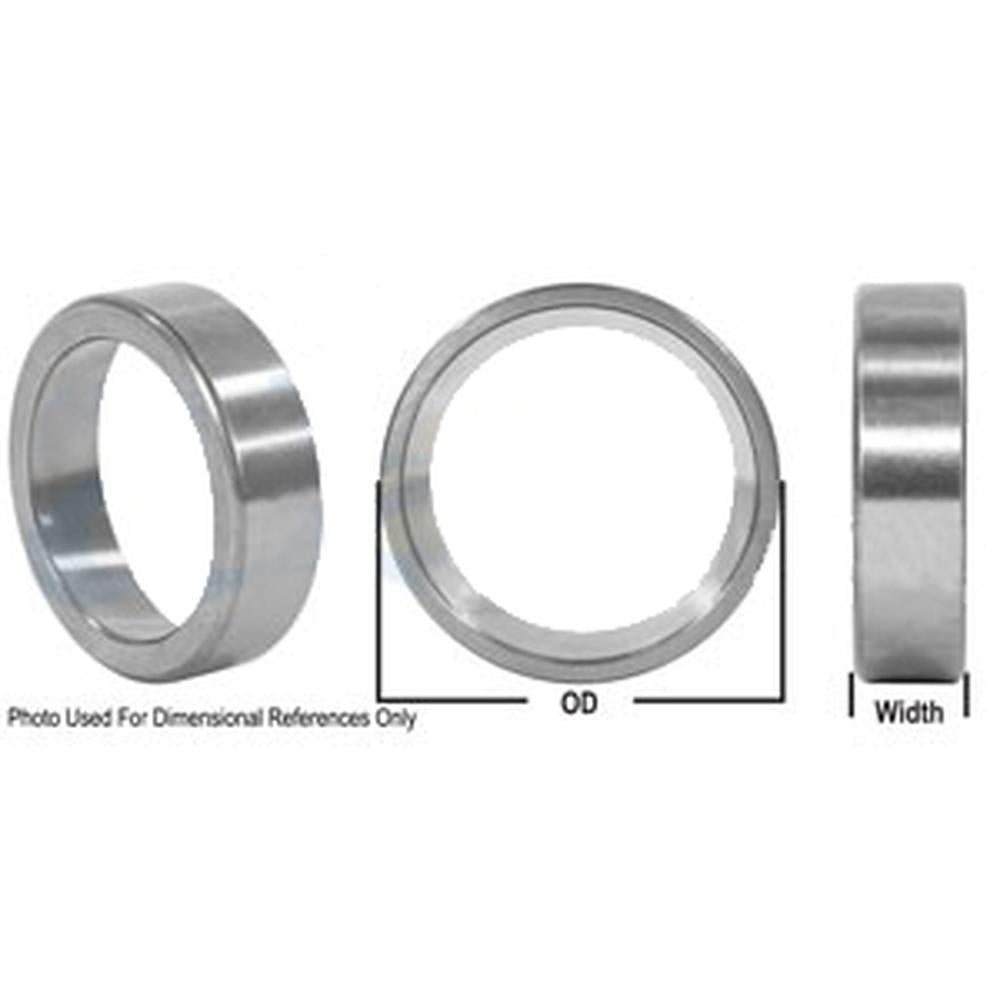

One New Aftermarket Replacement Tapered Roller Bearing Cup Fits John Deere (Fits JD) and Multi-Brand Agricultural Equipment

This tapered roller bearing cup (outer ring) is a direct replacement Fits John Deere part number JD7409, also sold as Timken 14276. It serves as the outer race in a tapered roller bearing assembly used in drive units, wheel hubs, axles, and driveline applications across a wide range of Fits John Deere (Fits JD) tractors, balers, combines, forage harvesters, rotary cutters, and equipment from numerous other manufacturers. Pairs with compatible bearing cones including 14116, 14117A, 14118, 14118AS, 14124, 14125A, 14130, 14131, 14137A, 14138A, and 14139.

Specifications

Type: Single Tapered Roller Bearing Cup (Outer Ring)
Outside Diameter: 2.717 in
Width: 0.625 in
Fillet Radius: 0.050 in
Material: Chrome Steel
Lubrication Hole: None
Finish: Uncoated

Compatible Models

Fits John Deere (Fits JD) Balers: 224T, 224WS, 328, 330, 332, 332T, 335, 336T, 336WS, 338, 339, 342T, 346T, 348, 349, 359, 375, 385, 410, 435, 456, 456T, 456W, 459, 466, 468, 510, 535, 545, 550, 570, 503, 503I

Fits John Deere (Fits JD) Combines: 1640, 1644, 1660, 1666, 1668, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

Fits John Deere (Fits JD) Tractors: 700, 705, 840, 940, 1040, 1140, 1320, 1326, 1327, 1350, 1550, 1750, 1840, 1850, 1950, 1950N, 2040, 2040S, 2140, 2150, 2155, 2250, 2255, 2350, 2355, 2355N, 2450, 2550, 2555, 2650, 2750, 95

Fits John Deere (Fits JD) Headers/Cutting: 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615

Fits Case / Fits Case IH: 303, 335, 403, 403F, 403G, 445, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 554XL, 555XL, 715, 815, 1400, 82, 84

Fits Massey Ferguson: M5

Minneapolis-Moline: G1000, JET STAR 3, JET STAR 4, 5 STAR

GEHL: 670

Hesston: 5400 REBEL, 5500 REBEL

Additional brands: Vermeer, Fits Woods, Amco, Fits Ford/New Holland, Krause, Fits Allis Chalmers, BUSH HOG, Rhino, Fits Caterpillar, Kewanee, Taylorway, Riverside Tractor -- verify specific model fitment using cross-reference numbers below.

Replaces Part Number(s):

JD7409, 14276, 14276TIM, 54628A, 520031, 113BH, A29977, 016234X1, 10261, 9N744, 116210, 8J0422, X5623, 526WD, 7069WD, 80105, 70025, W33, 1715019, 70209890, 74253284, 710350, 203021, W10A7575

Aftermarket Interchange Numbers

Timken: 14276 | National: 14276 | IH/Fits Case: 565213R91 | Fits Massey Ferguson: 831337M1

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1688, 2344, 445, 505I, 403F, 604XL, 1666, 605H, 403G, 554XL, 605L, 5500 REBEL, 602, 5 STAR, R-23, 503, 615, 1400, 604J, Outer Ring Of A Tapered Roller Bearing, 555XL, 604K, M5, 1660, 605K, 815, 504H, 403, 2188, 504C, 605G, JET STAR 4, 504I, 5400 REBEL, JET STAR 3, 95, 504I SILAGE, 1640, 605F, 605J, 670, 303, 2577, 1680, 605XL, 715, 504L, 4901-4938, 335, 2166, 84, 2588, R-21, 504G, 2366, 1644, 505L, 504F, G1000, 503I, 604L, 82, 2388, 2377

Additional Information:

Outside Diameter 2.717" Radius .05" Width .625"

Reference Numbers:

8J0422, 710350, 10261, 113BH, 016234X1, 70025, W33, W10A7575, 14276TIM, JD7409, 9N744, 116210, A29977, 54628A, 70209890, 74253284, 203021, 14276, X5623, 520031, 1715019, 526WD, 7069WD, 80105
