One New Aftermarket Replacement Steering Cylinder End Bushing Fits Ford/New Holland and Fiat Tractors

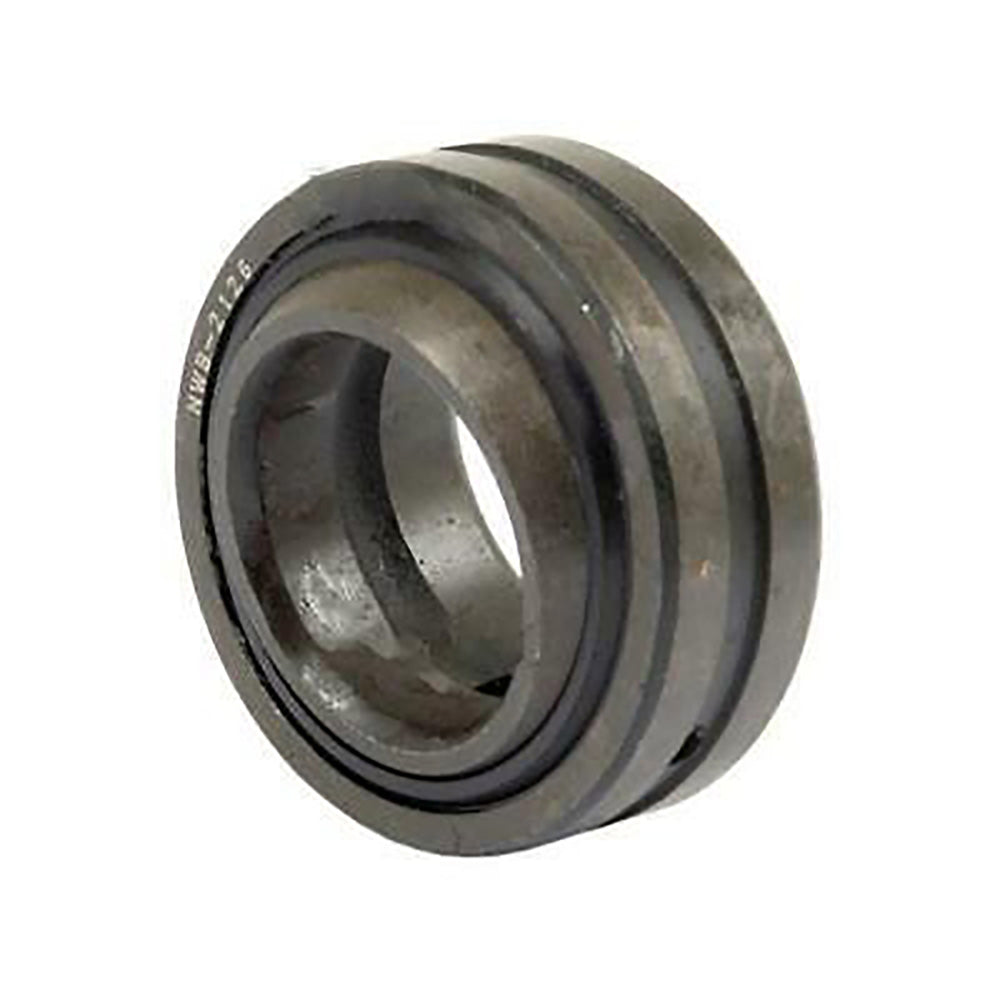

This radial spherical plain bearing (GE20ES-2RS type) serves as the steering cylinder end bushing on a wide range of Fits Ford, Fits New Holland, and Fiat tractors. Mounted at the cylinder rod end, it absorbs steering loads and allows the controlled angular movement required for smooth, reliable steering operation. The double-sealed (2RS) design keeps out dirt and contaminants common in field conditions.

Specifications

Type: Radial Spherical Plain Bearing (GE20ES-2RS)
Inner Diameter (ID): 20 mm
Outer Diameter (OD): 35 mm
Depth / Inner Ring Width: 16 mm
Outer Race Width: 12 mm
Seal Type: Double Rubber Sealed (2RS)

Compatible Models

Fits Ford/New Holland Tractors: 4635, 4835, 5635, 5640, 6635, 6640, 7635, 7740, 7840, 8160, 8240, 8260, 8340, L60, L65, L75, L85, L95, M100, M115, TD60D, TD70D, TD80D, TD90D, TD95D, TD95D HC PLUS, TL70, TL70A, TL80, TL80A, TL90, TL90A, TL100, TL100A, TM115, TM120, TM125, TM135, TM140, TM150, TM165, TM180, TN55, TN65, TN70, TN75, TN85A, TS80, TS90, TS100, TS100A, TS110, TS110A, TS115, TS120A, TS125A, TS130A, TS135A

Fiat Tractors: 45-66, 50-66, 55-56, 55-66, 55-88, 55-90, 60-66, 60-88, 60-90, 60-93, 60-94, 65-66, 65-88, 65-90, 65-93, 65-94, 70-66, 70-88, 70-90, 72-93, 72-94, 80-66, 80-88, 80-90, 82-93, 82-94, 85-90, 88-93, 88-94, 90-90, 100-90, 110-90

Replaces Part Number(s):

5190901, A-5190901, 77103616, 9929828, 9956707, 9958559, 9960063, 9961912, GE20ES.2RS

Aftermarket Interchange Numbers

A&I Products FRB10-0075; GE20ES-2RS (standard bearing designation)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

60-90, TD80D, TS80, M115, 82-94, 88-93, 55-90, 60-66, TD95D HC PLUS, 65-94, TM120, 7840, TM115, L85, TS125A, TD60D, TL90A, L75, TS100A, TN75, 55-88, TL100A, TS110A, TS130A, TN70, TN85A, TS110, 4635, 90-90, 70-88, TM165, 80-66, 5635, 60-88, 8340, TS100, TL100, TL80, 7635, 45-66, 6635, 80-88, 65-93, L95, TM125, 70-66, TL70, 8260, 8160, 65-66, TL80A, 110-90, 85-90, TM150, TS115, 100-90, 80-90, TS120A, TS135A, 65-90, 60-94, TM135, 60-93, 72-94, L65, TD95D, 50-66, 5640, TS90, M100, TL90, 55-56, 82-93, 4835, 8240, TL70A, 88-94, TN55, TN65, 6640, 72-93, L60, TM140, 55-66, TD70D, TD90D, 65-88, 7740, TM180, 70-90
