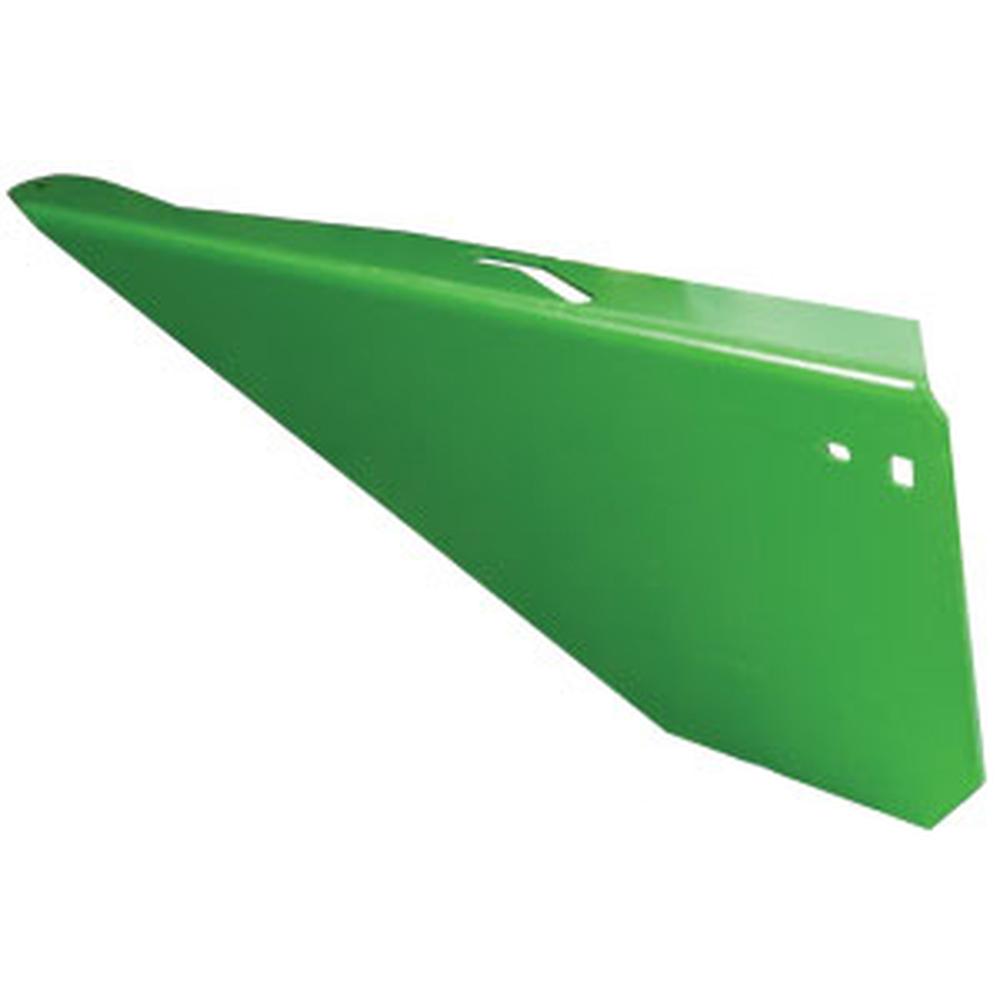

A-H223216-AI Vane, Straw Chopper, Straight (LH)
A-H223216-AI Vane, Straw Chopper, Straight (LH)
Couldn't load pickup availability
One New Aftermarket Replacement Straw Chopper Vane, Straight (LH) for John Deere Combines
This left-hand straight vane is part of the straw chopper and spreader system in the discharge area of John Deere (JD) STS and S-Series combines. The vane guides crop residue - including wheat straw, corn stalks, and cobs - for even distribution across the field after chopping. Proper vane condition is essential for uniform residue spread and effective seedbed preparation.
Specifications
- Width: 6.1 in
- Height: 1.7 in
- Weight: 3.06 lb
- Side: Left Hand (LH)
- Style: Straight
Compatible Models
John Deere STS Combines: 9560STS, 9570STS, 9650STS (ASN 696468), 9660STS, 9670STS, 9750STS (ASN 696068), 9760STS, 9770STS, 9860STS, 9870STS
John Deere S-Series Combines: S550 (SN 745100-764999), S650 (ASN 765000), S660, S670, S670HM, S680, S680HM, S690, S690HM, S760, S770, S780, S790
Replaces Part Number(s):
H223216, H204332
Aftermarket Interchange Numbers
HXE36439, A-H223216-AI
New aftermarket replacement part - not remanufactured, not used.
