Six New Aftermarket Replacement Spark Plugs Fits International Harvester, Fits FARMALL, and Fits Case Tractors and Crawlers

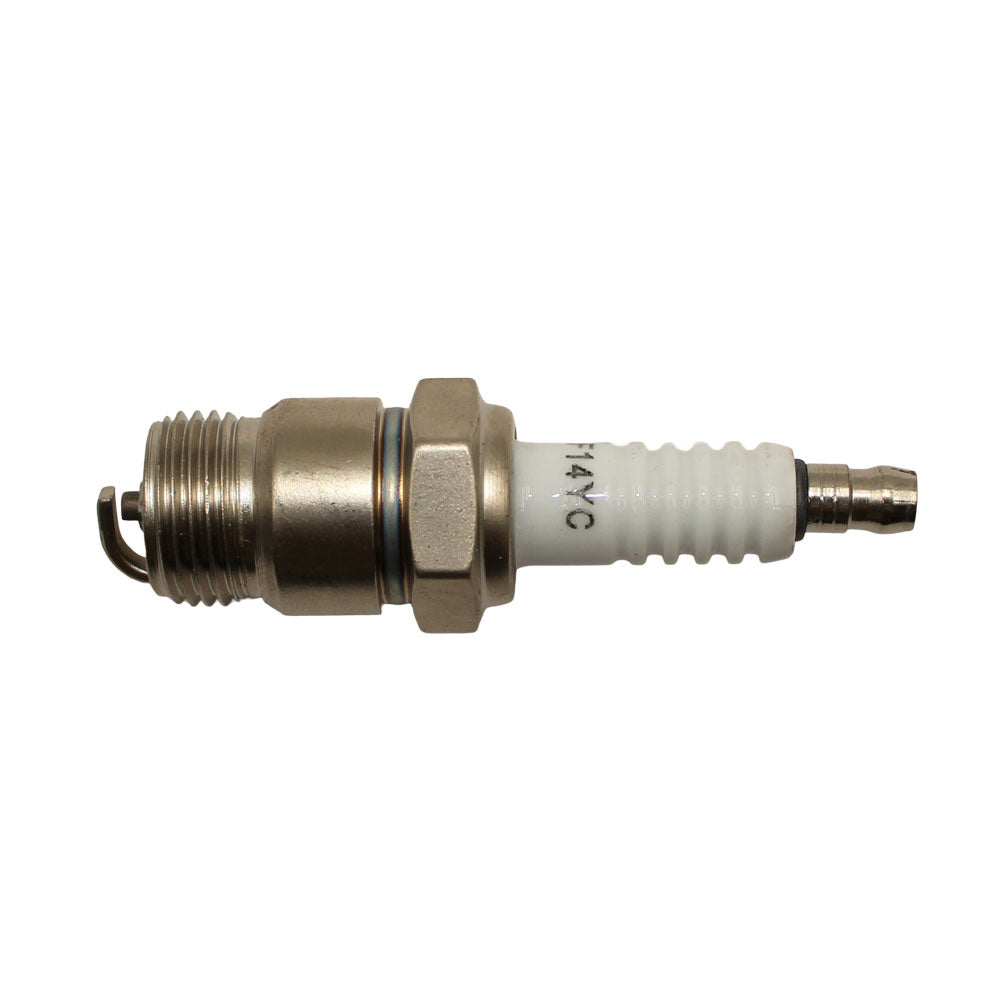

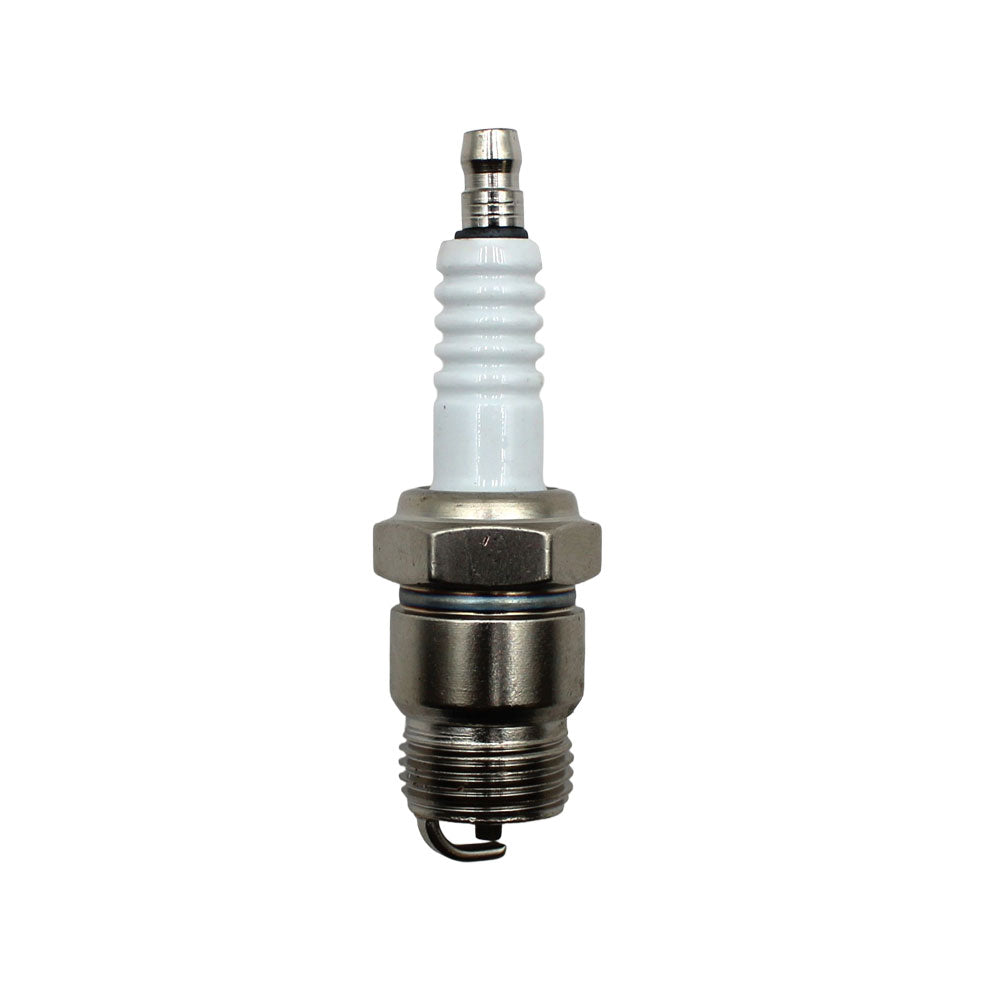

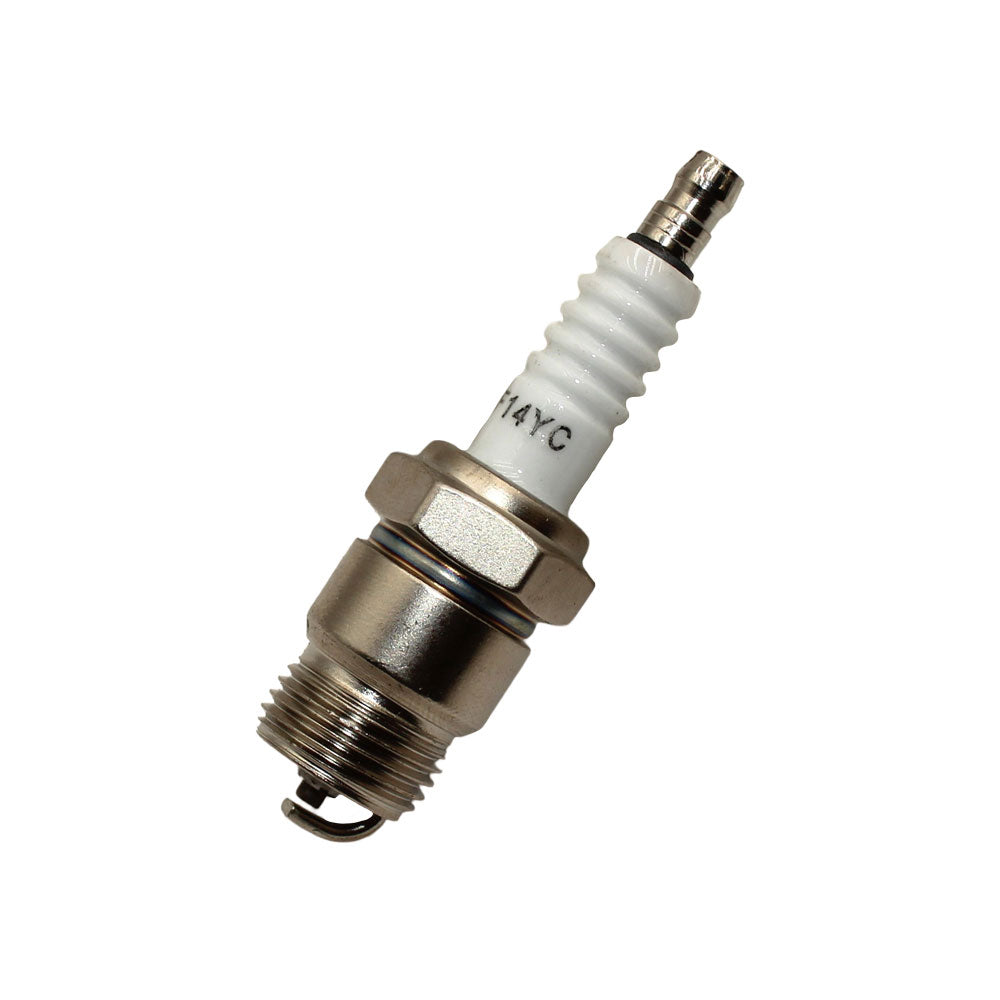

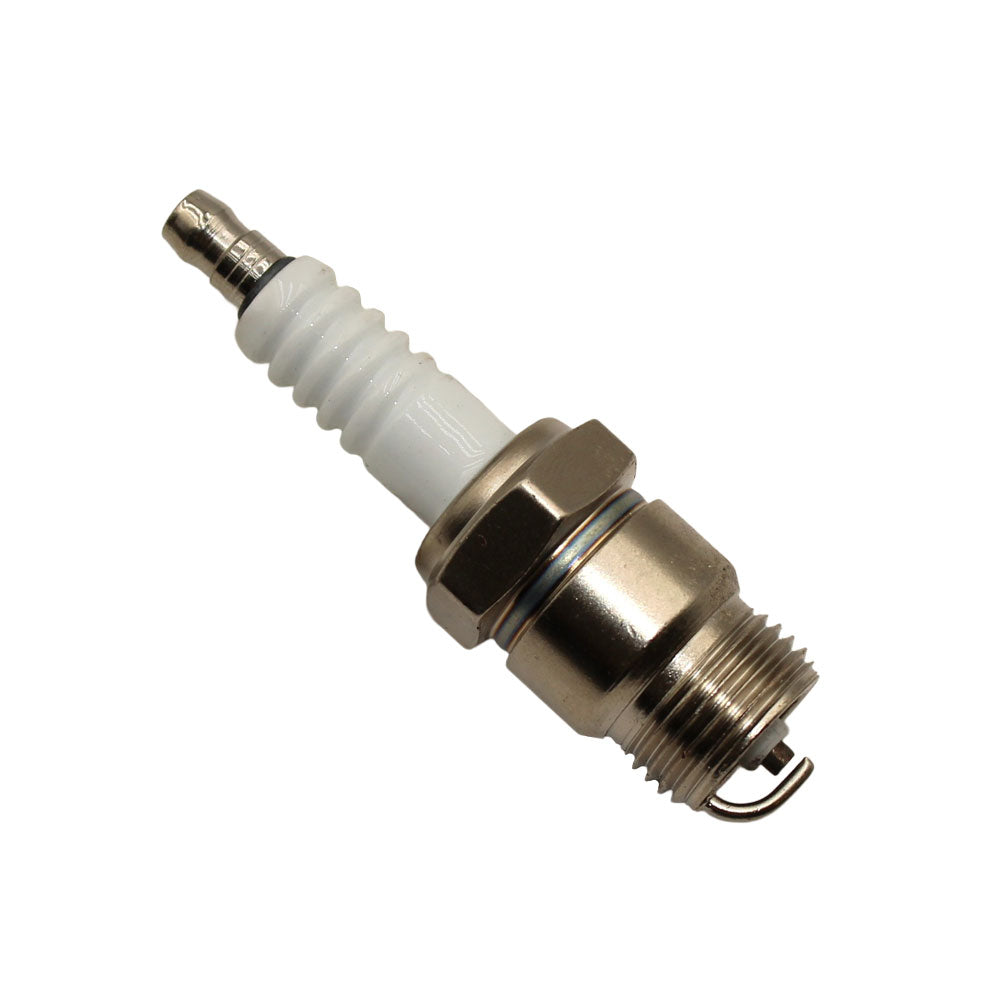

This listing includes six (6) new aftermarket replacement spark plugs equivalent to the Fits Champion D16 / Autolite 3116 industrial and agricultural plug. Designed for gasoline-fired tractor engines, these 18mm non-resistor plugs deliver reliable ignition in the demanding conditions of farm and construction equipment. They fit a wide range of Fits International Harvester (IH), Fits FARMALL, and Fits Case machines - from vintage letter-series Fits FARMALL tractors to later Fits Case industrial and construction models.

Specifications

Quantity: 6 plugs
Thread Size: 18mm x 1.5mm pitch
Hex Size: 13/16" (20.6mm)
Shoulder/Hex: 7/8"
Reach: 12mm (0.472")
Seat Type: Gasket
Gap: 0.028" (0.7mm) - Note: some models (T6 Crawler, 970) specify 0.025" gap; verify gap for your application
Heat Range: 2
Terminal Type: Removable Nut
Resistor: No (Non-Resistor)
Center Electrode: Standard Nickel, 2.5mm, Non-Projected
Ground Electrode: Standard Nickel

Compatible Models

Fits International Harvester / Fits FARMALL: A, AV, Super A, Super AV, B, BN, C, Super C, Fits Cub, Fits Cub Loboy, 100, 130, 140, 154, 184, 185, H, HV, Super H, Super HV, I4, I6, M, Super M, MTA, MV, O-4, O-6, OS-4, OS-6, T-6, W-4, Super W4, W-6, Super W6, W6TA, Super W6TA, WD-6, W400, W450, 200, 230, 240, 300, 330, 340, 350, 400, 404, 424, 444, 450, 454, 460, 464, 504, 520, 544, 560, 570, 574, 580, 600, 606, 620, 630, 640, 650, 656, 660, 666, 674, 686, 700, 706, 720, 730, 740, 756, 766, 770, 806, 826, 840, 856, 870, 900, 930, 940, 970, Hydro 70, Hydro 86, HYDRO 70, HYDRO 86

Fits Case: D, L, V, VA, VAC, VAC-11, VAC-12, VAC-13, VAC-14, VAE, VAH, VAI, VAIW, VAIW-3, VAO, VAO-15, VAS, VC, VO, 200, 200B, 210, 210B, 211, 211B, 230, 240, 300, 300B, 310, 310B, 310D, 310E, 310F, 310G, 311B, 312B, 320, 330, 340, 350, 350B, 380B, 400, 400B, 410B, 411B, 420, 420B, 420C, 424, 430, 431, 440, 441, 444, 450, 450B, 454, 470, 480, 480A, 480B, 480C, 480CK, 480D, 480E, 480F, 480 Loader, 480LL, 500, 500B, 510B, 511B, 520, 530, 540, 540C, 541, 541C, 570, 580, 580A, 580B, 580C, 580CK, 580D, 580K, 580SE, 580SK, 584, 585, 586, 590, 600, 600B, 610B, 611B, 614B, 630, 640, 640C, 641, 641C, 700, 700B, 721, 721B, 730, 740, 770, 780CK, 800, 800B, 800 Skidder, 821, 821B, 830, 840, 870, 900, 900B, 930, 940, 970, 2400A, 2400B, 2404, 2405B, 2410B, 2412B, 2424, 2444, 2500A, 2504, 2544, 3400A, 3514, CI, CC, CL, CO, DC, DE, DH, DI, DL, DS, DV, DO, LA, LAE, LAI, T6

Fits John Deere: Models referenced via cross-reference numbers (see below)

Replaces Part Number(s):

3116, 3035, 3136, 376, 378, D15, D15Y, D18, D18Y, RD15Y, RD18Y, AL3116, AL386, 353982R91, 21A808, G44840, AB-2, AB2, AB6, A6, 585F, C86, C87, S85F, 375, 377, AC 285F, D10, D14, D16, D16J, D21, D9, D9J, K13, K15J, 2910, M17, M14, RD14, RD16, UD16, D89D, TY6075

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

DL, 930, 210B, W-6, 310B, 480CK, 70, 580SK, W6TA, 574, DC, 680CK, 2412B, 640, 940, 800B, 420C, 330, 470, 400, O6, M, 420B, VAC-14, 800 Skidder, 511B, 674, I-4, 700, 2404, 580D, HYDRO 70, 770, CD, 130, 706, 441, SUPER HV, 504, 100, 310E, 666, 570, VO, Super C, 464, HYDRO 86, 211B, 540, 310G, 590, 480LL, 826, HV, W4, I4, DE, 766, 60, Super W6TA, 184, 606, 800, 2504, 320, 780CK, 584, 600B, I6, 580CK, 640C, 580 Loader, 544, SUPER MTA, 400B, 444, 480E, 560, G, 300B, 580SE, DI, 450B, 500, 870, CL, 440, LA, 806, Super A, MTA, 230, T-6, 580C, 2400B, SUPER C, DS, 585, 480 Loader, 900B, 541C, 756, OS-4, O4, 380B, VAC-12, SUPER M, MV, Super W6, 600 Skidder, 541, OS-6, 630, 2405B, 660, 586, 510B, 641, SUPER AV, 185, 240, SUPER W-6, VAE, 430, 350, 620, 721B, 600, V, C, 530, 500B, VAIW-3, 2400A, 310F, 450, 210, 2410B, Super H, Super AV, O-4, 310, 424, LAE, 830, 611B, Super M, L, 721, W6, VAI, 340, 454, 686, W-4, 300, 610B, 580A, BN, 431, DV, VAC, 580K, 856, 404, 970, W450, VA, 311B, 480A, 410B, 720, VAO-15, 312B, CUB, 614B, O-6, SUPER W-4, H, W400, 200, A, 580B, LAI, 3514, 580, OS6, VAO, OS4, T6, 480D, 200B, 211, B, 740, 520, 351, 540C, 480B, Hydro 70, VAC-13, 2424, 350B, VAC-11, 140, Cub, SUPER A, 401, 2500A, CI, 700B, WD-6, 154, SUPER H, 50, Super W4, 821B, 2444, CO, 480F, DO, CC, 656, AV, Super HV, 641C, 460, 840, 480C, D, DH, 310D, 900, VC, 2544, VI, Hydro 86, VAIW, VAH, 821, 411B, 730, 3400A, Cub Loboy, 420, VAS, 480

Additional Information:

Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel

Reference Numbers:

TY6075, G44840, 3116, 3035, 3136, 376, 378, D15, D15Y, D18, D18Y, RD15Y, RD18Y, AL3116, AL386, 353982R91, 21A808, G44840, AB-2, AB2, AB6, A6, 585F, C86, C87, S85F, 375, 377, AC 285F, D10, D14, D16, D16J, D21, D9, D9J, K13, K15J, 2910, M17, M14, RD14, RD16, UD16, D89D
