A-CL80DIMP-AI 80 Double Connector Link (Import)

One New Aftermarket Replacement #80 Double Connector Link for Roller Chain (Import)

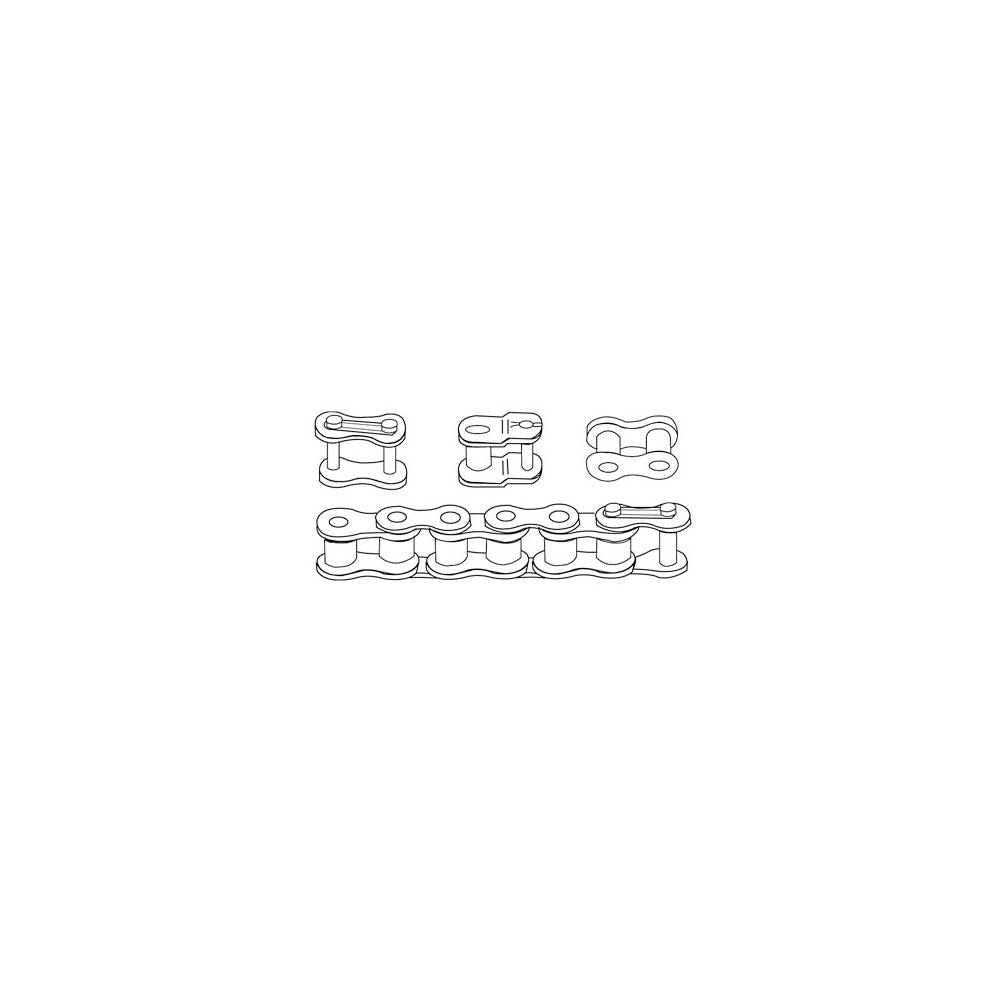

This #80-2 double connector link, also known as a master link or connecting link, is used to join two ends of #80 double-strand (duplex) roller chain together. It is an import-grade link manufactured to ANSI B29.1 standards, making it a cost-effective replacement for maintenance and repair of #80 double-strand chain drives found on agricultural equipment, construction machinery, conveyors, grain elevators, feed mixers, auger drives, and general industrial power transmission systems.

Specifications

• Chain Size: #80-2 (Double Strand / Duplex)
• Pitch: 1.000"
• Roller Width: 0.625"
• Roller Diameter: 0.625"
• Overall Width: 2.440"
• Plate Height: 0.950"
• Plate Thickness: 0.125"
• Pin Diameter: 0.312"
• Average Ultimate Strength: 33,080 lbs
• Standard: ANSI B29.1
• Import grade

Compatible Applications

General Power Transmission and Agricultural Equipment: Compatible with any drive or conveyor system using #80-2 double-strand ANSI roller chain, including grain elevators, conveyor systems, feed mixers, combine drives, auger mechanisms, and heavy-duty industrial equipment requiring 1" pitch double-strand chain.

Replaces Part Number(s):

A-CL80DIMP-AI, CL80-2, 80-2CL, 80-2 CL, RS80-2 CL

New aftermarket replacement part - not remanufactured, not used.
