A-CL2060IMP-AI 2060 Extended Pitch Conn. Link (Import)
A-CL2060IMP-AI 2060 Extended Pitch Conn. Link (Import)
Couldn't load pickup availability
One New Aftermarket Replacement A2060 Extended Pitch Connector Link for Agricultural and Industrial Equipment

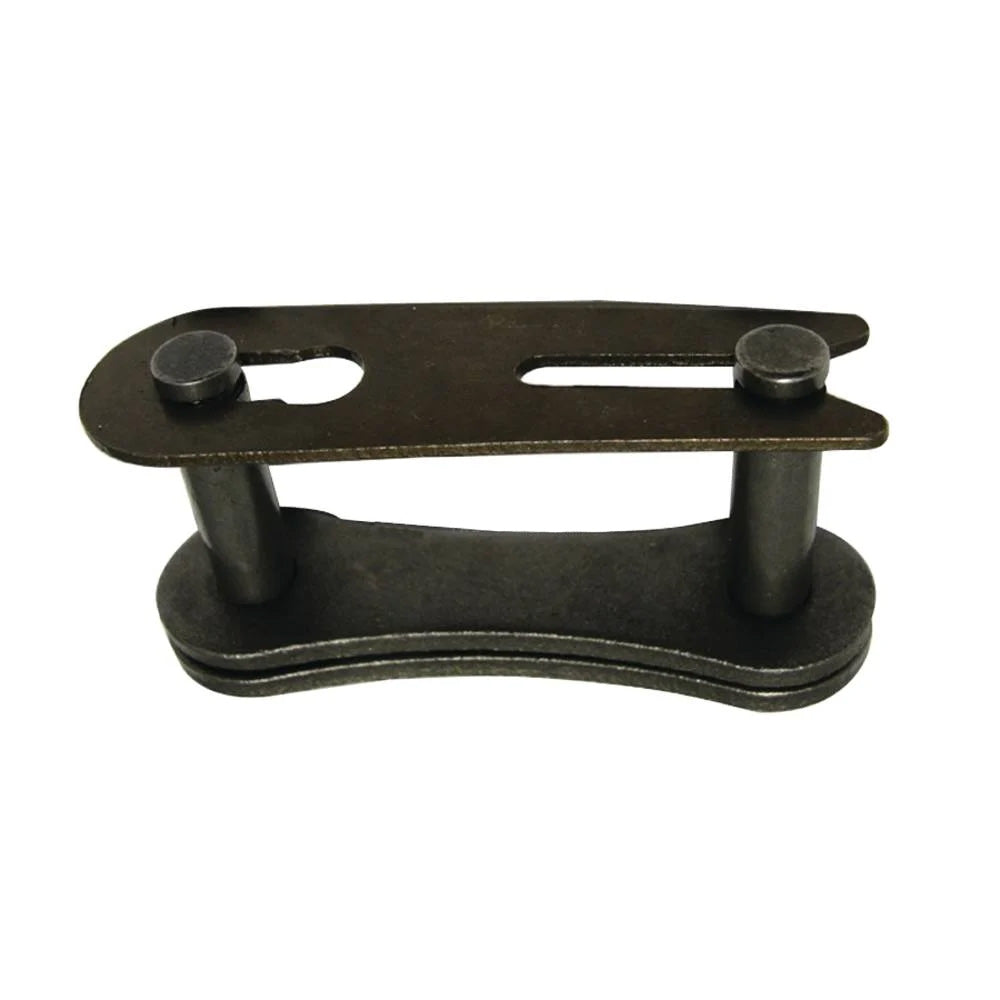

This connector link (also called a master link) is used to join the two ends of an A2060 extended pitch double pitch roller chain. The A2060 is a 1-1/2 inch pitch chain with figure-8 shaped sidebars designed for drive applications, and is widely used in agricultural equipment, conveyor systems, material handling equipment, and other industrial machinery. This spring clip style connecting link is a direct replacement for the import (IMP) grade A2060 connector link and is compatible with any standard A2060 roller chain.
Specifications
- Chain Series: A2060 Double Pitch Roller Chain
- Pitch: 1-1/2 in. (1.500 in.)
- Roller Width: 0.500 in.
- Roller Diameter: 0.469 in.
- Pin Diameter: 0.234 in.
- Closure Type: Spring clip
- ANSI Standard: Double pitch, A-series (figure-8 sidebars)
Compatible Applications
Universal Fit: Compatible with any standard A2060 double pitch roller chain used in agricultural equipment, conveyors, material handling systems, power transmission drives, and general industrial machinery.
Replaces Part Number(s):
RCC50-0030, CL2060IMP, A-CL2060IMP
Aftermarket Interchange Numbers
A-CL2060, CL2060, 2060CL, A2060CL
New aftermarket replacement part - not remanufactured, not used.
