A-CL2040IMP-AI 2040 Extended Pitch Conn. Link (Import)
A-CL2040IMP-AI 2040 Extended Pitch Conn. Link (Import)
Couldn't load pickup availability

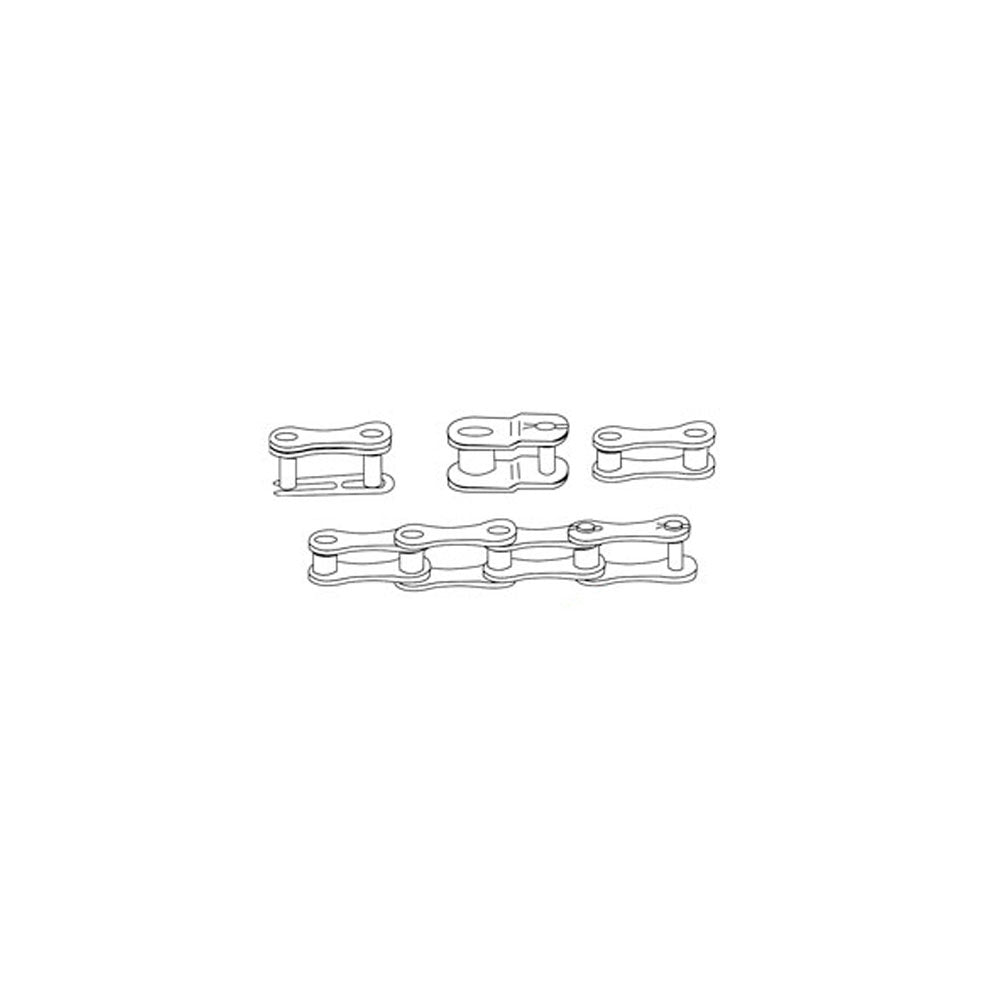

One New Aftermarket Replacement 2040 Extended Pitch Connector Link (Import) for A2040 Roller Chain
This connector link (also called a master link) is used to join the ends of ANSI #2040 double-pitch extended pitch roller chain. It secures with a spring clip and is compatible with any standard A2040 roller chain used in agricultural equipment, conveyors, and industrial drive systems. The #2040 double-pitch chain features a 1-inch pitch and is widely used across farm machinery, grain handling equipment, and material handling conveyors.
Specifications
- Chain Size: #2040 (ANSI double-pitch / extended pitch)
- Pitch: 1.000 in.
- Width: 0.3125 in.
- Pin Diameter: 0.156 in.
- Link Plate Thickness: 0.060 in.
- Clip Type: Spring clip
- Material: Carbon/Alloy Steel
- Industry Standard: ANSI B29.1
Compatible Applications
Fits any equipment using ANSI #2040 double-pitch extended pitch roller chain, including agricultural conveyors, grain elevators, row crop equipment, and general industrial chain drives.
Replaces Part Number(s):
3016-2040CL, 2040CL, A2040CL, 457113R91
Aftermarket Interchange Numbers
Fits Stens 3016-2040CL, ACL2040, 673-CL2040 (A&I), RCCLA2040 (Edcor), SW2040COUS (Fits John Deere)
New aftermarket replacement part - not remanufactured, not used.
