A-CL140H-AI 140H Connecting Link, USA
A-CL140H-AI 140H Connecting Link, USA
Couldn't load pickup availability

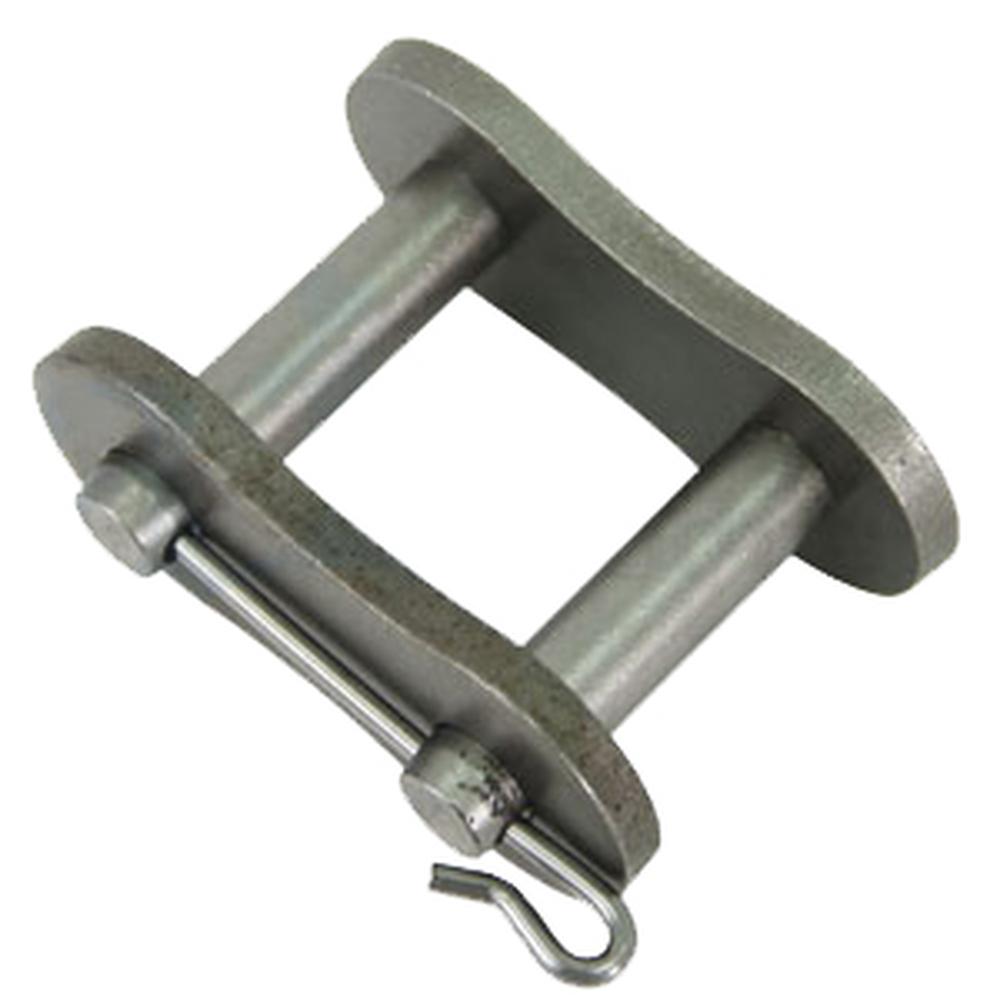

One New Aftermarket Replacement #140H Heavy Duty Connecting Link (Master Link) - USA
This #140H connecting link -- also known as a master link -- is used to connect two ends of ANSI #140H heavy duty roller chain together. It is an essential service part for any drive or conveyor system running #140H chain, and is ideal to keep on hand for quick field repairs. The #140H chain designation indicates a 1-3/4" (1.750") pitch heavy series chain conforming to ANSI B29.1 standards. The "H" designation signifies heavy-duty thicker side plates for increased strength and shock load capacity versus standard #140 chain.
Specifications
- Chain Series: ANSI #140H Heavy Duty
- Pitch: 1-3/4" (1.750" / 44.45 mm)
- Roller Diameter: 1" (25.4 mm)
- Pin Diameter: 0.500" (12.7 mm)
- Conforms to: ANSI B29.1
- Country of Origin: USA
Compatible Applications
Heavy-Duty Power Transmission and Conveyor Applications: Agricultural equipment, construction machinery, industrial machinery, forestry and lumber mills, mining and quarrying, power generation, and cement and aggregate industry equipment using ANSI #140H single-strand heavy roller chain.
Replaces Part Number(s):
A-CL140H-AI, CL140H, 140H-CL, 140H-1-CL
New aftermarket replacement part - not remanufactured, not used.
