A-CL120H-AI 120H Connecting Link, USA
A-CL120H-AI 120H Connecting Link, USA
Regular price
£42.00 GBP
Regular price
Sale price
£42.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

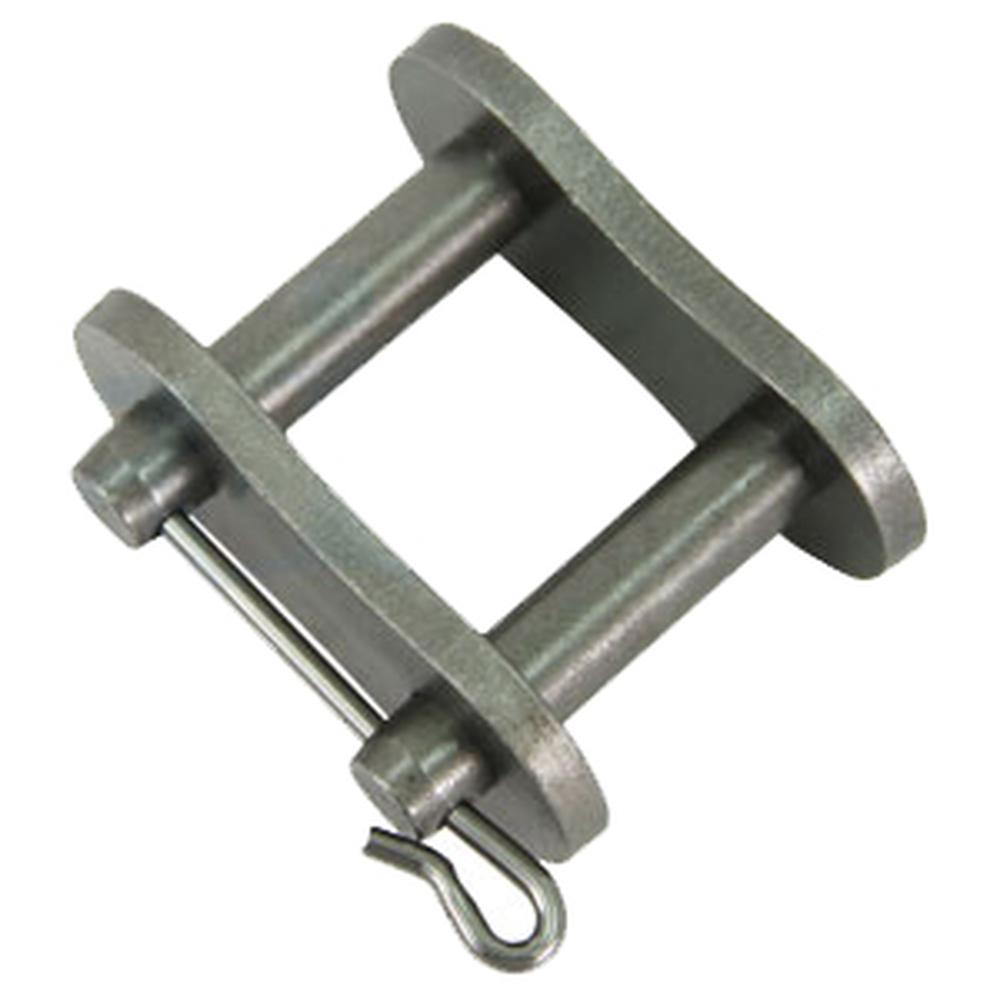

One New Aftermarket Replacement #120H Heavy Duty Roller Chain Connecting Link (Master Link)
This #120H connecting link, also known as a master link, is used to join two ends of #120H heavy duty roller chain together. Manufactured in the USA, it meets ANSI B29.1 standards and features heavy-series side plates -- thicker than standard #120 chain plates -- for increased strength, shock load resistance, and fatigue life. Suitable for agricultural equipment, construction machinery, industrial drives, and other heavy-duty power transmission applications.
Specifications
- Chain Series: ANSI #120H Heavy Duty (single strand)
- Pitch: 1-1/2 in. (1.500 in.)
- Roller Diameter: 0.875 in.
- Inner (Roller) Width: 1.00 in.
- Heavy series side plates (thicker than standard #120)
- Manufactured in the USA
- Meets ANSI B29.1 standards
Interchange / Cross-Reference Numbers
120H-1 CL, CL 120H-1, PHC 120H-1 C/L, RS120H-1 CL, 24AH-1 CL, CL 24AH-1, CL120H
New aftermarket replacement part - not remanufactured, not used.
