One New Aftermarket Replacement Code 61 Flange Head 90-Degree Elbow - A-C6190-20-20-W
This SAE Code 61 flange head crimp-on hydraulic hose end features a rigid 90-degree elbow configuration. It is designed for use on high-pressure hydraulic systems in agricultural, construction, and lawn and garden equipment, connecting 1-1/4" I.D. hydraulic hose to a 1-1/4" Code 61 flange port. Part of the A&I Products HW-C61 series of bite-to-the-wire crimp fittings, it creates a secure crimp connection by gripping the internal braiding or spiral wire of the hose.
Specifications
- Type: Code 61 Flange Head - Rigid 90-Degree Elbow (Male)
- Hose Inside Diameter: 1-1/4" (-20)
- Flange Size: 1-1/4" Code 61

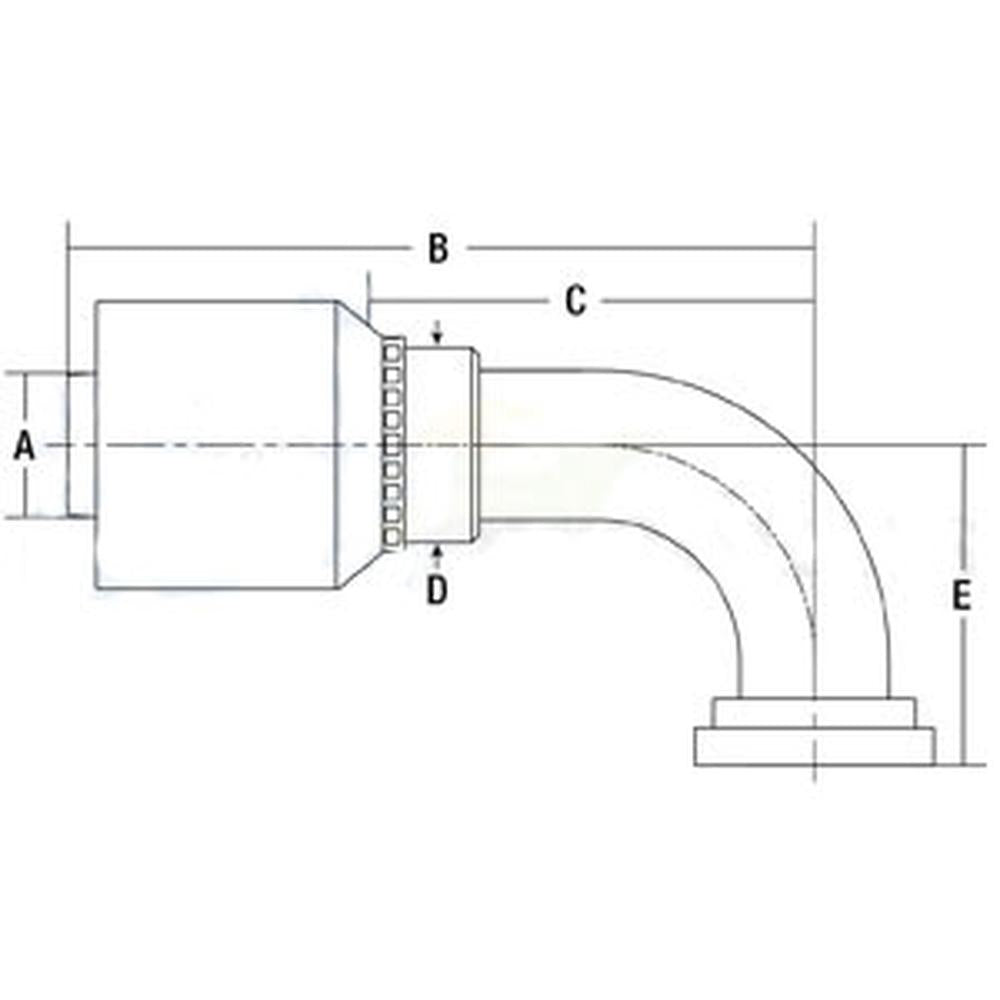

- Dim A: 1.250"
- Dim B: 6.250"
- Dim C: 3.730"
- Dim D: 1-5/8"
- Dim E: 2.680"
- Weight: 1.90 lbs
- Compatible hose types: SAE 100R12, SAE 100R1 AT, SAE 100R2 AT, SAE 100R16, SAE 100R17, DIN EN 856 4SH (up to 1-1/2" I.D.)
Replaces Part Number(s):
A-C6190-20-20-W
Aftermarket Interchange Numbers
SW16134 (A&I MEGA-CROSS), C6190-20-20-W
New aftermarket replacement part - not remanufactured, not used.
