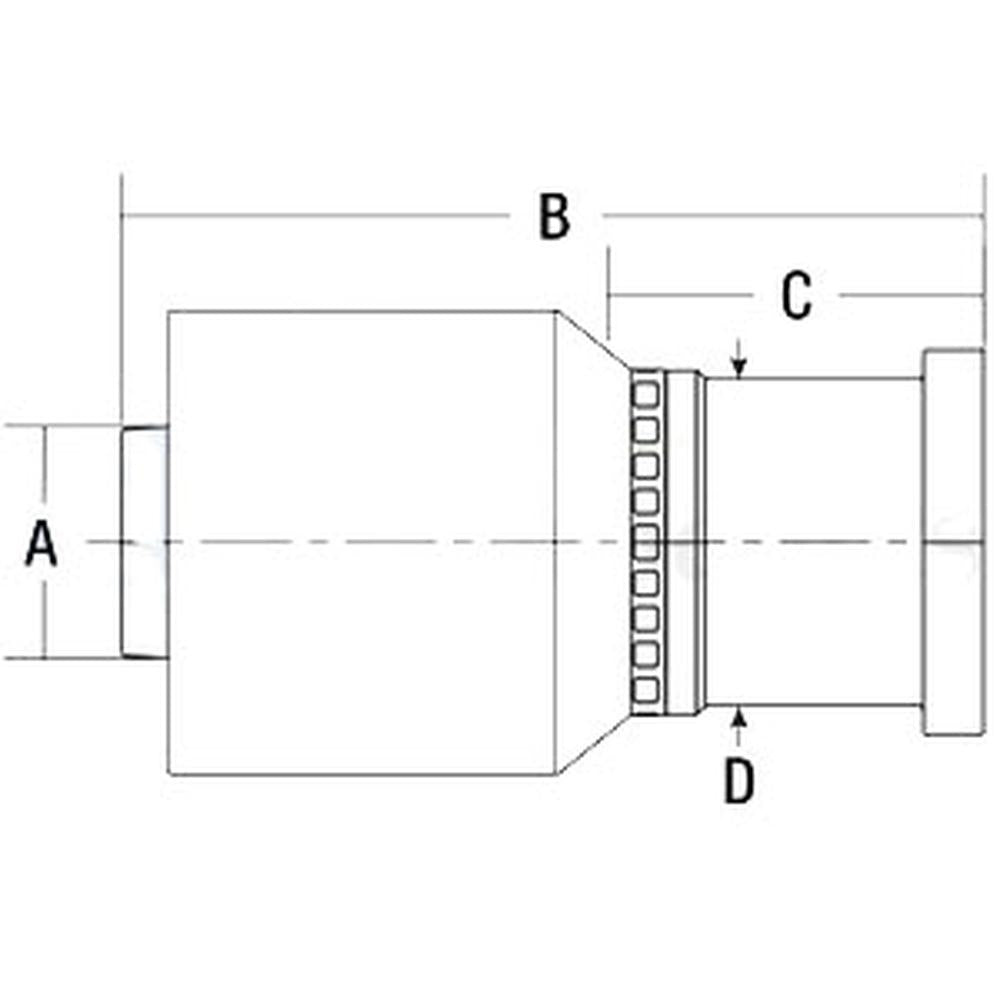

A-C61-20-20-W-AI (HW-C61) Code 61 Flange Head - Straight
A-C61-20-20-W-AI (HW-C61) Code 61 Flange Head - Straight
Couldn't load pickup availability
One New Aftermarket Replacement Code 61 Flange Head - Straight Crimp Fitting (HW-C61)
This HW Series Code 61 flange head straight crimp fitting (part number A-C61-20-20-W, also sold as A-C61-20-20-W-AI) connects 1-1/4" hydraulic hose to a 1-1/4" Code 61 (SAE J518 / ISO 6162) flange port. The fitting uses an O-ring face seal, where the O-ring is compressed between the grooved flange head and the flat surface of the hydraulic port, secured by a four-bolt split flange clamp. This straight, rigid configuration is suited for high-flow, high-pressure hydraulic plumbing on agricultural equipment, construction equipment, and other fluid power systems.
Specifications
- Hose Inside Diameter: 1-1/4" (Dash -20)
- Flange Size: 1-1/4" Code 61 (Dash -20)
- Fitting Angle: Straight (Rigid)
- Flange Standard: SAE J518 Code 61 / ISO 6162
- Seal Type: O-Ring Face Seal
- Series: HW Series (Bite-to-Wire / Crimp-On)
Replaces Part Number(s):
A-C61-20-20-W, C61-20-20-W
Aftermarket Interchange Numbers
Weatherhead 20U-G20; interchanges with Aeroquip FJ Series, Dayco SB Series, Dayco-Eastman HY Series, Imperial-Eastman HU Series, and Weatherhead U Series hydraulic hose fittings.
New aftermarket replacement part - not remanufactured, not used.
