A/C Compressor Fits Ford/NH Tractors T8.275 T9030 TG210 TG230 TJ375 TJ380

Name: A/C Compressor Fits Ford/NH Tractors T8.275 T9030 TG210 TG230 TJ375 TJ380
SKU: 86993463-IRT
Price: 184.0 USD
Availability: InStock

A/C Compressor Fits Ford/NH Tractors T8.275 T9030 TG210 TG230 TJ375 TJ380

£184.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

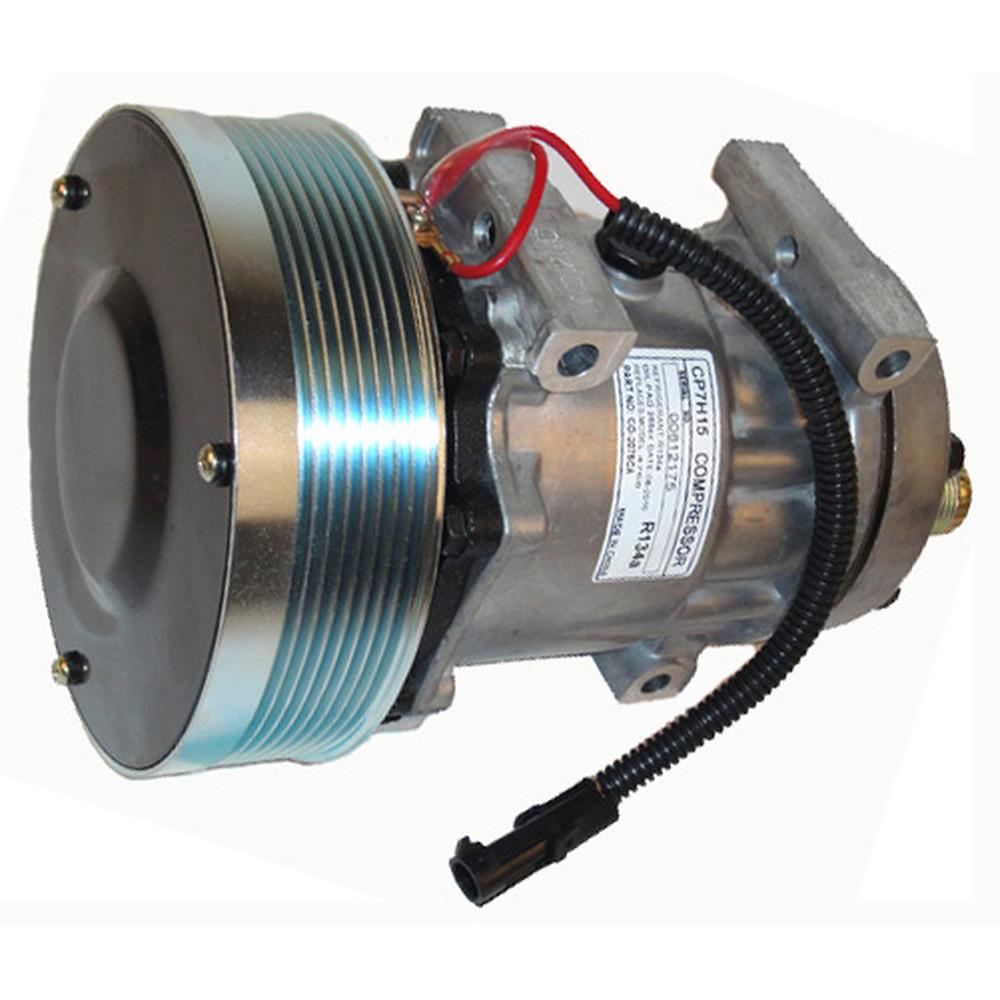

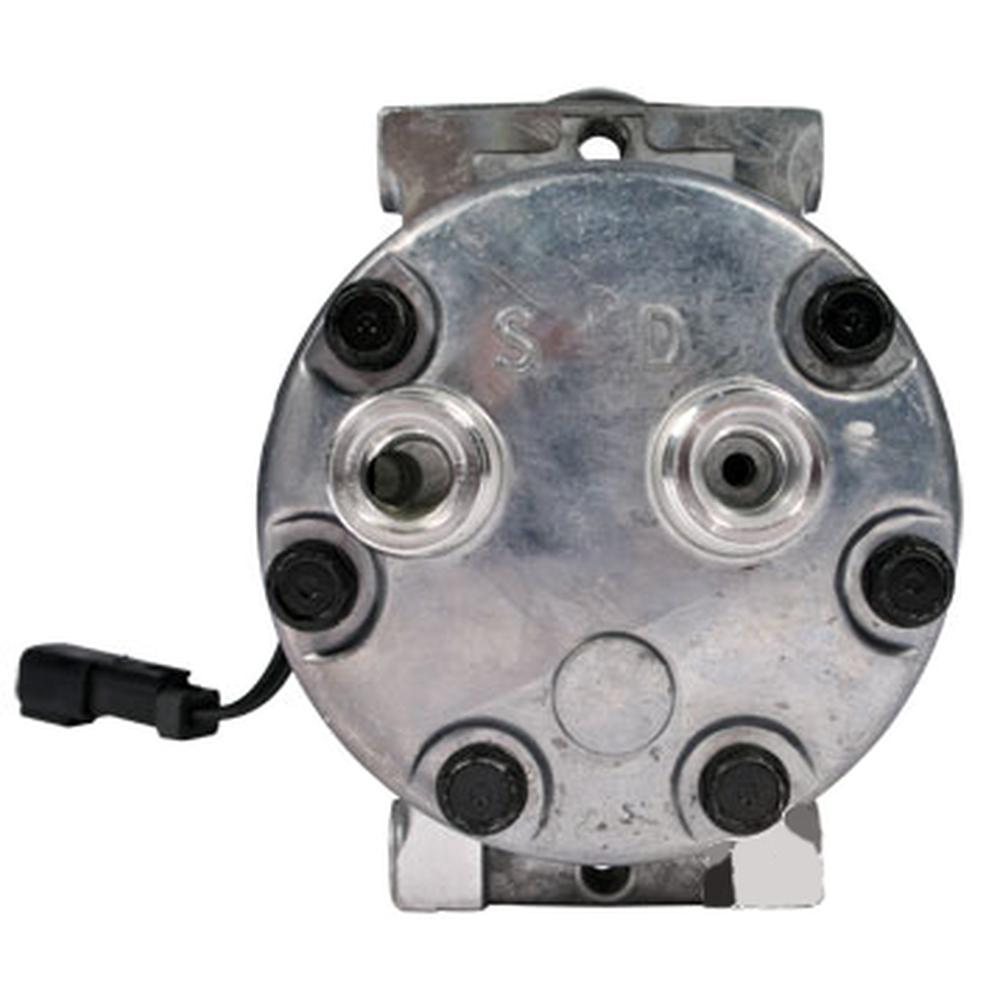

New Aftermarket A/C Compressor with Clutch

Tech Info:
Compressor Type - Sanden
Compressor Model - SD7H15 - 4499; 4768

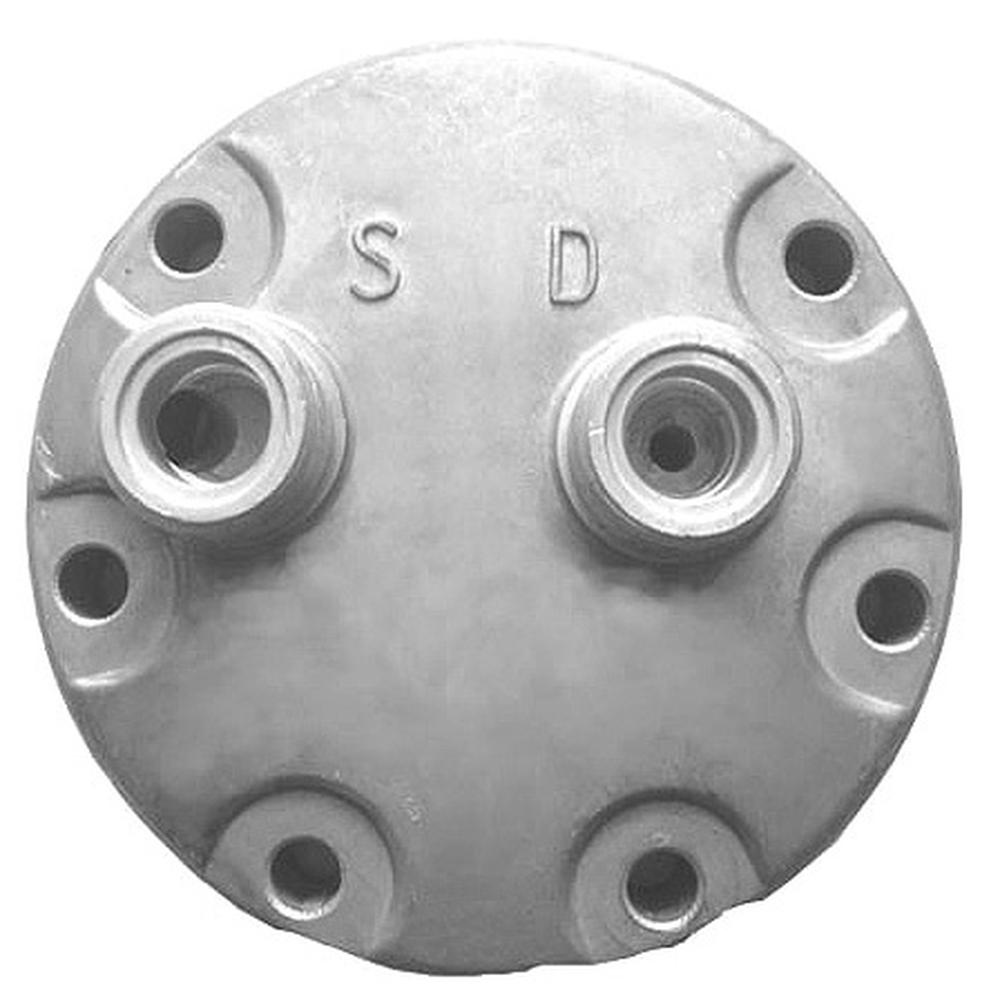

Cylinder Head - MD
Grooves - 8
Clutch Diameter - 6.00"
Fittings - Horizontal 1" Tube-O
Mount Type - Direct
Coil Position - 12:00
Volts - 12V
Oil Type - PAG 100 Oil / SP15 (Pre-Filled 9.6 oz.)
Refrigerant - R134A

Fits:
Fits Ford/New Holland Tractor Models T8.275, T8.300, T8.320, T8.330, T8.350, T8.360, T8.380, T8.390, T8.410, T8.420, T8.435, T8010, T8020, T8030, T8040, T8050, T9.390, T9.435, T9.450, T9.480, T9.505, T9.530, T9.560, T9.565, T9.600 (Tier 4B), T9.615, T9.645 (Tier 4B), T9.670, T9.700 (Tier 4B), T9030, T9040, T9050, T9060, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305, TJ375, TJ380, TJ425, TJ430, TJ450, TJ480, TJ500, TJ530

Replaces Part Numbers:
317008A2, 317008A3, 47809628, 5014078610, 504290050, 86992688, 86993463, 87775469

Models This Part Fits:

550 Quadtrac, T8.350, T9.560, T9.505, TJ500, 380 Magnum, 3030 Titan, T9.645, TJ380, T8.390, TJ425, 310 Magnum, 335 Magnum, CR9070, T8040, TJ450, T8.380, Titan 3040, T9050, T8.275, 535, CR920, MX210, TJ430, Titan 4530, 1121F, TJ480, 8120, Titan 4040, CR9080, 3154 Magnum, 450 Quadtrac, 370, 290 Magnum, CX8080, 470, TG210, 400, Titan 3030, 305 Magnum, 4430 Patriot, STX430, T9.615, TJ375, 255 Magnum, TJ530, 5550 Trident, MX215, T9040, T9.565, STX500, 600, 580, 3530 Titan, 4530 Titan, CR9060, 315 Magnum, TG215, 580 Quadtrac, T8.420, 380, 500 Quadtrac, 550, 350, 7230, STX480, T8.330, 480, 4440 Patriot, STX440, 4030 Titan, 8010, 430, 2654 Magnum, A85, 435, 370 Magnum, TG275, TG285, STX425, Titan 3530, 215 Magnum, MX230, MX285, 8230, 3040 Titan, T8050, TG305, T8010, 470 Quadtrac, 9230, 540 Quadtrac, T8030, T8.320, T9.670, T9060, AFX8010, STX380, T8.410, Titan 4540, 450, T9.480, 235 Magnum, T8.300, MX275, CX8070, TG255, 680B, 385, 275 Magnum, T9.700, 340 Magnum, 9010, Titan 4030, 370 Quadtrac, 1021F, 530, 7010, 9895, 9120, 4540 Titan, 260 Magnum, 280 Magnum, STX530, T9.390, 245 Magnum, T8.360, 3540 Titan, 500, 635, T8020, TG245, 420, 7130, 4040 Titan, T8.435, T9.450, 7120, 600 Quadtrac, T9.600, MX305, 250 Magnum, T9.435, A86, STX375, STX450, TG230, 420 Quadtrac, T9.530, MX255, 620 Quadtrac, CR9040, 6130, T9030, 485, 540, MX245, Titan 3540, 620, CR940

Additional Information:

Compressor Type - Sanden Compressor Model - SD7H15 - 4499; 4768 Cylinder Head - MD Grooves - 8 Clutch Diameter - 6.00" Fittings - Horizontal 1" Tube-O Mount Type - Direct Coil Position - 12:00 Volts - 12V Oil Type - PAG 100 Oil / SP15 (Pre-Filled 9.6 oz.) Refrigerant - R134A

Reference Numbers:

86992688, 317008A2, 317008A3, 5014078610, 86993463R, 317008A2, 317008A3, 47809628, 5014078610, 504290050, 86992688, 86993463, 87775469, 504078610, 317008A2, 317008A3, 5014078610, 86993463R, 86992688, 317008A2, 317008A3, 47809628, 5014078610, 504290050, 86992688, 86993463, 87775469
