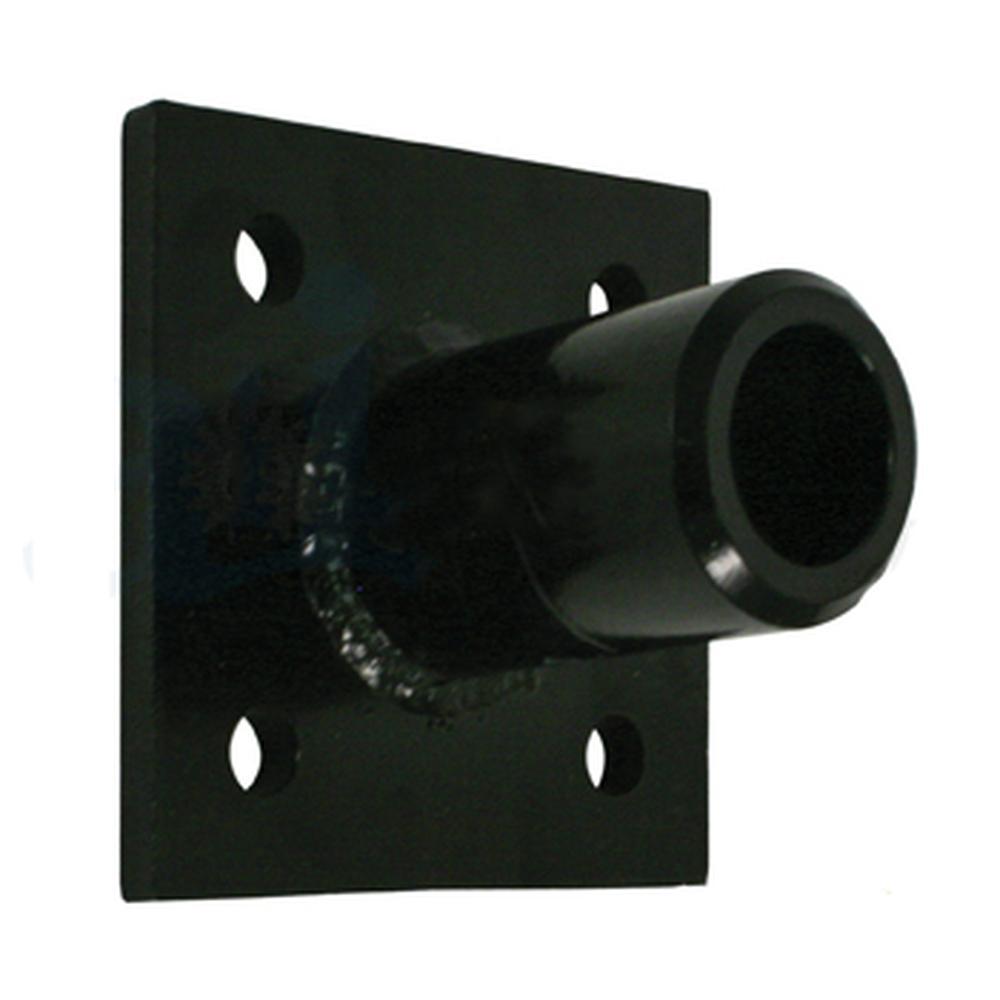

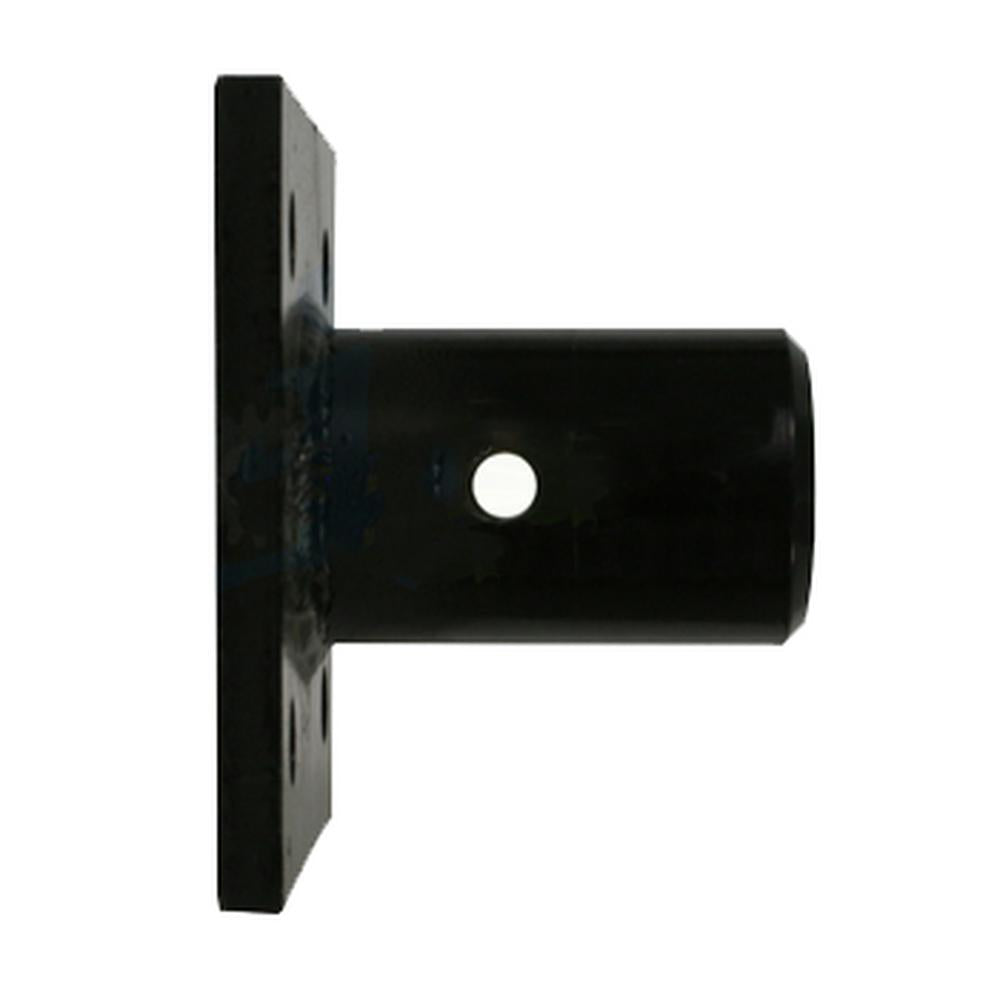

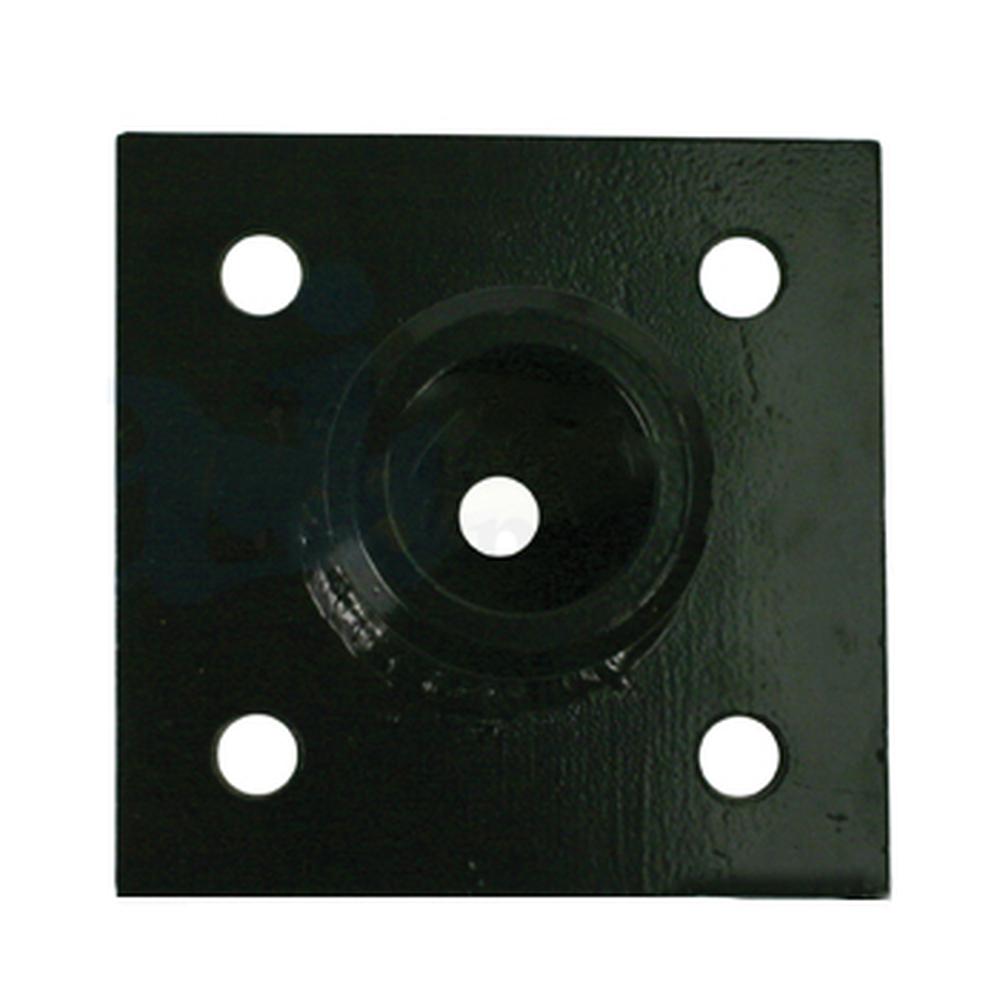

A-BCH42S-AI Bracket, Bale Point Bolt On, Square Mount, For 42mm Points

One New Aftermarket Replacement Bale Point Bolt-On Bracket, Square Mount, for 42mm Points

This bolt-on bale spear mounting bracket allows pin-on style 42mm (1.65") bale points to be mounted on square tubing tool bars and front end loaders without welding. The bracket features a 4" welded-on sleeve that accepts the bale spear point and bolts securely to square tubing using the included U-bolts and nuts. It is a universal-fit accessory used across a wide range of tractor loader and hay handling setups. Sourced from A&I Products (A&I), a leading aftermarket agricultural parts supplier.

Specifications

• Designed for: 42mm (1.65" diameter) pin-on bale spear points
• Sleeve length: 4" welded-on
• Sleeve ID: 1.70"
• Sleeve OD: 2.56"
• Plate hole diameter: 0.687"
• Plate hole spacing: 3.78" top-to-bottom and side-to-side
• Mount type: Square tubing bolt-on (U-bolt mount)
• Weight: approx. 10.25 lbs
• Hardware included: U-bolts and nuts

Compatible Applications

Universal bolt-on bracket compatible with front end loaders and square tubing toolbar setups on tractors from John Deere, Case IH, New Holland, Kubota, Massey Ferguson, and other major brands. Fits any loader or toolbar application using 42mm pin-on bale spear points.

Replaces Part Number(s):

BBS42

New aftermarket replacement part - not remanufactured, not used.
