A-B36107A2ALH-AI Bolt Kit, Rotary Cutter Blade

Name: A-B36107A2ALH-AI Bolt Kit, Rotary Cutter Blade
SKU: A-B36107A2ALH-AI
Price: 51.0 USD
Availability: InStock

A-B36107A2ALH-AI Bolt Kit, Rotary Cutter Blade

£51.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

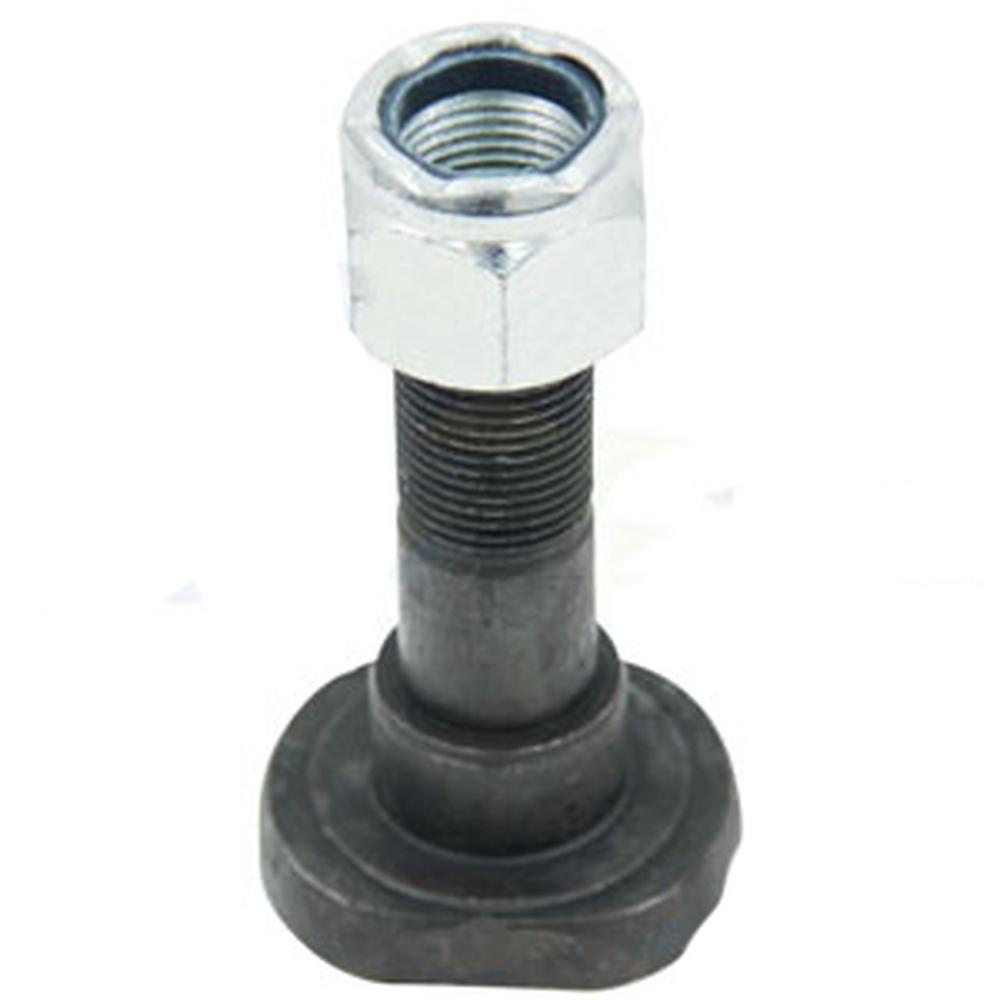

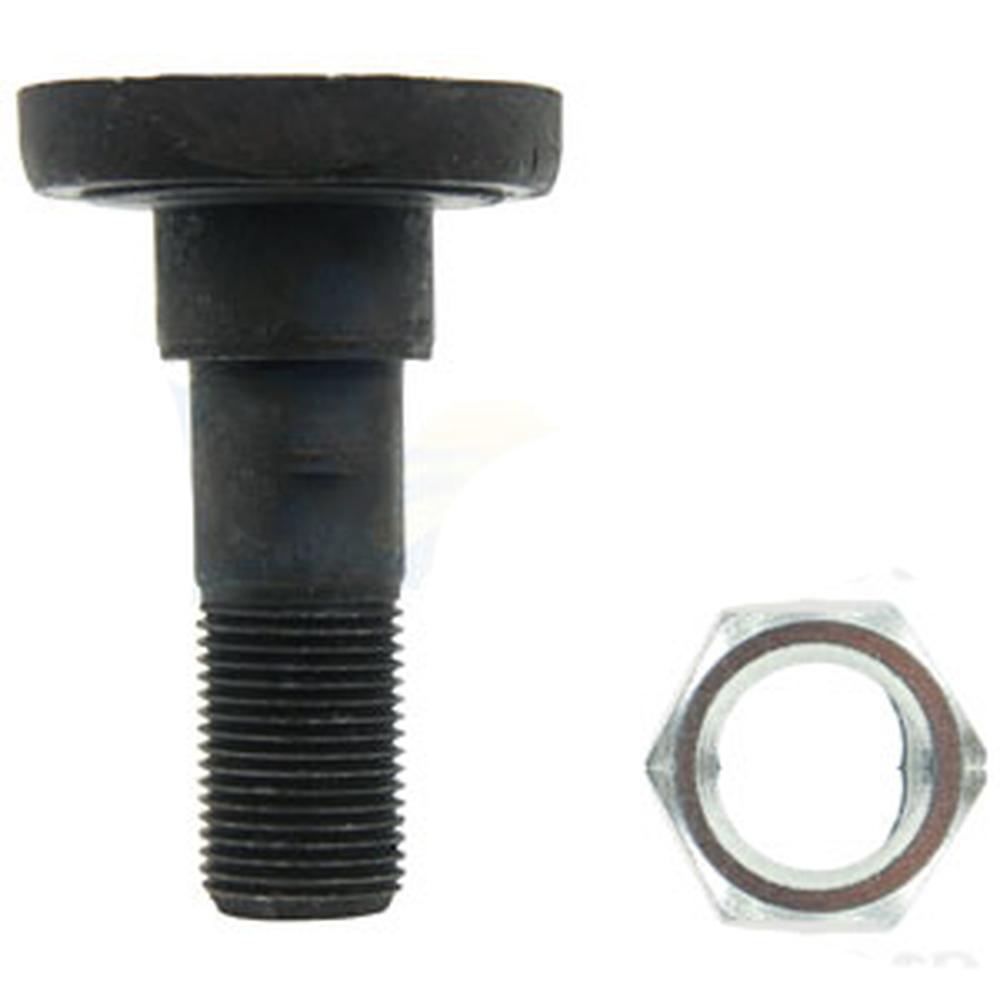

One New Aftermarket Replacement Rotary Cutter Blade Bolt Kit for Rhino (Servis/Rhino) Rotary Cutters

This left-hand (LH) thread blade bolt kit secures the cutting blade to the blade carrier on Rhino and Servis/Rhino rotary cutters. The left-hand thread is a critical design feature that prevents the bolt from loosening under the rotational forces of cutter operation. Kit includes one (1) LH-thread blade bolt and one (1) LH-thread lock nut.

Specifications

Thread Direction: Left-Hand (LH)
Bolt Diameter: 3/4-16 UNF
Head Diameter: 1.64" x 1.93"
Neck Diameter: .764"
Overall Length: 2.88"
Shoulder Diameter: 1.00"
Shoulder Length: .88"
Thread Length: 1.07"
Keyed shoulder

Compatible Models

Rhino / Servis-Rhino Rotary Cutters: Saturn 5, Saturn 6, Saturn 7, Saturn 8, Gyro 66, 140

Replaces Part Number(s):

B36107A2ALH, 36107A2ALH, 7A5512-BP

Aftermarket Interchange Numbers

SW00727, 125-908 (bolt), 5GL12160 (nut), 7A5512, 125908, 125923, 165306P, 125908KIT

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Hay Tool Parts

Additional Information:

Bolt - L/H Thread Bolt Diameter: 3/4-16 UNF Head Diameter: 1.64"x1.93" Neck Diameter: .764" Overall Length: 2.88" Shoulder Diameter: 1.00" Shoulder Length: .88" Thread Length: 1.07"
