A-B2376-AI Bearing Cup (JL69310)
A-B2376-AI Bearing Cup (JL69310)
Couldn't load pickup availability

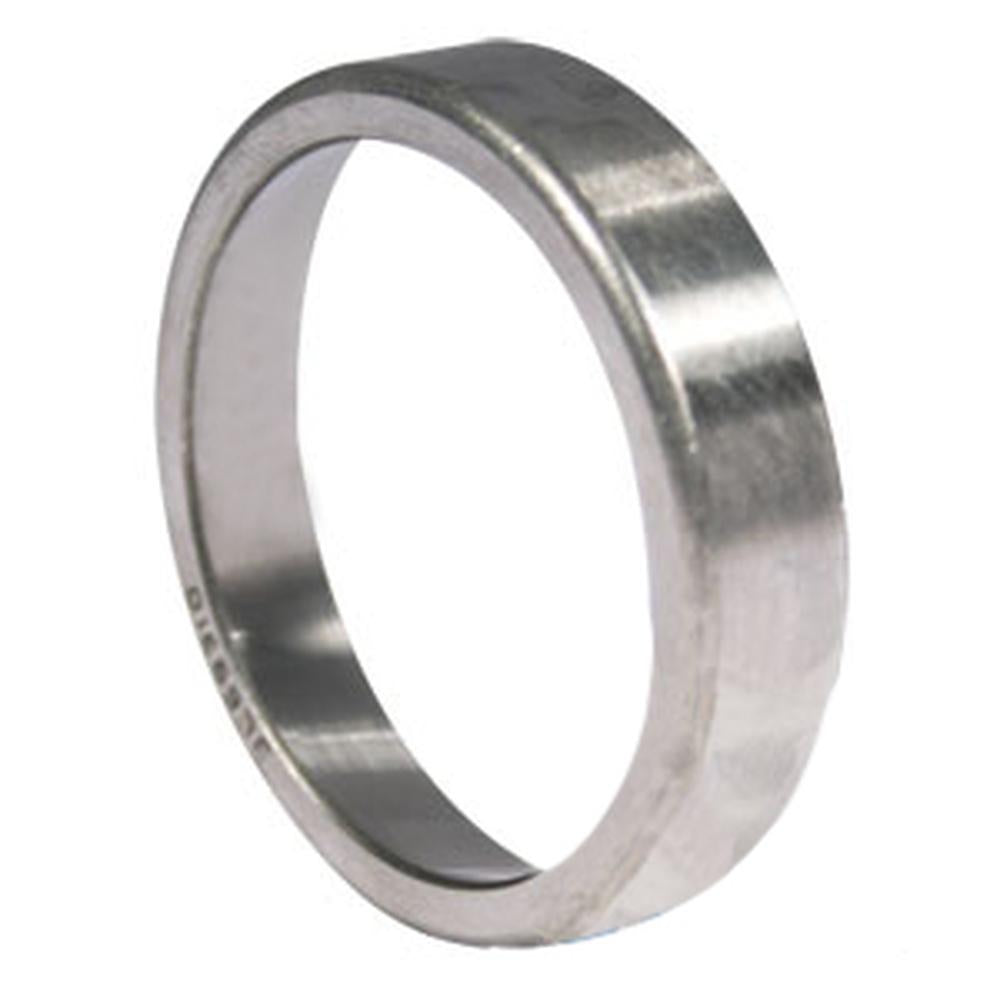

One New Aftermarket Replacement Tapered Roller Bearing Cup (JL69310) Fits Allis-Chalmers, Fits Case/IH, Fits Ford/New Holland, Glenco, Vermeer, White, and More
This tapered roller bearing cup (outer race) is a direct replacement for OEM part JL69310. It presses into the housing and pairs with a matching tapered cone bearing (JL69349) to handle both radial and axial loads in wheel hubs, axle assemblies, and other agricultural equipment applications across a wide range of tractors and implements. When installing, ensure the housing bore is clean and free of nicks for a proper seating.
Specifications
- Type: Tapered Roller Bearing Cup (Outer Race)
- Outside Diameter: 2.4803 in (63 mm)
- Cup Width: 0.531 in (13.5 mm)
- Bearing Width: 0.669 in (17 mm)
- Max House Fillet Radius: 0.05 in (1.27 mm)
- Series: L69300
- Use with cone: JL69349
Compatible Models
Fits Allis-Chalmers (AGCO) Tractors: 6060 (Standard Tread), 6070 (Standard Tread)
Fits Case / Fits Case IH: IH Combine applications (see ref numbers 61801C1, 273634)
Fits Ford/New Holland: Applications cross-referencing SBP239580B, 273634
Glenco Soil Saver: Applications cross-referencing P1484
Vermeer: Applications cross-referencing 1715049
White Tractor: Applications cross-referencing W239580B
Kewanee: Applications cross-referencing B2376
Also used in lawn and garden equipment, agricultural implements, and trailer wheel hub applications.
Replaces Part Number(s):
21882480, 7713753, B2376, JL69310-TIM, JL69310TIM, T54090, W239580B, 582091, 70582091, 70589091, JL69310-I, 273634, SBP239580B, 61801C1, P1484, 1715049, FRB10-0137
Aftermarket Interchange Numbers
JD9159 (Fits John Deere), 843126M1 (AGCO/Fits Massey Ferguson), 2051040, 2631JL69310, AJL69310TIM, A-JL69310TIM, AJL69310, B2376BH, 1715-049
New aftermarket replacement part - not remanufactured, not used.
