A-AT63170-AI Sub To 804-1890

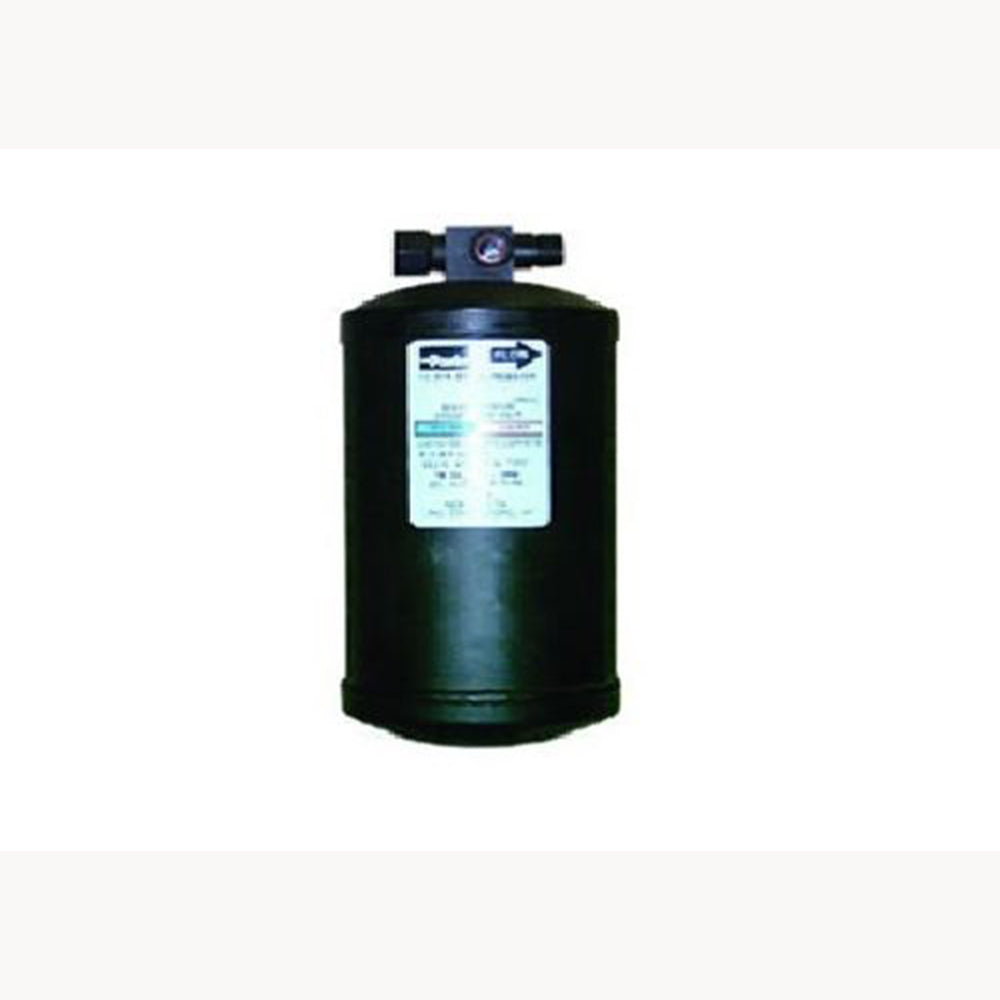

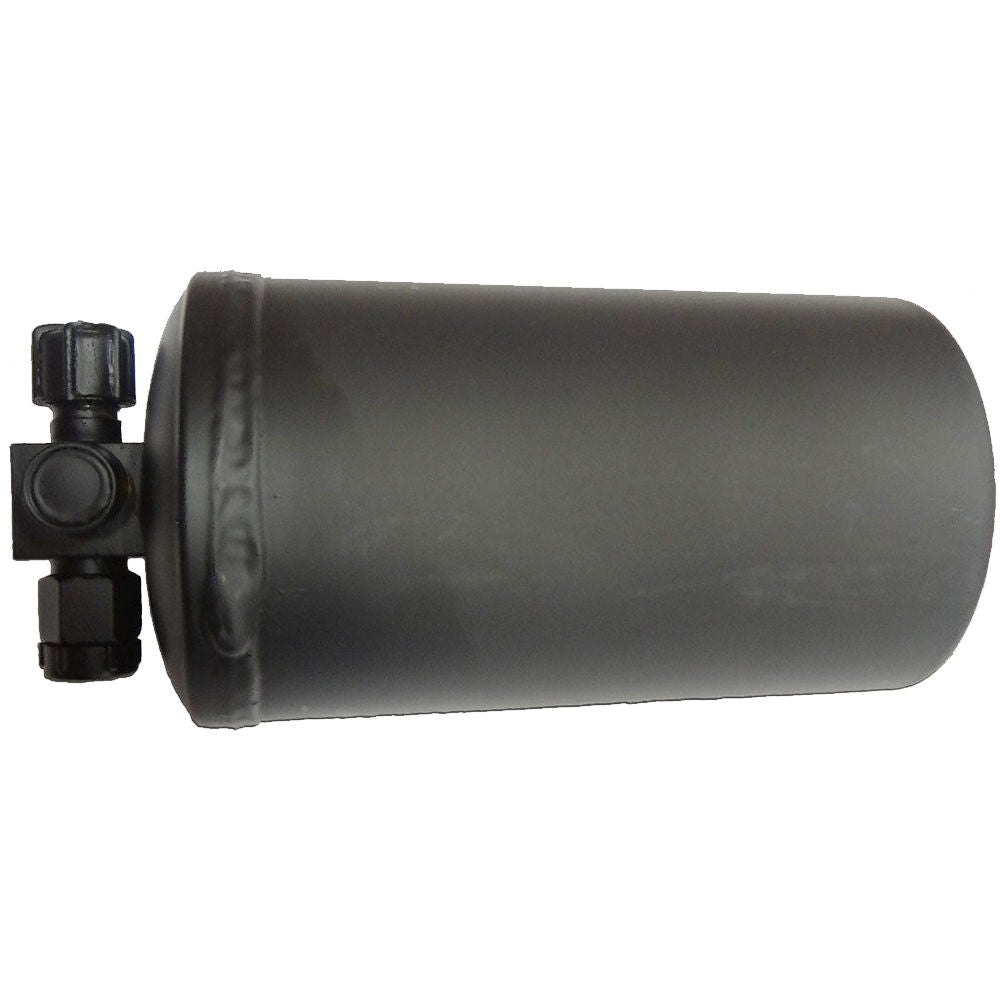

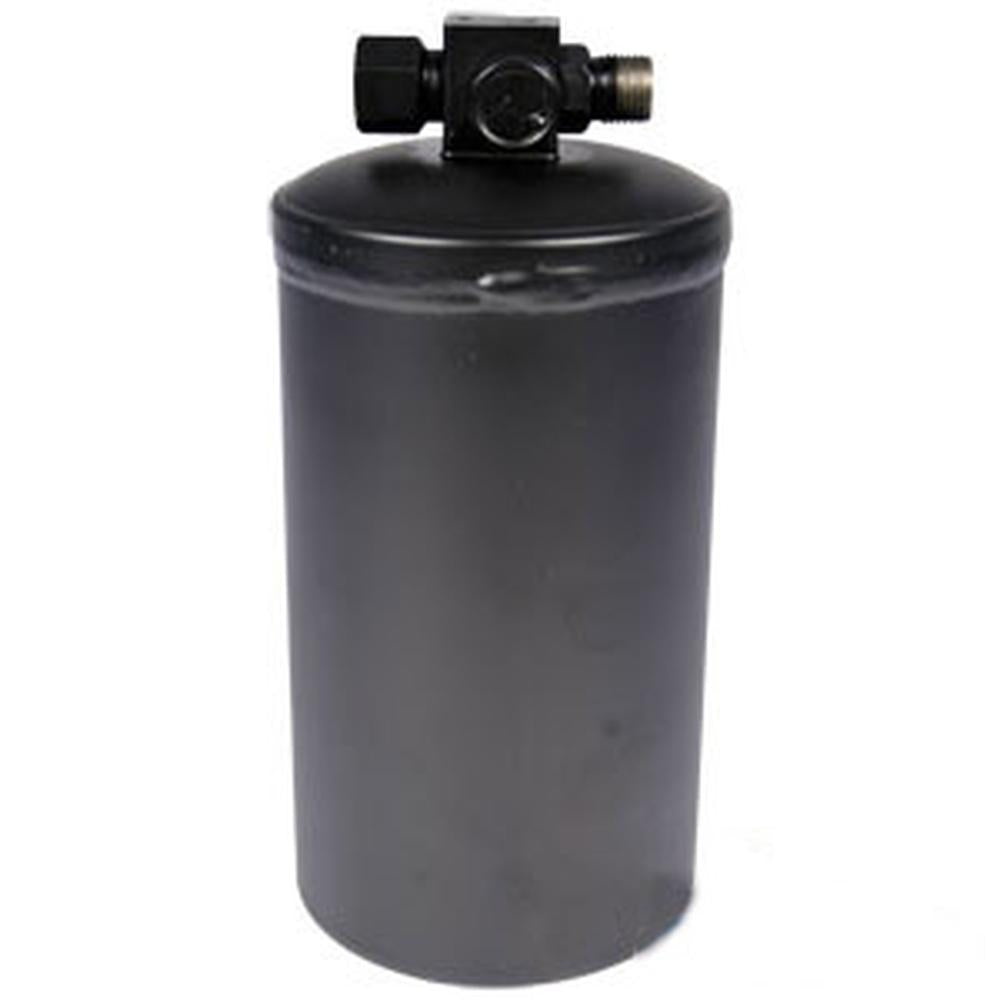

One New Aftermarket Replacement A/C Receiver Drier Fits John Deere Combines, Tractors, and Construction Equipment

This aftermarket replacement A/C receiver drier fits a wide range of Fits John Deere agricultural and construction equipment. The receiver drier is a critical component of the air conditioning system, containing filter media to remove solid contaminants and desiccant to absorb moisture from the refrigerant. Compatible with both R12 and R134a refrigerants. Replaces OEM part numbers AT63170, AT162848, AT125596, and others listed below. Replace the receiver drier any time the A/C system is opened, the compressor is replaced, or at least annually.

Specifications

• Canister Diameter: 4"
• Overall Height: 9"

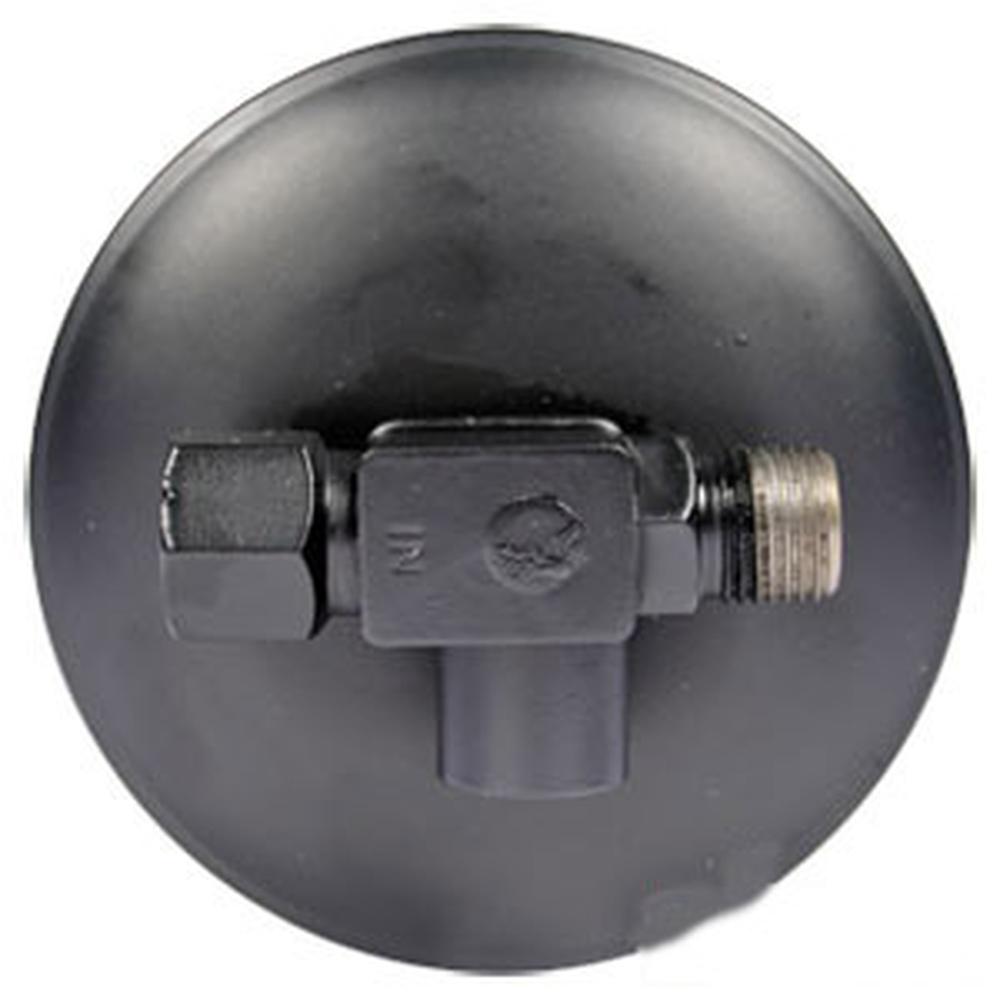

• Inlet: #6, 3/8" Female O-Ring
• Outlet: #6, 3/8" Male O-Ring
• Refrigerant Compatibility: R12 and R134a
• Mounting Position: Vertical/Upright

Compatible Models

Fits John Deere Combines: CTS, CTS II, 2054, 2056, 2058, 2064, 2066, 4425, 4435, 4700, 4710, 5720, 5730, 5820, 5830, 6620, 6620 Titan II, 6622, 6650, 7720, 7720 Titan II, 7722, 8820, 8820 Titan II, 9400, 9410, 9450, 9500, 9510, 9510 SH, 9550, 9550 SH, 9560, 9560 SH, 9560 STS, 9570 STS, 9600, 9610, 9640, 9650, 9650 CTS, 9650 STS, 9660, 9660 CTS, 9660 STS, 9670 STS, 9680, 9760, 9760 STS, 9770 STS, 9780 CTS, 9780HM CTS, 9860 STS, 9870 STS, 9880 STS, 9940, 9950, 9960, 9965, 9970, 9976, 9986, 9996, TC44H, TC54H

Fits John Deere Tractors: 6610, 6710, 6810, 6910, 7200, 7250, 7300, 7350, 7400, 7450, 7500, 7550, 7750, 7800, 7850, 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410

Fits John Deere Forage Harvesters: 5720, 5730, 5830, 6710, 7300, 7500, 7700, 7750, 7800, 7850, 3430, 3800, 3830

Fits John Deere Cotton Pickers: 9976, 9986, 9996, 7450, 7550, 7760

Fits John Deere Loader Backhoes: 310C, 310D, 310E, 310G, 310SE, 310SG, 315C, 315D, 315SE, 315SG, 410B, 410D, 410E, 410G, 510B, 510C, 510D

Fits John Deere Wheel Loaders: 444H, 444J, 524K, 544E, 544G, 544J, 624E, 624G, 624J, 644G, 644H, 700H

Fits John Deere Skid Steer Loaders: 317, 320, 325, 328, 332, CT322, CT332

Fits John Deere Skidders: 540E, 540G, 548E, 548G, 640E, 640G, 648E, 648G, 710D, 710G, 748E, 748G

Fits John Deere Motor Graders: 670B, 670C, 670CH, 672B, 672CH, 672D, 726B, 740E, 740G, 762, 770B, 770BH, 770C, 770CH, 770D, 772B, 772BH, 772CH, 772D, 850C, 850C II, 850J, 870D, 872D

Fits John Deere Crawlers/Dozers: 450H, 450J, 550H, 550J, 650H, 650J, 750C, 750C II, 750J, 850C, 850C II, 850J

Fits John Deere Scrapers/Other: 360DC, 360DG, 460DC, 460DG, 300D, C670, 4710

Replaces Part Number(s):

804-1890, AH114865, AH137486, AH211387, AH234099, AXE53638, AT63170, AT114865, AT125596, AT151981, AT162848, AH162848

New aftermarket replacement part - not remanufactured, not used.
