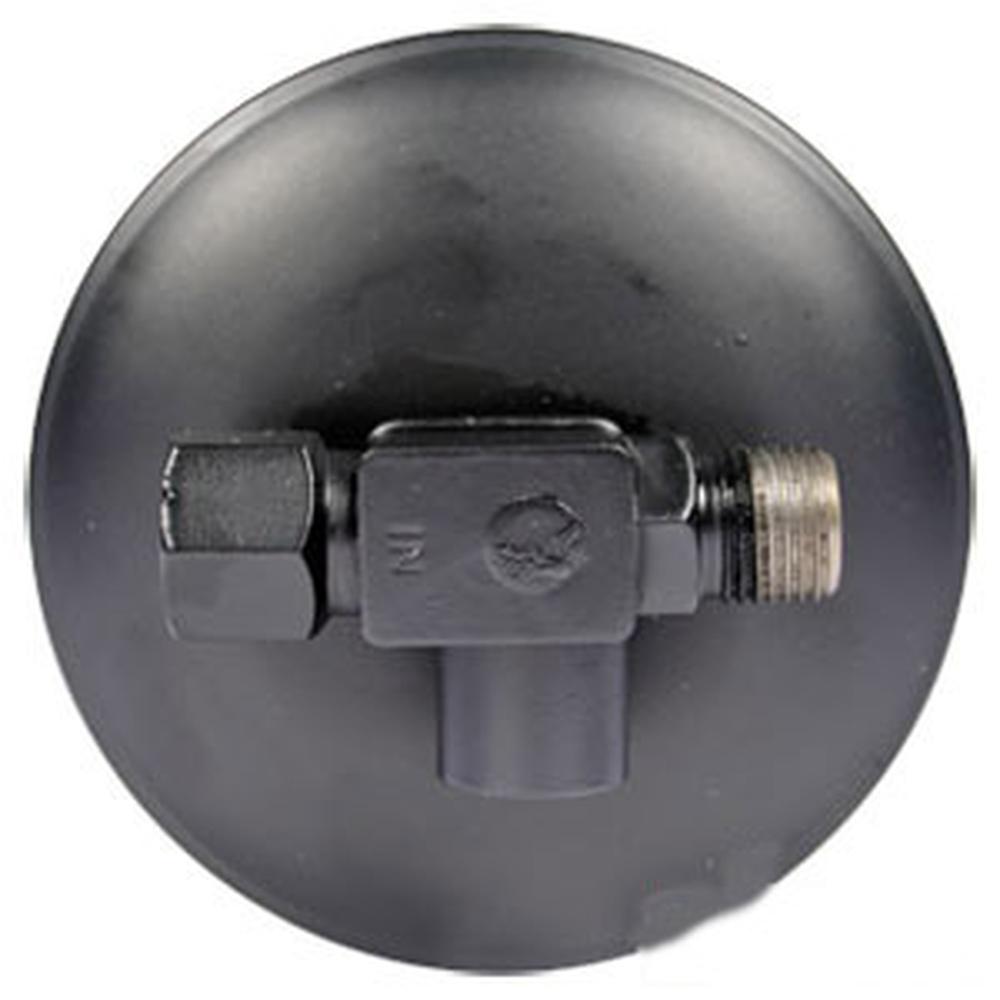

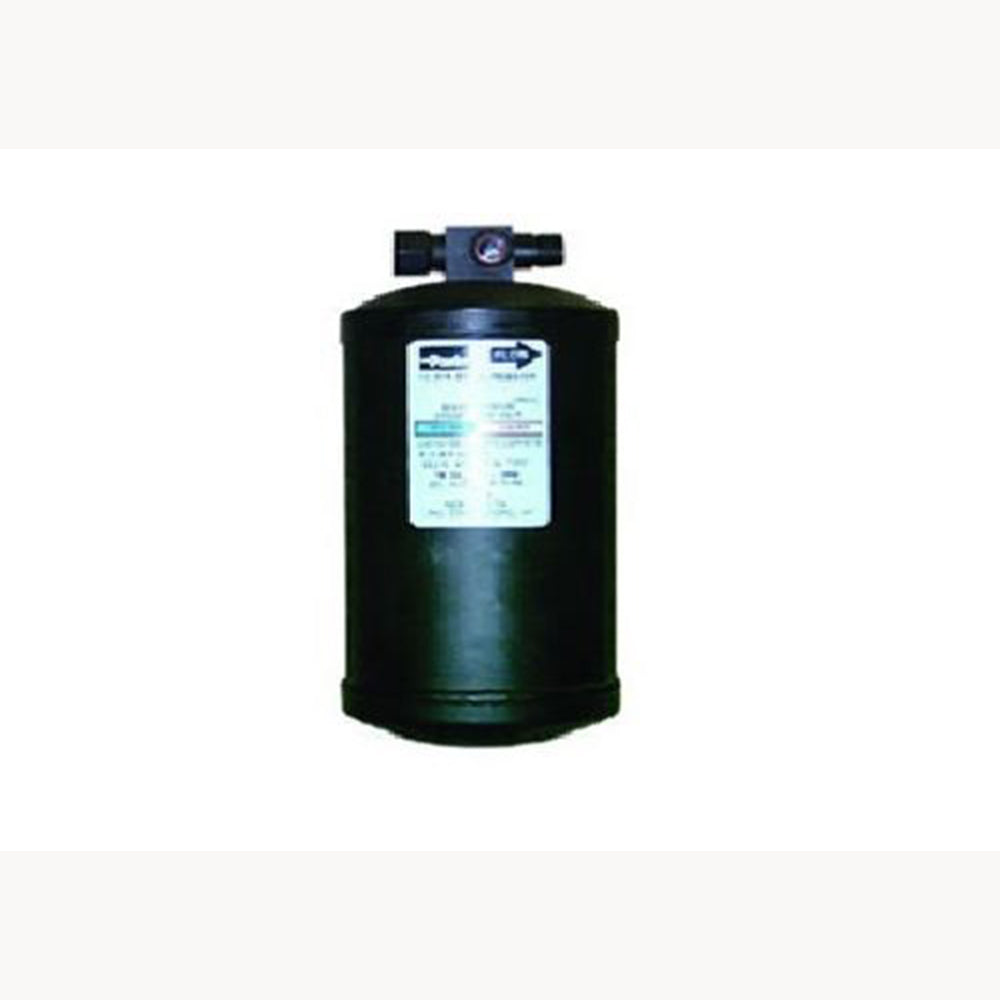

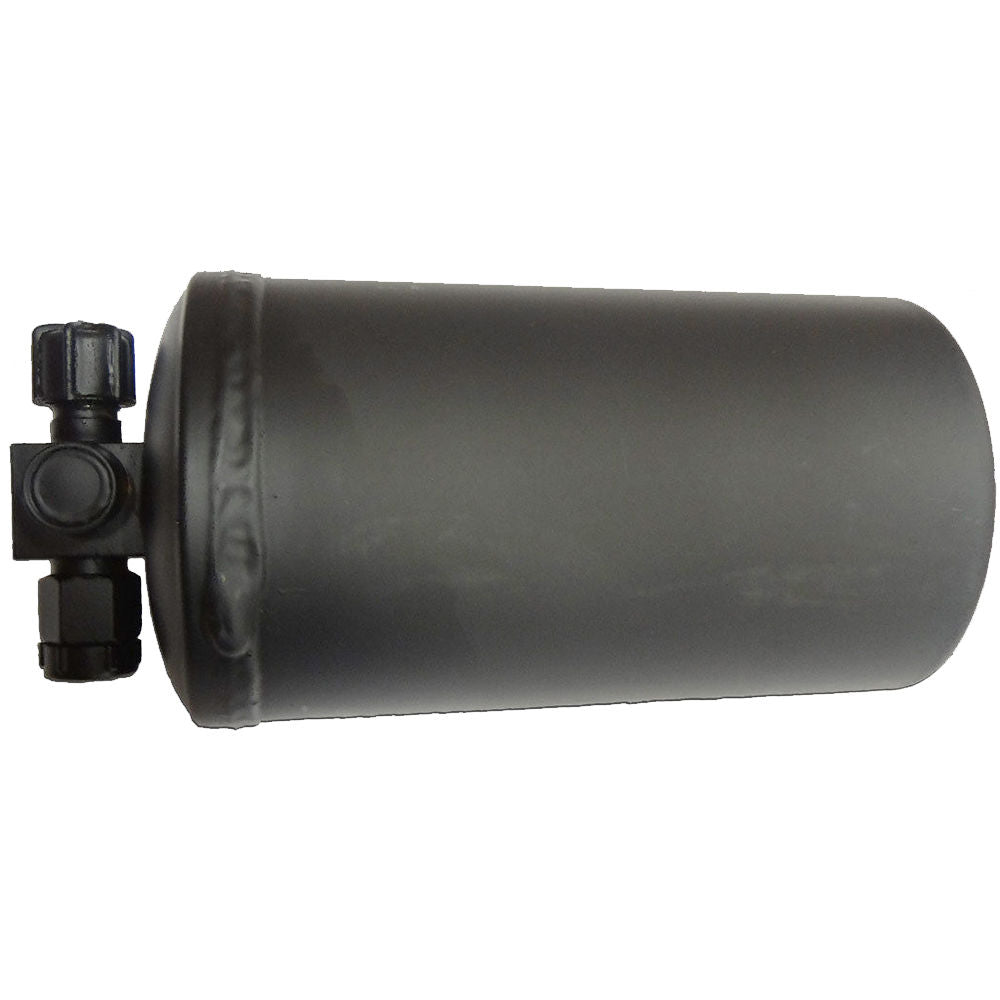

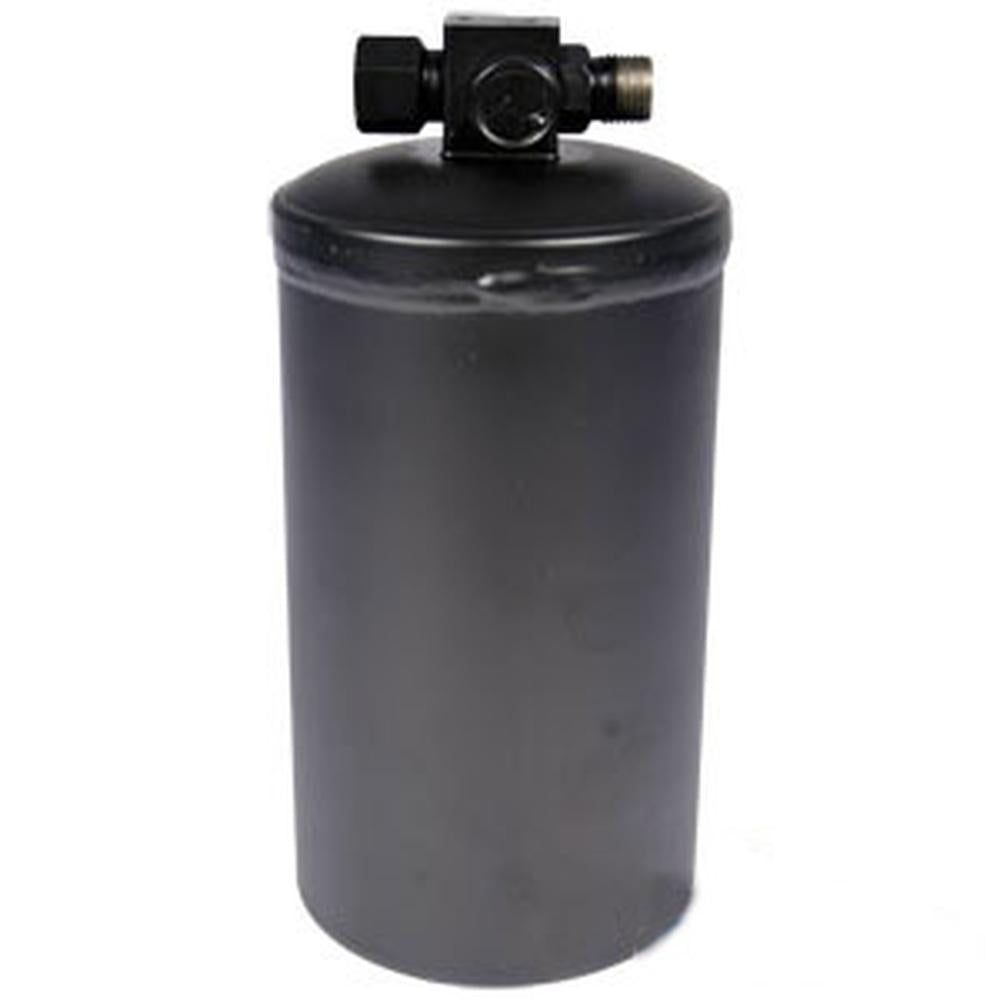

A-AT125596-AI Receiver Drier
A-AT125596-AI Receiver Drier
Couldn't load pickup availability
One New Aftermarket Replacement A/C Receiver Drier Fits John Deere (Fits JD) Agricultural and Construction Equipment
This aftermarket replacement A/C receiver drier fits a wide range of Fits John Deere combines, tractors, harvesters, loaders, skid steers, and more. The receiver drier filters moisture and contaminants from the A/C system refrigerant using internal desiccant and filter media, protecting compressor components and maintaining cooling performance. Compatible with both R12 and R134a refrigerant systems. Features top and side sight glasses for easy visual inspection. Replace the receiver drier whenever the compressor is replaced, whenever the A/C system has been open to atmosphere, or as part of annual A/C system maintenance.

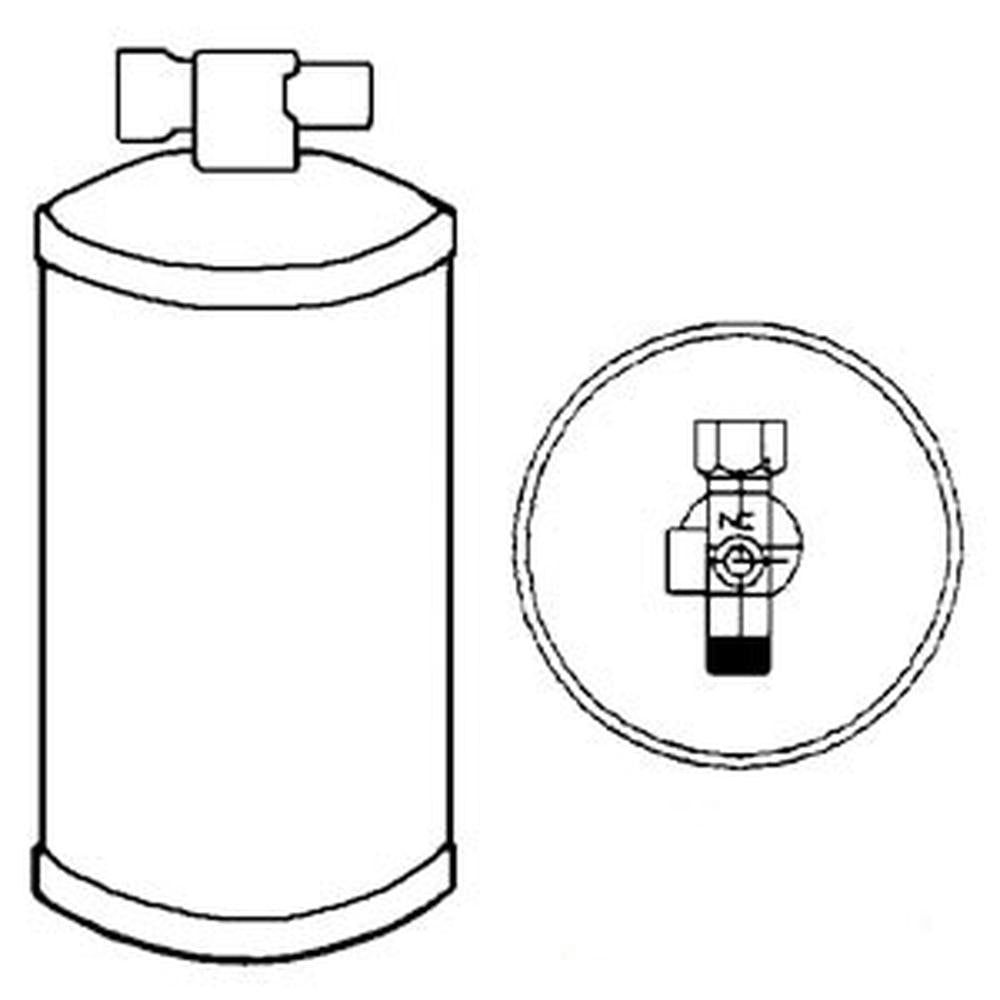

Specifications
- Diameter: 4"
- Overall Height: 9"
- Inlet: #6, 3/8" Female O-Ring
- Outlet: #6, 3/8" Male O-Ring
- Refrigerant Compatibility: R12 and R134a
- Sight Glass: Top and Side
- Mounting Position: Vertical/Upright
Compatible Models
Fits John Deere Combines: CTS, CTS II, 4425, 4435, 6620 (S/N 600001 and later), 6622, 7720 (S/N 600001 and later), 7722, 8820 (S/N 615401 and later), 9400 (S/N 650100 and earlier), 9410, 9450, 9500, 9510, 9510 SH, 9550, 9550 SH, 9560, 9560 SH, 9560 STS, 9570 STS, 9600, 9600 (S/N 650201 and later), 9610, 9640, 9650, 9650 CTS, 9650 STS, 9660, 9660 CTS, 9660 STS, 9670 STS, 9680, 9760, 9760 STS, 9770 STS, 9780 CTS, 9780HM CTS, 9860 STS, 9870 STS, 9880 STS, 9940, 9950, 9960, 9965, 9970, 9976, 9986, 9996
Fits John Deere Tractors: 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410
Fits John Deere Forage Harvesters: 5720, 5730, 5820, 5830, 6610, 6650, 6710, 6810, 6910, 7200, 7250, 7300, 7350, 7400, 7450, 7500, 7550, 7700, 7720 Titan II, 7750, 7760, 7800, 7850, 8820 Titan II
Fits John Deere Cotton Pickers: 9940, 9950, 9960, 9965, 9976
Fits John Deere Sprayers: 4700, 4710
Fits John Deere Windrowers/Hay: 3430, 3830
Fits John Deere Combines (additional): 2054, 2056, 2058, 2064, 2066
Fits John Deere Skid Steer Loaders: CT322, CT332, 317, 320, 325, 328, 332
Fits John Deere Tool Carriers: TC44H, TC54H
Fits John Deere Wheel Loaders: 444H, 444J, 524K, 544E, 544G, 544J, 624E, 624G, 624J, 644G, 644H
Fits John Deere Loader Backhoes: 300D, 310C, 310D, 310E, 310G, 310SE, 310SG, 315C, 315D, 315SE, 315SG, 410B, 410D, 410E, 410G, 450H, 450J, 510B, 510C, 510D, 710D, 710G
Fits John Deere Crawlers/Dozers: 650H, 650J, 700H, 750C, 750C II, 750J, 850C, 850C II, 850J
Fits John Deere Motor Graders: 670B, 670C, 670CH, 670D, 672B, 672CH, 672D, 726B, 740E, 740G, 762, 770B, 770BH, 770C, 770CH, 770D, 772B, 772BH, 772CH, 772D, 850C, 870D, 872D
Fits John Deere Skidders: 540E, 540G, 548E, 548G, 640E, 640G, 648E, 648G, 748E, 748G
Fits John Deere Scrapers: 460DC, 460DG, 360DC, 360DG
Fits John Deere Feller Bunchers: 643D, 693B
Fits John Deere Excavators: 690B, 790D, 890A, 990
Serial Number Restrictions
- Fits JD 6620 Combine: S/N 600001 and later
- Fits JD 7720 Combine: S/N 600001 and later
- Fits JD 8820 Combine: S/N 615401 and later
- Fits JD 9400 Combine: S/N 650100 and earlier
- Fits JD 9600 Combine: S/N 650201 and later
Replaces Part Number(s):
AT125596, AT162848, AT63170, AT114865, AT151981, AH114865, AH137486, AH211387, AH234099, AXE53638, 804-1890
Aftermarket Interchange Numbers
07-5032A, 37-13541, 37-13541-AM, 7392, 800-5316, 825-5176, AR59780, AZ45582, 1211182, 60-1-0004, 804-532
New aftermarket replacement part - not remanufactured, not used.
