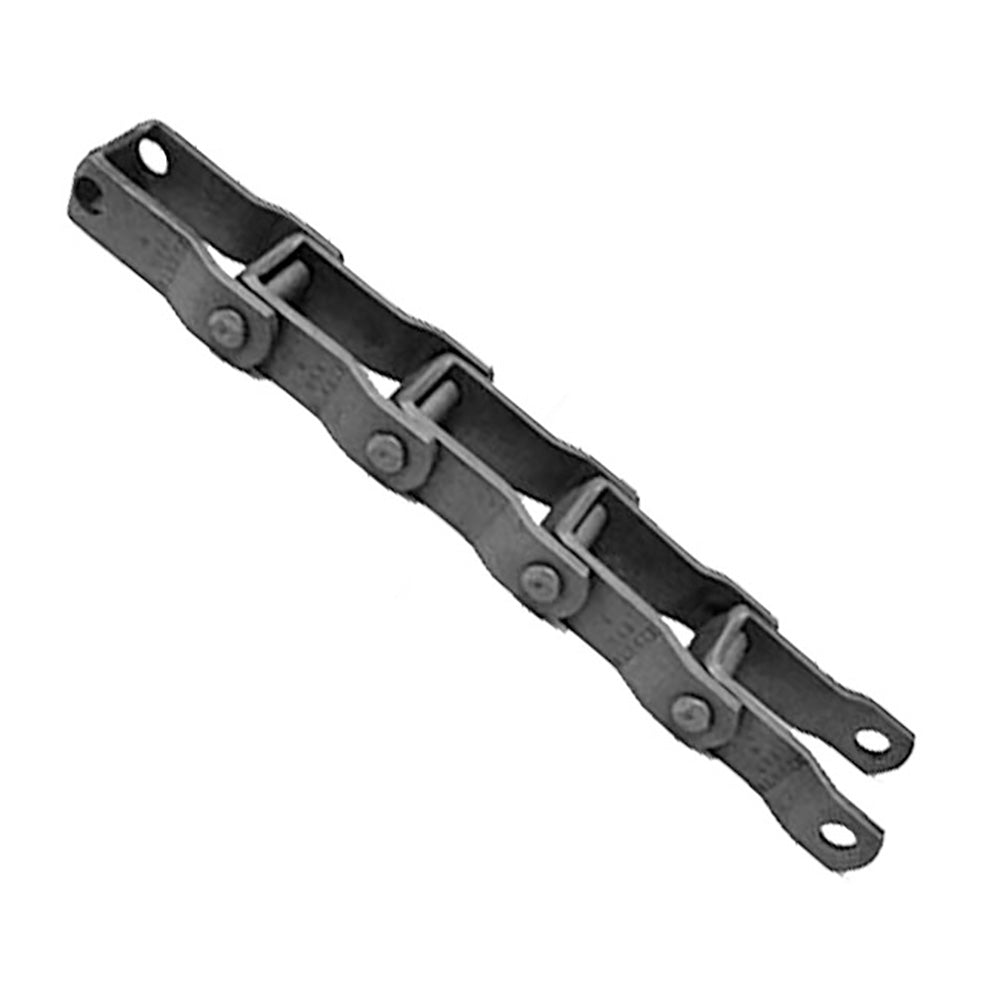

One New Aftermarket Replacement AL667H Steel Pintle Chain - 10 ft Coil
The AL667H is a heavy-duty steel pintle chain commonly used in agricultural conveyor and spreading applications, including manure spreader aprons, forage wagon aprons, cross conveyors, bunk feeders, hay handling equipment, and salt, sand, and fertilizer spreader systems. Sold as a 10-foot coil, this chain is a direct aftermarket replacement for worn or broken 667H pintle chain on a wide range of agricultural equipment.
Specifications
- Chain Size: 667H Steel Pintle
- Length: 10 ft coil
- Links per 10 ft coil: 52
- Weight per 10 ft coil: 11.7 lbs
- Pitch (P): 2.313 in
- Overall Width: 1-47/64 in
- Inside Width: 1 in
- Height (H): 0.875 in
- Thickness (T): 0.125 in
- Pin Diameter (D): 0.312 in
- Minimum Average Tensile Strength: 9,500 lbs
Applications
The 667H pintle chain is a standard agricultural conveyor chain used in manure spreader aprons, forage wagon aprons, cross conveyors, bunk feeders, hay handling equipment, and salt/sand/fertilizer spreader systems. Verify chain size and pitch against existing chain before ordering.
Replaces Part Number(s):
AL667H, A-AL667H, A-AL667H-AI
New aftermarket replacement part - not remanufactured, not used.
