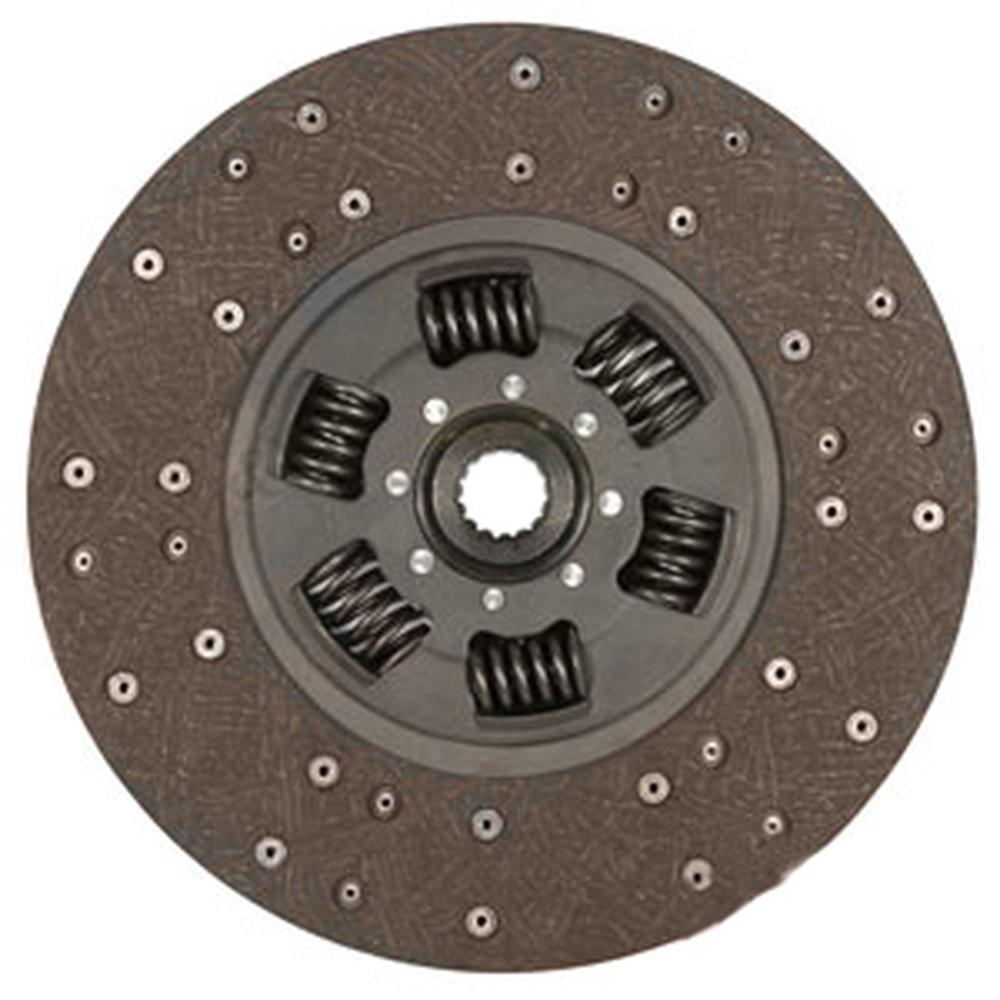

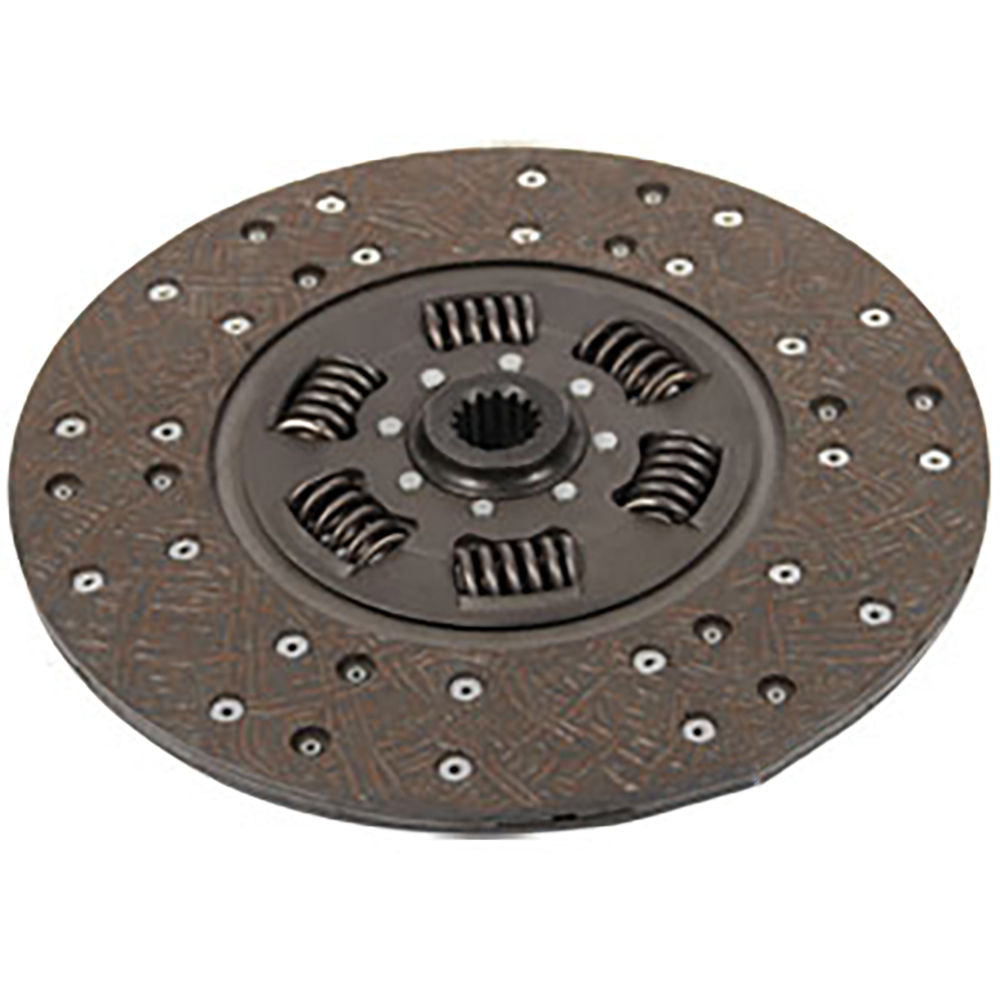

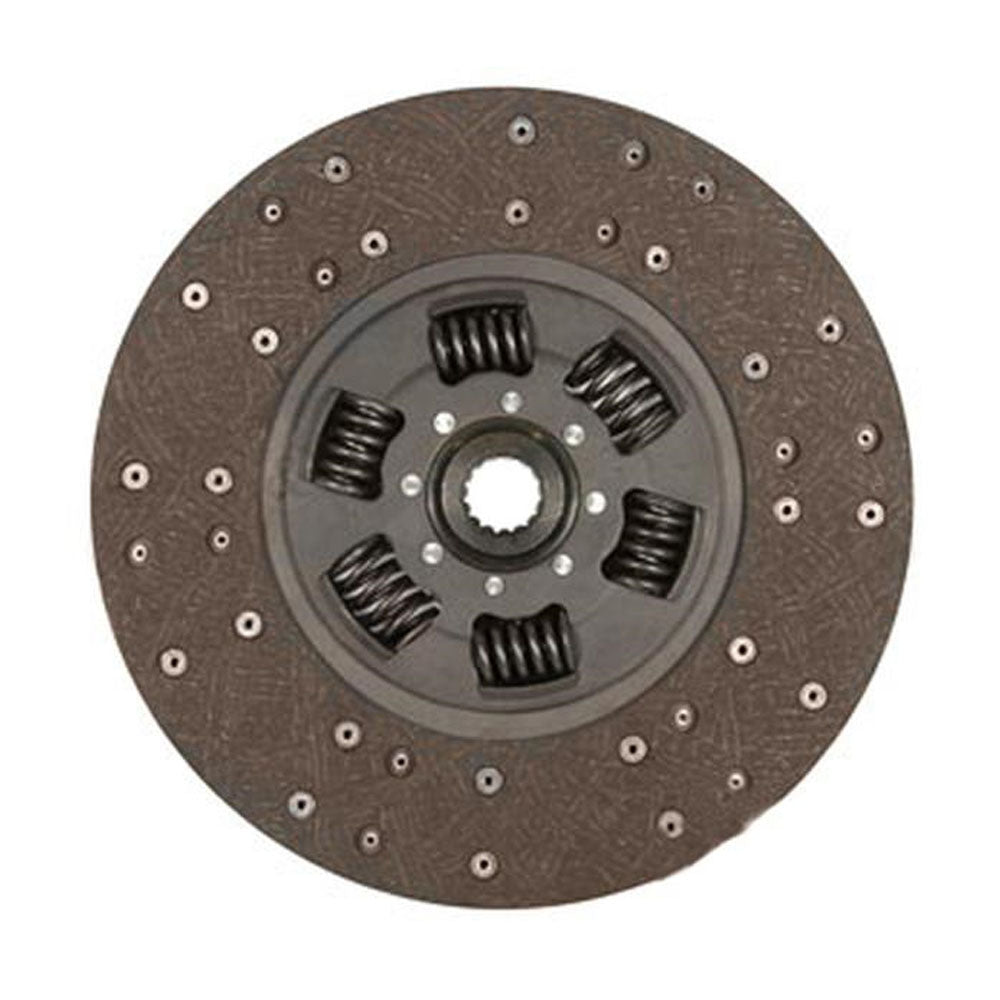

A-AL34903-AI Trans Disc: 11" torsion-dampened, organic
A-AL34903-AI Trans Disc: 11" torsion-dampened, organic
Couldn't load pickup availability
One New Aftermarket Replacement 11" Transmission Disc Fits John Deere Tractors
This torsion-dampened organic transmission disc is a clutch system component used in Fits John Deere double and single clutch drivetrains across a wide range of utility and row-crop tractors. The spring-loaded organic friction material provides smooth engagement and reliable power transfer between the engine and transmission input shaft.
Specifications
- Outside Diameter: 11"
- Spline Count: 15
- Spline Diameter: 1.024"
- Type: Organic, torsion-dampened (spring loaded)
Compatible Models
Fits John Deere - Double Clutch Applications: 820, 830, 840, 930, 940, 1020, 1030, 1040, 1120, 1130, 1140, 1350, 1520, 1530, 1550, 1630, 1640, 1750, 1830, 1850, 1950, 1950N, 2020, 2030 (European), 2040, 2120, 2130, 2140, 2150, 2155, 2240 (S/N 350000 and above), 2250, 2255, 2350, 2355, 2355N, 2440, 2450, 2450F, 2555, 2630, 2640, 2650, 2750, 2755, 2850, 301A
Fits John Deere - Single Clutch Applications: 840, 940, 1030, 1040 (S/N below 495151), 1120, 1130, 1140 (S/N below 495151), 1640 (S/N below 463068), 1830 (w/ Hi-Lo), 1840, 2030 (European), 2040, 2150 (S/N below 495151), 2240, 2250, 2255 (S/N below 495151), 2350 (S/N below 463068)
Replaces Part Number(s):
AL120018, AL39425, AL66183, AL31436, AL66180, AL34903, AL33315
Aftermarket Interchange Numbers
LUK: VPG2144, 328006111, 328006120/2, 328006121/2, 328006127, 328018726
New aftermarket replacement part - not remanufactured, not used.
