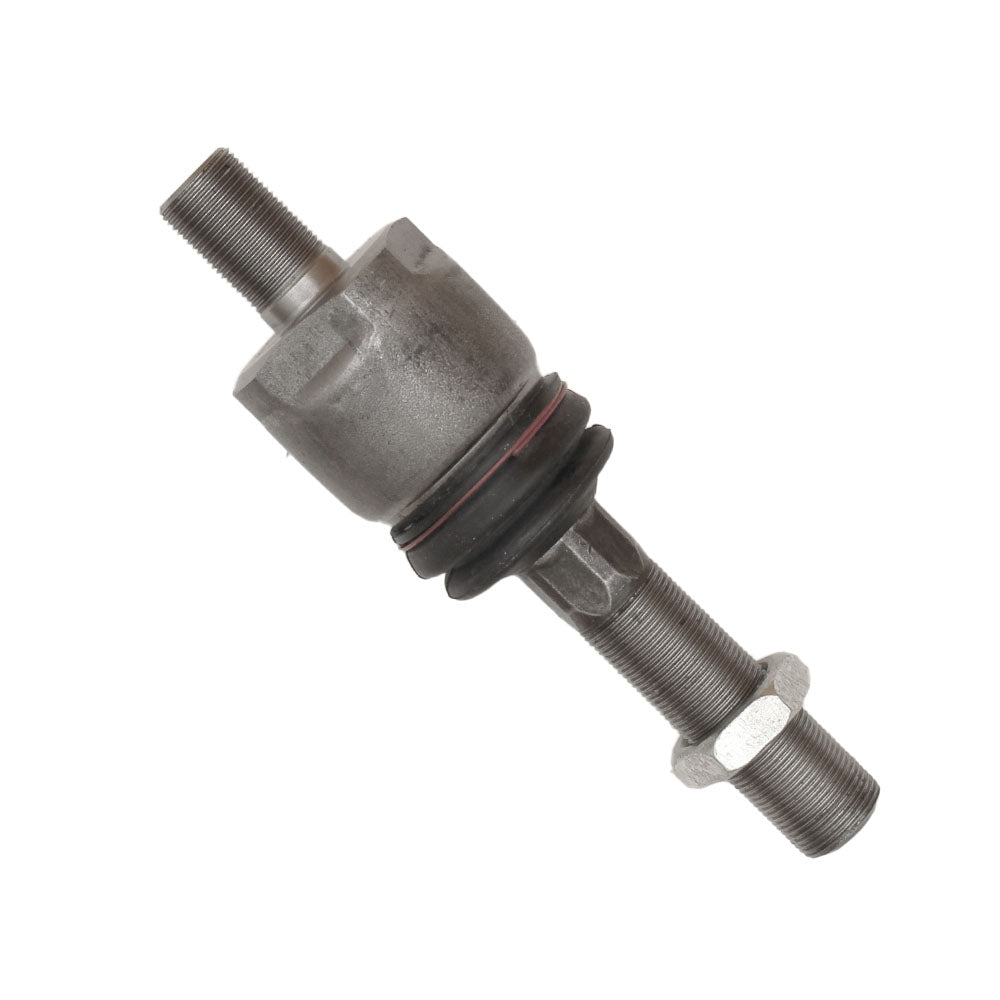

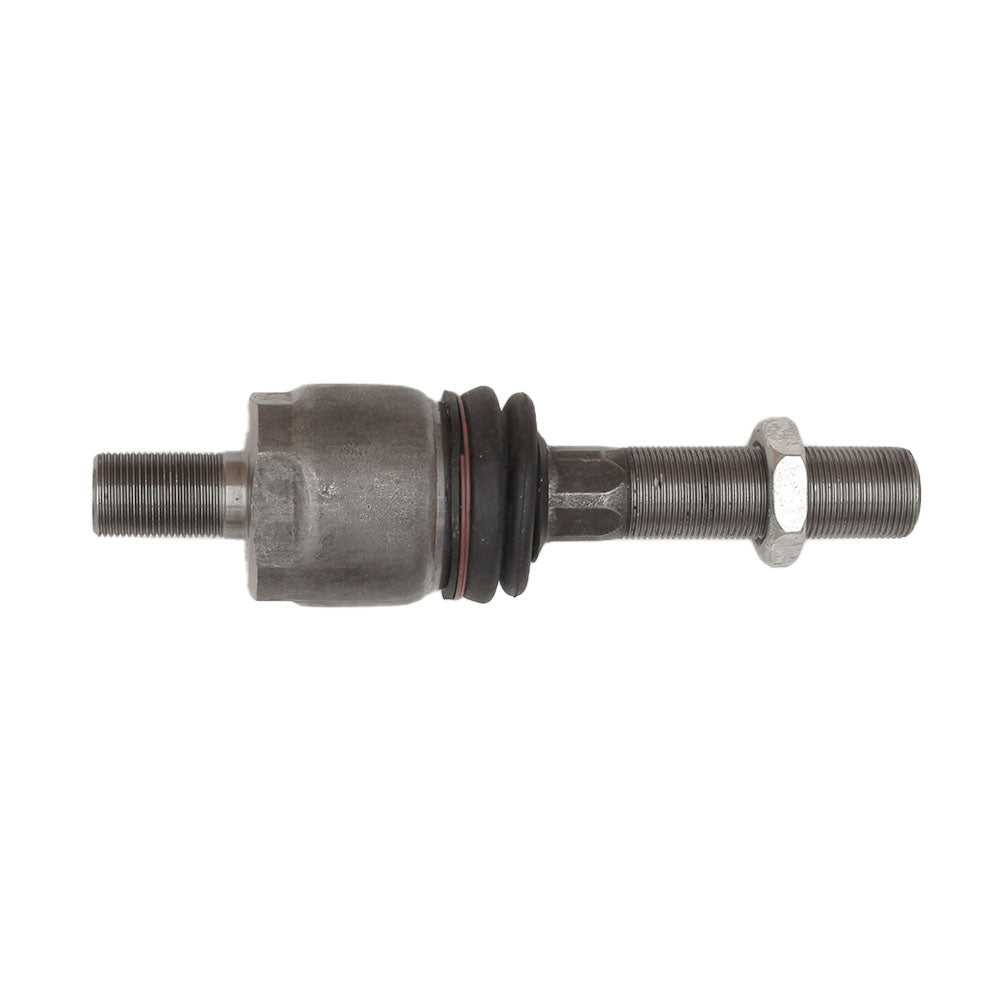

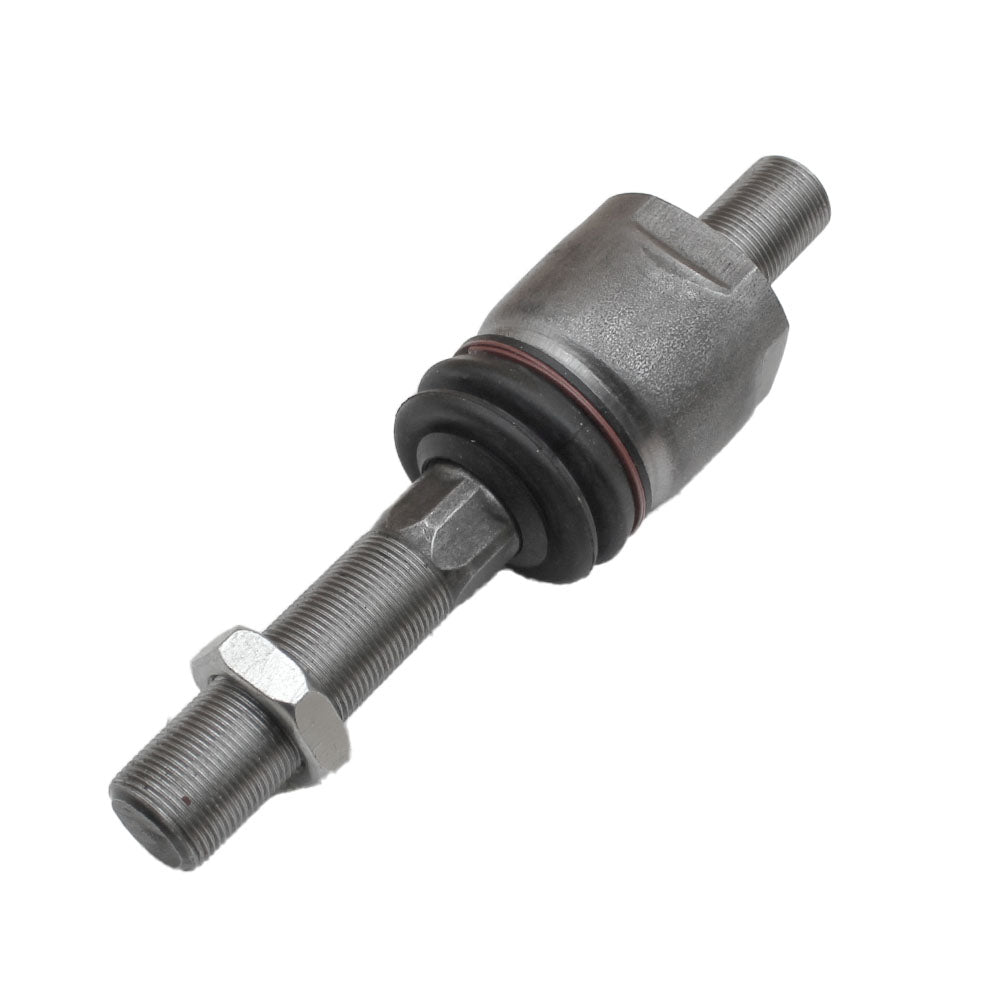

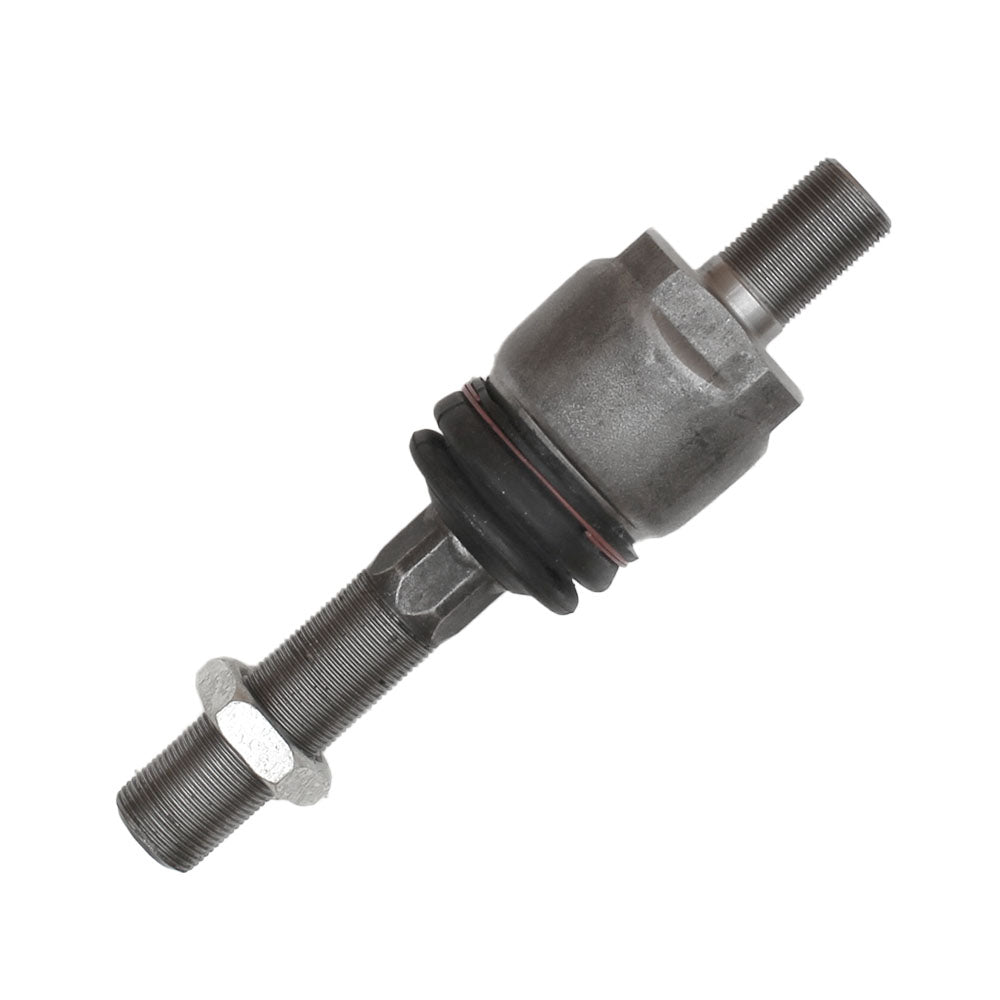

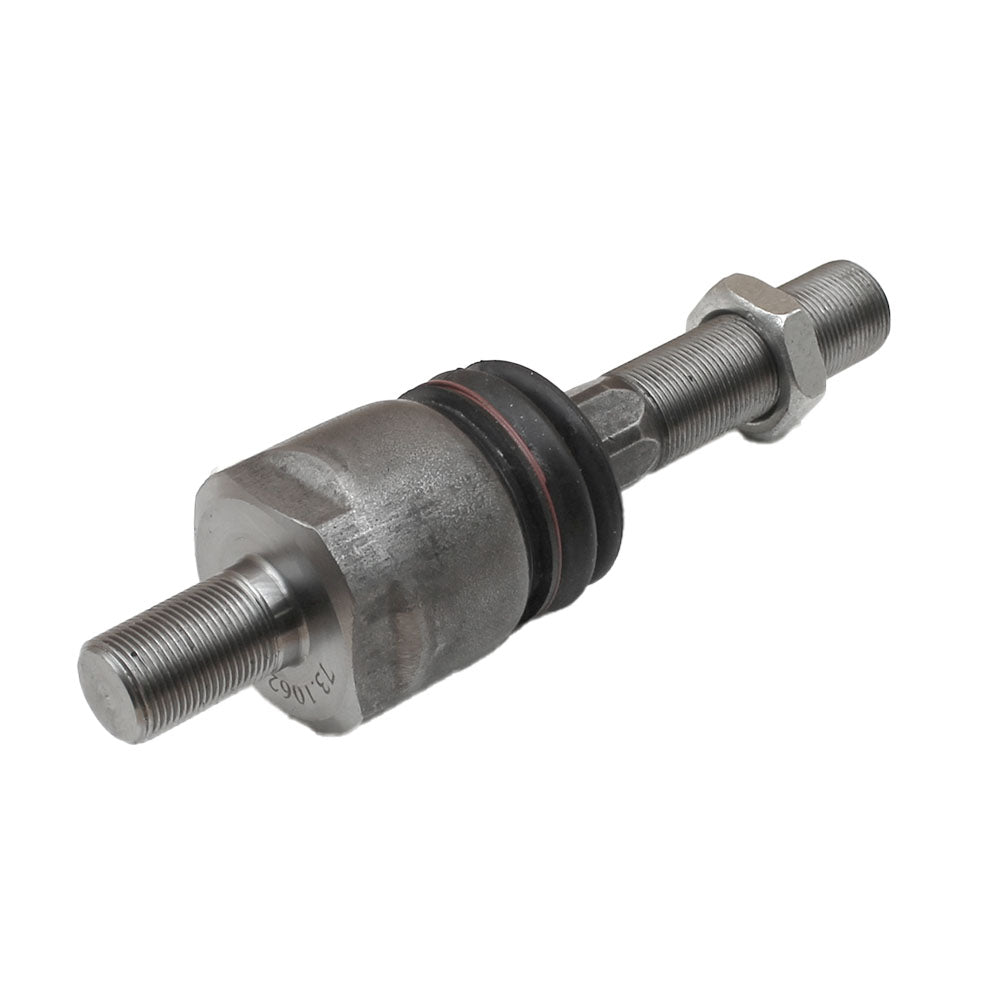

A-AL168711-AI Tie Rod

A-AL168711-AI Tie Rod

£43.00 GBP
£43.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Tie Rod


-Dim A (1): A - 8.20"
-Dim B (2):B - M22 X 1.5 RH Thrd
-Dim C (3):C - M24 X 1.5 RH Thrd
-Replaces:AL80542, AL151996

Models This Part Fits:

7220, 8210, 6140J, 6820, 410C, SE6110, 8240, 7410, 610C, SE6320, 6310L, 7420, 6110, 6220, 210C, 6500, 6020, 510D, 655E, 300D, 6900, 6400, 6310S, 6210L, 8340, 6510, SE6120, 6415, SE6220, 6215, SE6410, 5640, 6410S, 6220L, 7405, MX90C, SE6010, 310D, 7840, 6510S, 6405, 6615, 6320L, 6610, 7425, 7210, 7740O, SE6610, 6605, 6205, 510C, MX80C, 486E, 6210, 575E, 310C, 7525, SE6520, 6505, 6500L, 315D, 6515, 6420L, 6300, 6506, SE6420, 6310, 7520, 6715, 6600, 6403, 7320, SE6020, 4610N, 675E, 7840O, 410D, 6120L, 6410, 7500, 6410L, SE6510, 488E, 315C, 6300L, 6320, SE6310, 485E, SE6210, 6155J, 6603, 6120, 6510L, 6400L, 6010, 6420, 6110L, 6810, 482C, 6800, 7740, 555E, 6640, 6520L

Additional Information:

Center to End: 4 1/8" Diameter: 2-9/16" Length: 8-1/4" M22 X 1.5 RH Thread M24 X 1.5 RH Thread

Reference Numbers:

AL151996, AL168711, AL80542, 153326657, 9968015, 9968018

Product Category:

Agriculture
