A-AH232127-AI Cross and Bearing Assembly; 2400 Series

Name: A-AH232127-AI Cross and Bearing Assembly; 2400 Series
SKU: A-AH232127-AI
Price: 44.0 USD
Availability: InStock

A-AH232127-AI Cross and Bearing Assembly; 2400 Series

£44.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

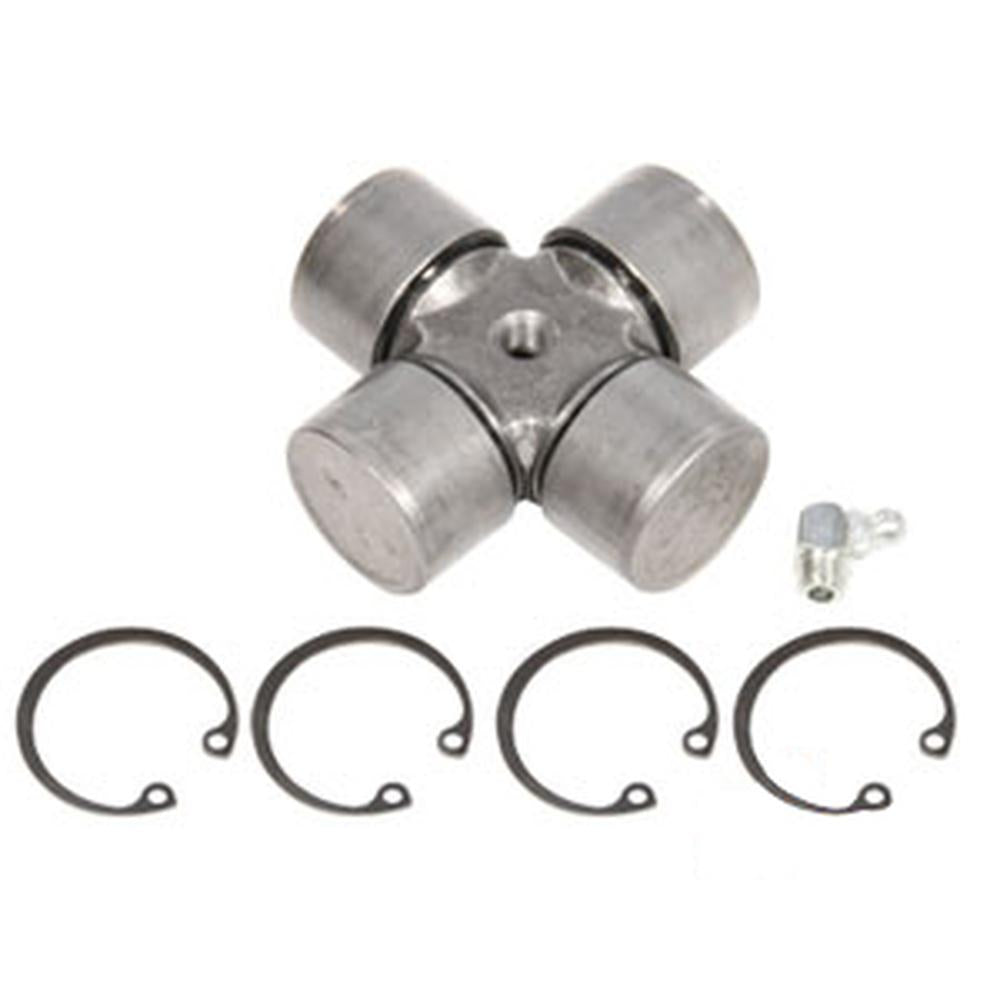

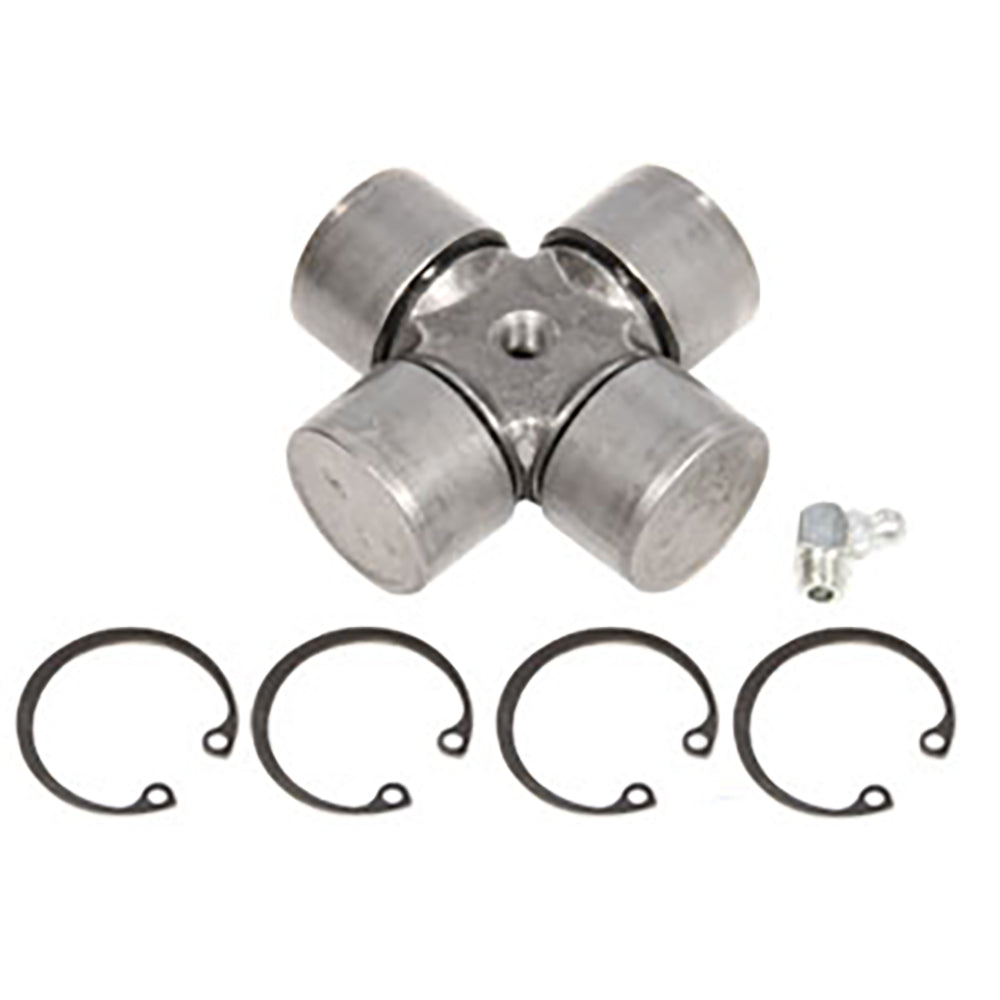

One New Aftermarket Replacement Cross and Bearing Kit for Walterscheid, Fits John Deere, Kuhn, Fits Massey Ferguson, and Multi-Brand PTO Drivelines -- 2400 Series

This aftermarket replacement cross and bearing kit fits Walterscheid 2400 Series PTO driveline shafts and is a widely used interchange for disc mowers, mower conditioners, round balers, rotary cutters, square balers, corn headers, cutting platforms, and other PTO-driven equipment across many brands. The external snap ring design retains the bearing cups in the yoke, and the center-located grease zerk provides easy lubrication access. Rated for 53 hp at 540 rpm and 83 hp at 1,000 rpm.

Specifications

Cross size: 32 mm x 76 mm
Snap ring location: External
Grease zerk location: Center
Power rating: 53 hp @ 540 rpm / 83 hp @ 1,000 rpm

Compatible Models

Walterscheid: W Series 2400, WWE Series 2480

Fits John Deere Headers / Platforms: 606, 608, 612, 615F, 615R, 618F, 618R, 620F, 620R, 622F, 622R, 625D, 625F, 625R, 630D, 630F, 630R, 635D, 635F, 635R

Fits John Deere Corn Headers: 606C, 608C, 612C

Kuhn Disc Mowers: GMD240, GMD240HD, GMD280, GMD280HD, GMD283TG, GMD310, GMD310HD, GMD310-FF, GMD313TG, GMD350, GMD500S, GMD500SHD, GMD600GII, GMD600GII HD, GMD602, GMD602GII, GMD700GII, GMD700GII HD, GMD702, GMD702GII, GMD800GII, GMD800GII HD, GMD802, GMD902, GMD2810, GMD2850TL, GMD3110, GMD3150TL, GMD3510, GMD3550TL, GMD4010, GMD4050TL, GMD4410, GMD8730; FC300G, FC300GT, FC300RG, FC300RGT, FC301G, FC302, FC302G, FC302GI, FC302GV, FC302MN, FC302RG, FC313, FC313D, FC313DF, FC313F, FC313RF, FC350, FC350G, FC350GT, FC350RG, FC352G, FC352MN, FC352RG, FC3160TLD, FC3160TLR; BC606, BC906

Fits Massey Ferguson / Hesston Hay Cutting: 164 (s/n DZ000427C and later), 166 (s/n DZ000427C and later), 256, 275, 320, 408, 411 (s/n 856624 and later), 412 (3/1992-7/1994), 415 (4/1992-10/1995)

Fits New Holland Balers: D800 (2/1992-12/1994), D1000 (2/1992-12/1994)

Fits New Holland Hay Cutting: 411 (s/n 856624 and later), 412, 415

New Idea: 3222, 3229, 3245VM, 3322, 3329, 3954VM, 2636VM

Land Pride Rotary Cutters: RC2560, RC2572, RC2584, RC3560, RC3572, RC3584, RC35120, RC45180

Vermeer Balers: 504I (s/n 2390 and later), 504L, 504M, 505L, 505M, 554XL, 555XL, 604K, 604L, 604M, 604XL, 605J (s/n 531-670), 605K, 605L, 605M, 605XL, 9520, 9524, 9530

Additional Models: 1040, 1050, 1060, 2044TR, 2054TR, 6030, 6040, 7030, 7040, 7200, 7725TR, 8018TR, 8024TR, 8030, 8030TR, 8032TR, 8040, 8040TR, 8118TR, 8124TR, 8500, 8720, 8865, 9520, 9524, 9530, 504I SILAGE, YT2350 2690765, 625D, 630D, 635D

Replaces Part Number(s):

AH232127, AW23611, AW312410A, W312410, 312410, 171-980, 200-7676, 22421, 25553001, 26092001, 35.00.00M, 343-1206, 350000, 350000M, 41120080, 4242000, 500-124-34, 50012434, 510505801, 6713-38563, 65822421, 658-22421, 734264, A2007676, B150120, B15-0120, PM200-7676, WCB035, DRF30-0003

Aftermarket Interchange Numbers

Also crosses to: 6582182 (AGCO OEM)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

615F, WWE Series 2480, 7725TR, GMD2810, FC350G, 554XL, 9530, 618R, GMD800GII HD, GMD8730, FC302GV, RC3584, 9520, FC3160TLR, GMD350, 605L, BC906, 622F, 5040, GMD313TG, 605J, 604M, GMD310, GMD702GII, FC302MN, FC3160TLD, GMD283TG, 2636VM, 275, 8500, 504M, 605XL, 608, 620F, 8118TR, FC302G, BC606, 620R, 606, 8024TR, 605M, 320, GMD280, 3329, 164, 256, 612, FC313D, D1000, 635R, GMD702, 8720, 8032TR, GMD500S, GMD3150TL, FC352G, GMD4410, FC302, 8030TR, 1060, 6040, 625R, 9524, 408, 8018TR, W Series 2400, FC313F, 555XL, GMD77HD, 505M, RC45180, FC313RF, GMD4050TL, 605K, 7200, 412, FC302GI, 630F, GMD240HD, FC352MN, FC301G, GMD602, GMD902, FC313, GMD600GII HD, 1040, D800, 504I SILAGE, GMD800GII, 625F, 505L, GMD700GII, GMD310-FF, 604K, GMD802, FC300G, 7040, 5030, 1050, RC3572, 615R, GMD280HD, GMD4010, GMD2850TL, GMD500SHD, 8040, RC2572, 2044TR, FC352RG, GMD240, 8040TR, GMD700GII HD, GMD310HD, 7030, 630D, FC350, RC2584, RC35120, FC300RG, 3322, 622R, 8030, RC2560, GMD3550TL, FC300RGT, GMD602GII, FC313DF, 3954VM, FC300GT, 618F, 630R, YT2350 2690765, 625D, 8865, 6030, 8124TR, 3245VM, 635F, 166, 415, RC3560, 411, 2054TR, 604XL, 604L, GMD3110, GMD3510, FC302RG, 635D, 504L, FC350RG, 3229, 3222, FC350GT, GMD600GII

Additional Information:

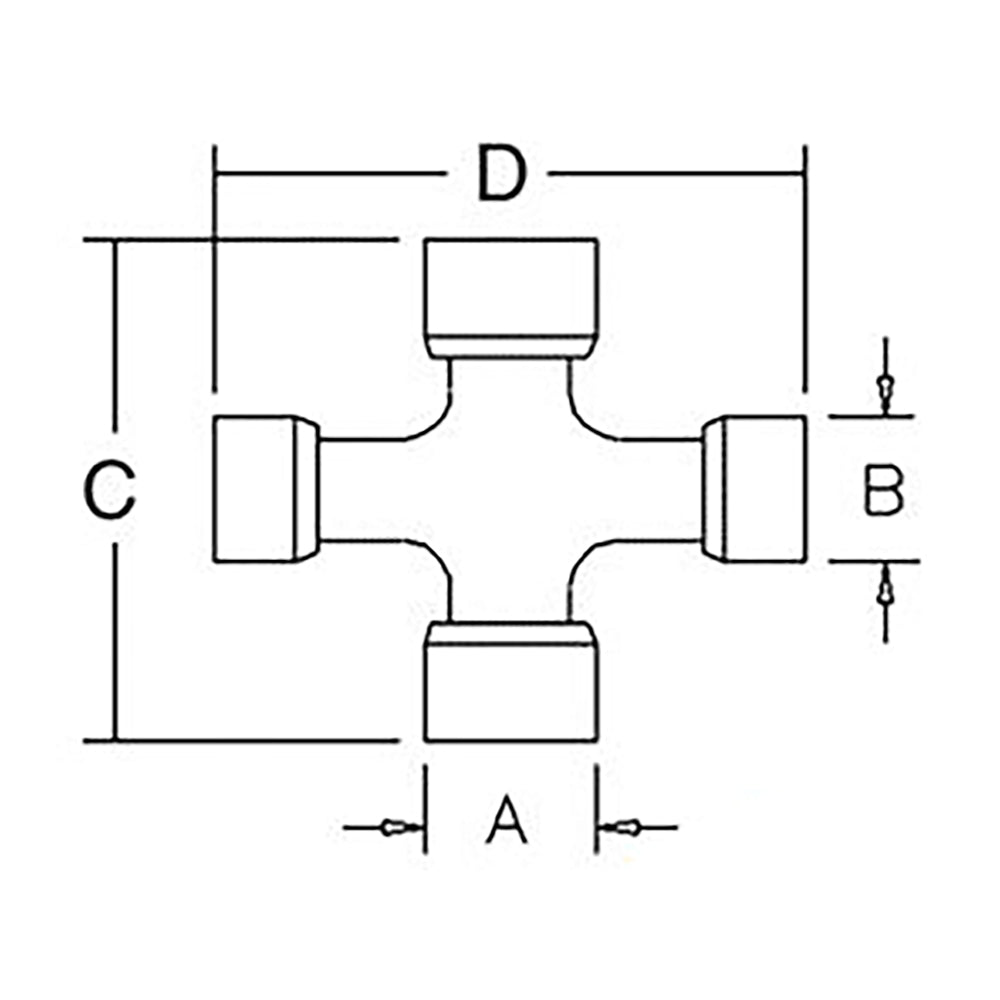

Cross and Bearing Kit. 32 mm x 76 mm (External Snap Ring). Grease zerk located in center. Rated 53 hp @ 540 rpm, 83 hp @ 1,000 rpm. 53 HP @ 540 RPM. 83 HP @ 1000 RPM. Grease Zerk Location Center Size (A/B) 32.0mm x (C/D) 76.0mm Snap Ring Location External

Reference Numbers:

350000, 734264, 350000M, 35.00.00M, W312410, WCB035, 4242000, 658-22421, B150120, B15-0120, 350000, 500-124-34, 50012434, A2007676, 41120080, 22421, AW23611, 200-7676, 343-1206, AW312410A, 65822421, AH232127, 312410, AW23611, PM200-7676, 6713-38563, 25553001, 510505801, 26092001, 171-980, WCB035, 4242000, 658-22421, B150120, B15-0120, 350000, 500-124-34, 50012434, A2007676, 41120080, 22421, AW23611, 200-7676, 343-1206, AW312410A, 65822421, 25553001, 312410
