One New Aftermarket Replacement Ball Bearing Fits John Deere Combines

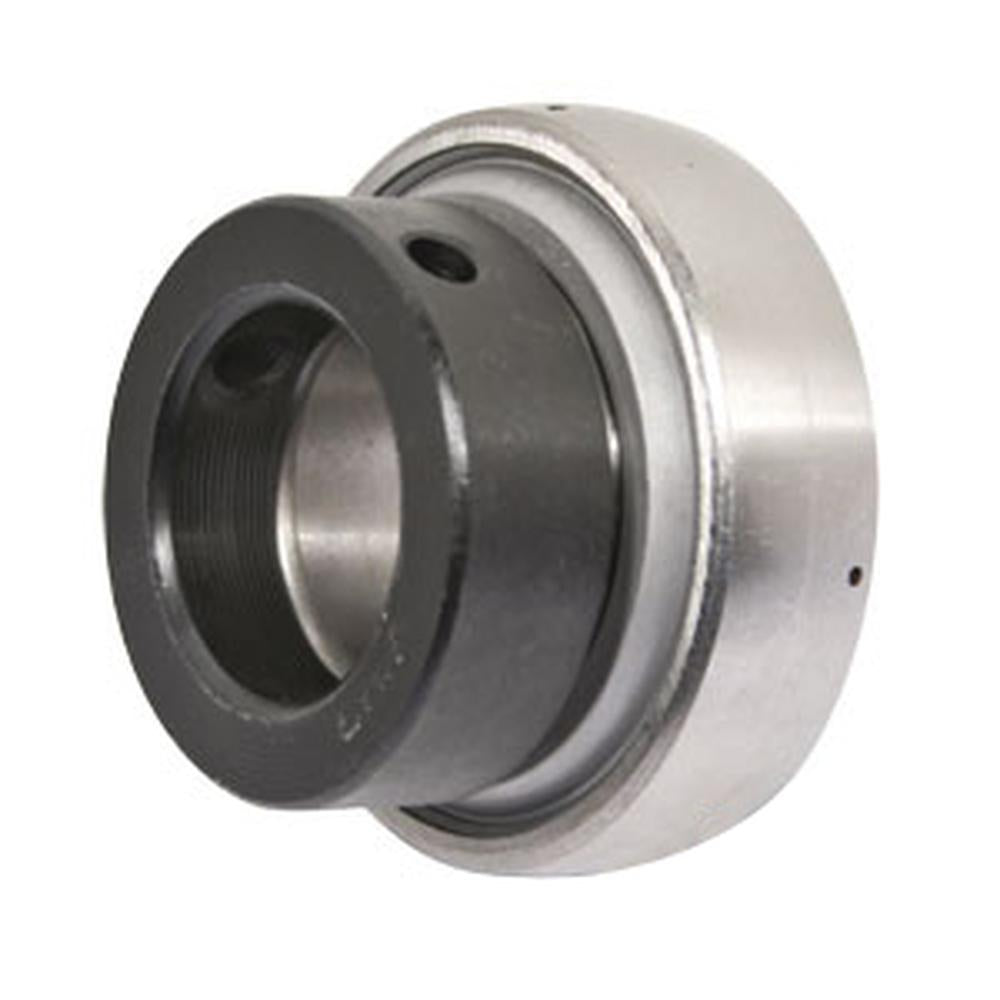

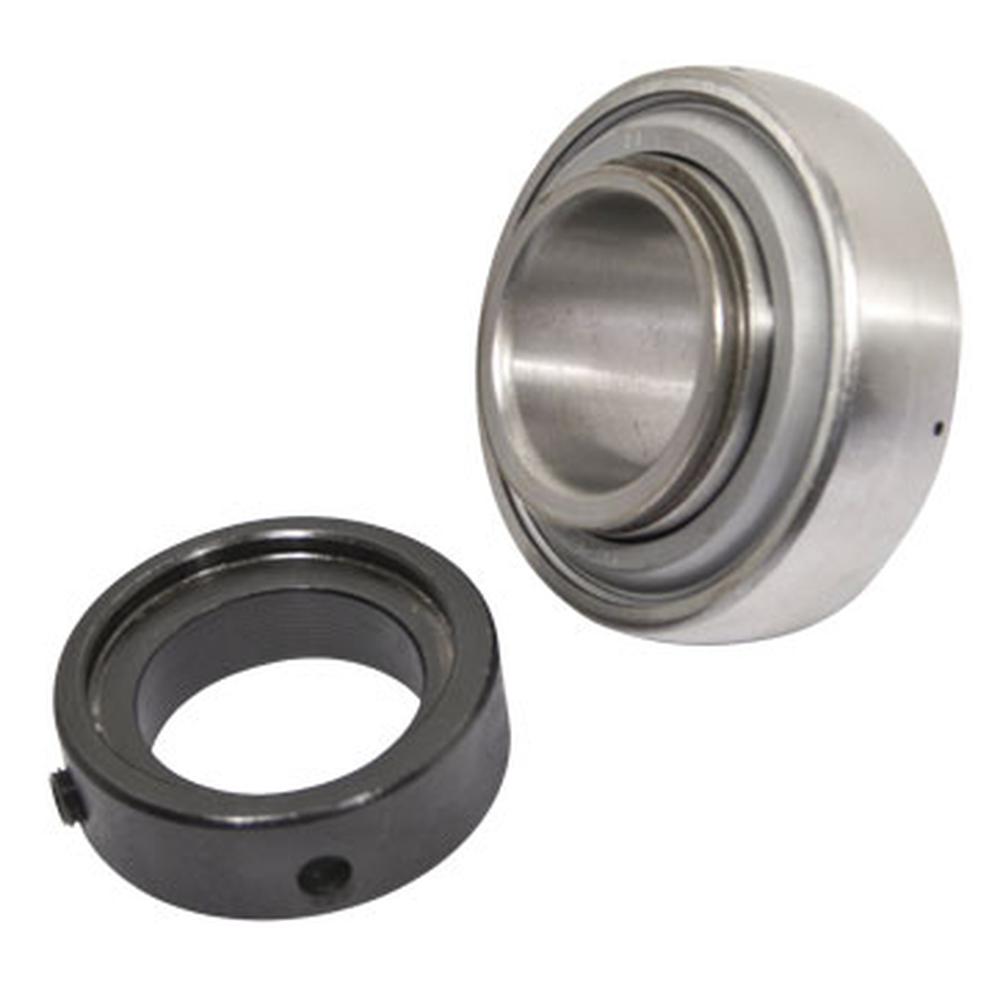

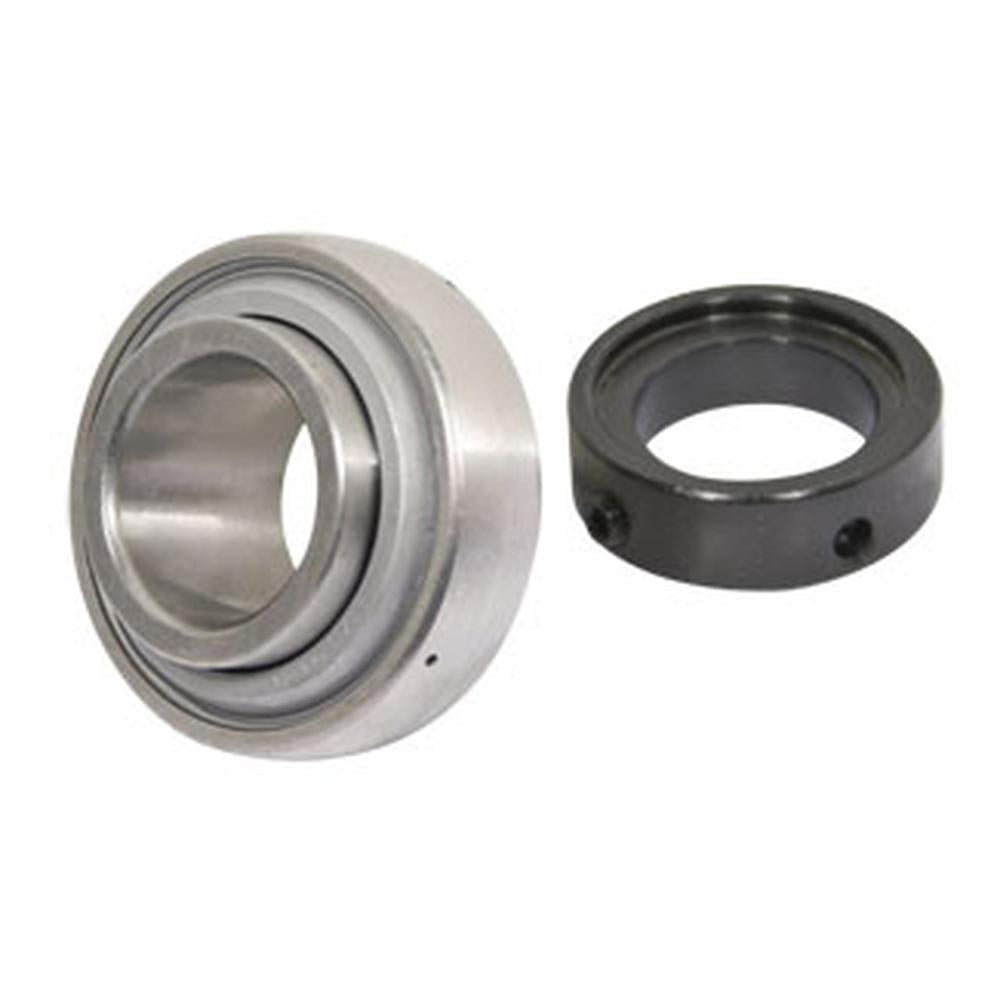

This radial insert ball bearing (straw walker crank bearing) fits the front right-hand position on Fits John Deere 9000 Series combines. It supports the straw walker crank assembly in the discharge area and is a direct replacement for OEM part number AH132823. Important: Front Right-Hand (RH) position only.
Specifications
- Type: Radial insert ball bearing
- Inside Diameter: 1.378 in (35 mm)
- Outside Diameter: 2.835 in (72 mm)
- Inner Race Width: 1.000 in
- Outer Race Width: 0.787 in
- Dynamic Load Rating: 984.663 LBF
- Eccentric locking collar, single row, spherical outer ring
- Position: Front Right-Hand (RH) Only
Compatible Models
Fits John Deere 9000 Series Combines (Front RH): 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9660
Replaces Part Number(s):
AH132823, A-AH132823
Aftermarket Interchange Numbers
AZ18427, AZ19427; Bearing cross-references: NTN JL207C4/L014, Fafnir/Torrington JRAE35RRB (FS615), Timken JRAE35RRBL, Koyo SA207MT2DP7MNC4NOCL, INA GRAE35-XL-NPP-B, SKF YET 207-2F
New aftermarket replacement part - not remanufactured, not used.
