A-A170746-AI Starter, Fits Nippo

One New Aftermarket Replacement Nippondenso-Type Starter for Case and Case IH Construction Equipment

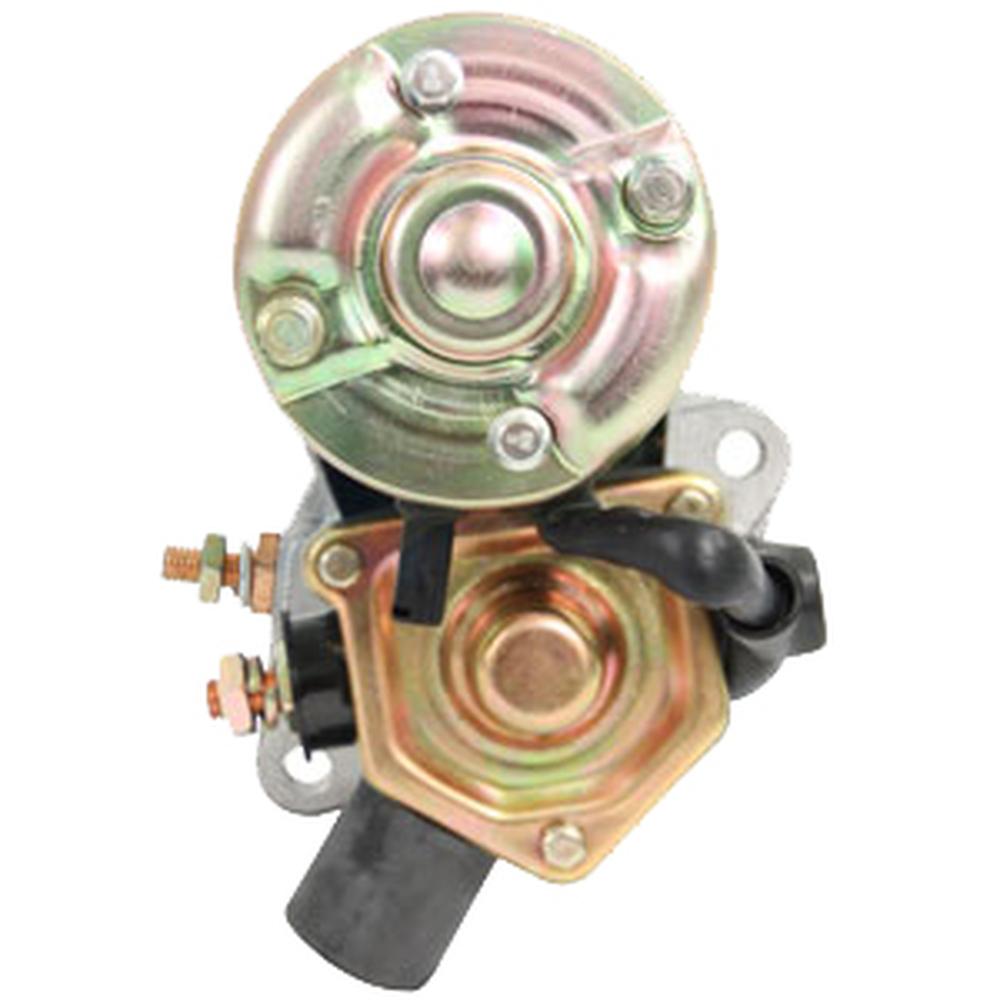

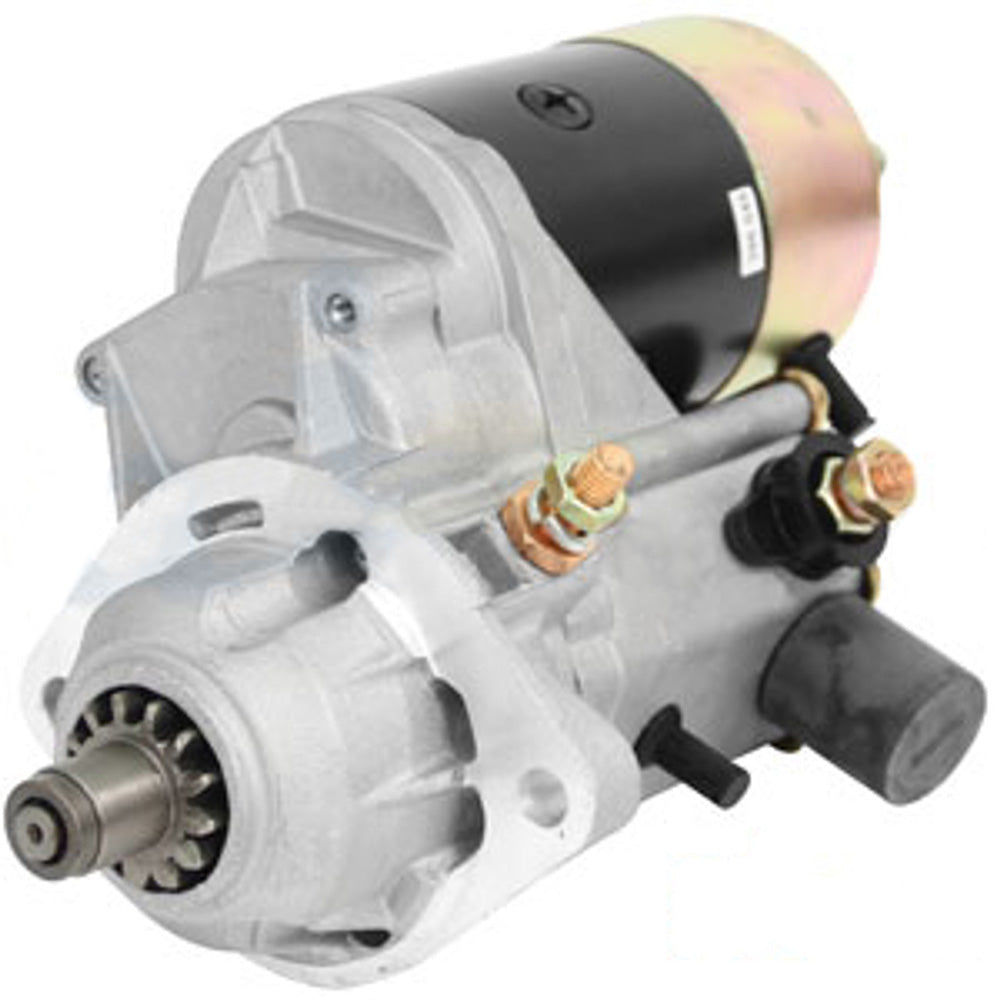

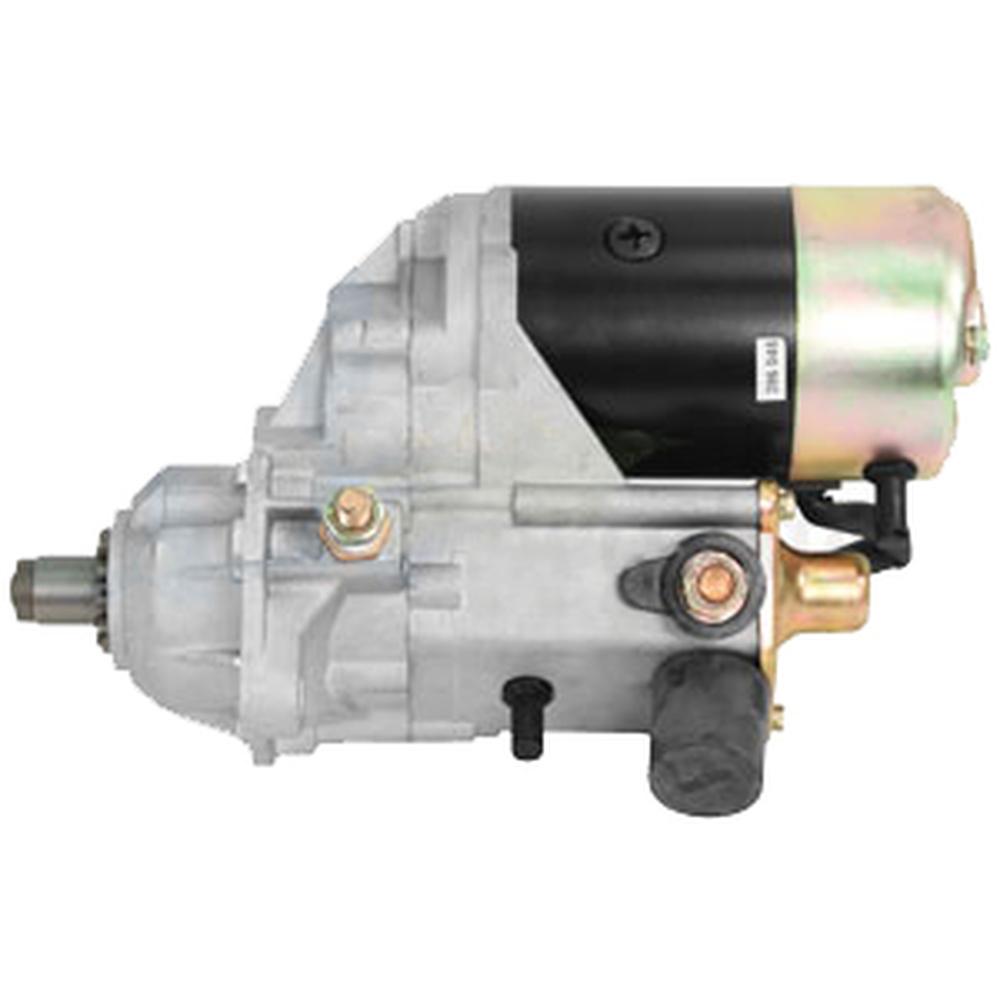

This aftermarket replacement starter motor fits a wide range of Case and Case IH (International) construction equipment including backhoe loaders, skid steer uni-loaders, crawlers, dozers, and lift trucks powered by Case 4-390 and 4T-390 diesel engines. The unit is an OSGR (over-running gear reduction) type with a 2-bolt mounting flange and optional ground post on the drive-end housing.

Specifications

• Voltage: 12V
• Kilowatts: 2.7 kW
• Rotation: Clockwise (CW)
• Teeth: 13
• Type: OSGR (Over-Running Gear Reduction)
• Mounting: 2-bolt flange

Compatible Models

Case / Case IH Uni-Loaders (Skid Steers): 1840, 1845C

Case / Case IH Skid Steer Loaders (XT Series): 40XT, 60XT, 70XT, 75XT, 85XT, 90XT, 95XT

Case / Case IH Backhoe Loaders: 480E, 480F, 480ELL, 480FLL, 570XT, 570LXT, 580 Super E, 580 Super K, 580 Super L, 580L (Series 2), 580LCK, 580K, 580KI, 580KIII, 580SE, 580SK, 580SKR3, 580SL, 580SLRI, 590 (Turbo, 4T-390 Engine), 590 Super CK, 590 Super L, 590 Super M

Case / Case IH Loaders: W11B

Case / Case IH Crawlers: 450C, 455C, 650G

Case / Case IH Dozers: 550, 550E, 550G, 550H, 650, 650G, 650H, 650K, 750H, 750K

Case / Case IH Lift Trucks: 584E, 585E, 585G, 586E, 586G, 588G (with 4-390 Engine)

Case / Case IH Trencher: 660

Case / Case IH Other: 384, 390 Diesel

Replaces Part Number(s):

A170746, 1987559C1, 104452A1, 104452A2R, 86982709, 86982709R, 87350916, A181056, 2585259C91, 1308066H91, 3904466, 3920403, 3920643, 3926960, 3957585, 3957586, 3957594, 3675154NW, 3675154RX, 3604660NW, 3604660RX, 3604485NW, 3604485RX, 89332, 104668

Aftermarket Interchange Numbers

Denso: 128000-0210, 128000-0211, 128000-0212, 128000-0213, 128000-0214, 128000-0215, 128000-0216, 128000-0540, 128000-0541, 128000-0542, 128000-0543, 128000-0544, 128000-0545, 128080-0540, 128080-0541, 128080-0542, 128080-0543, 128080-0544, 128000-9500, 128000-9501, 128000-9504, 128000-2270, 128000-2273, 128000-2480, 128000-3120, 128000-3121, 128000-3122, 228000-1950, 228000-1951, 228000-1952, 228000-1953, 228000-4670, 228000-4671, 228000-6980, 228000-6981, 228000-9100, AS228000-1953, AS228000-4671; Nippondenso: 5-128000-395; Bluebird Bus: 1315480, 1760057, 1769512; Cummins: 3675154NW, 3675154RX; SND0076, 410-52099

New aftermarket replacement part - not remanufactured, not used.
