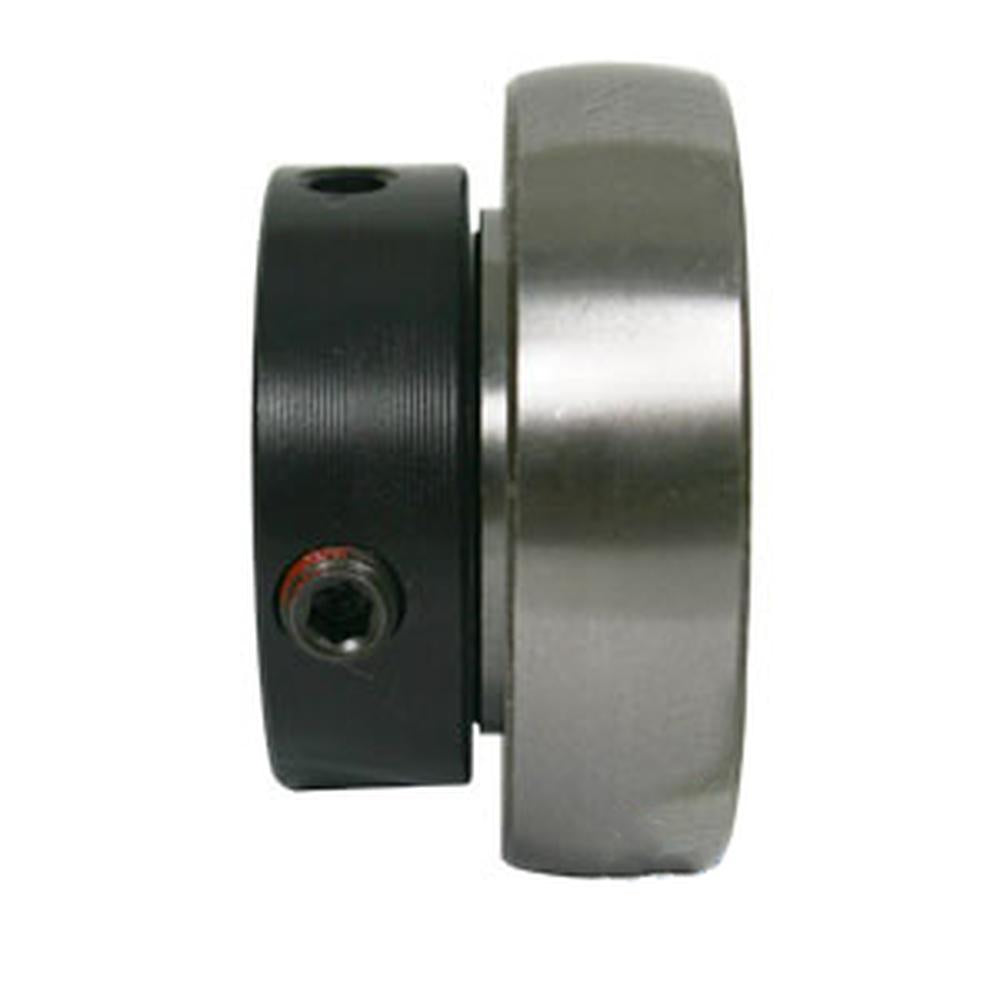

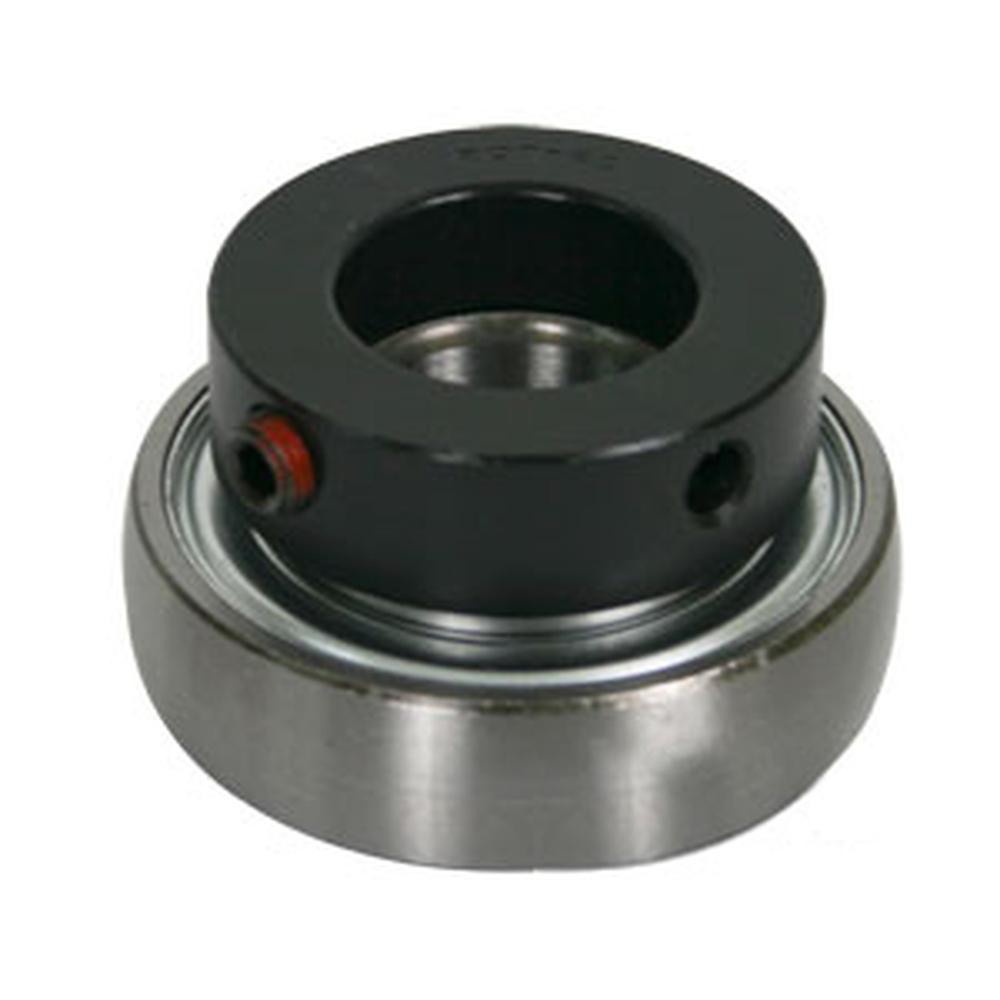

A-990295-AI Bearing (NPS104RPC)

One New Aftermarket Replacement Ball Bearing with Lock Collar for Long, Fits Case IH, Fits John Deere, Fits International, and Vermeer Equipment

This NPS104RPC insert ball bearing with eccentric locking collar is a direct aftermarket replacement for OEM part 990295. It is a narrow inner ring, round bore, spherical outer diameter insert bearing commonly used in agricultural combine and harvester applications, including grain delivery auger flighting ends. The locking collar design secures the bearing to the shaft, making it well suited for light to medium load applications where space is limited.

Specifications

• Bearing Type: Insert Ball Bearing with Eccentric Locking Collar (NP Series, Type I-2)
• Bore: 1-1/4 in. (31.75 mm)
• Outside Diameter: 2.835 in. (72 mm)
• Width: 1.531 in. (38.9 mm)
• Bore Shape: Round
• Outer Race Shape: Spherical
• Closure: Double Seal
• Greasable: Pre-lubricated / Sealed
• Load Rating: 25,700 N
• Max Grease Speed: 4,200 rpm
• Temperature Range: -40 to 120 deg C

Compatible Models

Long: 960

Fits Case IH Combines: 1460 (ASN 62001), 1620 (Late), 1640 (Early), 1644, 1660 (Early), 1666, 1680, 1688, 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

Fits International Combines: 1420, 1440, 1460, 1480

Fits John Deere Combines: 6620, 6622, 8820

Fits John Deere Harvesters: 9900, 9910, 9920, 9930, 9940, 9950

Fits John Deere Headers: 200, 218, 220, 224, 918, 920

Vermeer Balers: 503I, 504I, 504M, 505I, 505L, 505M, 554XL, 555XL, 604J, 604K, 604L, 604XL, 605J, 605L, 605XL, 5400, 5410

Replaces Part Number(s):

990295, 9-90295, A-990295-AI

Aftermarket Interchange Numbers

NPS104RPC, NPS-104-RPC, NPX104RPC, RA104RRB, JD8593, AE28296, AN50352N, 565672R91, 565672R92, 565673R92, 610188R91, 700717774, 166085C91, 51292, 051292, 051-292, 57179, 057179, 108050, 155008, 155009, 15A15844, 3242062, 4052001, 511736, 63621, 7441-6, 831233M1, 831514M1, 83356M1, 851SA20720, 851-SA20720, 911950A, K3315, L4972, RA104PPB, T14458

New aftermarket replacement part - not remanufactured, not used.
