A-763402M1-AI Bearing Cup

Name: A-763402M1-AI Bearing Cup
SKU: A-763402M1-AI
Price: 10.0 USD
Availability: InStock

A-763402M1-AI Bearing Cup

£10.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Tapered Bearing Cup Fits Massey Ferguson, Fits John Deere, IH and Oliver Tractors

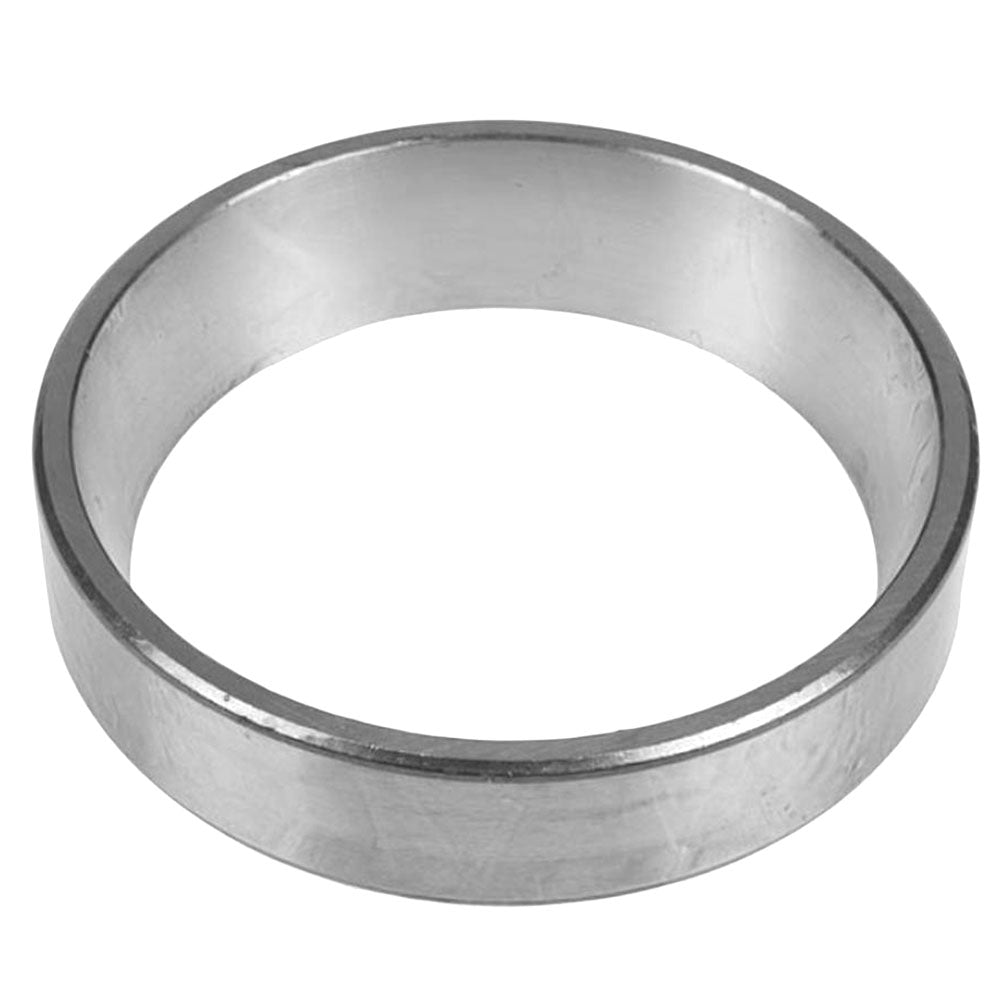

This tapered roller bearing cup (outer race) is the outer ring component of a tapered roller bearing assembly, designed to seat in the housing and receive the bearing cone. It is used in wheel bearing and axle applications on a wide range of agricultural tractors. Fits Massey Ferguson OEM part number 763402M1 and cross-references to the industry-standard Timken 15245 bearing cup.

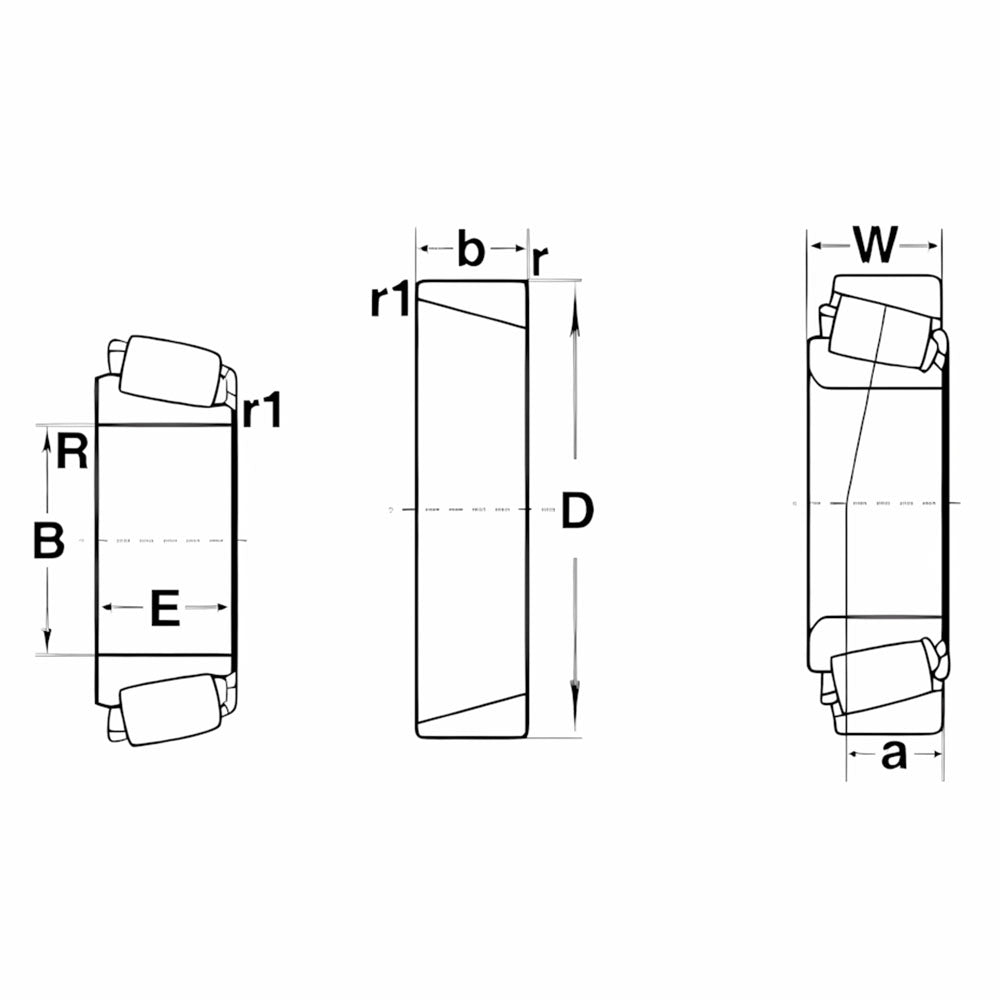

Specifications

Type: Tapered Roller Bearing Cup (Single Cup, Imperial)
Outside Diameter (D): 2.4409 in (62.000 mm)
Width (B): 0.5625 in (14.288 mm)
Max Housing Fillet Radius (r): 0.05 in (1.3 mm)
Sold individually

Compatible Models

Fits Massey Ferguson Tractors: F40, TE20, TO20, TO30, TO35, 35, 50, 65

Fits John Deere Tractors: 40, 320, 330, 1010

Oliver / White / Minneapolis Moline Tractors: Super 55, 550

Fits International Harvester (IH) Tractors: Cross-references to IH numbers 3229813R91, 525334R91

Replaces Part Number(s):

763402M1, 763402M91, 1850224M91, 350351X1, 3229813R91, 525334R91, 642954R1, 8A1202A, 8A1201A, 1850224M91, JD7449, JD7449H, VPJ2405, 00756576, 15245, 15245B, 15245-I, A-15245B, LB5013

Aftermarket Interchange Numbers

Timken 15245, Timken SET 43 (cup component), NTN 4T-15123/245, FRB10-0011, TP-JD7449, TPJD7449, 913-15245, 320-5144, 28966, 520033

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

PM-565B, 24H, 160, AP-1050B, 826G II, 247, 428, 972G II, D20D, BG-2455C, D300D, 928F, 163H, AP-1055B, 6, 420, 75C, IT28G, 30/30, 163H NA, AP-800C, 970F, D6H XL, 120H, D6H II, 4S, IT18F, 966G II, RT50, 980G II, 992G, 700 SERIES, D4HTSK II, 4000, 140, RT50SA, 938G, D5M, 85C, 6S, 430, 854G, 918F, 120M, 55, 257B, BG-230, IT28F, 980K, 824G II, 140M, 938F, D300E, BG-260C, 12G, 966K XE, 938G II, D8L, 143H, 160G, PM-565, 135H NA, 6A, 966F II, 54H, 826G, 966G, 824H, 40, 600 SERIES, 320, BG-245C, PM-465, D6R, 1010, IT38G II, 550, 140G, 120K 2, 54, 65C, AP-800D, 6SU, 972H, 825G II, 120H NA, AP-650B, 120H ES, RR-250, D7R II, 140H, 330, DEUCE, BG-230D, 75D, 980K HLG, D4HTSK III, 826H, 56H, 85D, 12H, D6H XR, RTC60, 966H, 140H ES, 924F, 5130, AP-900B, 972K, 140K 2, 900 SERIES, 928HZ, 120K, 160H, D6R II, 950F II, 2000, 988F, D4H XL, SUPER 55, 928G, 65D, BG-225C, 825G, IT24F, 988F II, AP-1000B, 4A, 416, 4, RT60, 160K, 257, 160M, AP-1000, 12H NA, 972G, D250E, IT38G, BG-240C, 4P, 980H, 12K, 247B, SS-250, 160H NA, IT38F, 12H ES, D4H, 928H, D6H, 800 SERIES, 130G, 160H ES, 980G, 140K, 825H, 140H NA, D4H III, D250D, 12M, 966K, 824G, 135H
