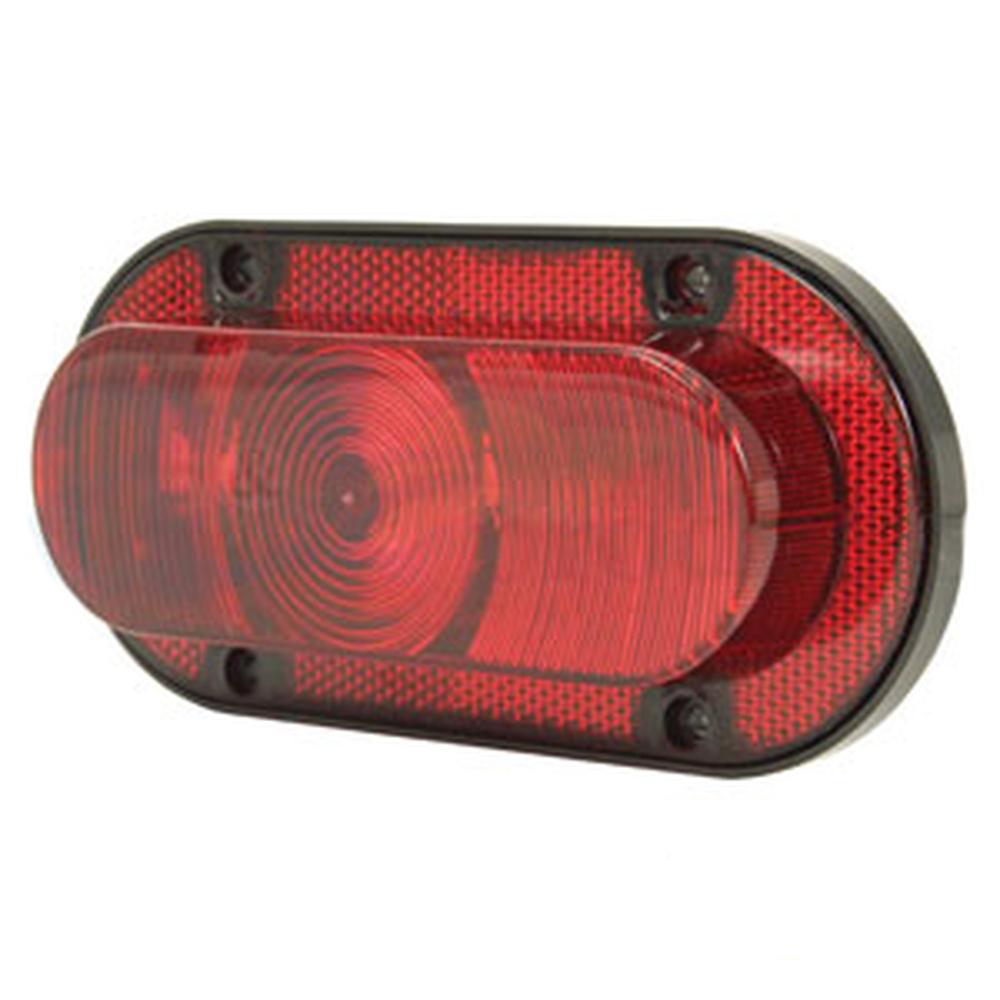

A-72160473LED-AI Tail / Warning Light, LED, Red

Name: A-72160473LED-AI Tail / Warning Light, LED, Red
SKU: A-72160473LED-AI
Price: 38.0 USD
Availability: InStock

A-72160473LED-AI Tail / Warning Light, LED, Red

£38.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Tail / Warning Light, LED, Red

-This lamp requires the black ground wire eyelet to be grounded properly for light to function. It may be connected to the existing light mounting screws with an internal tooth lock washer & nut or to the fender panel with a self-tapping screw. (hardware not included with light)
-Dim A (1):Red Polycarbonate Lens
-Dim B (2):3 - 3 Watt LED Lights
-Dim C (3):Black wire ground, red wire high beam, white wire low beam
-Dim D (4):Can wire for Hi / Low (Brake Light) function

Models This Part Fits:

5730, 9130, 7445, 2-180 SERIES II, 160, 4030, 2-135, 5410, 9170, 4960, 500B, 2140, 4555, 8450, 4440, 6500, 4455, 2855N, 8440, 484, 4000, 5830, 4560, 6030, 2-75, 4020, 9910, 2755, 4230, 4630, 8650, 100, 8630, 2940, 5440, 2510, 5210, 4640, 5020, 2-105, 4520, 7020, 7440, 2-70, 9960, 2-78, 2-88, 6100, 5310, 5510, 4055, 9930, 3040, 2-180, 8640, 4320, 2355, 4040, 4240, 9190, 4755, 2950, 2555, 2955, 3150, 9965, 4620, 4250, 5720, 4840, 7520, 4850, 9920, 4-270, 6600, 9150, 2550, 2-110, 2-155, 4430, 3055, 8850, 8430, 6000 HI-CYCLE, 2-115, 3020, 9970, 3155, 4050, 9950, 2750, 3255, 4650, 4450, 140, 120, 4255, 185, 2-85, 2-150, 9940, 5820, 4760, 9900, 4955, 2350, 5460, 3140

Additional Information:

Oval 4 Mounting Holes 4" Apart Side to Side & 3" Apart Top to Bottom 7.900" Overall Length 3.600" Top to Bottom (3) 3 Watt Led Lights 6 - 30 Volt Systems Black Wire Is Ground, Red Wire Is High Beam, Yellow Wire Is Low Beam Note: the Black Wire Must Be Grounded Properly for the Light to Function.
