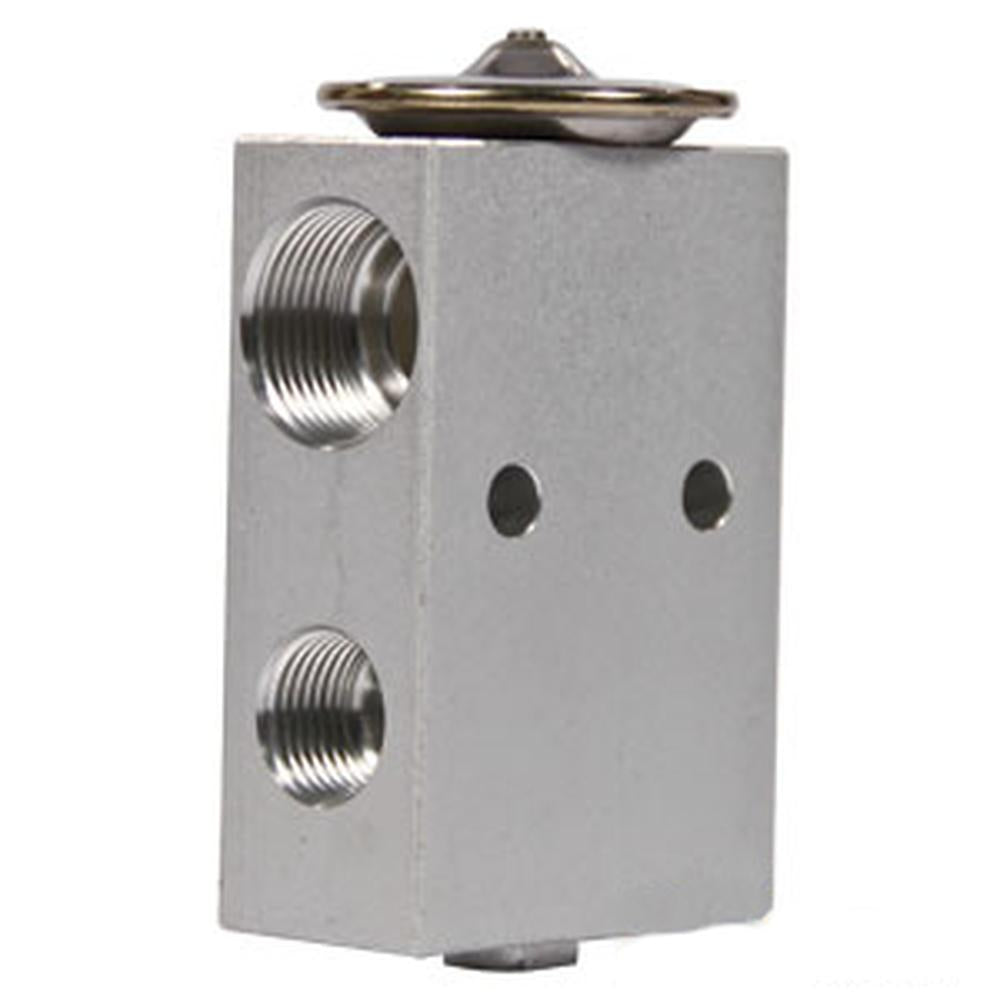

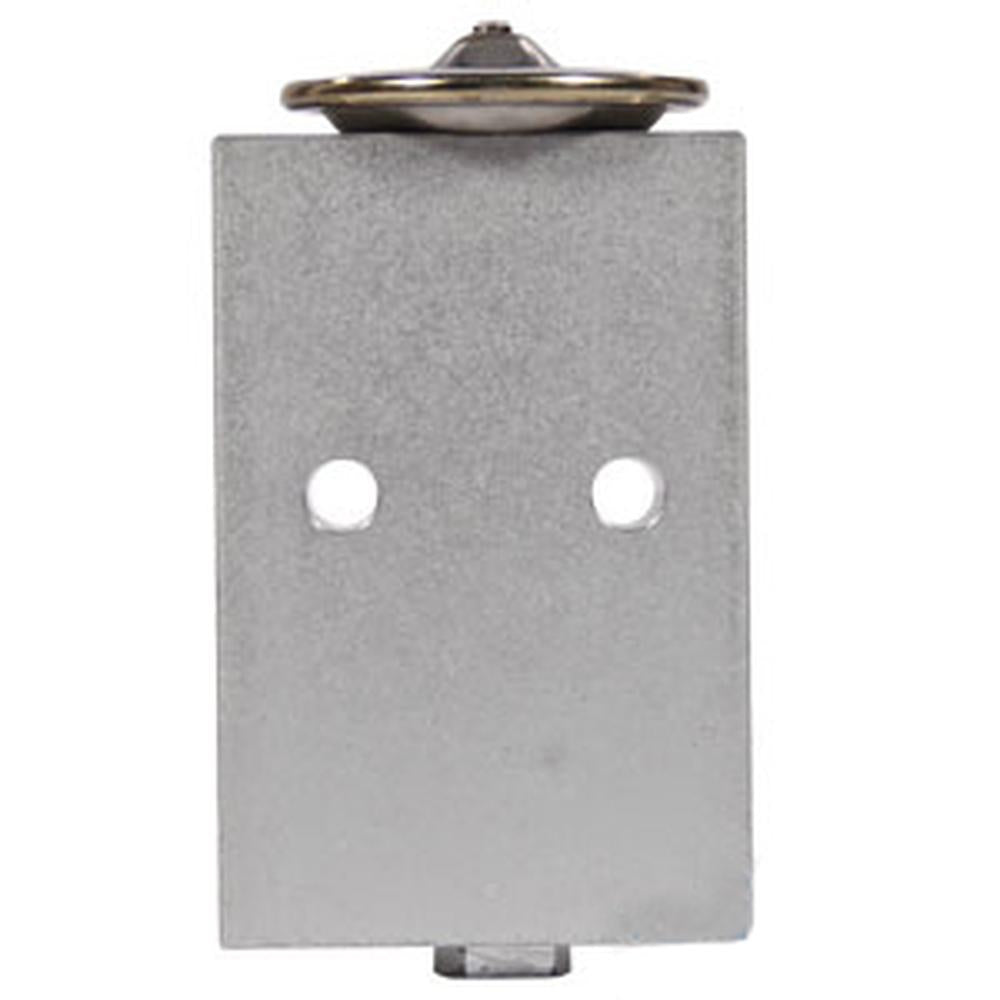

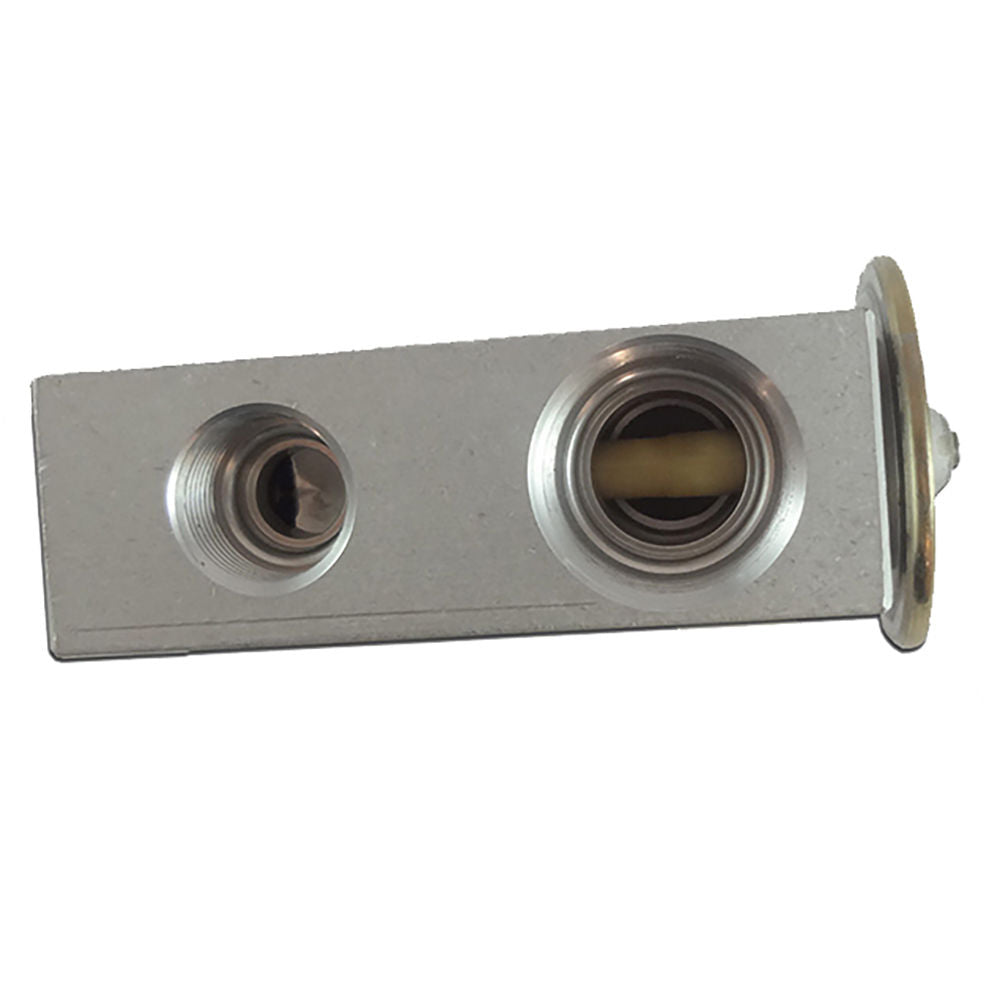

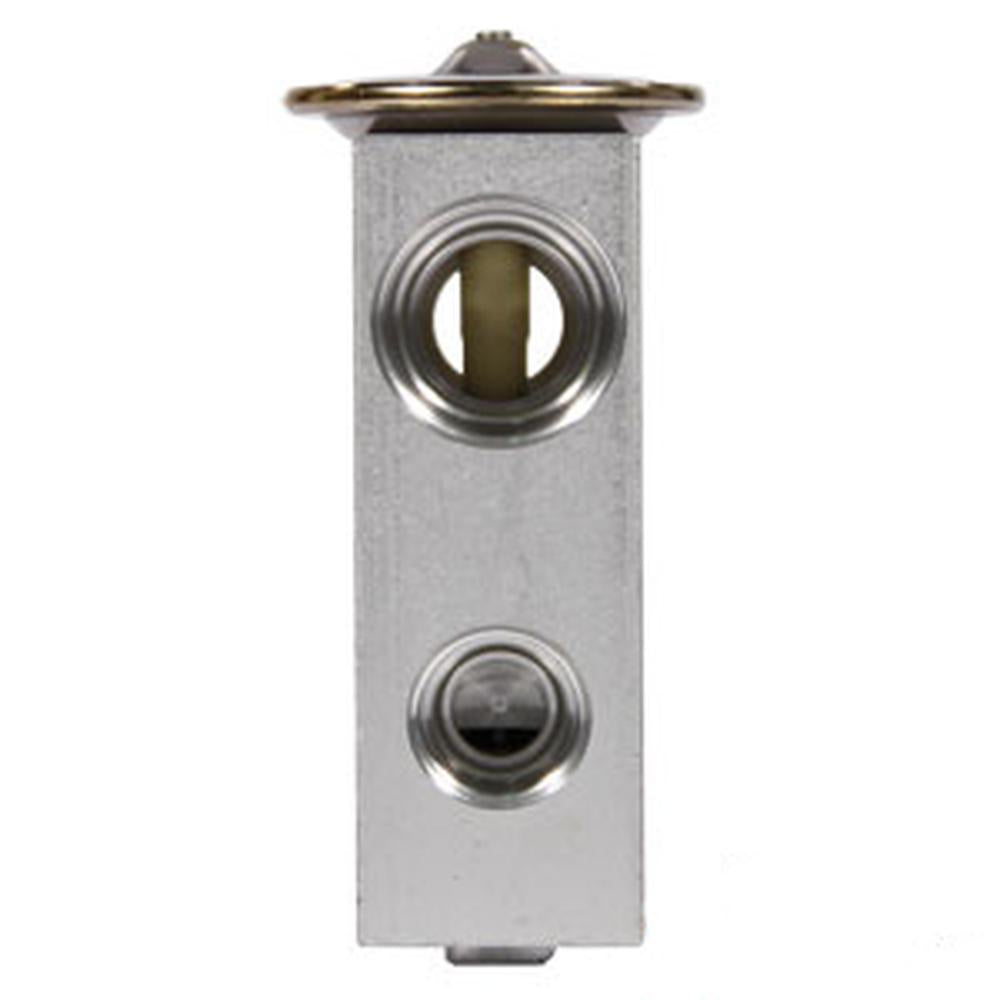

One New Aftermarket Replacement Expansion Valve for Deutz, Deutz-Fits Allis, Fits Allis-Chalmers, and Hesston Tractors
This aftermarket A/C expansion valve regulates refrigerant flow from the high-pressure liquid line into the evaporator core, controlling cooling capacity in the cab air conditioning system. Compatible with both R12 and R134a refrigerant systems. The valve uses O-ring fittings at all four ports and connects the A/C lines to the evaporator.
Specifications
- Type: O-Ring block valve
- Liquid Inlet: #6, 3/8" O-Ring
- Liquid Outlet to Evaporator: #8, 1/2" O-Ring
- Inlet from Evaporator: #8, 1/2" O-Ring
- Outlet to Compressor: #10, 5/8" O-Ring
- Mounting Holes: 1/4", 25.4mm apart center to center
- Tonnage: 1.5
- Compatible with R12 and R134a refrigerant systems
Compatible Models
Deutz / Deutz-Fits Allis Tractors: DX90, DX110, DX120, DX140, DX145, DX160, DX8.30, 7085, 7110, 7120, 7145
Fits Allis-Chalmers Tractors (w/ Star Cab): 6240, 6250, 6260, 6265, 6275, 8610 (S/N 1389), 8630 (S/N 1509)
Hesston: 8200
Fits Case-IH Combines: 1420, 1440 (S/N 10001-), 1460 (S/N 12001-), 1480 (S/N 14001-), 1620, 1640, 1660
Replaces Part Number(s):
4322165, 4322165-A
Aftermarket Interchange Numbers
71504287, 71504287-A, AG18801, AG718801, 04401658, 4401658, 04322165, 71307202, 71307202-A, 72162195, 72162195-A, 86505794, 86505794-A, 8703321, 87033212, 30-3432211, 30-3432211-A, 904-245, AH203871, AMX10151, AMX10151-A, 605880T1
New aftermarket replacement part - not remanufactured, not used.
