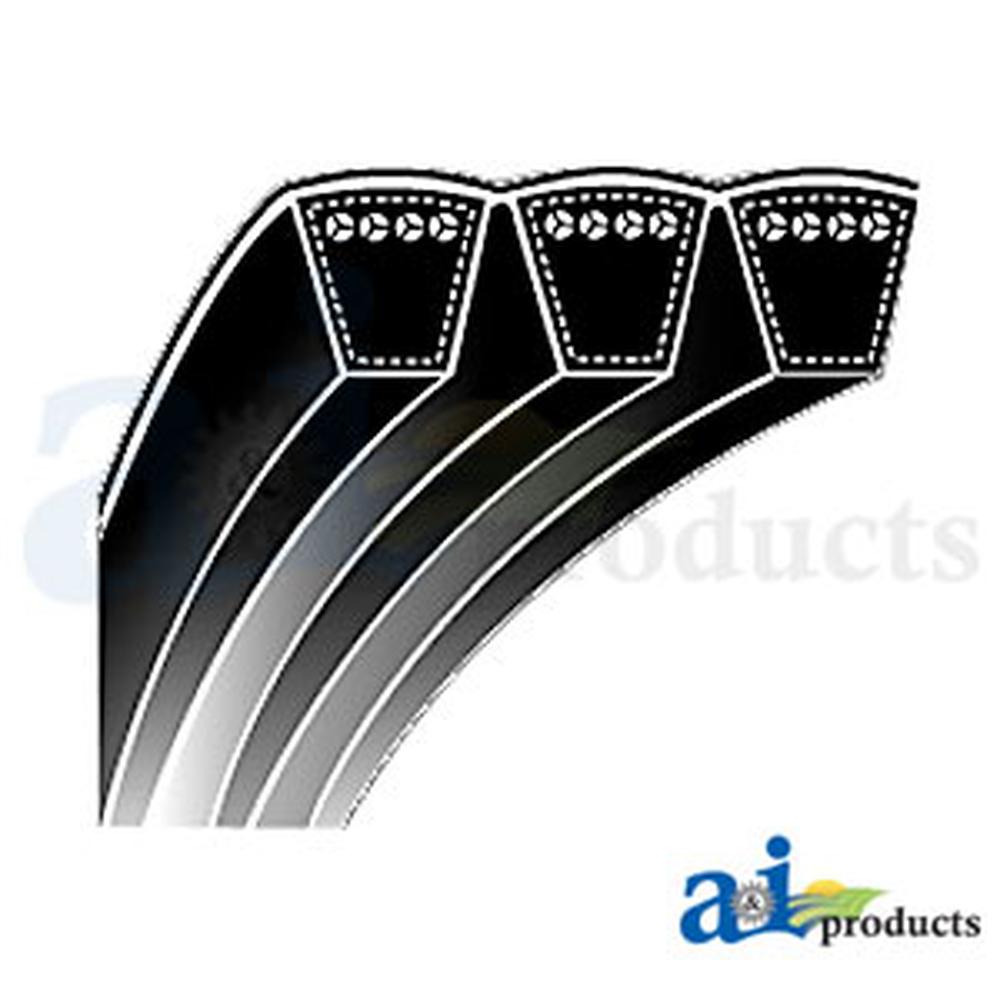

A-5V1320/03 Wedge Banded V-Belt (5/8" X 132")

One New Aftermarket Replacement 5V Wedge Banded V-Belt - 3-Band, 5/8" x 132"

This 5V1320/03 wedge banded V-belt is a 3-band wrapped belt designed for industrial, agricultural, and lawn and garden power transmission drives requiring extra stability and high horsepower capacity. The tie-band construction joins three individual 5V-section belts into a single unit, preventing belt flip, whip, and jump in high-shock or pulsating load applications. The rubber cushion body is reinforced with polyester cable cord and covered with an oil- and heat-resistant woven fabric wrap for long service life.

Specifications

• Belt Section: 5V (Wedge)
• Number of Bands/Ribs: 3
• Top Width: 5/8 in (per rib)
• Height/Depth: 35/64 in
• Outside Length: 132 in
• Inside Length: 128.5 in
• Pitch Distance: 11/16 in
• Material: Rubber with polyester cable cord reinforcement, woven cotton-polyester fabric cover
• Temperature Range: -35C to +70C
• Antistatic, oil-resistant, tolerance-stable construction

Compatible Applications

This is a universal industrial/agricultural 5V-section banded belt suitable for agricultural equipment, construction equipment, lawn and garden machinery, and general industrial drives using 5V multi-groove sheaves. Always verify sheave groove count and outside belt length before ordering.

Replaces Part Number(s):

A-5V1320/03, 5V1320/03, 5V1320/3, 5V1320-03, 5V1320-3, 3-5V1320, 3R5V1320, R5V1320, 5V1320R3, BTQ-3/5V1320, Gates 3/5V1320, Dayton 13F956

New aftermarket replacement part - not remanufactured, not used.
