A-573BH-AI Cone (LM48548)

Name: A-573BH-AI Cone (LM48548)
SKU: A-573BH-AI
Price: 13.0 USD
Availability: InStock

A-573BH-AI Cone (LM48548)

£13.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

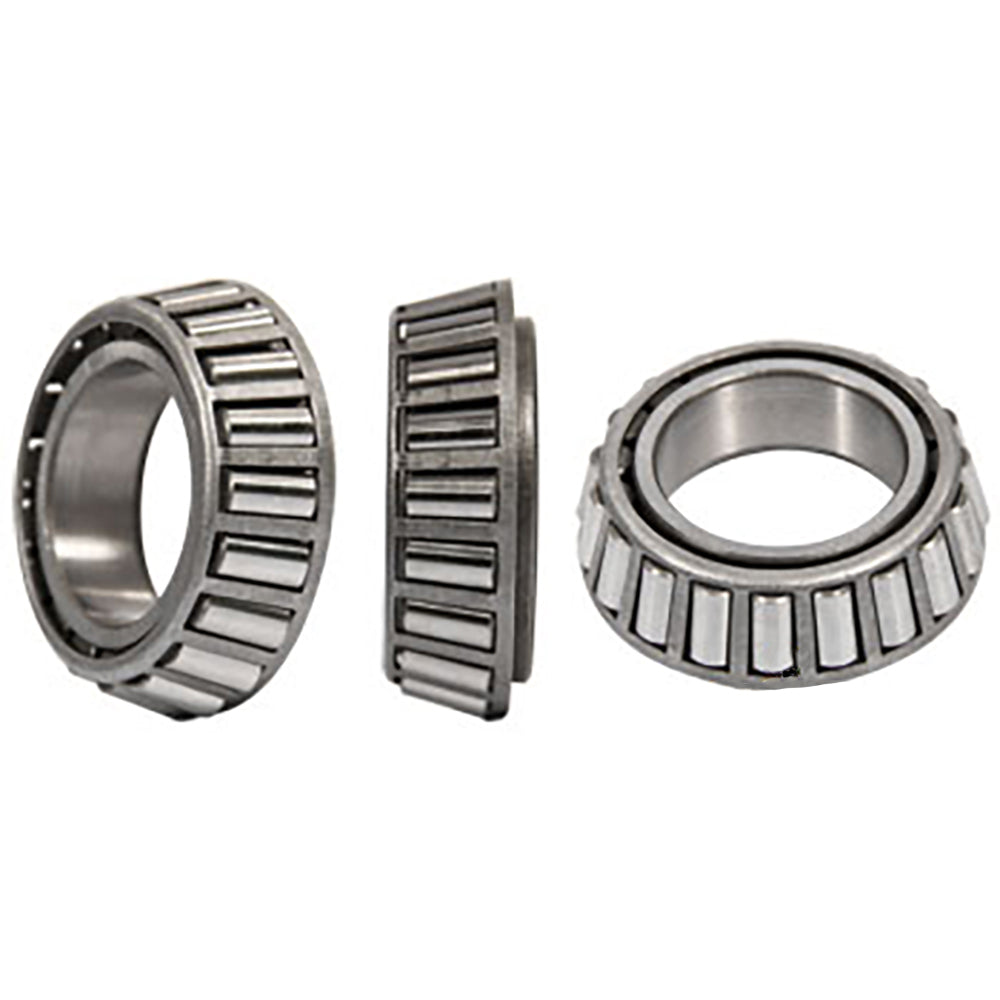

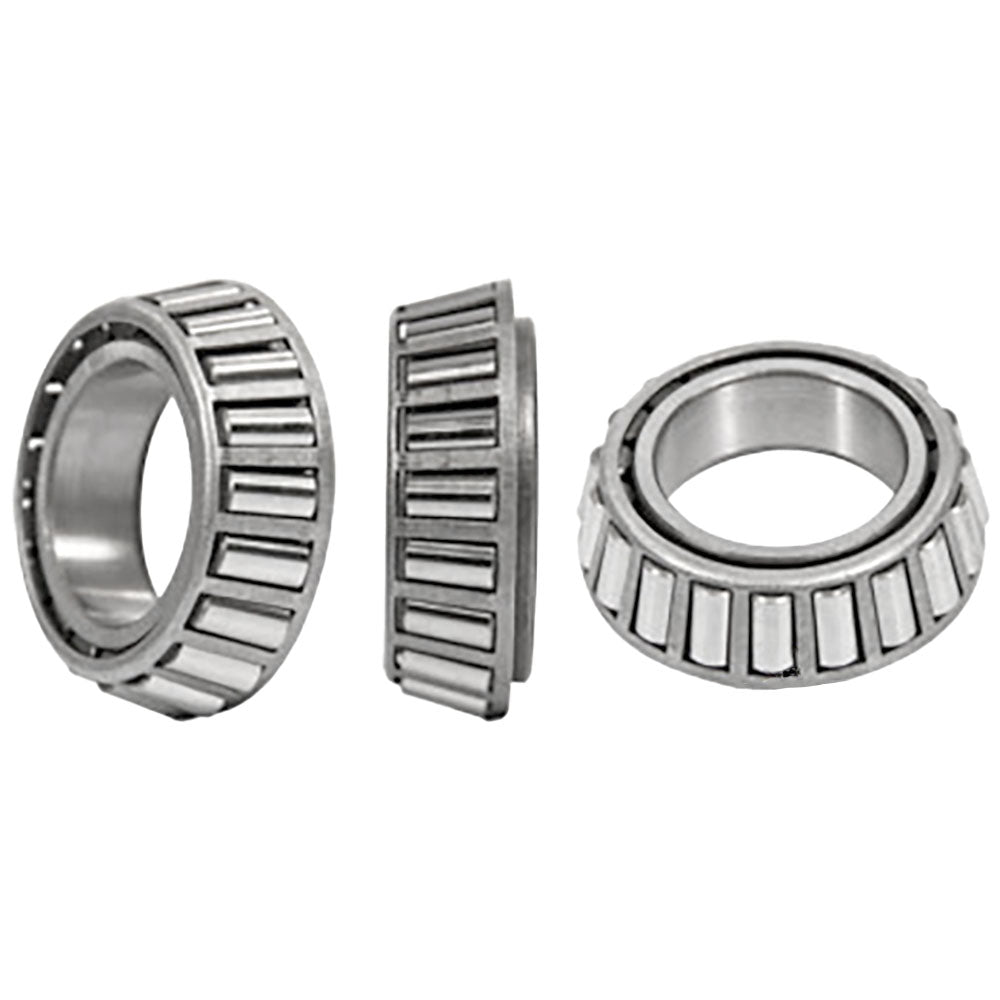

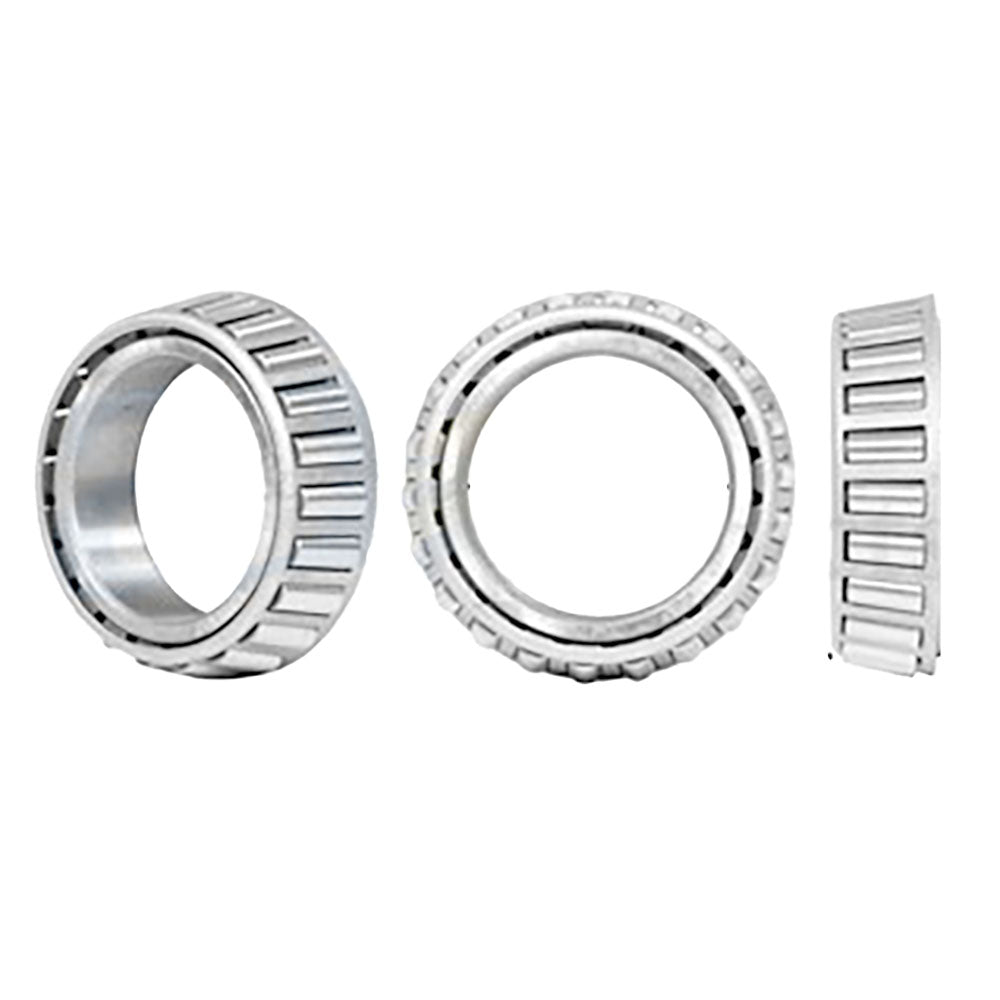

One New Aftermarket Replacement Tapered Roller Bearing Cone (LM48548) for Tractors, Combines, and Agricultural Equipment

This tapered roller bearing cone (LM48548) is a high-demand, industry-standard replacement used in wheel hubs, front axles, and other bearing assemblies across a wide range of agricultural tractors, combines, cotton pickers, planters, disc harrows, and implements. The cone fits onto the rotating shaft and carries the tapered rollers, handling both radial and axial loads. It pairs with compatible cups LM48510, LM48511A, or LM48514 -- both the cone and cup should be replaced together for maximum service life. Bore diameter is 1.375 in. and width is 0.720 in.

Specifications

Bearing Type: Tapered Roller Bearing Cone (Inner Race Assembly)

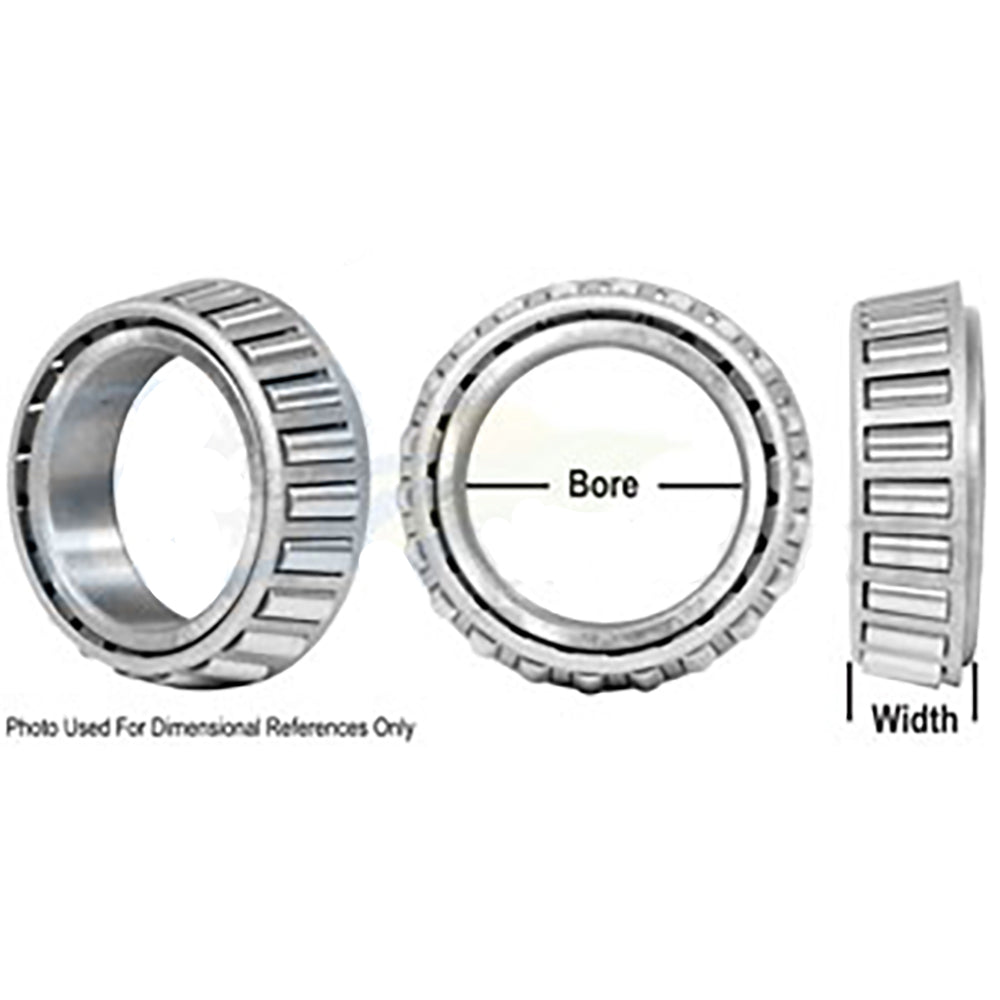

Bore Diameter: 1.375 in. (1-3/8 in.)
Overall Width: 0.720 in.
Outer Diameter: 2.5625 in.
Casting Number: H6606/6182 CTD
Series: LM48500
Compatible Cups: LM48510, LM48511A, LM48514
Cage Material: Steel

Compatible Models

Fits Case Tractors: 200, 300, 300B, 303, 310, 315, 333, 430, 500, 500B, 530, 600B, 620, 630, 730, 830 (3 CYL), 880, 880B, 930, 940, 990, 990A, 990B, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK

Fits Case IH Tractors: 234, 235, 240, 245, 250, 255, 265, 268, 272, 273, 275, 276, 285, 364, 384, 385, 395, 403, 415, 420, 425, 431, 451, 454, 460, 461, 470, 475, 480, 484, 485, 490, 495, 503, 504, 530, 531, 541, 543, 560, 574, 584, 585, 595, 595XL, 615, 621, 631, 641, 651, 656, 666, 674, 684, 685, 685XL, 686, 695, 695XL, 706, 756, 766, 784, 786, 806, 826, 856, 885, 885Q, 885SK, 886, 895, 966, 986, 996, 1026, 1066, 1085, 1086, 1120, 1130, 1140, 1190, 1194, 1206, 1256, 1290, 1294, 1390, 1394, 1420, 1440, 1456, 1460, 1466, 1468, 1480, 1486, 1530, 1550, 1566, 1568, 1586, 1620, 1640, 1644, 1660, 1666, 1668, 1680, 1688, 1710, 1715, 1720, 1725, 1730, 1735, 1750, 2144, 2166, 2188, 2255, 2344, 2355 (MID-HI AXLE), 2366, 2377, 2388, 2555 (MID-HI AXLE), 2577, 2588, 2644, 2655, 2755 (MID-HI AXLE), 2855, 3088, 3288, 3488 Hydro, 3688, 5088, 5288, 5488, 6088, 7088, 21026, Hydro 70, Hydro 86, Hydro 100, Hydro 186, I-544

Fits Case IH Cotton Pickers: 782, 1822, 1844, 2022, 2044

Fits Case IH Combines: 815, 915

Fits Case IH Industrial Tractors: 2300, 2300A, 2400A, 2500, 2500A, 2600, 2600N, 2600R, 2600V, 2606, 2656, 2706, 2756, 2826, 2856, 3100, 3120, 3150, 3190, 3300, 3310, 3330, 3500, 4031, 4121, 4131, 4200, 4330, 4340, 4410, 4410SU, 4500, 4830, 4830N

Fits Ford/New Holland Tractors: 600B, 1120, 1390, 1530, 1620, 1700, 1705, 1710, 1715, 1720, 1725, 1730, 1735, 1750, 1830, 2000, 2100, 2110, 2120, 2150, 2300, 2300A, 2310, 2600, 2600N, 2600R, 2600V, 2610, 2610V, 2630, 2640, 2810, 2830, 2910, 2930, 3000, 3100, 3110, 3120, 3150, 3190, 3288, 3310, 3330, 3488, 3500, 3600, 3600N, 3600R, 3600V, 3610, 3610V, 3688, 3900, 3910, 3910H, 3910R, 3910V, 3930, 4000 (1965-75, Except Vineyard), 4100, 4110, 4110NO, 4110O, 4110TR, 4120, 4121, 4130, 4130AP, 4130N, 4140, 4190, 4200, 4330, 4340, 4410, 4410SU, 4500, 4600, 4610, 4610N, 4610NO, 4610O, 4610SU (1981 and Later), 4630, 4830, 4830N, 5030, 5030O, 6000, 7000, 7100, 7200, 7240, 7300, 7340, 20C, 20D, 20F

Fits John Deere Tractors: 820 (3-Cyl), 830 (3-Cyl), 930, 940, 1020, 1030, 1040, 1120, 1130, 1140, 1520, 1530, 1550, 1630, 1750, 1850, 2010 (ASN 420001), 2020, 2030, 2040, 2120, 2130, 2135, 2150, 2155, 2240, 2255 (SWEPT BACK), 2350 (LOW PROFILE), 2355 (MID-HI AXLE), 2440, 2550, 2555 (MID-HI AXLE), 2630, 2640 (BSN 340999), 2755 (MID-HI AXLE), 4040

Note Fits John Deere Models: 820, 830, 920, 1020, 1120, 1520, 1530, 2010, 2020, 2030, 2040, 2120, 2440, 2630, 2640 fitment applies to units equipped with T25809 hub only. Verify hub type before ordering.

Fits Massey Ferguson Tractors: 135, 150, 165, 175, 180, 185, 202, 203, 204, 205, 230, 230A, 231, 233, 235, 240, 245, 250, 265, 269, 275, 285, 334, 335, 354, 383, 390, 394, 395, 398, 399, 415

Fits Allis Chalmers Tractors: 170, 175, 180, 185, 190, 200, 210, 220, 7000 Series

David Brown Tractors: 770, 880, 990, 1190, 1290, 1390, 1490, 1690

Leyland Tractors: 154, 245, 253, 262, 270, 272, 282, 344, 384, 462, 472, 482, 485, 502, 602, 605, 702, 704, 802

Implements and Equipment (Various Brands): GEHL, Vermeer, Amco, Kewanee, Krause, Hesston, Rhino, Sidewinder, Speeco, Fits Woods, BUSH HOG, MaxEmerge, MaxEmerge 2, 71 Flexi

Replaces Part Number(s):

LM48548, 3043871R91, 3043869R91, 1288571C91, 144074C91, 371896R91, 371897R91, 371898R1, 383459C91, 56504C91, 618022R91, 618023R1, 618023R91, 671078R91, 826928C91, AT320692, JD8194, JD9099, G57451, G57452, 86516468, 520047, 16076SW, 10353, 710475, 913-LM48548, 70045, 1716071, 146241BH, 573BH, 4096588, 70227665, 70430421, 70929628, 74254317, 0227665, 1766918, 227665, 254317, 40460, 4254317, 430421, 530474, 851-IM48548, 9091, 2717WD, X5656, 48977, 80340634, 81854752, 83400377, 83992408, BE22140, GHB144, 41112, 005-0471, 0050471, 050471, 791265M91, 831078M1

Aftermarket Interchange Numbers

760-LM48548, 8236-LM48548, BT48548LM, BRGLM48548, TRBLM48548, TMLM48548, KYLM48548, FLM48548, E-TMLM48548, BR5, Y48548, 196158M1, 835109M1, 114074C91

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

560, 7000, 3910R, 1294, 2300, 2120, 335, 205, 641, 966, 395, 500B, 461, 695, 2588, 2020, 2044, 530, 770, 996SK, 4830N, 543, 3910H, 2031, 7200, 484, 501, 584, 415, 3600N, 202, 1730, 1020, MaxEmerge, 2000, 541, 20C, B414, 990Q, 615, 2155, 885SK, 431, 4040, 1520, 175, 4140, 2600, 3000, 300B, 3910V, 2355 (MID-HI AXLE), 7088, 686, 3930, 3300, 2550, 940, 1470, 2010, 990SK, 3610, 504, 230A, 3910, 585, 856, 631, 200, 1844, 1735, 3688, 4500, 1420, 403, 245, 1466, 5030O, 384, 185, 2130, 595XL, 5030, 930, 1256, 231, 4600, 685, 2856, 21026, 451, 7240, 2577, 240, 715, 3900, 1030, 1705, 990A, 1390, 2110, 1720, 2500, 674, 1140, 6000, 4031, 4340, 996, 1080, 4130AP, 2255 (SWEPT BACK), 656, 995SK, 4130N, 485, 7000 Series, 895, 1640, 3550, 230, 990B, 685XL, 1725, 684, 2826, 2610V, 3600R, 4610NO, 544, 880, 2188, 255, 1394, 5488, 651, 4110O, 4100, 2500A, 1620, 285, 1190, 276, 3110, 1206, 1026, 2300A, 4610N, 3500, 666, 1568, 2388, 1586, 250, 2150, Hydro 70, 1700, 606, 310, 460, 4410SU, 601, 1194, 2166, 354, 2144, 695XL, B275, 5288, 4130, 2810, 3330, 1710, 4610, 1290, 6088, 1130, 995Q, 4030, 2910, 180, 420, 3190, 503, 2344, 475, 880B, 1750, 2610, 2022, 5088, 272, 756, 2756, 71 Flexi, 885Q, 1456, 4000, 915, 4630, 986, 235, 2030, 269, 82, 1715, 885, 4110TR, 2630, 3610V, 2400A, 2755 (MID-HI AXLE), 1830, 3488 Hydro, 600B, 1086, 470, Hydro 100, 611, 20D, 996Q, 2350 (LOWPROFILE), 334, 233, 3150, 1480, 995, 20F, 1822, 886, 2656, 1550, 3088, 300, 1440, 2600R, 150, 621, 815, 2600V, 786, 4190, 820 (3 CYL), 234, 1688, 364, 7300, 4610O, 2040, 135, 4110NO, 425, 430, 574, 1680, 7100, 784, Hydro 186, 2830, 766, 1850, 203, 500, 2135, 2366, 826, 265, 3310, 20, 4830, 706, 1566, 1486, 1040, 480, 204, 1666, 1085, 2240, MaxEmerge 2, 303, 4330, 3288, 2377, 3120, 990, 4120, I-544, 385, 1644, 2310, 315, 531, 1460, 454, 4610SU, 782, 3600, 4200, 3100, 275, 620, Hydro 86, 595, 806, 2606, 1530, 4410, 1120, 2640, 1468, 3055, 1066, 273, 4110, 2930, 2131, 268, 495, 1630, 1660, 830 (3 CYL), 3600V, 2555 (MID-HI AXLE), 333, 490, 165, 4131, 2100, 2111, 4121, 2600N, 2706, 7340, 760

Additional Information:

Bore - 1.375" Width - 0.720" Casting Number - H6606/6182 CTD Radius - Spcl. Bearing Type - Tapered Cup/Cone

Reference Numbers:

710475, 70045, BE22140, 4096588,70227665,70430421,70929628,74254317, 2717WD, 16076SW, 0227665,1766918,227665,254317,3043869R91,40460,4254317,430421,530474,851-IM48548,9091,LM48548, 41112, X5656, 1716071, 48977, 80340634, 81854752, 83400377, 83992408, 1288571C91, 144074C91, 371896R91, 371897R91, 371898R1, 383459C91, 56504C91, 618022R91, 618023R1, 618023R91, 671078R91, 826928C91, G57451, G57452, 86516468, 3043869R91, 3043871R91, 10353, 791265M91, 831078M1, 146241BH,573BH, 520047, GHB144, 005-0471,0050471,050471, 913-LM48548, AT320692, JD8194, JD9099
