A-5169772-AI HYDRAULIC PUMP

One New Aftermarket Replacement Hydraulic Pump Fits Ford, Fits New Holland, Fits Case IH, and Fiat Tractors

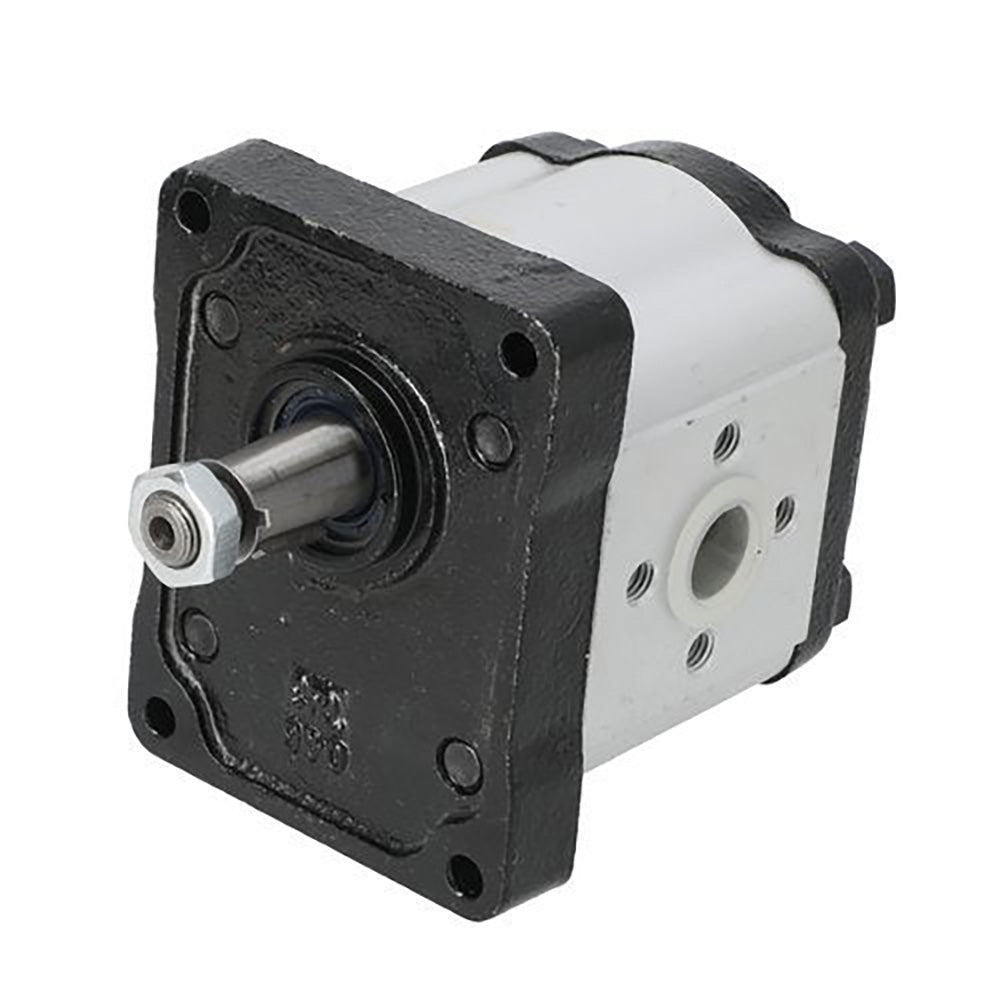

This aftermarket replacement hydraulic gear pump (counter-clockwise rotation) restores hydraulic system output on a wide range of Fits Ford, Fits New Holland, Fits Case IH (Fits International Harvester), and Fiat tractors. The pump features a keyed shaft drive and delivers approximately 7.5 to 8.19 gallons per minute (31 liters per minute) at up to 2,900 PSI, making it a direct-fit replacement for the original single-stage hydraulic pump on these platforms. Replaces OEM part number 5169772 and all cross-referenced numbers listed below.

Specifications

• Pump Type: Single, Gear Pump
• Rotation: Counter-Clockwise (CCW)
• Flow Rate: 7.5-8.19 GPM (31 LPM)
• Max Pressure: 2,900 PSI
• Displacement: 14.5cc
• Drive Type: Keyed Shaft
• Relief Valve: Not Included

Compatible Models

Fits Ford/New Holland Tractors: 3010S, 3435, 3830, 4010S, 4030, 4230, 4330V, 4430, 5010S, 5530, 6530, 7530, TK76, TK85, TK85M

Fits Case IH Tractors: JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90, JX95

Fiat / Hesston Tractors: 45-66, 45-66DT, 45-76V, 50-66, 50-66DT, 55-56, 55-56DT, 55-66, 55-66DT, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 55-90, 60-56, 60-56DT, 60-66, 60-66DT, 60-90, 65-90, 70-66, 70-90, 80-66, 90-90, 100-90, 100-90DT, 110-90, 110-90DT, 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT, 180-90, 780, 1000

Long Tractors: 2360, 2460, 2510, 2610, 480, 520, 680

Replaces Part Number(s):

5169772, 5169772-A, A-5169772-AI, 5129483, 5120849, 5179719, 8280127, 8282339, 5094391, 5113284, 5120277, 5120297, 1901324, 1930052, 1930057, 1930068, TX17199, TX17203, 84530156, 9967928, 0510525348, 30-3012875, VPK1034

New aftermarket replacement part - not remanufactured, not used.
