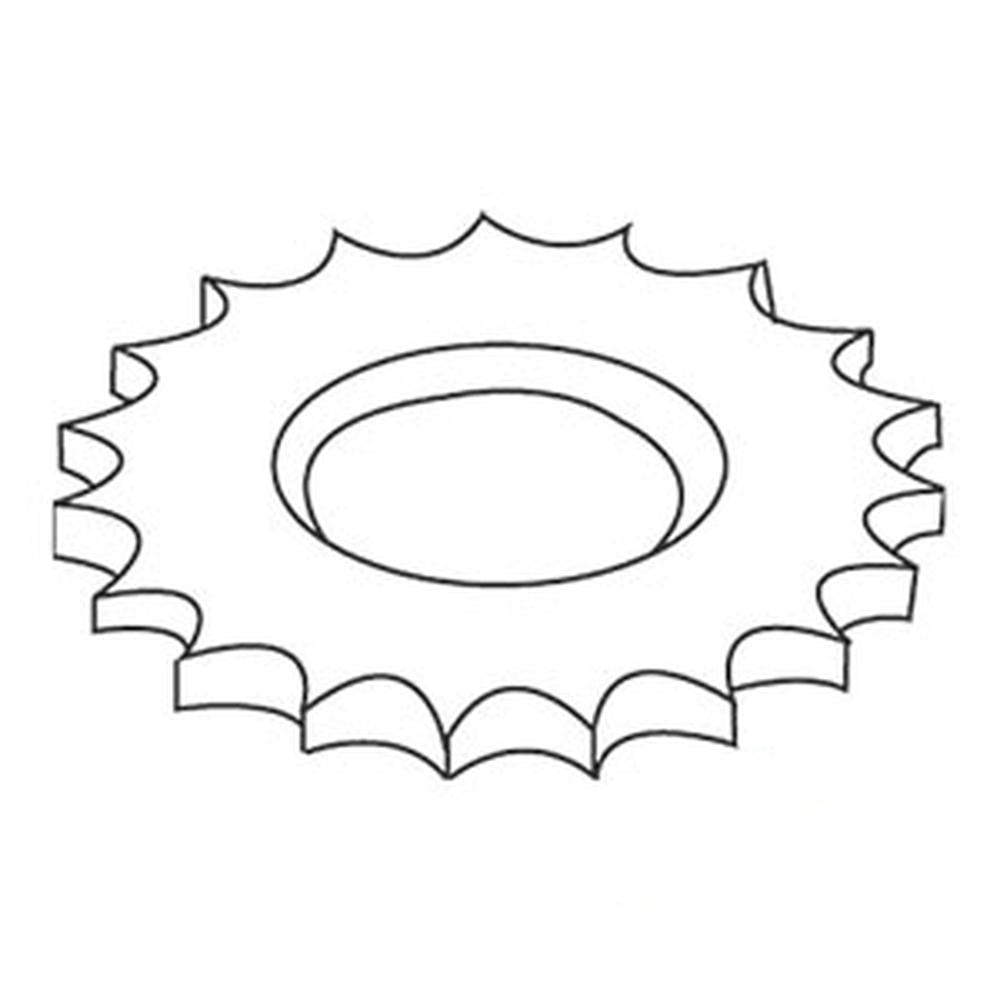

A-50X41-AI SPROCKET 50X41

One New Aftermarket Replacement #50 Roller Chain Sprocket - 50X41 Weld-On Hub Style

This 50X41 sprocket is a heavy-duty steel roller chain sprocket designed for use with ANSI #50 roller chain in agricultural, conveying, and general field drive applications. The X-type designation indicates this sprocket is manufactured to accept a weld-on (X-type) hub rather than including a hub -- a separate X-series weld-on hub is required for installation. With 41 teeth and an 8.715" outside diameter, this sprocket is well-suited for moderate-speed, high-torque drive systems common in farm and industrial equipment.

Specifications

• Chain Size: ANSI #50 (5/8" pitch)
• Teeth: 41
• Inside Diameter: 2"
• Outside Diameter: 8.715"
• Hub Type: X-Type Weld-On Hub Required (not included)
• Material: Steel
• ANSI Standard: B29.1

Compatible Applications

This is a universal-fit ANSI #50 roller chain sprocket. It is compatible with any drive system or machine using ANSI #50 (5/8" pitch) single-strand roller chain that requires a 41-tooth, X-type weld-on hub sprocket. Common applications include agricultural equipment drive systems, conveyor systems, and general-purpose power transmission in field machinery.

Replaces Part Number(s):

A-50X41-AI, A-50X41, 50X41

New aftermarket replacement part - not remanufactured, not used.
