A-50X25-AI Sprocket
A-50X25-AI Sprocket
Couldn't load pickup availability

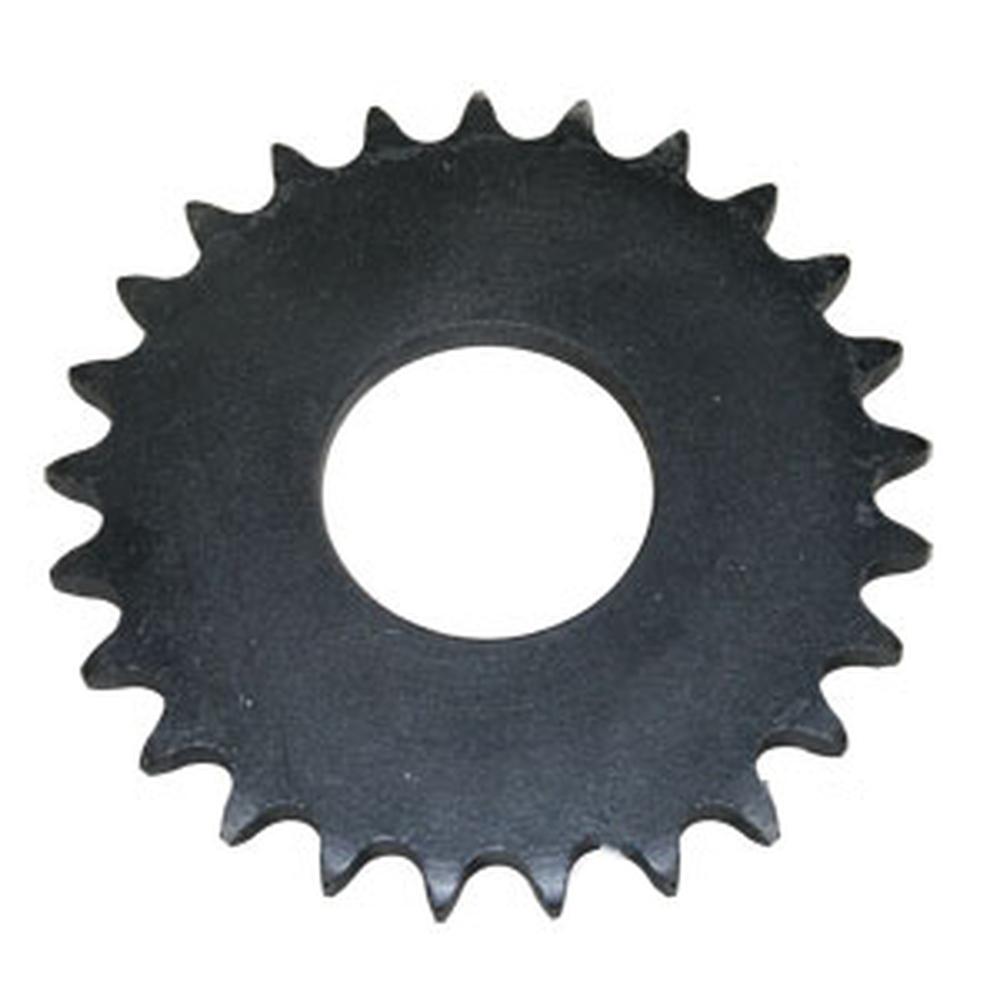

One New Aftermarket Replacement #50 Roller Chain Weld-On Sprocket - 25 Teeth, X-Series
This A-50X25-AI is a weld-on (Weld-A-Sprocket) X-Series sprocket designed for use with ANSI #50 roller chain (5/8" pitch). It features 25 teeth and is manufactured to accept an X-Series weld-on hub (hub sold separately). Commonly used in agricultural equipment, conveyor drives, grain handling systems, and general material handling applications.
Specifications
- Chain Size: #50 ANSI Roller Chain (5/8" pitch)
- Number of Teeth: 25
- Inside Diameter (I.D.): 2.000"
- Outside Diameter (O.D.): 5.323"
- Hub Style: X-Series weld-on (hub required, sold separately)
- Construction: Carbon steel
- Standard: ANSI B29.1
Compatible Applications
This is a universal X-Series weld-on sprocket suitable for agricultural equipment, conveying systems, grain handling equipment, feed mill machinery, and wide-range field applications. Compatible with any equipment using ANSI #50 roller chain requiring a 25-tooth sprocket. Any standard X-Series weld-on hub is compatible with this sprocket.
Replaces Part Number(s):
A-50X25, A-50X25-AI, 50X25
New aftermarket replacement part - not remanufactured, not used.
