A-50W14-AI Sprocket
A-50W14-AI Sprocket
Regular price
£31.00 GBP
Regular price
Sale price
£31.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

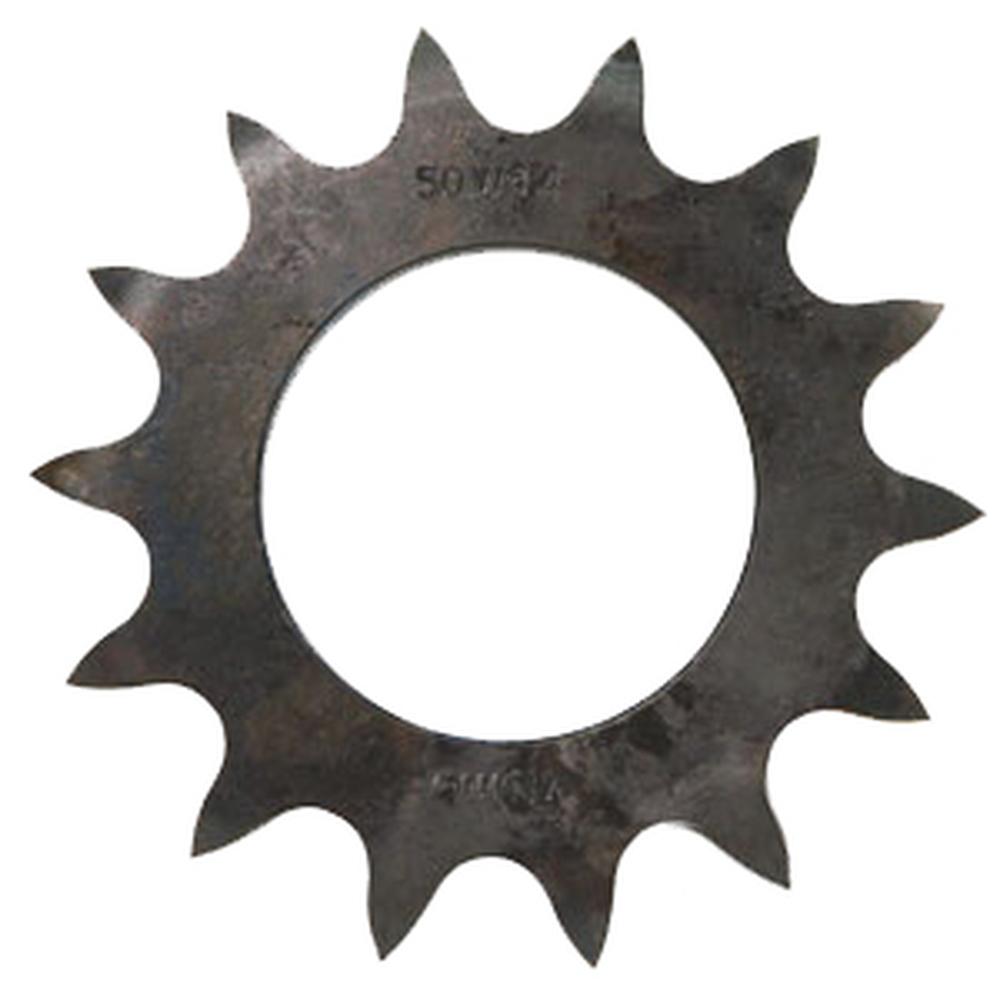

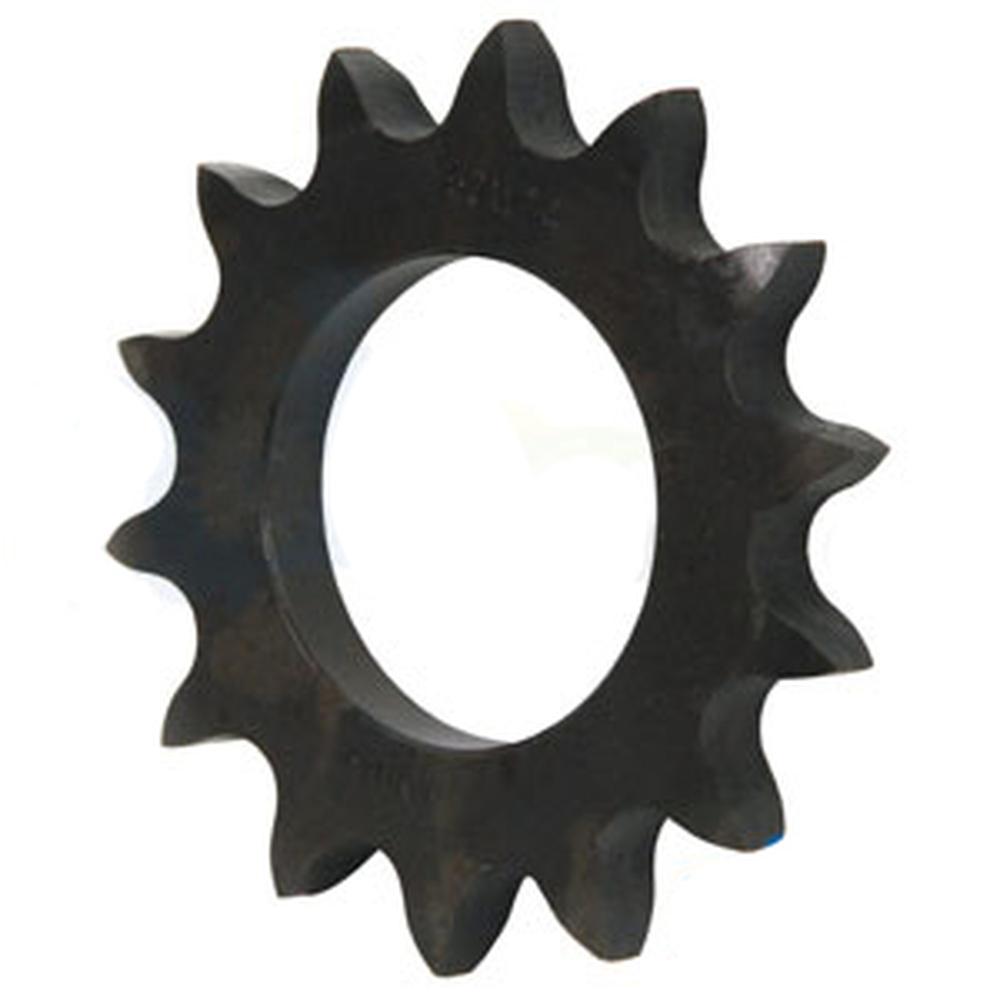

One New Aftermarket Replacement #50 Roller Chain Weld-On Sprocket - 14 Tooth, W-Series Hub
This hubless weld-on sprocket is designed for use with ANSI #50 roller chain and accepts a W-Series weld-on hub (sold separately) for shaft mounting. The sprocket's 1-5/8" center bore is sized to slip over a W-Series hub, which is then stitch-welded in place to secure the assembly to the shaft. Suitable for agricultural, industrial, and power transmission drive applications requiring a #50 pitch chain drive.
Specifications
- Part Number: A-50W14-AI
- Chain Size: #50 (5/8" pitch)
- Number of Teeth: 14
- Inside Diameter (Hub Bore): 1-5/8"
- Outside Diameter: 3.114"
- Pitch Diameter: 2.809"
- Hub Required: W-Series weld-on hub (sold separately)
- Material: Steel with heat-treated teeth
Replaces Part Number(s):
A-50W14-AI, 50W14
New aftermarket replacement part - not remanufactured, not used.
