A-50V09-AI Sprocket
A-50V09-AI Sprocket
Regular price
£11.00 GBP
Regular price
Sale price
£11.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

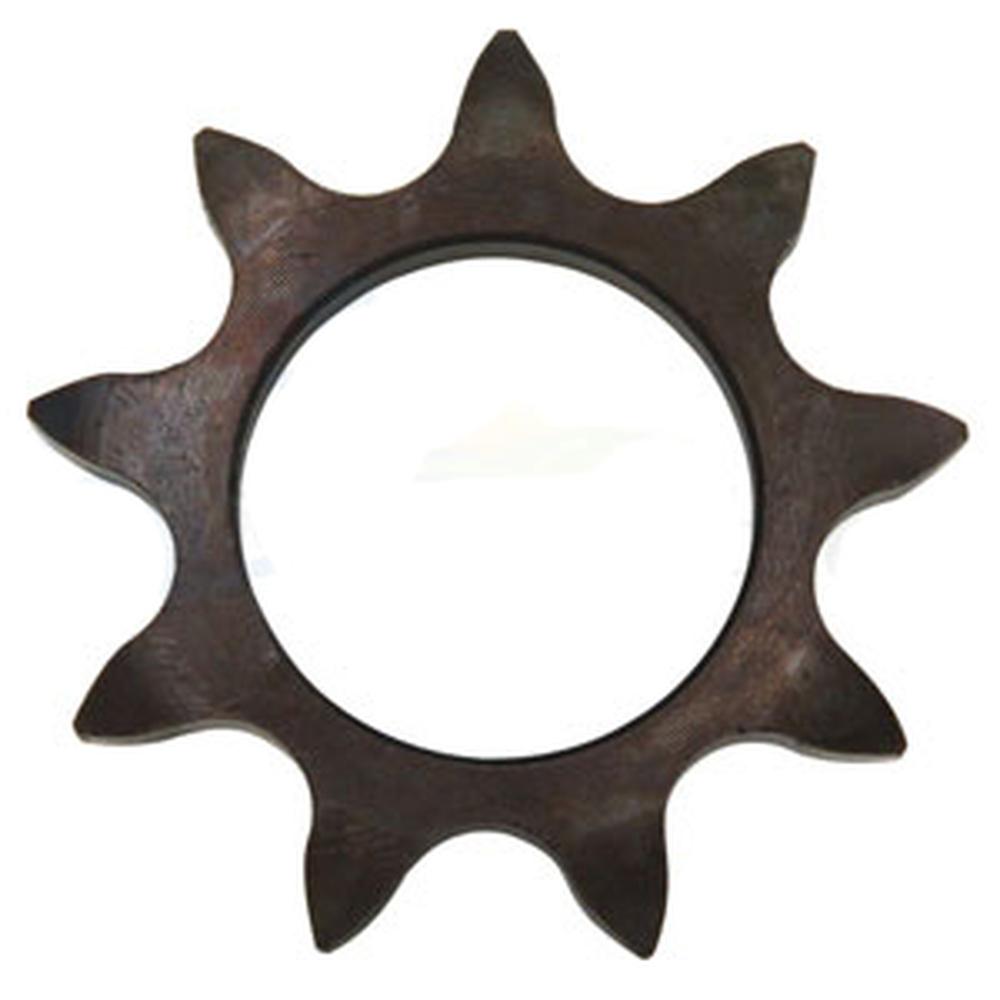

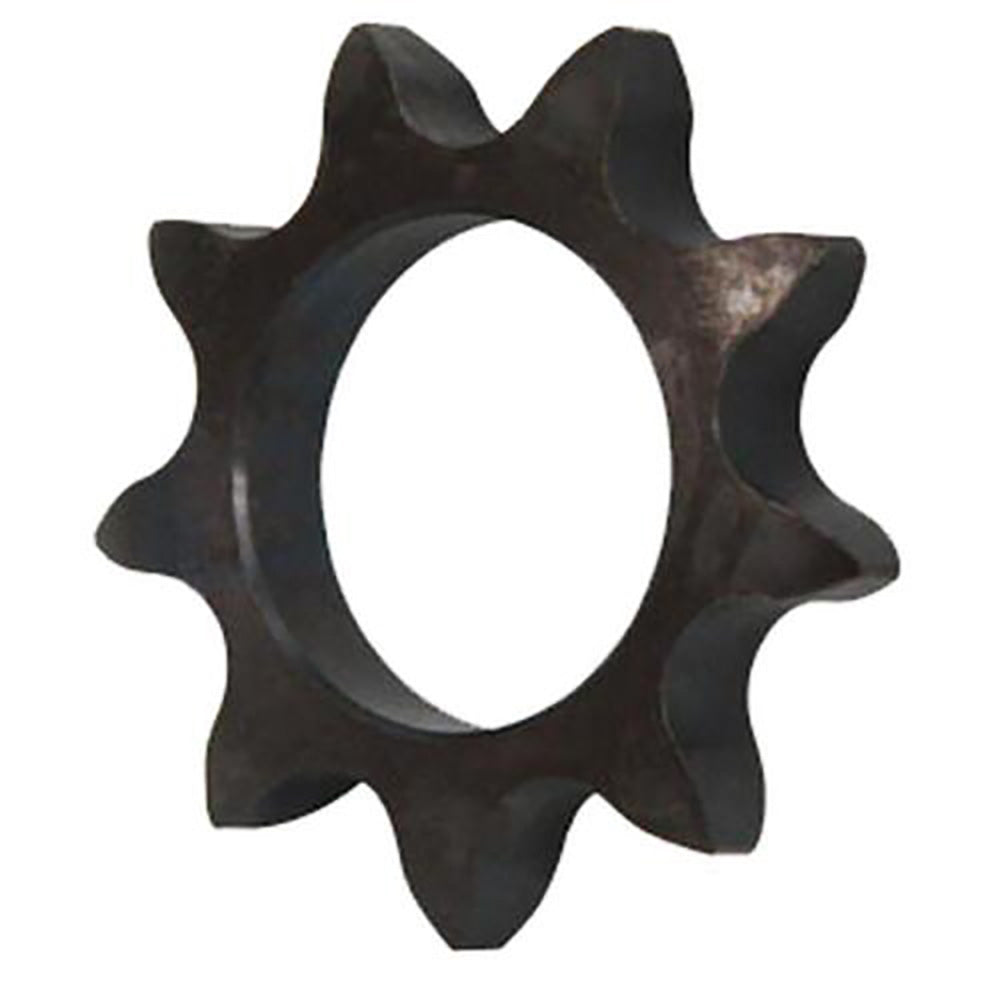

One New Aftermarket Replacement #50 Roller Chain Sprocket - 9 Tooth, Series V Hub-Mount
This 9-tooth roller chain sprocket is designed for ANSI #50 roller chain and uses a Series V hub-mount configuration. The sprocket itself is hubless -- a separate V-series weld-on or detachable hub (sold separately) is required for shaft mounting. With a 5/8-inch pitch and a 1-1/8-inch center bore sized to accept V-series hubs, this sprocket is a standard component used in agricultural conveyor drives, power transmission assemblies, and related equipment. The compact 9-tooth count makes it suitable for high-ratio drive applications where a small driver sprocket is needed.
Specifications
- Chain Pitch: #50 (5/8" pitch)
- Number of Teeth: 9
- Outside Diameter: 2.092"
- Center Bore (for V-series hub): 1-1/8"
- Hub Style: V-series hub-mount (hub required, sold separately)
- ANSI Standard: B29.1
Replaces Part Number(s):
A-50V09-AI, 50V09
New aftermarket replacement part - not remanufactured, not used.
