A-503-3500 Slip Sleeve (w/ Grease Reservoir)
A-503-3500 Slip Sleeve (w/ Grease Reservoir)
Couldn't load pickup availability

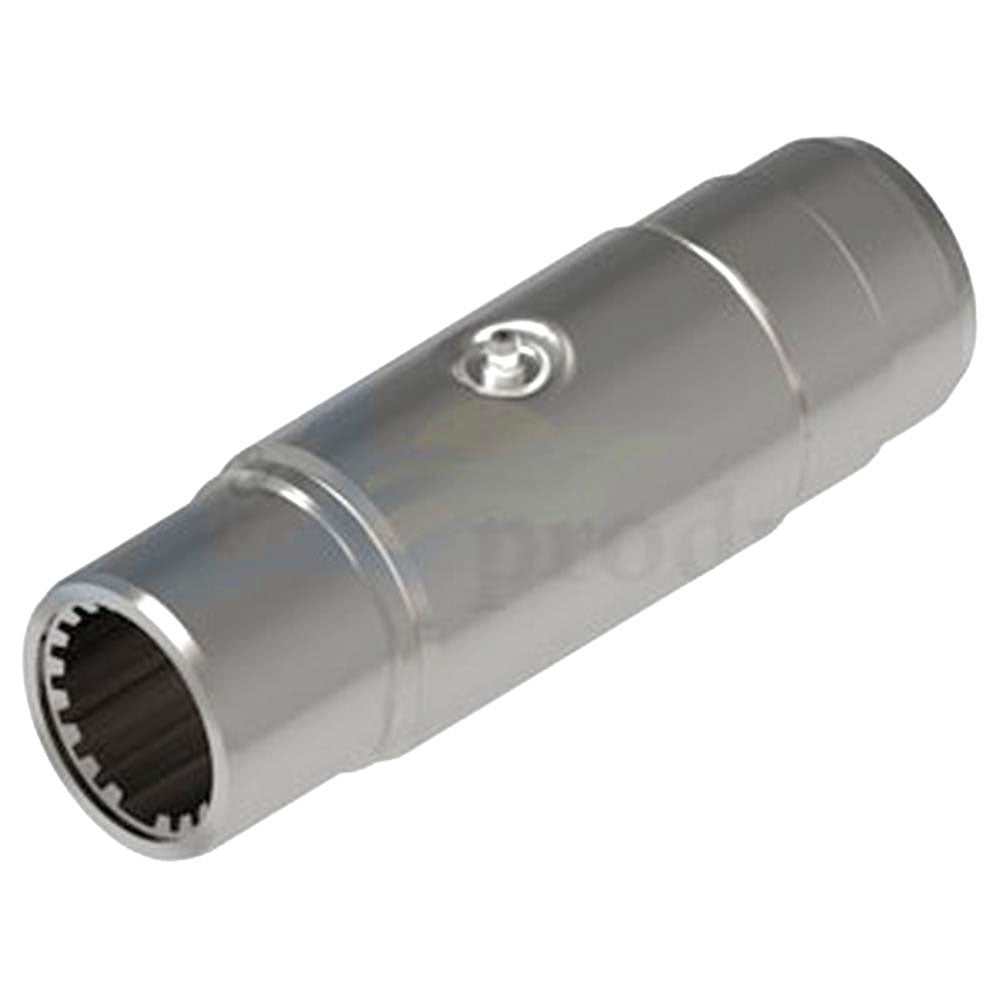

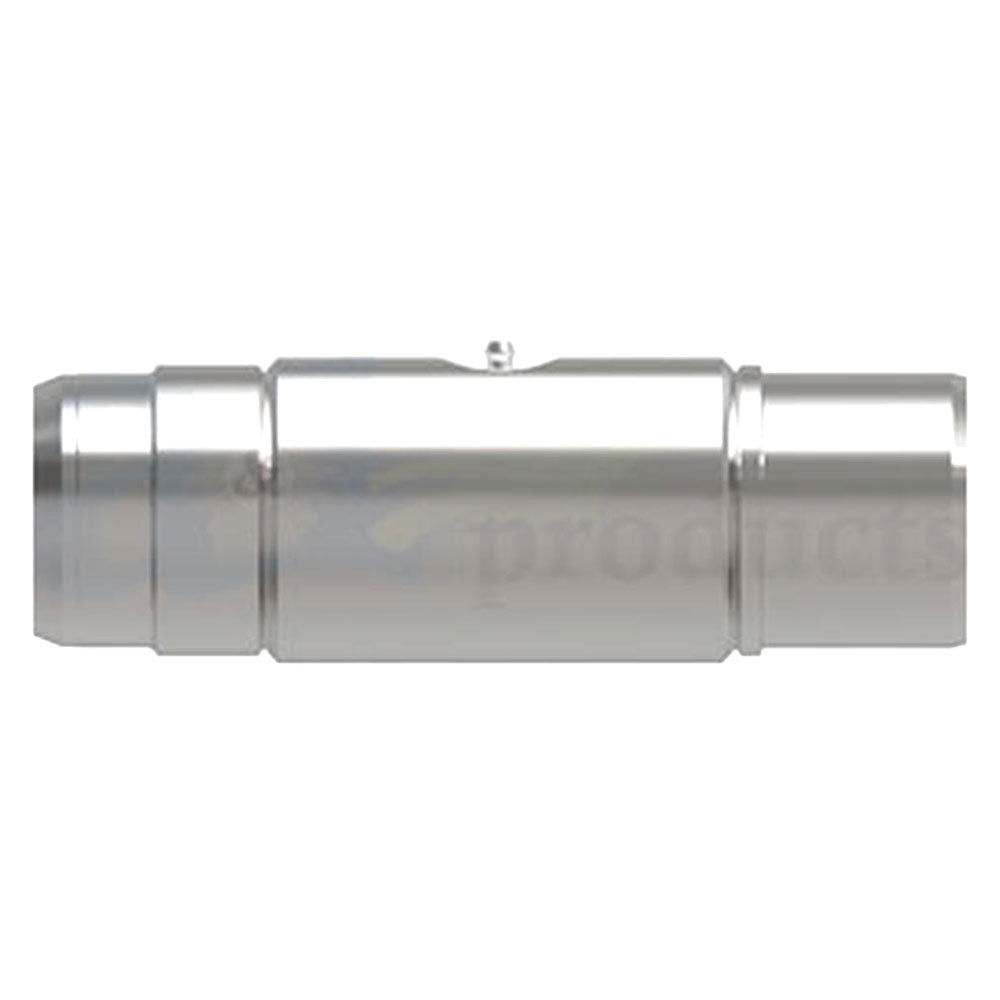

One New Aftermarket Replacement Slip Sleeve with Grease Reservoir for Weasler 35 Series PTO Driveshafts
This splined slip sleeve with integrated grease reservoir is a direct replacement for the Weasler (A and I Products) part number 503-3500. Slip sleeves allow PTO driveshafts to telescope and flex during operation, compensating for changes in length between the tractor and implement. The built-in grease reservoir helps retain lubrication on the splines for extended service life. This sleeve is compatible with Weasler Series 35, 44, and 55 driveshaft systems and is commonly used in agricultural PTO applications.
Specifications
- Sleeve Type: Splined

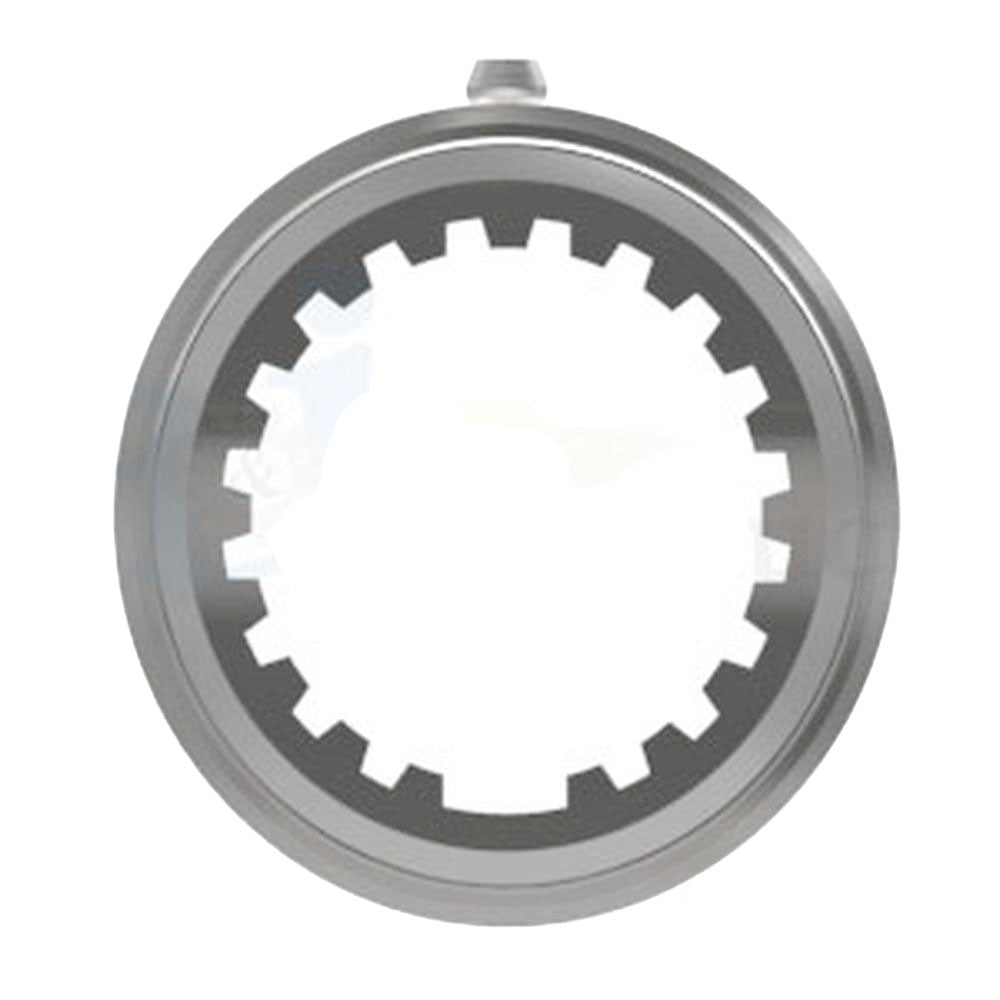

- Bore: 1-11/16" - 20 Spline
- Length: 8"
- Fits Tube Diameter: 2.5" x .134" wall
- Compatible Series: 35, 44, 55
- U-Joint Cap Size (Series 35N): 1-1/4" (1.250")
- Cap to Cap (Series 35N): 3-7/32" (3.219")
Compatible Applications
Weasler PTO Driveshaft Systems: Series 35, Series 35N, Series 44, Series 55 - agricultural PTO driveshaft assemblies for tractors and implements
Replaces Part Number(s):
503-3500, A-503-3500
Aftermarket Interchange Numbers
5033500, 503 3500, 971-5033500, 9715033500, 2660502-3500, AI-A-503-3500
New aftermarket replacement part - not remanufactured, not used.
