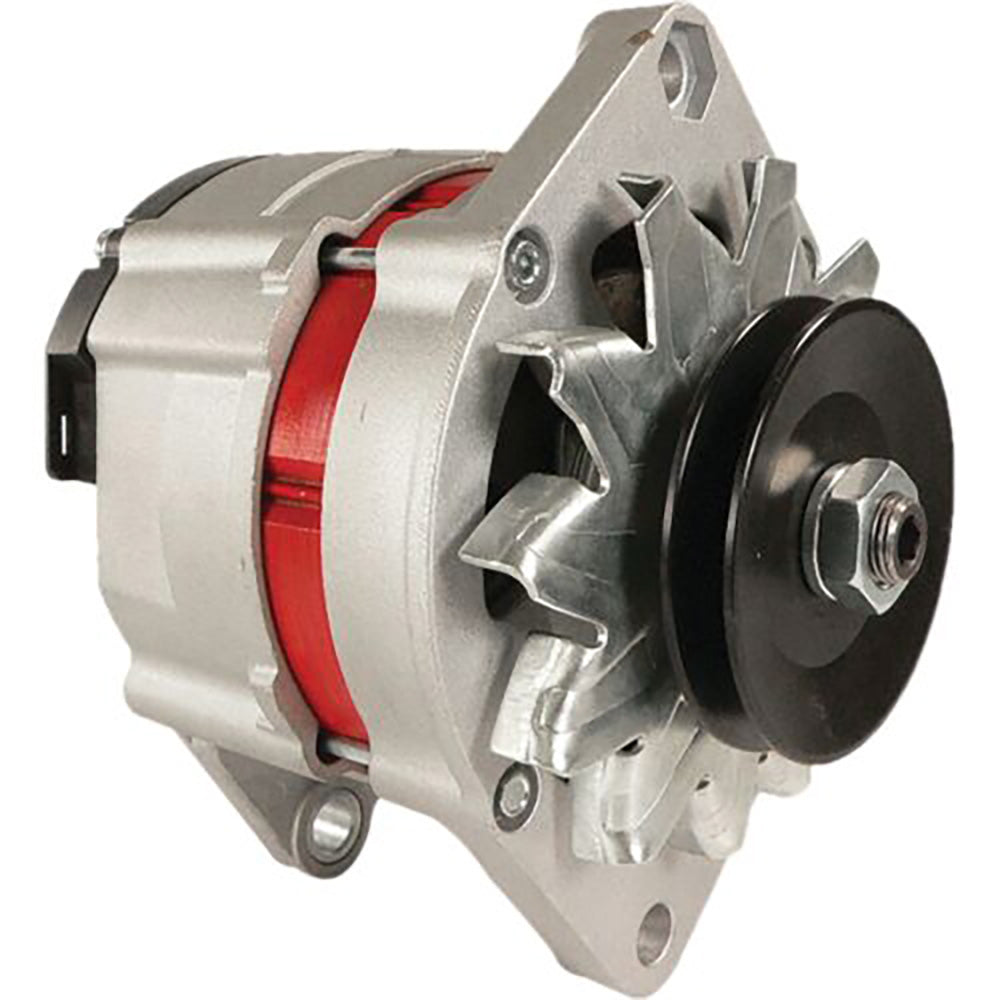

A-4808498-AI Alternator, Mag-Mar

One New Aftermarket Replacement Magneti Marelli (Mag-Mar) Alternator Fits New Holland, Fits Case IH, Fiat, and Fits Ford Tractors

This aftermarket replacement Magneti Marelli-style (Mag-Mar) alternator restores proper charging output to the electrical system on a wide range of Fits New Holland, Fits Case IH, Fiat, and Fits Ford agricultural tractors. The internally regulated, 12-volt design is a direct-fit replacement for the original Magneti Marelli unit.

Specifications

• Voltage: 12V
• Amperage: 45-65 Amp (Mag-Mar style)
• Regulation: Internal
• Belt Pulley Diameter: 90mm (single belt)
• Rotation: Clockwise
• Bore Diameter: 12.2mm
• Mounting Bores Distance: 70mm

Compatible Models

Fits New Holland Tractors: 3830, 4230, 4330V, 4430, 4835, 5530, 5635, 6530, 6635, 7635, TK76, TK85, TK85M, TL65, TL70, TL75, TL80, TL85, TL90, TL95, TL100, TN55D, TN55S, TN65D, TN65F, TN65S, TN75D, TN75F, TN75S, TN90F

Fits Case IH Tractors: JX70U, JX80U, JX90U, JX100U

Fiat Tractors: 45-66, 45-66DT, 50-66, 50-66DT, 55-56, 55-56DT, 55-88, 55-88DT, 55-90, 55-90DT, 580, 580DT, 60-56, 60-56DT, 60-90, 65-90, 65-90DT, 70-66S, 70-66S DT, 640

Fits Ford/New Holland Industrial/Construction: LB75, LM430, LM640

Oliver Tractors: 1265, 1270, 1355, 1365, 1370, 1465, 1470

Replaces Part Number(s):

4808498, A-4808498-AI, 4808498R, H4808498, HF500322764, 4762563, 4772683, 4787485, 4787594, 4787598, 4796327, 4808497, 4808499, 4808504, 4808511, 4808517, 4808603, 4808607, 4818513, 4242730, 4243730, 4600128, 4605854, 5101645, 8029593, 500322764, 151336, 4808502

Aftermarket Interchange Numbers

ALT26002, ASI 23910, Sparex 35964, Fits Mahle MG42, Fits Mahle MG191, MAGNETI MARELLI 633 216 37, AGCO C000900010030, 12580, 202-159, 202-159A, 202-159B, 612580, MAN260

New aftermarket replacement part - not remanufactured, not used.
