A-4703751-AI 12V,CW,9T,D/D,BO

Name: A-4703751-AI 12V,CW,9T,D/D,BO
SKU: A-4703751-AI
Price: 256.0 USD
Availability: InStock

A-4703751-AI 12V,CW,9T,D/D,BO

£256.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

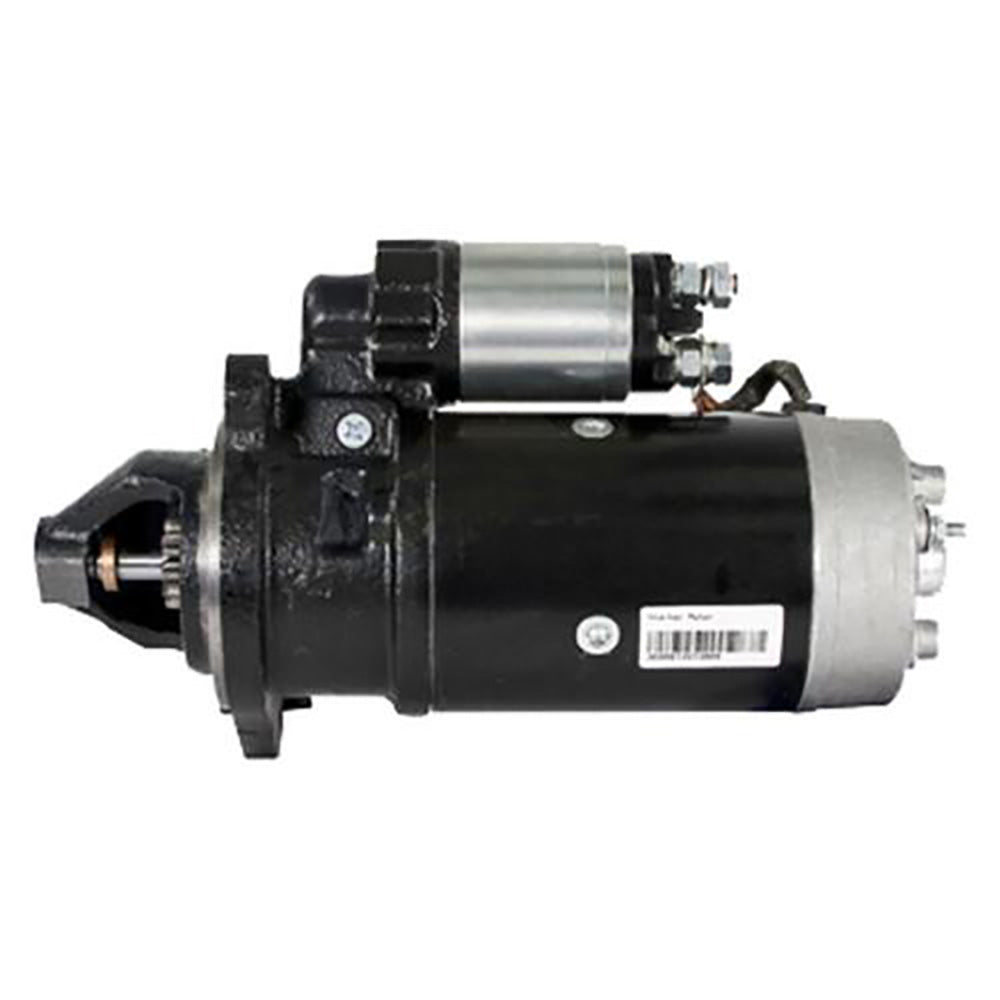

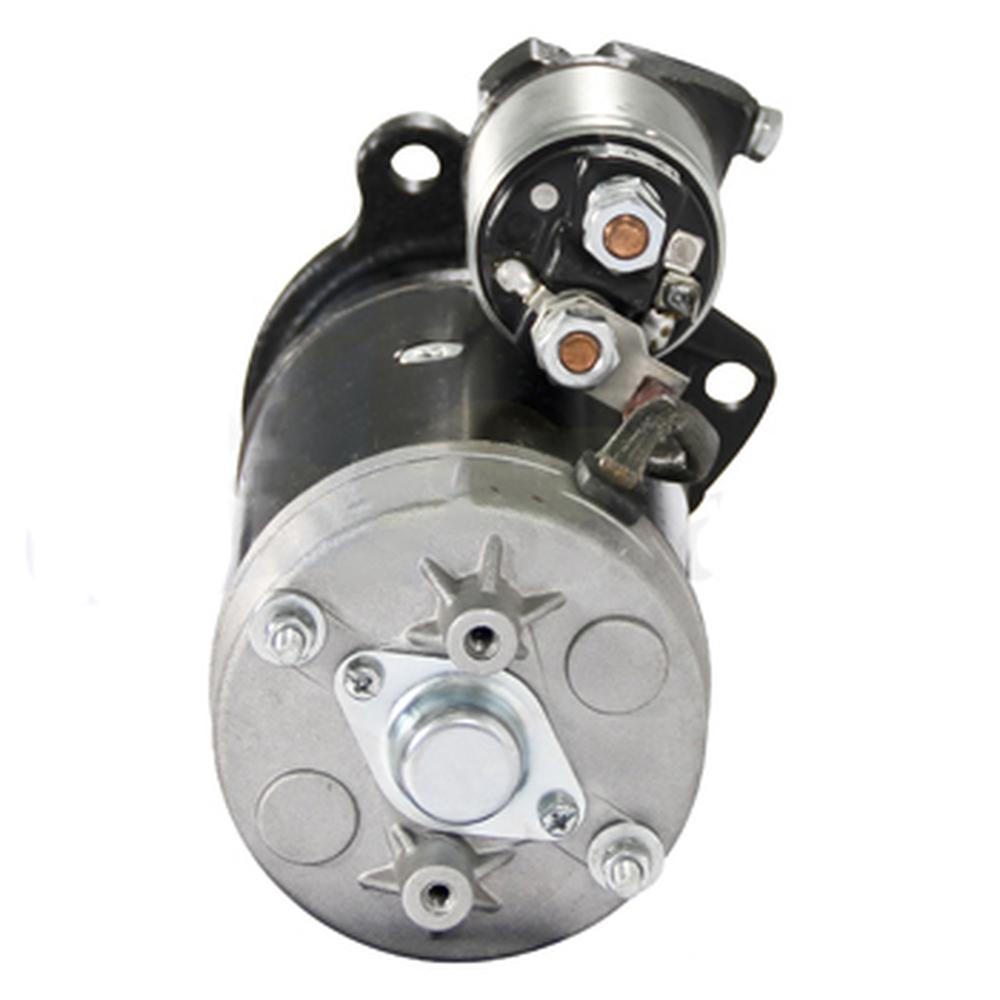

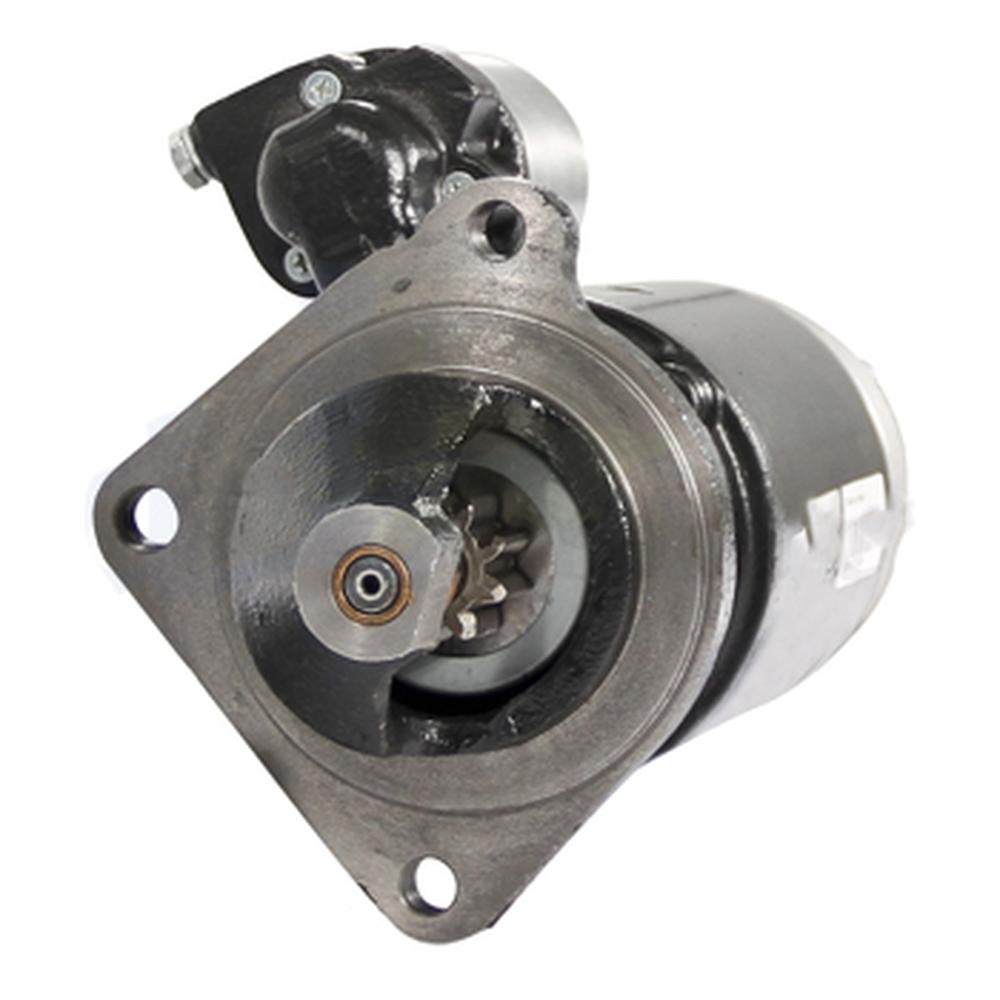

One New Aftermarket Replacement 12V Starter for Fiat, Long, Fits Ford/New Holland, White, Oliver, Fits Case/IH, Fits Allis Chalmers, and Goldoni Tractors

This aftermarket direct-drive (DD) starter motor replaces the original Fits Bosch-type starter on a wide range of Fiat-powered agricultural tractors sold under multiple brand names. Rated at 12 volts, 3.0 kW, with clockwise rotation and a 9-tooth drive pinion, it is a direct-fit replacement for the starting systems on Long, Fiat, Fits Ford/New Holland TN/TK/TD series, White, Oliver, Fits Allis Chalmers, Goldoni, and Fits Case/International Harvester models listed below. Note: Not for 2-cylinder engine models. Not Fits Mitsubishi-powered units. Uses TX13149 solenoid.

Specifications

Voltage: 12V
Power: 3.0 kW
Rotation: Clockwise (CW)
Type: Direct Drive (DD) - Fits Bosch Type
Teeth: 9
Length (bolt housing to end): 10-3/4 in.
Full Length: 13-1/2 in.
Pinion OD: 35 mm / 1.378 in.
Mounting Holes: 11.7 mm ID unthreaded (3 holes)

Compatible Models

Long: 260, 350, 360, 445, 453, 460, 483, 510, 530, 532, 533, 550, 553, 560, 610, 640, 642, 643, 683, 700, 703, 740, 833, 850, 1033 II, 1010 II, 1045, 1250A, 1255, 1265, 1270, 2360, 2360 DTC, 2460, 2460 DTC, 2510, 2610, 3010S, 3435, 3830, 3935, 4010S, 4030, 4230, 4330V, 4430, 4430N, 4835, 5010S, 5040, 5530, 5635, 6530, 6635, 7530, 7635

Fits Ford/New Holland TN/TK/TD Series: TN55, TN55D, TN55S, TN60A, TN60D, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VA, TD60D, TD70D, TD75D, TD80D, TD90D, TD95D, TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK76, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK100A, TL70, TL80, TL90, TL100, TT55, TT60A, TT65, TT75, TT75A, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N, LB75, LB75CP, LB90, LB95, LB110, LB115.B, LM430, LM640

Fiat: 500, 600, 640, 650, 700, 740, 850, 55-46, 55-56, 55-66, 55-88, 55-90, 60-56, 60-75, 60-88, 60-90, 65-46, 65-46DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66LP, 70-66S, 70-66SDT, 70-66V, 70-76, 70-76DT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-85, 72-85M, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76, 80-76DT, 80-76F, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 115-90, 130-90, 180-90, 180-90DT, L65

White Oliver: 2-50, 2-60, 1255, 1265, 1270, 1365, 1370

Fits Case/International Harvester: 310, 340, 350, 360, 453, 460, 500, 510, 530, 532, 533, 550, 553, 600, 610, 640, 642, 643, 683, 700, 703, 740, 833, 850

Goldoni: See models list

Replaces Part Number(s):

TX12433, 4703751, 4699705, 4702248, 4737755, 4755109, 4807375, 4832942, 4988513, 5111319, 5119319, 99999950, 99449112, 99449113, 82093256, 20887287, 2088728-7, 500338952, 500338953, 500338953R, 504059251, 504059251R, 5801441814, 5801441816, 0001367014, 0 001 367 014, 0001367028, 0 001 359 091, 0001359021, 0001359102, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63216825, 63216826, 63216827, 63217121, MT68AA, MT68AB, MT68AC, MT71Z, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 30-3043509, 31-2904907

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

70-66S, 70-66V, 260, 2460 DTC, 5635, LM640, TN70DA, TN65F, 740, TK76, LB75CP, 4030, JX1095N, 80-88, 4430N, 70-90DT, 7530, 80-66DT, TN60A, 85-90, 6530, 70-76V, TN55S, 65-94DT, TT65, JX1075C, 610, 703, 65-46DT, 72-86LPDT, 72-94, 70-88DT, 70-90, 2610, 500, 180-90, 530, TN80F, 70-76F, TK85, 72-93, 3435, 453, TN75SA, TT60A, TN75V, 72-93DT, JX70U, 80-66, TK75V, LB95, JX75, 4230, 65-93, TN95VA, 180-90DT, JX100U, 70-88, JX70, 70-76FDT, TD75D, 340, 80-76DT, TN55D, 72-85M, 850, 1255, 115-90, 550, 82-93, 85-90DT, TK100A, 70-76DT, TN65D, 643, TT75A, 80-76, 90-90, 70-66SDT, JX80U, 70-66, TD95D, 5530, JX90, LB90, TK75M, 2630, 80-66FDT, JX80, LB115.B, 70-76LP, TT75, TD60D, 445, 510, TN55, TN75FA, JX1070C, JX65, 72-94DT, 4010S, TD90D, 65-90DT, Electrical Starting Systems, JX60, 2360, TN70VA, TN75A, TN70, 1270, 82-93DT, 7635, 1265, TK75F, TN60D, 833, JX95, 2460, TN60SA, 1033 II, TN70D, 3830, TN65V, 70-76LPDT, 5040, JX85, TN75DA, 80-88DT, TN85FA, 88-93, LB110, 6635, TN95F, 5010S, TL70, 2360 DTC, 80-90DT, 82-94DT, 65-93DT, 65-90, TK85M, LM430, 533, 2-50, 350, TN65, JX1060C, 640, 4330V, TN70NA, TN75S, 70-66DT, 130-90, 4430, JX1075N, TK90A, 683, 1045, 65-94, TN60VA, 600, TK80A, TN70F, TN60DA, 88-94DT, 80-66F, TK75MA, LB75, 72-85, TN70S, 553, TD70D, TL100, 310, TN70A, 460, 360, 65-46, 532, TN75, 3935, 82-94, JX90U, 80-76F, TK75FA, TL90, TK90MA, TT55, TN75D, L65, TK75VA, 70-56, TN95FA, 700, 2-60, 3010S, TL80, 642, JX55, TN75VA, TN90F, 1250A, 70-66LP, TD80D, TN70SA, 70-56DT, 70-76, 88-93DT, 4835, TN65S, TK80MA, TN75F, 88-94, 483, JX1070N, 1010 II, 80-90

Additional Information:

Length from bolt housing to end: 10-3/4" Full Length: 13-1/2" Rotation: CW Teeth: 9 Volts: 12 KW: 3.0 Type: MM/DD

Reference Numbers:

30-3043509, 31-2904907, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 500338953R, 504059251R, 5801441814, 5801441816, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 5111319, 5119319, 4988513, 4737755, 4703751, 4807375, 4832942, 99999950, 4699705, 4702248, 4755109, 500338952, 5801441814, 99449112, 99449113, 17184, 2088728-7, 20887287, 82093256, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 0001367014, 0001367014, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 504059251, 500338952, 500338953, 500338953R, 504059251R, 5801441814, 5801441816, TX12433, 0001367014, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028
