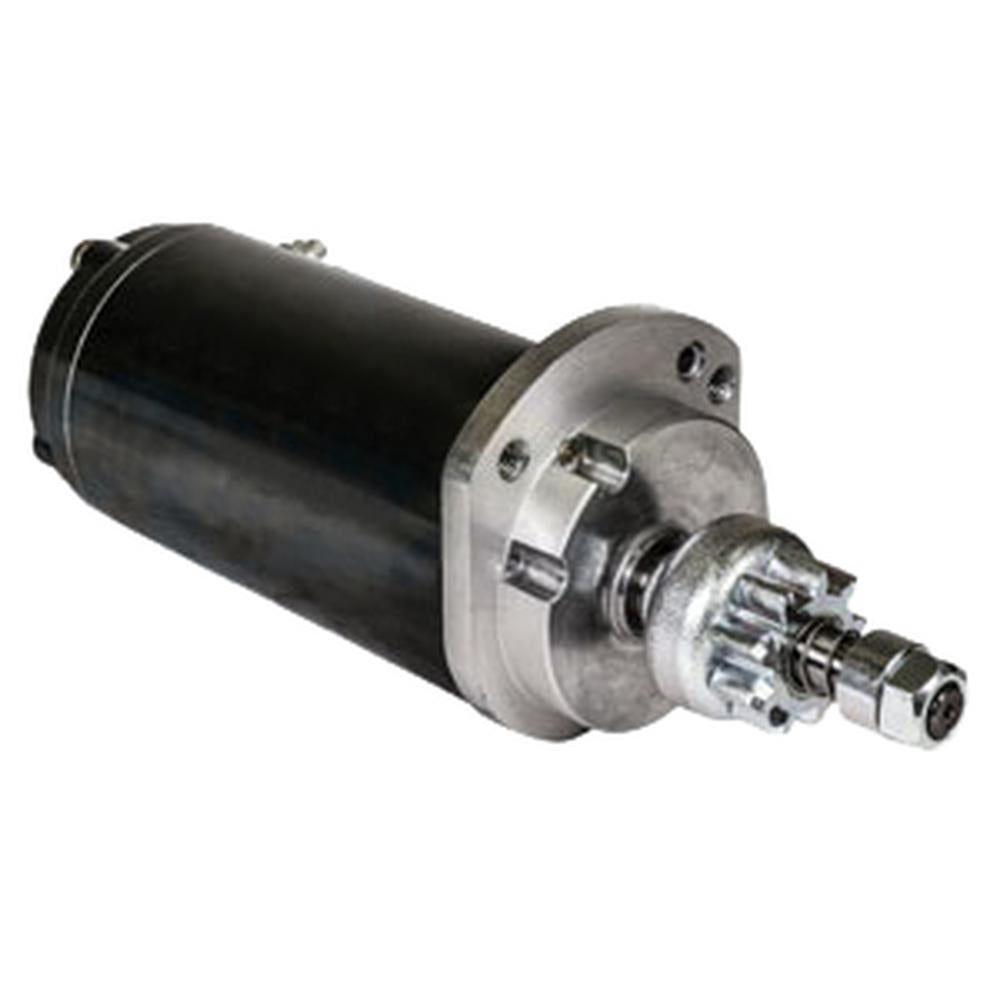

One New Aftermarket Replacement Electric Starter for Kohler Air-Cooled K-Series and Fits John Deere 400 Lawn Tractor
This 12-volt PMDD electric starter is a direct replacement for the Kohler air-cooled K-482, K-532, and K-582 engines, as well as the Fits John Deere 400 lawn tractor equipped with the Kohler 19.9HP engine. The starter features a counterclockwise (CCW) rotation with a 9-tooth drive gear and three threaded 5/16-18 mounting ears, making it a bolt-on replacement for worn or failed original starters on these classic Kohler K-series platforms.
Specifications
- Voltage: 12V
- Rotation: Counterclockwise (CCW)
- Starter Type: PMDD (Permanent Magnet Direct Drive)
- Number of Teeth: 9
- Gear OD: 36.5mm / 1.437 in
- Field Fits Case Length: approx. 128.9mm - 129.2mm
- Mounting Ears: Three 5/16-18 threaded holes; includes 1 additional 6.6mm unthreaded hole on mounting plate
- Weight: approx. 7.39 lbs / 3.36 kg
Compatible Models
Kohler Air-Cooled K-Series Engines: K-482, K-532, K-582
Fits John Deere Lawn Tractors: 400 (Kohler 19.9HP, 1975-1982)
Replaces Part Number(s):
AM34753, 4109805, A277214, 4809802-R, 4809804, 4809801, 48-098-02, 4509805, 4509804, 4809804-R, 41-098-05, 4809802, 4509804-R, 45-098-05-Starter, 45-098-04
Aftermarket Interchange Numbers
Johnson Electric: 1574540, 5665940, SM15745, SM56659, SMH12C1; Kohler: A277599, 48-098-04, 48-098-01, 48-098-04-S, 48-098-05; Fits John Deere: AM37725; United Tech: 1574540-M030SM, 5665940-M030SM, SM15744, SM56659
New aftermarket replacement part - not remanufactured, not used.
