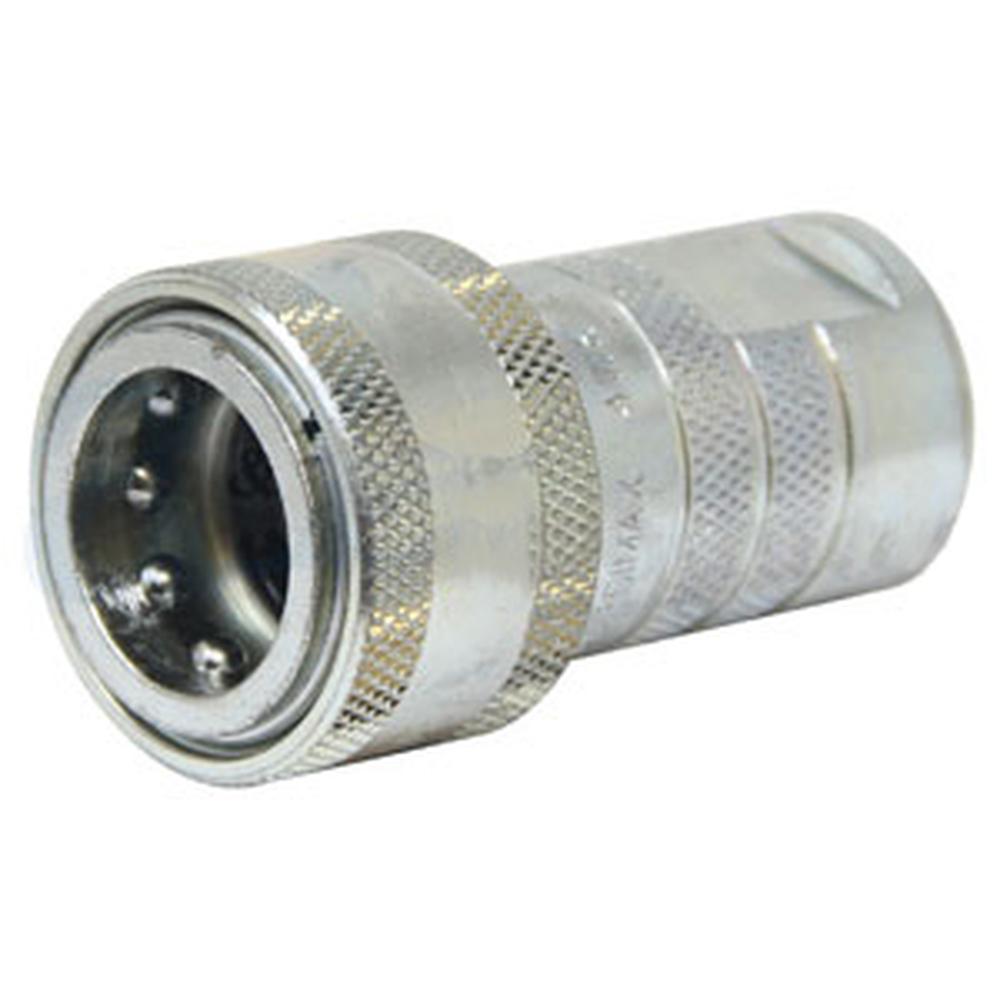

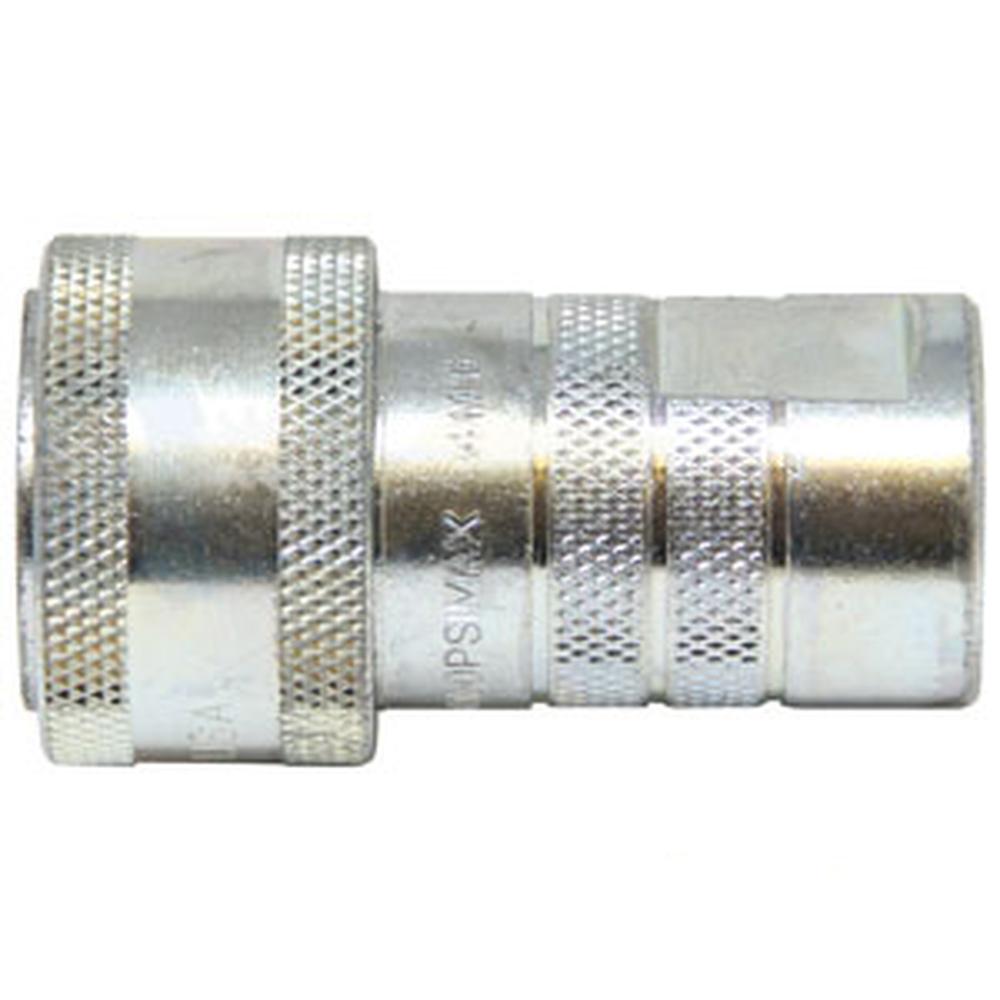

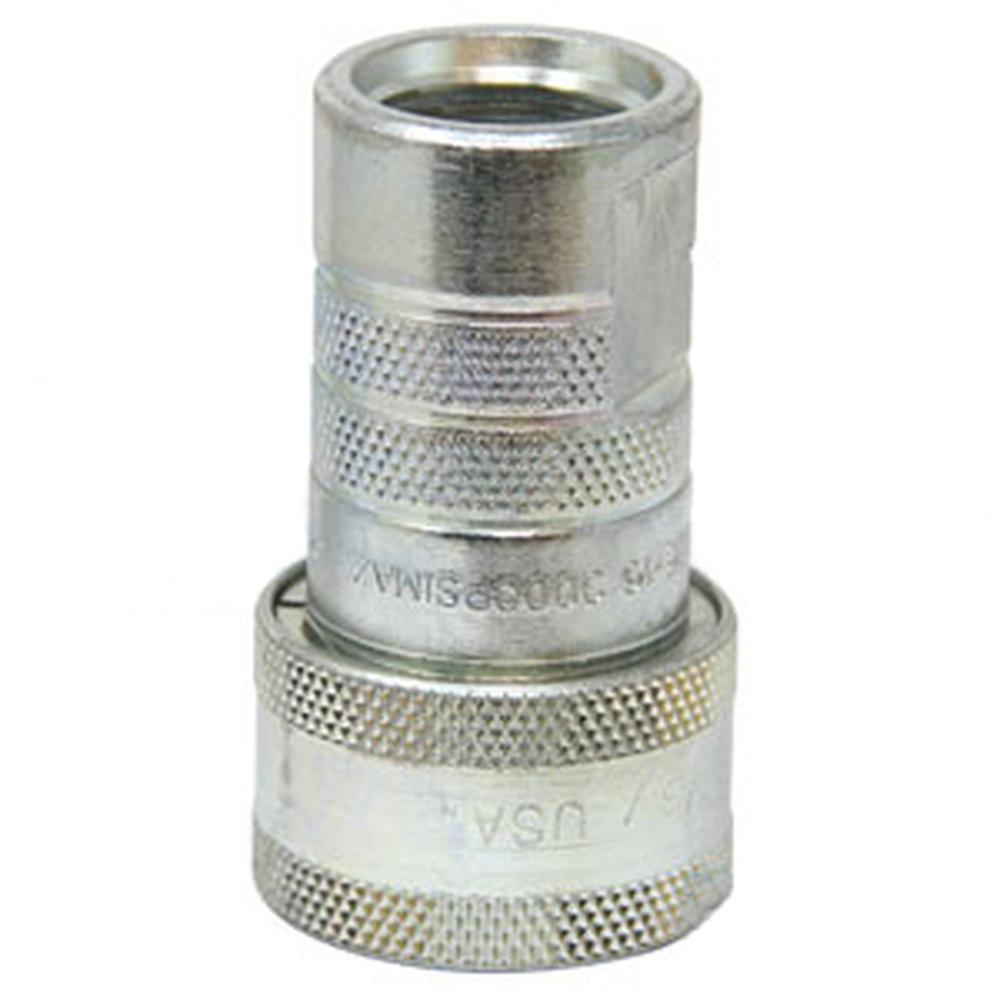

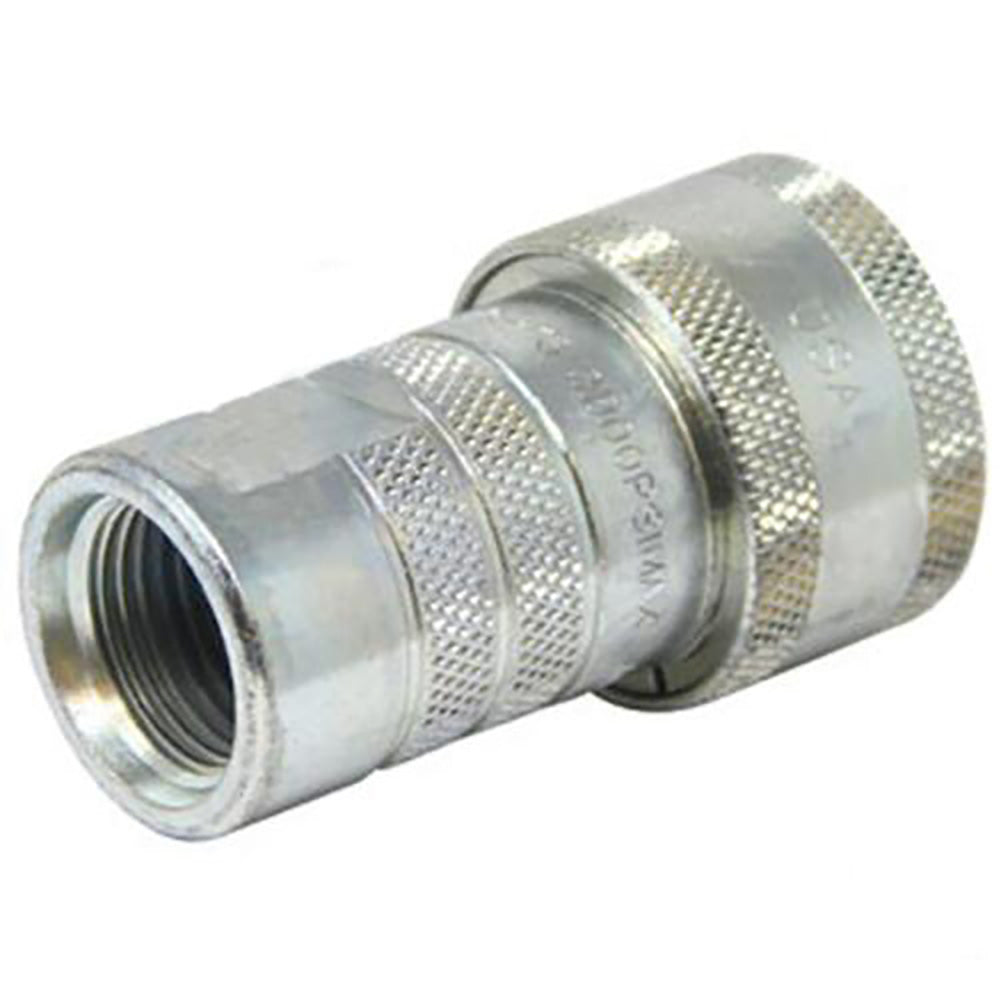

A-4050-16P-AI Female Coupler Body
A-4050-16P-AI Female Coupler Body
Couldn't load pickup availability
One New Aftermarket Replacement Female Coupler Body - Pioneer 4000 Series, 1/2" Body, 7/8-14 ORB, Poppet Valve
This aftermarket replacement female coupler body is part of the Parker Pioneer 4000 Series agricultural hydraulic quick-connect system. It features a poppet valve design for a positive, leak-free seal and connects via a 7/8"-14 O-Ring Boss (ORB) thread -- ideal for modern hydraulic cylinders, valve banks, and loader attachments that use ORB ports. Note: This is NOT standard NPT pipe thread. Verify your port thread style before ordering.
Specifications
- Body Size: 1/2"
- Valve Type: Poppet ("P" suffix)
- Connection Type: Female ORB (O-Ring Boss)
- Thread Size: 7/8"-14 UNF (-10 SAE O-Ring Boss)
- Sleeve Type: Manual sleeve
- Maximum Operating Pressure: 3,000 PSI
- Material: Steel
- Standard: ISO 5675
Compatible Models
Pioneer / Parker 4000 Series Quick Couplers: 4000 Series
This coupler body is compatible with standard Pioneer-style ag quick-connect systems found on John Deere, Case IH, and Kubota tractors and connects to hoses or implements using ORB (-10 SAE) ports.
Replaces Part Number(s):
4050-16P, 4050-16, 405016, 44A405016, 730405016, 4796-47796, 1282338C91
New aftermarket replacement part - not remanufactured, not used.
