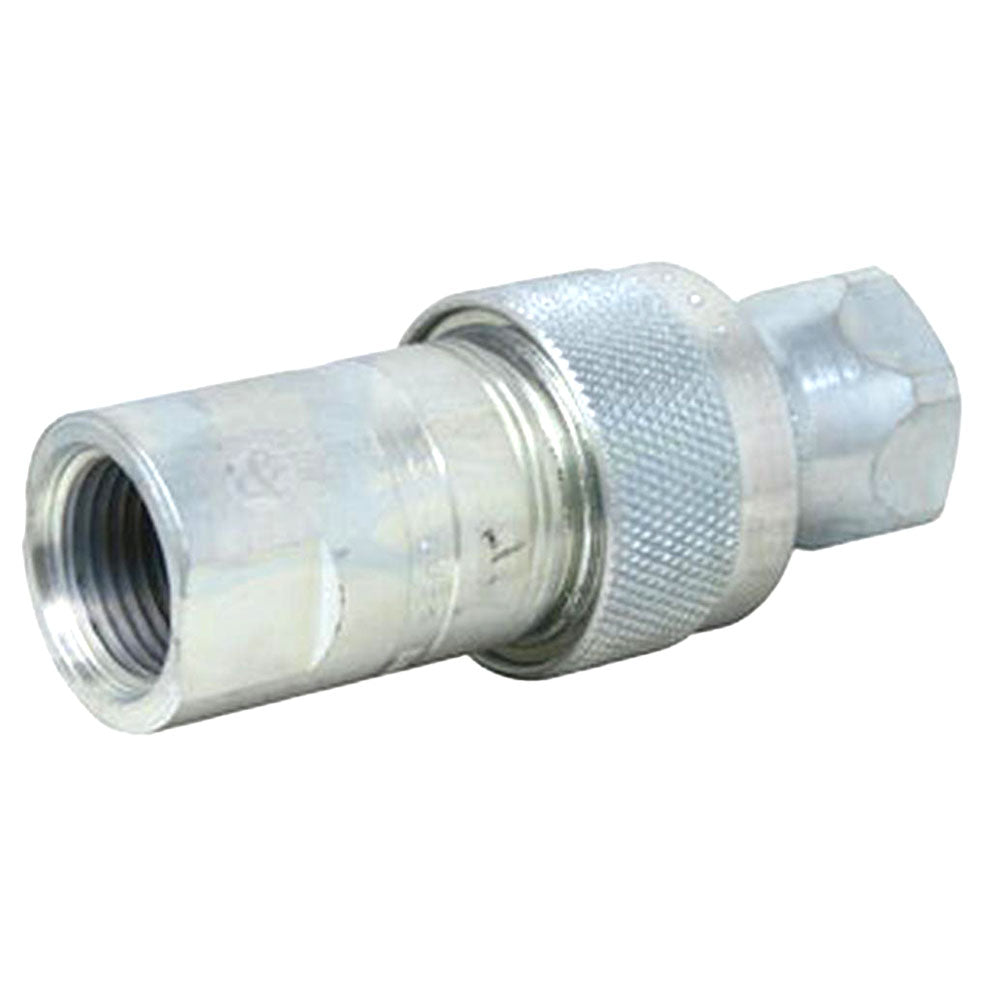

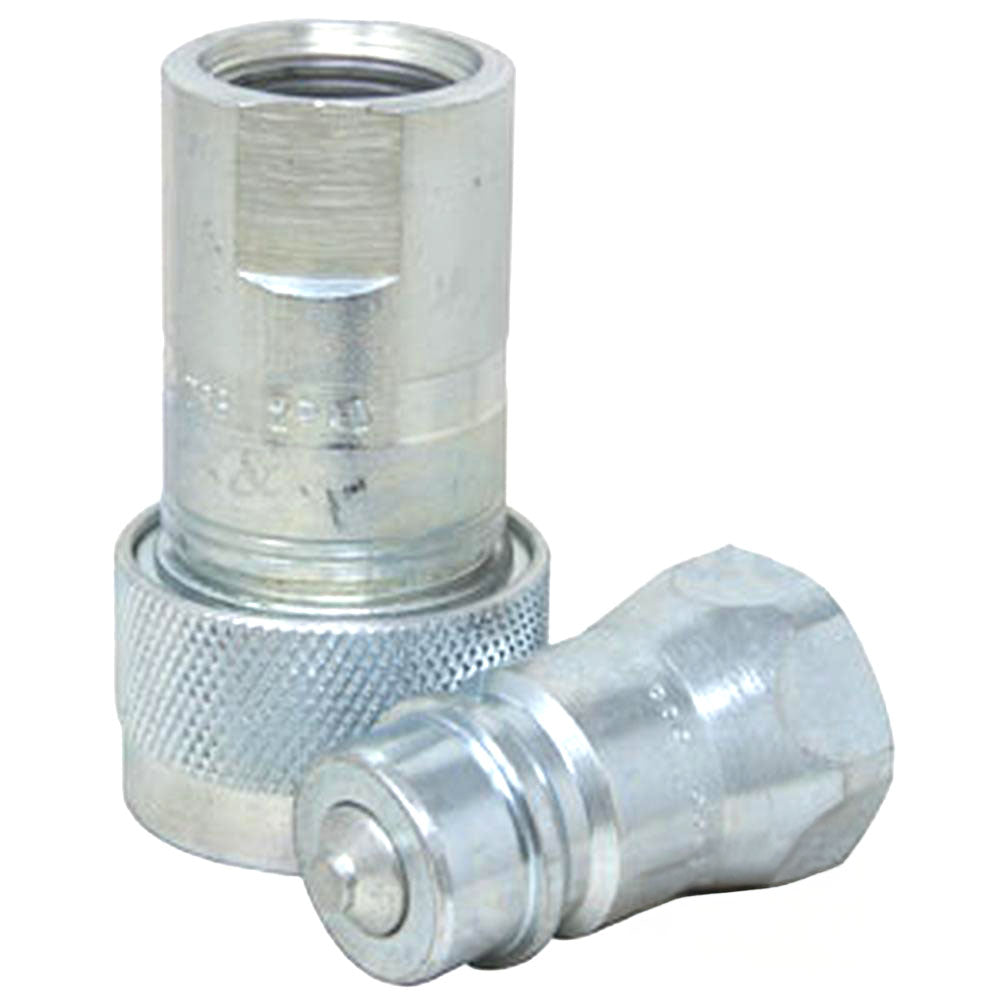

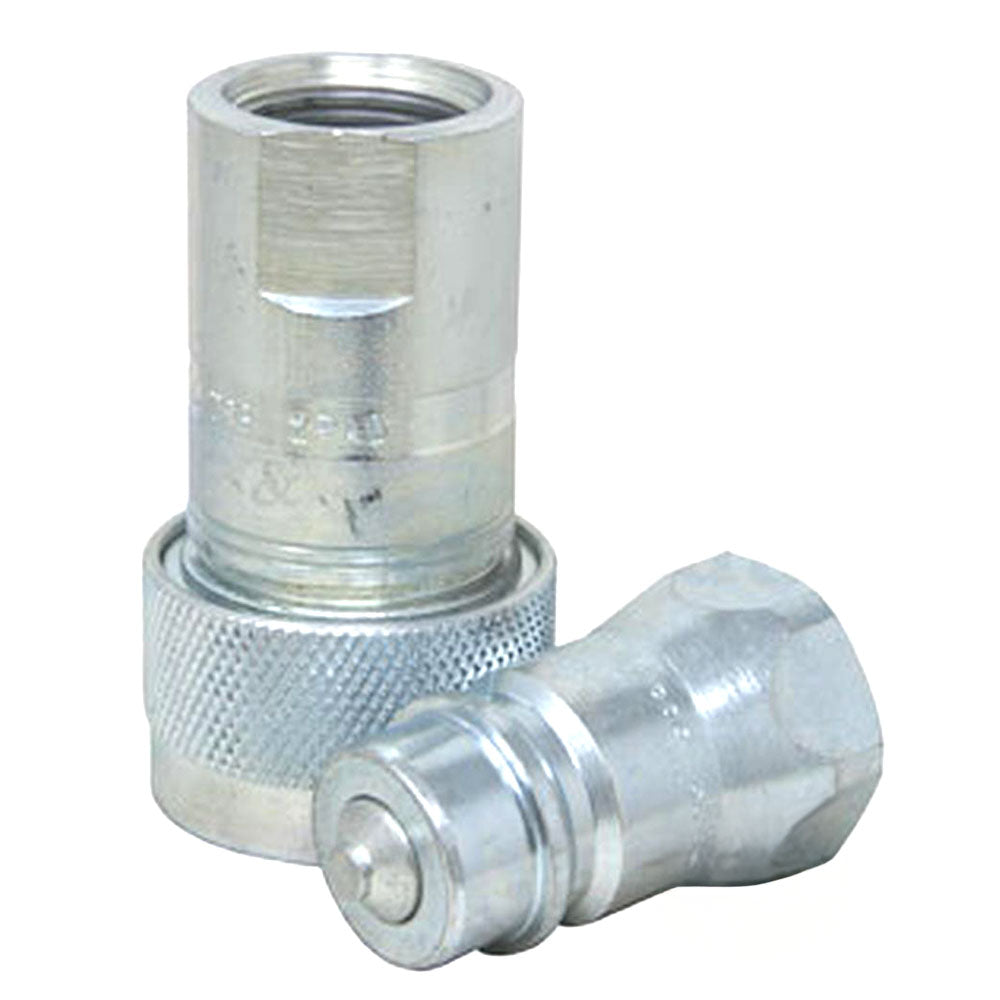

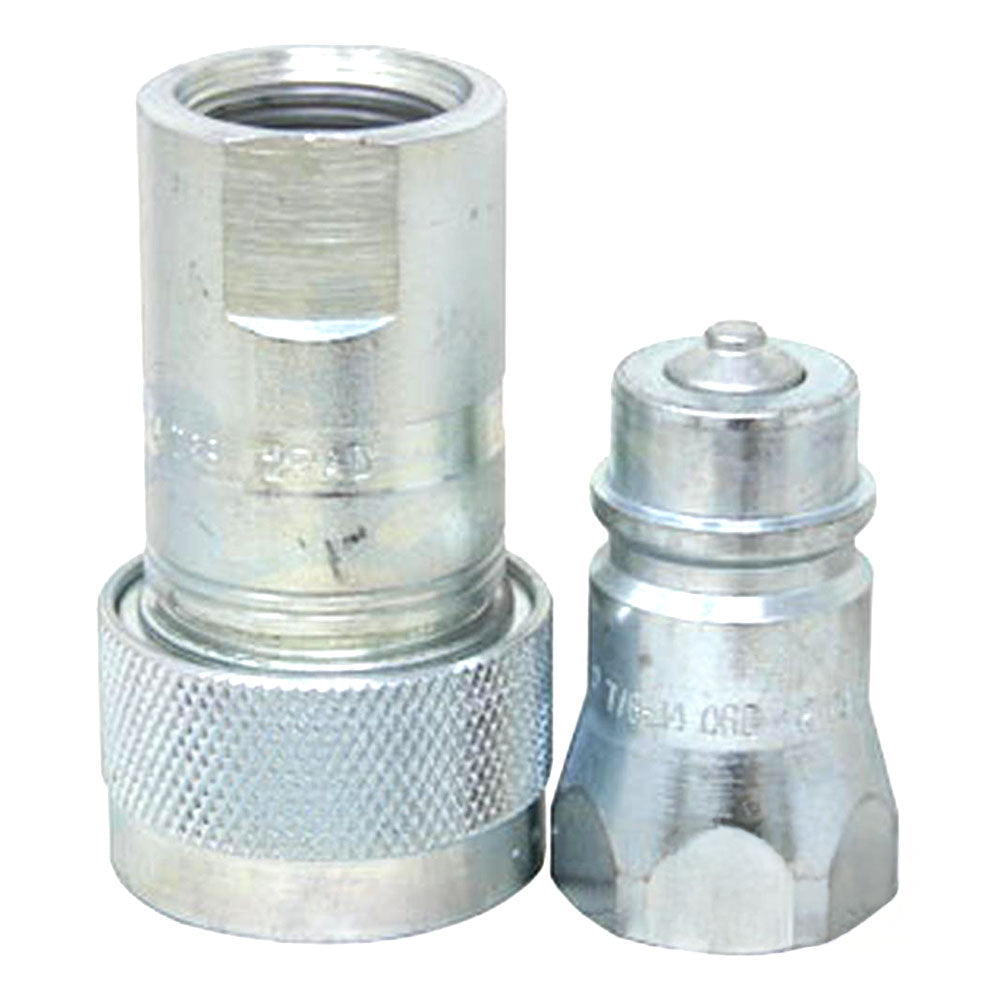

A-4000-16P-P Complete Quick Coupler

One New Aftermarket Replacement Complete Quick Coupler - Pioneer 4000 Series, 1/2" Body, Poppet Valve

This complete quick coupler is a Pioneer-style 4000 Series hydraulic quick disconnect coupling with a 1/2" body and poppet valve design. It connects hydraulic lines quickly and cleanly on tractors and other equipment, providing a double shut-off connection that prevents fluid weeping and drips. The "P" suffix denotes a poppet valve, which creates a positive seal superior to standard ball valve designs.

Specifications

• Body Size: 1/2" (ISO 5675 standard ag interface)
• Thread Size: 7/8"-14 ORB (SAE O-Ring Fits Boss, -10 SAE)
• Valve Type: Poppet (leak-free)
• Max Pressure: 3,000 PSI
• Locking Mechanism: Manual sleeve
• Material: Steel
• Standard: ISO 5675 (Pioneer-style)

Compatible Equipment

Agricultural & Construction: Fits John Deere, Fits Case IH, Fits Kubota, and other tractors and implements using standard Pioneer-style ISO 5675 hydraulic connections. Suitable for hydraulic loaders, hydraulic cylinders, valve banks, loader attachments, and add-on hydraulic circuits. Also used on construction equipment, forestry equipment, snow plow attachments, and hydraulic tools.

Note: This coupler uses SAE O-Ring Fits Boss (ORB) thread - NOT standard NPT pipe thread. Verify your port thread style before ordering.

Replaces Part Number(s):

4000-16P-P

Aftermarket Interchange Numbers

Parker/Pioneer 4050-16P; A&I Products 4000-16P-P

New aftermarket replacement part - not remanufactured, not used.
