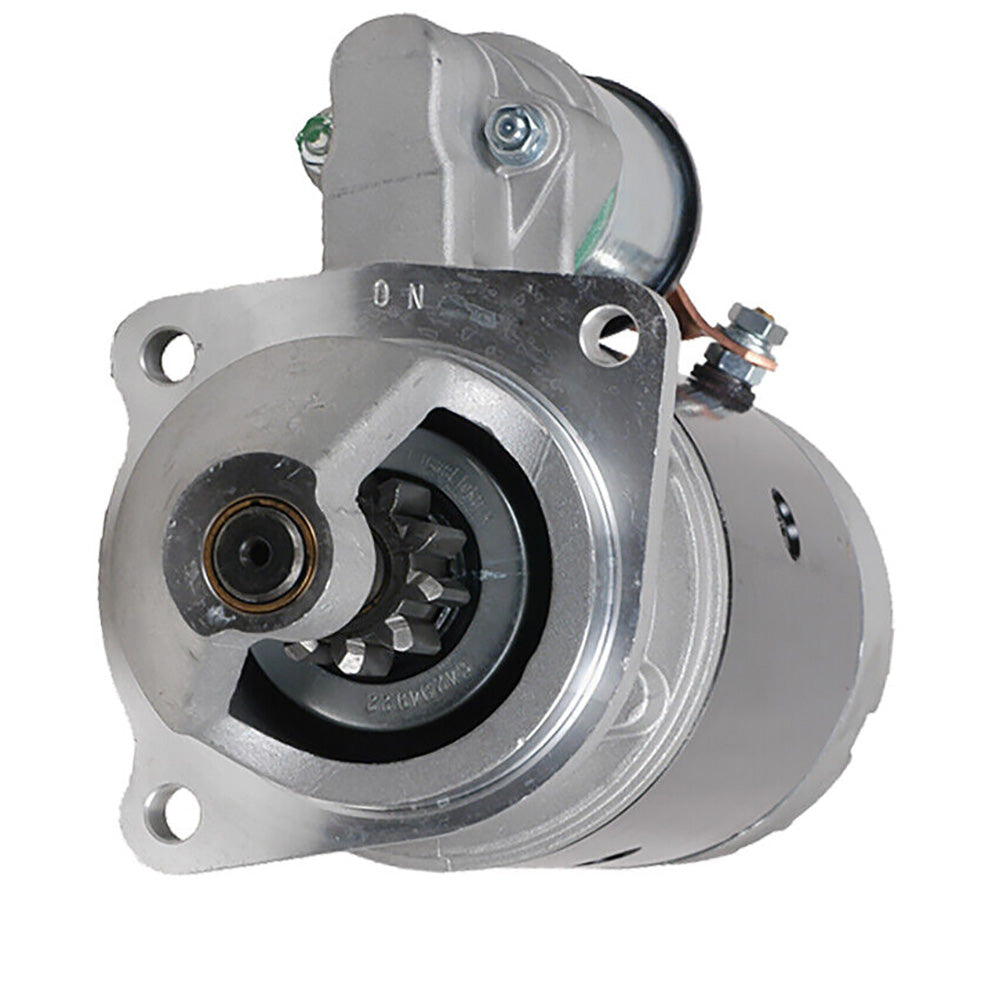

A-388187A1-AI Starter, Fits Bosch

One New Aftermarket Replacement Starter for Case IH, Massey Ferguson, Landini, and McCormick Tractors

This 12-volt direct-drive starter motor is an aftermarket replacement for the Bosch/Iskra/Letrika/MAHLE unit used on Case IH, Massey Ferguson, Landini, McCormick, and Perkins-engined agricultural tractors. It mounts via three unthreaded ears and delivers 3.0 kW of cranking power for reliable engine starting.

Specifications

• Voltage: 12V
• Power: 3.0 kW
• Rotation: Clockwise (CW)
• Starter Type: Direct Drive (DD)
• Number of Teeth: 10
• Gear OD: 39.3 mm / 1.547 in
• Mounting: 3 unthreaded ears, 10 mm holes, 127 mm hole spacing
• Assembly Length: 257 mm

Compatible Models

Case IH / Case: C70, C80, C90, CX70, CX80, CX90, CX100, MX80C, MX90C, MX100C

Massey Ferguson: 35, 65, 135 (UK), 148, 154-4, 154-4S, 165, 231, 240, 250, 253, 254-4, 263, 360, 364S, 2615, MF20E, MF20F, MF30E, MF203, MF205, MF2135, MF3165

Massey Ferguson Fermec: 750, 760, 860, 860S, 860SE, 960, 965

Landini: 6860, 7860, 8860, 6880, 7880, 8880, 9080, 9880, 10000S, 12500, 13000, 14500

McCormick: CX70, CX80, CX90, CX100, C60, C100

Perkins Engines: 4.236 Series (A4.212, A4.236), 4.248 Series (A4.248), 4.318 Series (A4.318), 6.354 Series (A6.354.4)

Replaces Part Number(s):

388187A1, 388187A2, 323319A1, 234987A1, 6106496M91, 3763362M91, 3597372M2, 1868285M3

Aftermarket Interchange Numbers

Iskra / Letrika: 11130373, 11130386, 11130419, 11130807 | Lucas: LRS01375 | Elmot: 8060040000, 8060080000, 8630001, 8630004, 8630005, 8630007, R1104, R1108 | MAHLE / AZJ3330 | IS0807

New aftermarket replacement part - not remanufactured, not used.
