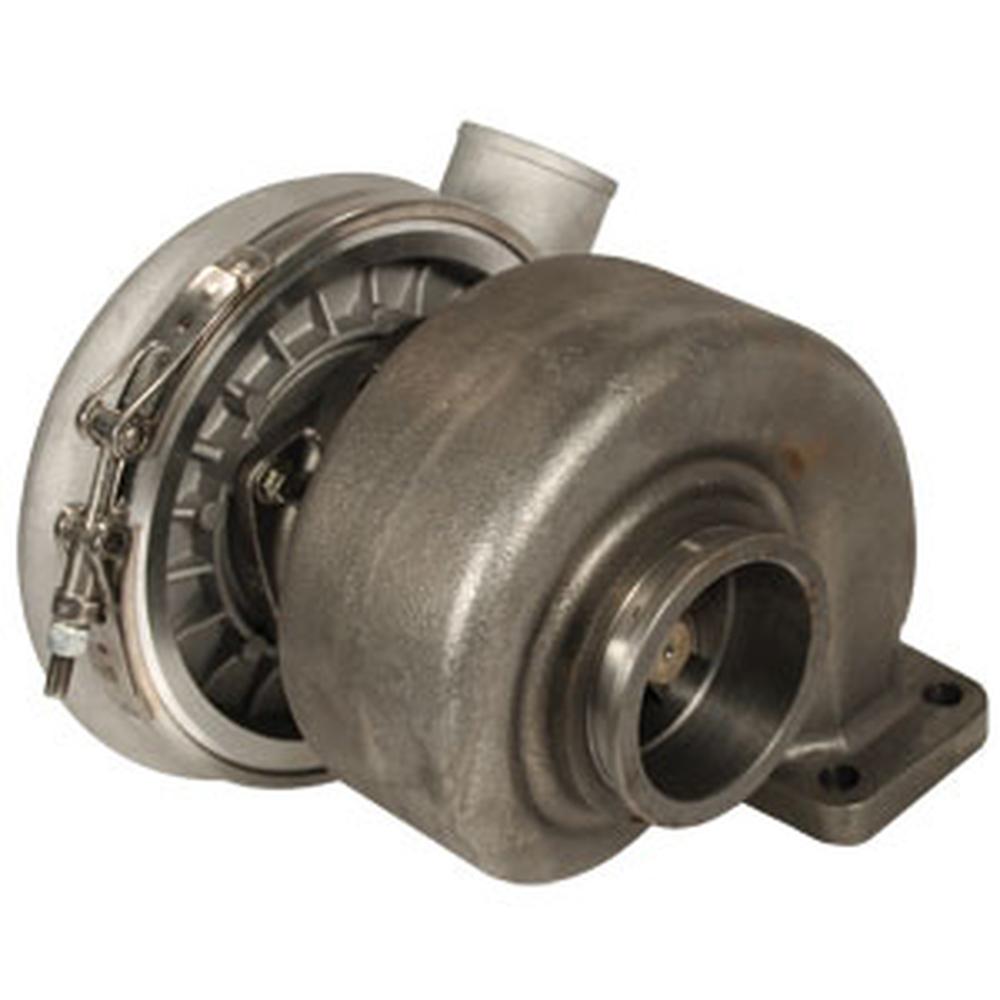

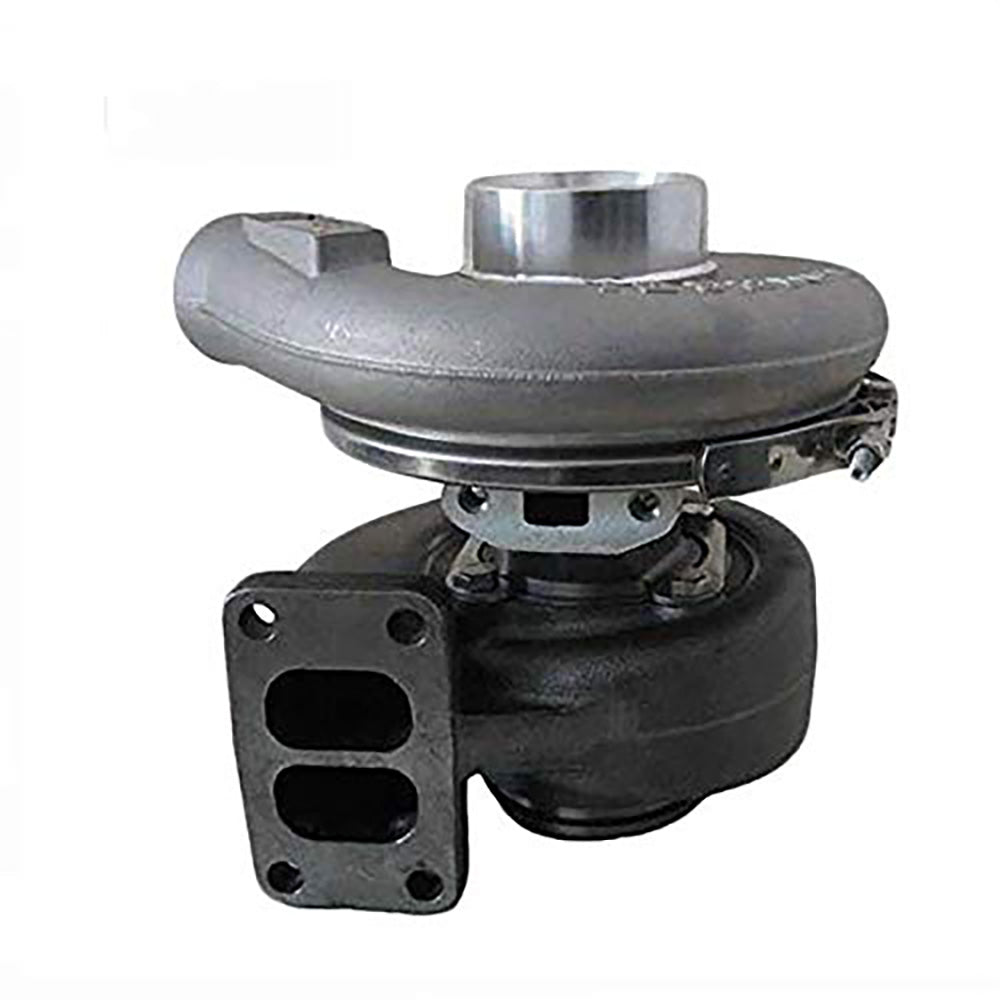

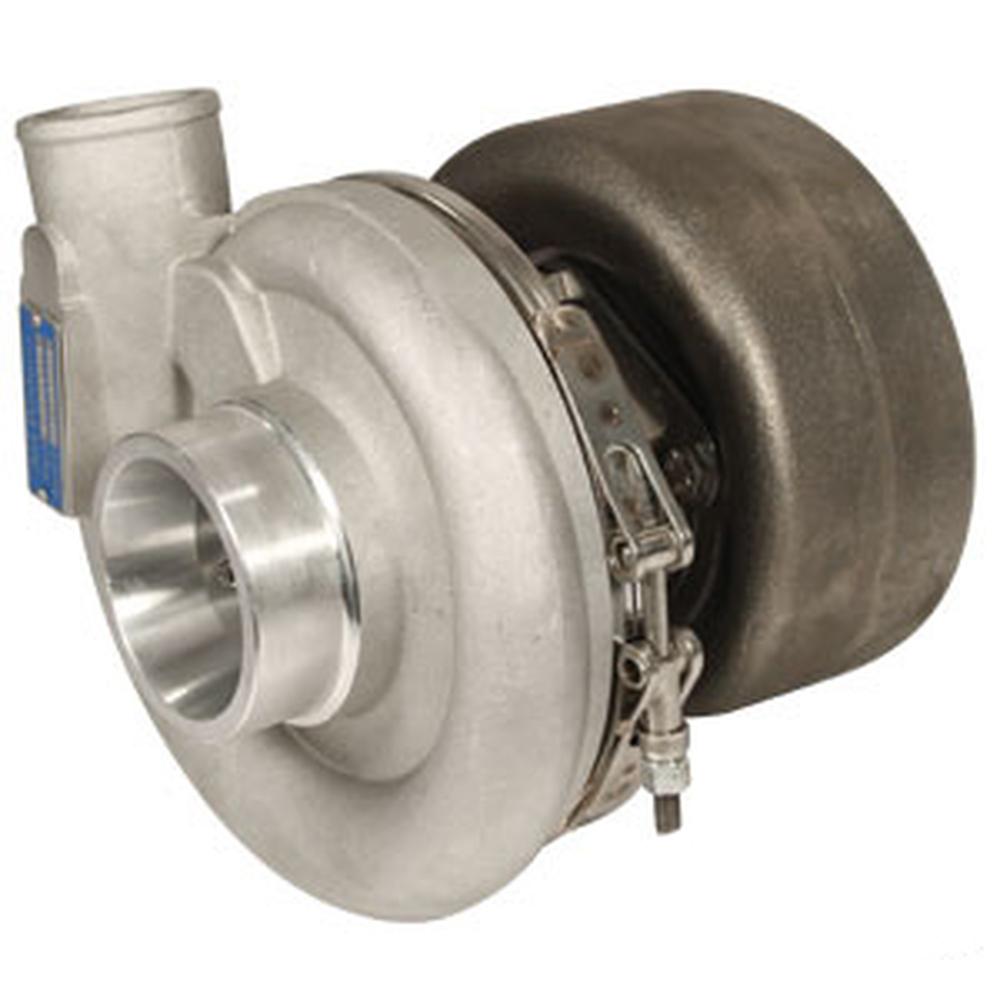

A-3802289-AI Turbocharger

One New Aftermarket Replacement H1C Turbocharger for Cummins 6BT / 6BTA Diesel Engines

This aftermarket replacement Holset H1C turbocharger fits Cummins 6BT, 6BTA, 6BT-590, and 6T-590 diesel engines found in a wide range of agricultural combines, tractors, and construction equipment. The H1C turbocharger boosts intake air flow to the engine, maintaining power output and fuel efficiency. Mounting gaskets are included. This is a direct bolt-on replacement -- not an add-on for non-turbocharged engines.

Specifications

• Turbo Model: Holset H1C
• Engine: Cummins 6BT, 6BTA, 6BT-590, 6T-590 (5.9L)
• Horsepower Rating: 180 HP
• Inlet Opening: 3 inch

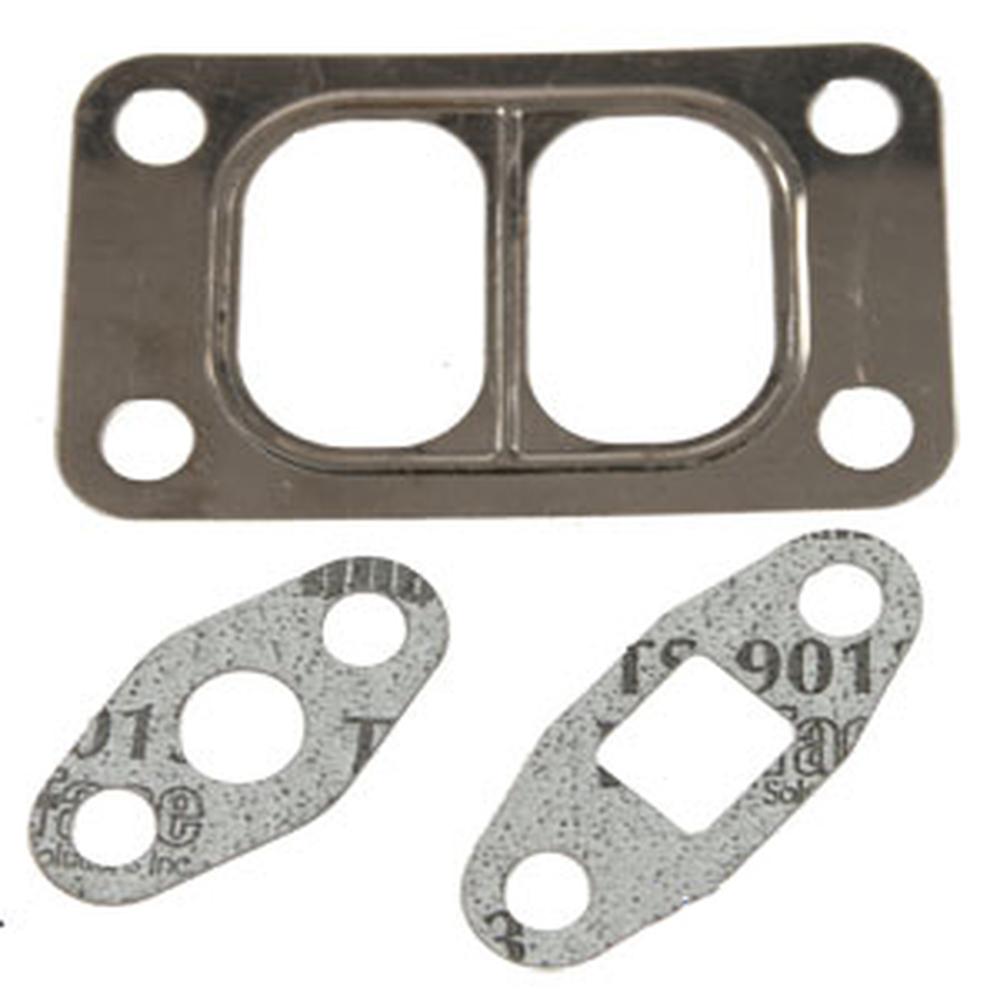

• Includes: Mounting Gaskets

Compatible Models

Cummins: Various equipment with 6BT, 6BTA, 6BT-590, 6T-590 engine (1994-2009)

Fits Case IH Combines: 1620 (s/n JJC0032630 and later), 1640 (s/n JJC0034705 and later), 1644, 2144 (s/n JJC0173150 and earlier)

Fits Case IH Harvesters: 1800, 1822 (s/n JJC0012691 and later), 2022

Fits Case IH Tractors: 1896, 2096, 5140, 5240, 5250, 6590T, 6590TA

Fits Case IH Hay Cutting: 8850

J.I. Fits Case Construction and Industrial: W14B, W14C, 621, 621B, 680L, 780C, 780D, 850D, 850E, 888, 1085B, 1085C, 1086B, 1088, 1150E, 1150G, 1155E, 9030, 9030B

J.I. Fits Case Crawler Dozers: 850D, 850E, 1150E, 1150G

White: 120

Fits Hyundai: Various with 6BT engine

Replaces Part Number(s):

3802289, 303453294

Aftermarket Interchange Numbers

3522777, 3522778, 3528741, 3528742, 3530714, 3530772, 3534285, 3534286, 3535414, 3535415, 3535416, 3535417, 3535418, 3535419, 3535420, 3535421, 3535454, 3538188, 3538277, 3802115, 3907026, 3907027, 3907028, 3907029, 3919113, 3919119, 3919121, A3919119, A3919121, J802289, J907026, J907028, J907029, J919113, J919115, J919117, J919121, JR802289, JR907026, JR907028, JR907029, 148571A1, 75287862, Z5884227, 466065-0001, 466065-0003, 466563-0001, 466563-0003, 466563-5003S, 166592, 847-1181, 991573C91, 1240544H91, 1815298C91, 1817311C91

New aftermarket replacement part - not remanufactured, not used.
