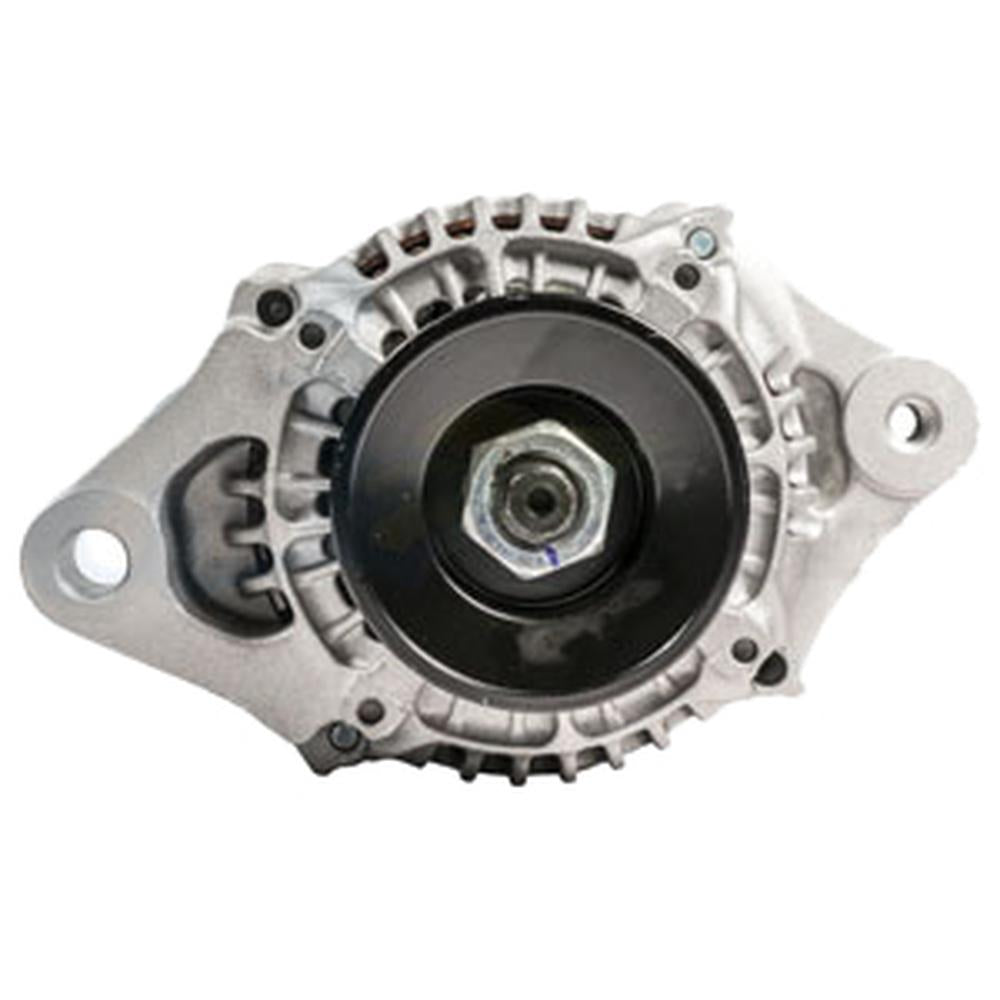

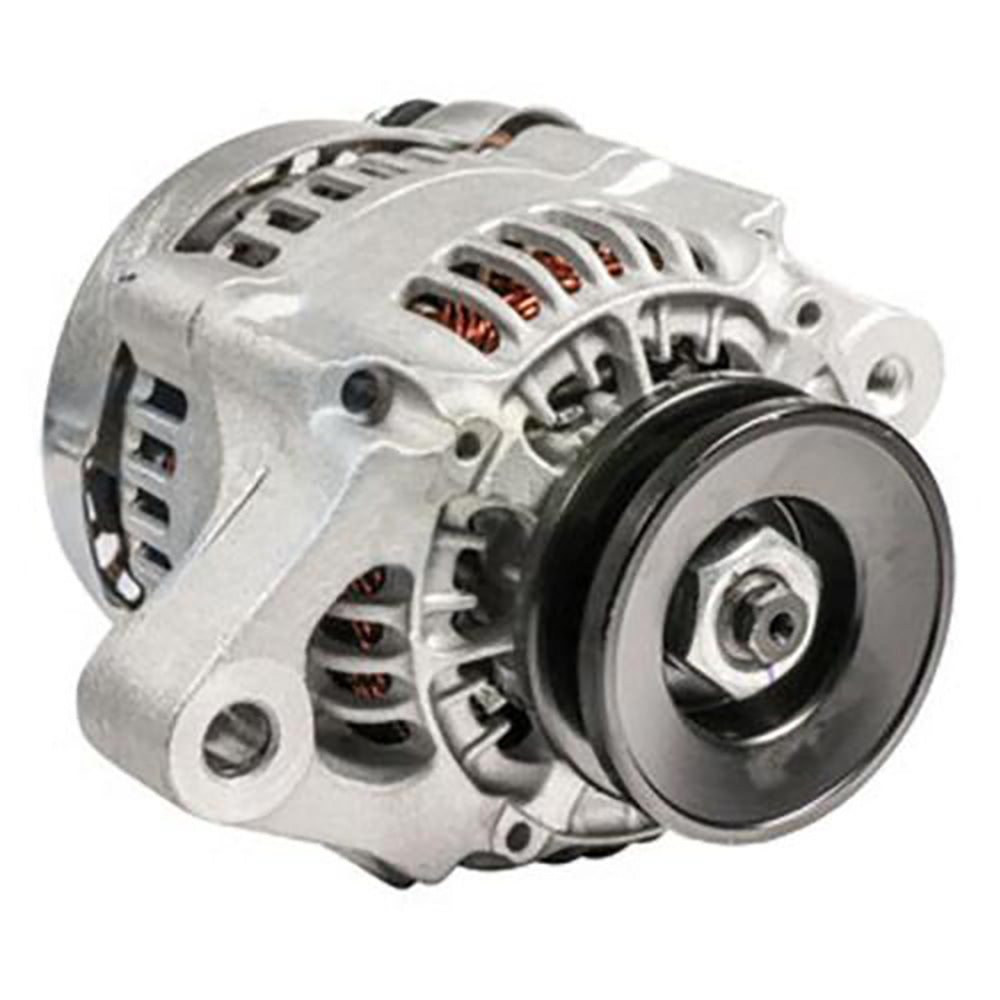

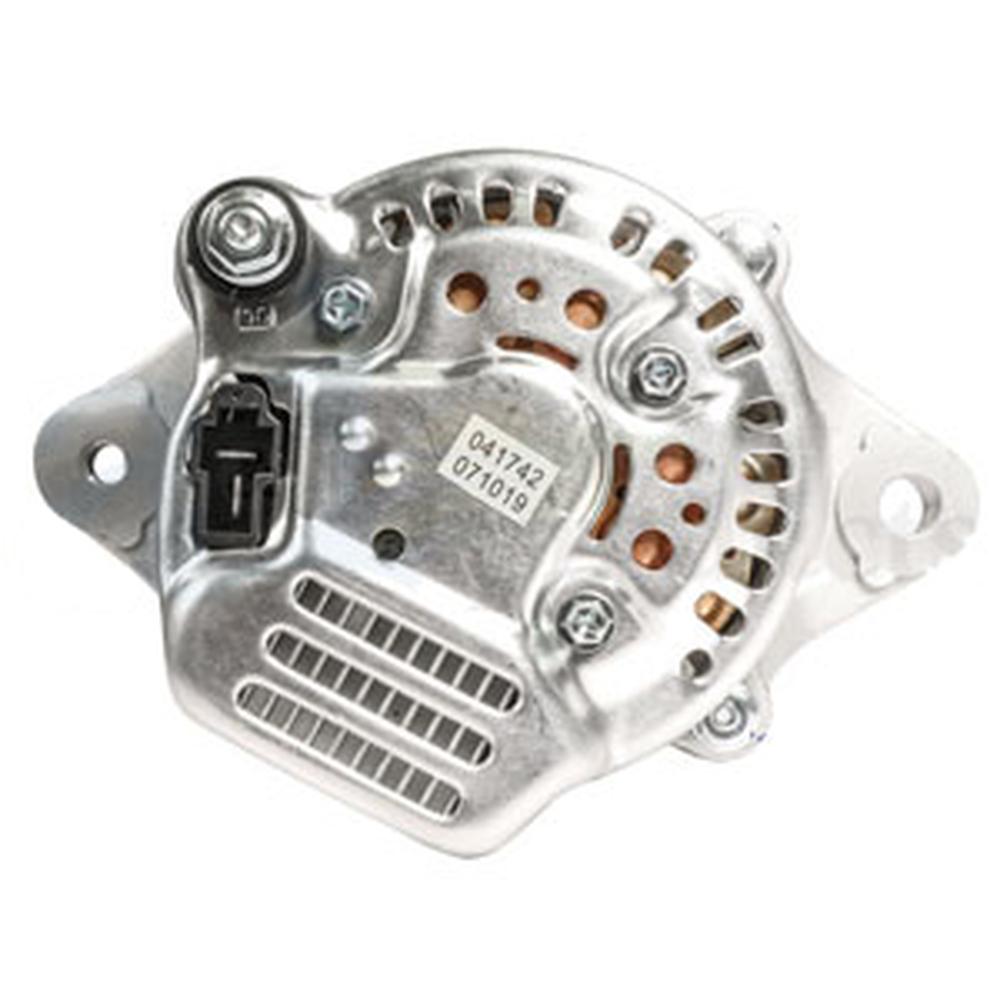

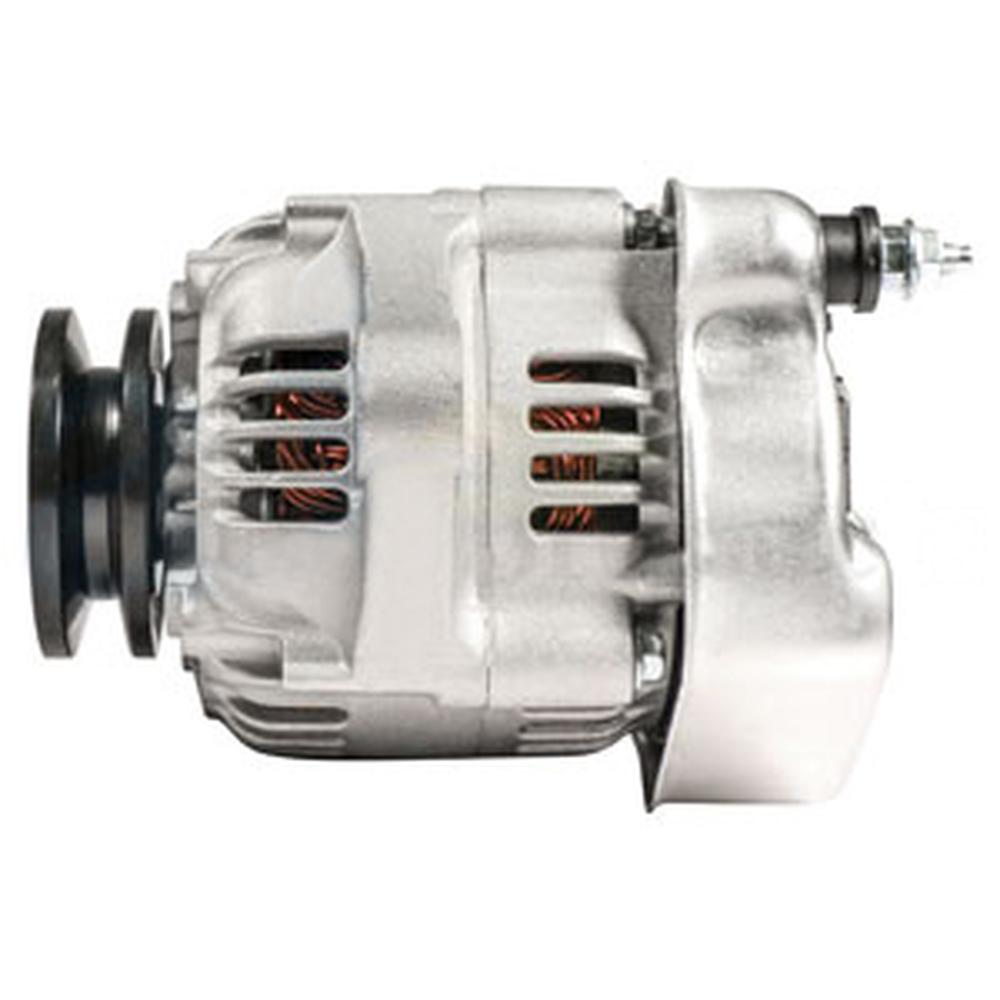

A-34070-75602-AI Alternator, ND/IR/IF

One New Aftermarket Replacement Alternator Fits Kubota (Fits Kubota) Compact Tractors and Excavators

This Fits Denso-type 12V/40A alternator with internal fan and internal regulator (ND/IR/IF) is a direct-fit aftermarket replacement for the Fits Kubota charging system found on a wide range of compact tractors, skid steers, and excavators. It replaces OEM Fits Kubota part number 34070-75602 and its Fits Denso cross-reference 100211-4650.

Specifications

• Voltage: 12V
• Amperage: 40A
• Unit Type: Fits Denso (ND/IR/IF - Internal Regulator, Internal Fan)
• Rotation: Clockwise (CW)
• Fan: Internal
• Regulator: Internal
• Pulley: V-Belt, 1-Groove
• Regulator Clock: 12:00
• Polarity: Negative
• Output Stud: M6-1.0
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.0mm Unthreaded

Compatible Models

Fits Kubota Compact Tractors: B1550DT, B1550DTEX, B1550HSD, B1550HSDT, B1550HSE (1988-1996/1997), B1750DT, B1750E, B1750HSD, B1750HSDT, B1750HSE (1988-1996), B2150DT, B2150DTB (1988-1996), L2900F/GST (1994-1998), L3010 Series (1998-2002), L3300 Series (1994-1998), L3410 Series (1998-2002), L35TL, L35TLB, L3600DT (1994-1998)

Fits Kubota Excavators: KX121-2, KX121-2S, KX161-2, KX161-2S

Fits Case Trencher: Maxi-Sneaker (with Fits Kubota V1505-B engine, 1993-2001)

Gehl Skid Steers: SL3825 (with Fits Kubota V1305E engine)

Replaces Part Number(s):

Fits Kubota: 34070-75600, 34070-75601, 34070-75602, 16427-64011, 16427-64012, 16705-64011, 16705-64012

Fits Denso: 100211-4650, 9760218-461

Fits Toro: 98-9474

Fits Valeo: 436497

New aftermarket replacement part - not remanufactured, not used.
